2019.5 VAUXHALL MOKKA X key

168Driving and operating
The funnel is stowed in the load
compartment.
Place the funnel in storage bin and
store into polybag.
Use the funnel to fill in the fuel into the
filler neck.
After topping-up, stow the funnel into
polybag in the load compartment.
Liquid gas refuelling
Follow the operating and safety
instructions of the filling station when
refuelling.
Filling adapter
As filling systems are not
standardised, different adapters are
required which are available from
Vauxhall Distributors and from
Vauxhall Authorised Repairers.
ACME adapter: Belgium, Germany,
Ireland, Luxembourg, Switzerland
DISH adapter: Austria, Bosnia-
Herzegovina, Bulgaria, Czech
Republic, Croatia, Denmark, Estonia, France, Greece, Hungary, Italy,
Latvia, Lithuania, Macedonia,
Poland, Portugal, Romania, Serbia,
Slovakia, Slovenia, Sweden,
Switzerland, Turkey, Ukraine

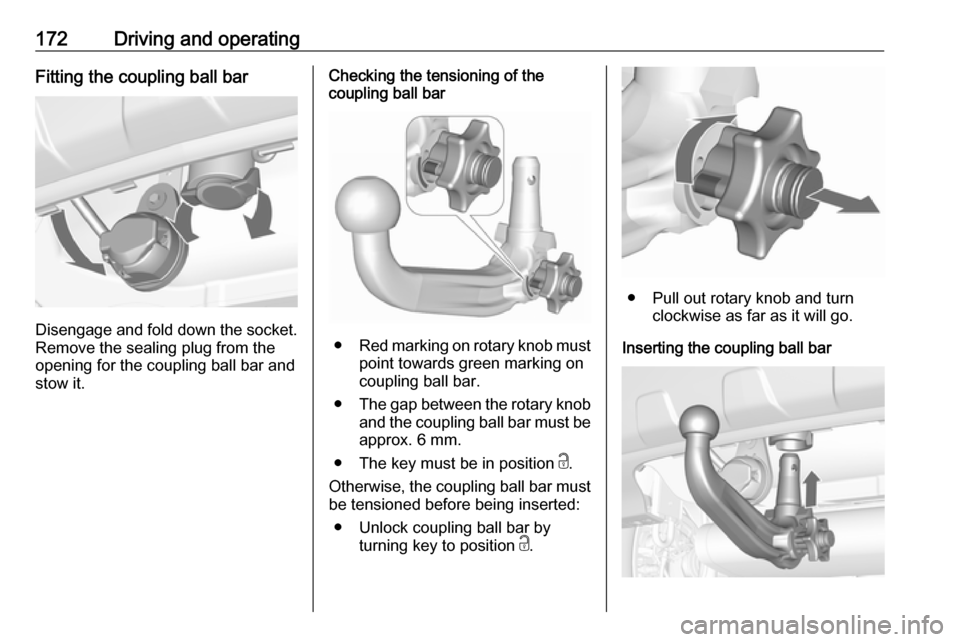

172Driving and operatingFitting the coupling ball bar
Disengage and fold down the socket.Remove the sealing plug from the
opening for the coupling ball bar and
stow it.
Checking the tensioning of the
coupling ball bar
● Red marking on rotary knob must
point towards green marking on
coupling ball bar.
● The gap between the rotary knob
and the coupling ball bar must be approx. 6 mm.
● The key must be in position c.
Otherwise, the coupling ball bar must be tensioned before being inserted:
● Unlock coupling ball bar by turning key to position c.
● Pull out rotary knob and turn
clockwise as far as it will go.
Inserting the coupling ball bar

Driving and operating173Insert the tensioned coupling ball bar
in the opening and push firmly
upwards until it audibly engages.
The rotary handle snaps back into its
original position resting against the
coupling ball bar without a gap.9 Warning
Do not touch rotary handle during
insertion.
Lock the coupling ball bar by turning
the key to position e. Remove the key
and close the protective flap.
Eye for break-away stopping cable
Attach breakaway stopping cable to
eye.
Check that the coupling ball bar is correctly installed
● Green marking on rotary knob must point towards green
marking on coupling ball bar.
● There must be no gap between the rotary handle and the
coupling ball bar.
● The coupling ball bar must be firmly engaged in the opening.
● The coupling ball bar must be locked and the key removed.9Warning
Towing a trailer is permitted only
when a coupling ball bar is fitted correctly. If the coupling ball bardoes not engage correctly, seekthe assistance of a workshop.
Dismounting the coupling ball bar
Open the protective flap and turn the
key to position c to unlock the
coupling ball bar.
Pull out rotary handle and turn
clockwise as far as it will go. Pull out coupling ball bar downwards.
Insert sealing plug in opening. Fold away socket.

Customer information231Delphiplatz 1, 42367 Wuppertal,
GermanyOperation
frequency (MHz)Maximum output
(mW)2400 - 2480102400 - 248020
Antenna module
Laird
Daimlerring 31, 31135 Hildesheim,
Germany
Operation frequency: N/A
Maximum output: N/A
Electronic key receiver
Denso Coperation
Waldeckerstraße 11, 64546
Mörfelden-Walldorf, Germany
Operation frequency: 125 kHz
Maximum output: -0.14 dBm
Electronic key transmitter
Denso Coperation
1-1, Showa-cho, Kariya-shi, Aichi-
ken 448-8661, Japan
Operation frequency: 433.92 MHz
Maximum output: -5.88 dBm
Radio remote control transmitter
Continental Automotive GmbH
Siemensstraße 12, 93055
Regensburg, Germany
Operation frequency: 433.92 MHz
Maximum output: -5.7 dBm
Radio remote control transmitter
Robert Bosch GmbH
Robert Bosch Platz 1, 70839
Gerlingen, Germany
Operation frequency: 433.92 MHz
Maximum output: -4 dbm
Radio remote control receiver
Robert Bosch GmbH
Robert Bosch Platz 1, 70839
Gerlingen, Germany
Operation frequency: N/A
Maximum output: N/A
Tyre pressure sensors
Schrader Electronics Ltd.
11 Technology Park, Belfast Road,
Antrim BT41 1QS, Northern Ireland,
United KingdomOperation frequency: 433.92 MHz
Maximum output: 10 mW
Parking heater remote control
receiver
Eberspächer Climate Control
Systemse GmbH & Co. KG
Eberspächerstraße 24, 73730
Esslingen, Gemany
Operation frequency: N/A
Maximum output: N/A
Parking heater remote control
transmitter
Eberspächer Climate Control
Systemse GmbH & Co. KG
Eberspächerstrasse 24, 73730
Esslingen, Gemany
Operation frequency: 434,6 MHz
Maximum output: 10 dBm

Customer information235EnGIS Technologies, Inc.
BringGo ®
is a registered trademark of
EnGIS Technologies, Inc.Google Inc.
Android™ and Google Play™ Store
are trademarks of Google Inc.Stitcher Inc.
Stitcher™ is a trademark of Stitcher,
Inc.Verband der Automobilindustrie e.V.
AdBlue ®
is a registered trademark of
the VDA.Vehicle data recording
and privacy
Event data recorders
Electronic control units are installed in
your vehicle. Control units process
data which is received by vehicle
sensors, for example, or which they
generate themselves or exchange
amongst themselves. Some control
units are necessary for the safe
functioning of your vehicle, others
assist you while you drive (driver
assistance systems), while others
provide comfort or infotainment
functions.
The following contains general
information about data processing in
the vehicle. You will find additional
information as to which specific data
is uploaded, stored and passed on to third parties and for what purpose in
your vehicle under the key word Data Protection closely linked to the
references for the affected functional
characteristics in the relevant owner's
manual or in the general terms of
sale. These are also available online.Operating data in the vehicle
Control units process data for
operation of the vehicle.
This data includes, e.g.: ● vehicle status information (e.g. speed, movement delay, lateral
acceleration, wheel rotation rate, "seat belts fastened" display)
● ambient conditions (e.g. temperature, rain sensor,
distance sensor)
As a rule such data is transient, not
stored for longer than an operational
cycle, and only processed on board
the vehicle itself. Control units often
include data storage (including the vehicle key). This is used to allowinformation to be documented
temporarily or permanently on vehicle
condition, component stress,
maintenance requirements and
technical events and errors.

241Control indicators.......................... 87
Control of the vehicle .................128
Controls ........................................ 76
Convex shape .............................. 32
Coolant and antifreeze ...............216
Cruise control ...................... 95, 149
Cupholders .................................. 58
Curtain airbag system .................. 50
D Danger, Warnings and Cautions ...4
Daytime running lights ...............114
Declaration of conformity ............230
DEF ............................................ 138
Delayed locking ............................ 27
Descent control system .......93, 148
Diesel exhaust fluid ....................138
Diesel fuel system bleeding .......181
Door open .................................... 96
Doors ............................................ 29
Driver assistance systems ..........149
Driver Information Centre .............96
Driving characteristics and towing tips .............................. 170
Driving hints ................................ 128
E Electric adjustment ......................32
Electrical system......................... 187
Electronic climate control system 123
Electronic driving programmes ..142Electronic key system ...................22
Electronic Stability Control.......... 147
Electronic Stability Control and Traction Control system ............93
Electronic Stability Control off....... 93
End-of-life vehicle recovery .......175
Engine compartment fuse box ...188
Engine coolant ........................... 178
Engine coolant temperature gauge ....................................... 86
Engine data ............................... 223
Engine exhaust .......................... 136
Engine identification ...................219
Engine oil ................... 177, 216, 220
Engine oil pressure ......................94
Entry lighting .............................. 119
Event data recorders ..................235
Exhaust filter ............................... 136
Exit lighting ................................ 120
Exterior care .............................. 212
Exterior light ................................. 95
Exterior lighting ....................12, 110
Exterior mirrors ............................. 32
F
Fault ........................................... 142
First aid kit ................................... 72
Fixed air vents ........................... 126
Flex-Fix system ............................ 60
Folding mirrors ............................. 32Following distance indication ......154
Forward collision alert................. 152
Front airbag system .....................49
Front fog lights .............95, 117, 184
Front seats.................................... 39
Front storage ................................ 59
Fuel............................................. 163
Fuel for diesel engines ..............165
Fuel for liquid gas operation .......165
Fuel for petrol engines ...............163
Fuel gauge ................................... 84
Fuel selector ................................ 85
Fuses ......................................... 187
G
Gauges ......................................... 83
Gear shifting ................................. 93
General information ...................170
Glovebox ..................................... 58
Glove box lighting .......................119
H Halogen headlights ....................183
Hand brake ................................. 145
Hazard warning flashers ............116
Headlight flash ........................... 112
Headlight range adjustment ......113
Headlights when driving abroad 113
Head restraint adjustment .............8
Head restraints ............................ 38
Heated mirrors ............................. 33

242Heated rear window ..................... 36
Heated steering wheel .................76
Heating ........................................ 42
Heating and ventilation system . 121
High beam ........................... 95, 111
High beam assist ..................95, 112
Hill start assist ........................... 146
Horn ....................................... 13, 77
I
Identification plate .....................218
Ignition switch positions .............129
Immobiliser ............................ 31, 95
Indicators ...................................... 83
Info Display ................................. 101
Information displays...................... 96
Initial drive information.................... 6
Instrument panel fuse box .........189
Instrument panel illumination control .................................... 118
Instrument panel overview ........... 10
Interior care ............................... 214
Interior lighting ............................ 118
Interior lights .............................. 118
Interior mirrors .............................. 33
Interruption of power supply ......143
Introduction .................................... 3
J
Jump starting ............................. 208K
Key, memorised settings ..............24
Keys ............................................. 20
Keys, locks ................................... 20
L
Lane departure warning .......93, 162
Lashing eyes ............................... 72
Lighting features .........................119
Light switch ................................ 110
Load compartment ................29, 70
Load compartment cover .............71
Load compartment fuse box ......191
Loading information .....................73
Low fuel ....................................... 94
LPG .............................. 85, 165, 220
M Malfunction indicator light ............92
Manual anti-dazzle ......................33
Manual mode ............................. 142
Manual transmission .................. 143
Manual windows ..........................34
Memorised settings ......................24
Midlevel display ............................ 96
Mirror adjustment ........................... 8
Misted light covers .....................118
N New vehicle running-in ..............128
Number plate light .....................186O
Object detection systems ...........155
Odometer ..................................... 83
Oil, engine .......................... 216, 220
Outside temperature ....................79
Overrun cut-off ........................... 133
P Parking ................................ 18, 135
Parking assist ............................ 155
Parking brake ............................ 145
Particulate filter ........................... 136
Performance .............................. 225
Performing work ........................176
Power button .............................. 130
Power outlets ............................... 82
Power steering fluid ....................178
Power windows ............................ 34
Preheating ................................... 94
Puncture ..................................... 203
R Radio Frequency Identification (RFID) ..................................... 238
Radio remote control ...................21
REACH ....................................... 233
Reading lights ............................ 119
Rear carrier system ......................60
Rear floor storage cover ..............72
Rear fog light ...............95, 117, 186
Rear view camera ...................... 157
