Important manual information
EAU63350
Particularly important information is distinguished in this manual by the following
notations:
*Product and specifications are subject to change without notice.
EAUN0430
This is the safety alert symbol. It is use d to
alert you to potential personal injury haz-
ar ds. O bey all safety messag es that follow
this symb ol to avoid possi ble injury or death.
A WARNING in dicates a hazar dous situation
which, if not avoi ded , coul d result in d eath or
serious injury.
A NOTICE in dicates special precautions that
must be taken to avoi d d amag e to the vehi-
cle or other property.
A TIP provides key information to make proce-
dures easier or clearer.
GPD125-A/GPD150-A OWNER’S MANUAL
©2016 PT Yamaha In donesia Motor
Manufacturin g
1st e dition, Decem ber 2016
All ri ghts reserve d.
Any reprintin g or unauthorize d use
without the written permission of
PT Yamaha In donesia Motor Manufac-
turing
is expressly prohi bite d.
Printe d in In donesia.
WARNING
NOTICE
TIP
UBV3E0E0.book Page 1 Monday, September 26, 2016 3:42 PM

Table of contents
Safety information ............................1-1
Further safe-riding points ................1-5
Description ........................................2-1
Left view ..........................................2-1
Right view........................................2-2
Controls and instruments ................2-3
Instrument an d control functions ....3-1
Main switch/steering lock ...............3-1
Keyhole shutter ...............................3-2
Indicator lights and warning lights ............................................3-3
Multi-function meter unit .................3-4
Handlebar switches.........................3-9
Front brake lever ...........................3-10
Rear brake lever ............................3-11
ABS ...............................................3-11
Fuel tank cap.................................3-12
Fuel................................................3-13
Fuel tank overflow hose ................3-15
Catalytic converter ........................3-15
Seat ...............................................3-16
Storage compartments .................3-16
Sidestand ......................................3-17
Ignition circuit cut-off system........3-18
For your safety – pre-operation
checks ...............................................4-1
Operation an d important ri din g
points .................................................5-1
Starting the engine ..........................5-1
Starting off.......................................5-2
Acceleration and deceleration.........5-3
Braking ............................................5-3
Tips for reducing fuel consumption ................................5-4
Engine break-in ...............................5-4
Parking ............................................5-5
Perio dic maintenance an d
a d justment ........................................6-1
Owner’s tool kit ...............................6-2
Periodic maintenance chart for the emission control system ........6-3 General maintenance and
lubrication chart........................... 6-4
Removing and installing panels ...... 6-7
Checking the spark plug ................. 6-9
Engine oil and oil strainer.............. 6-10
Final transmission oil .................... 6-12
Coolant ......................................... 6-13
Air filter and V-belt case air filter elements ............................ 6-17
Checking the throttle grip free play ..................................... 6-19
Valve clearance ............................. 6-20
Tires .............................................. 6-20
Cast wheels .................................. 6-22
Checking the front and rear brake lever free play .................. 6-23
Checking the front and rear
brake pads................................. 6-24
Checking the brake fluid level....... 6-25
Changing the brake fluid............... 6-26
Checking the V-belt ...................... 6-26
Checking and lubricating the cables ........................................ 6-27
Checking and lubricating the throttle grip and cable ............... 6-27
Lubricating the front and rear
brake levers ............................... 6-28
Checking and lubricating the centerstand and sidestand ........ 6-28
Checking the front fork ................. 6-29
Checking the steering ................... 6-29
Checking the wheel bearings ....... 6-30
Battery .......................................... 6-30
Replacing the fuses ...................... 6-32
Headlight....................................... 6-33
Replacing an auxiliary light bulb ... 6-34
Brake light ..................................... 6-35
Replacing the taillight bulb ........... 6-35
Replacing a front turn signal light bulb .................................... 6-37
Replacing a rear turn signal
light bulb .................................... 6-38
Troubleshooting ............................ 6-39
Troubleshooting charts ................. 6-40
UBV3E0E0.book Page 1 Monday, September 26, 2016 3:42 PM

Instrument and control functions
3-1
3
EAUN0264
Main switch/steerin g lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
main switch positions are described
below.
TIP
The main switch/steering lock is
equipped with a keyhole shutter. (See
page 3-2 for keyhole shutter opening
and closing procedures.)
EAU60600ON
All electrical circuits are supplied with
power; the meter lighting, taillight and
auxiliary lights come on, and the en-
gine can be started. The key cannot be
removed.
TIP
The headlight comes on automatically
when the engine is started and stays
on until the key is turned to “OFF”,
even if the engine stalls.
EAU10662OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is movin g.
Otherwise the electrical systems will
b e switche d off, which may result in
loss of control or an acci dent.
EAU1068BLOCK
The steering is locked and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left.
2. With the key in the “OFF” position, push the key in and turn it to
“LOCK”.
3. Remove the key.
TIP
If the steering will not lock, try turning
the handlebars back to the right slight-
ly.
ON
OFF
LOCK
1. Push.
2. Turn.
12
UBV3E0E0.book Page 1 Monday, September 26, 2016 3:42 PM

Instrument and control functions
3-2

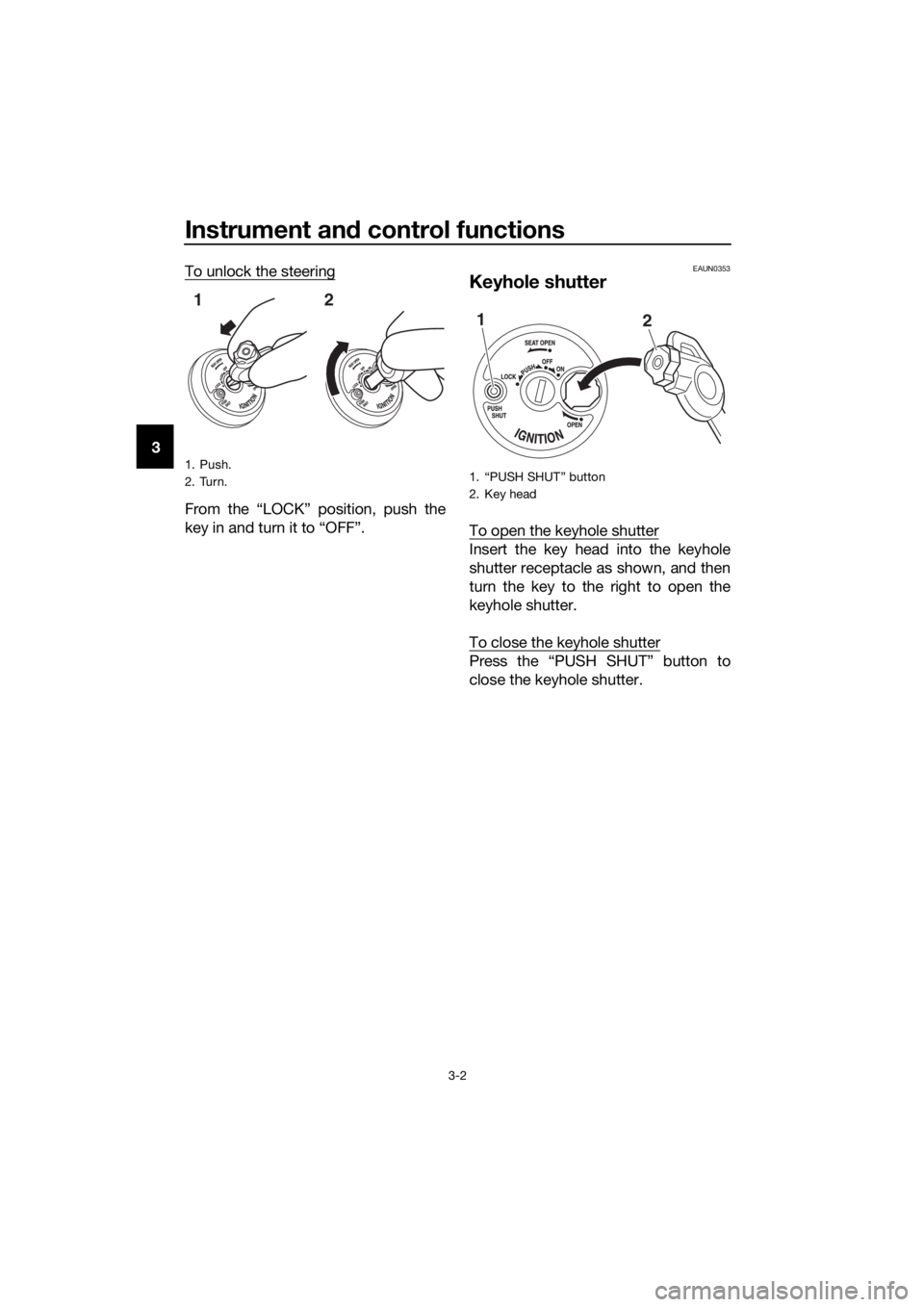

3 To unlock the steering
From the “LOCK” position, push the
key in and turn it to “OFF”.
EAUN0353
Keyhole shutter
To open the keyhole shutter
Insert the key head into the keyhole
shutter receptacle as shown, and then
turn the key to the right to open the
keyhole shutter.
To close the keyhole shutter
Press the “PUSH SHUT” button to
close the keyhole shutter.
1. Push.
2. Turn.
12
1. “PUSH SHUT” button
2. Key head
12
UBV3E0E0.book Page 2 Monday, September 26, 2016 3:42 PM

Instrument and control functions
3-3
3
EAU4939B
In dicator li ghts an d warnin g
li g hts
EAU11032Turn si gnal in dicator li ghts “ ”
an d“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU11081Hi gh beam in dicator li ght “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU67440Coolant temperature warnin g
li g ht “ ”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool. The electrical circuit of the warning
light can be checked by turning the key
to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
NOTICE
ECA10022
Do not continue to operate the en-
g
ine if it is overheatin g.
TIP
If the engine overheats, see page 6-41
for further instructions.
EAU73171En gine trou ble warnin g li ght “ ”
This warning light comes on if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system.
The electrical circuit of the warning
light can be checked by turning the key
to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the vehicle.
EAUU1810ABS warnin g lig ht “ ”
In normal operation, the ABS warning
light comes on when the key is turned
to “ON”, and goes off after traveling at
a speed of 10 km/h (6 mi/h) or higher.
If the ABS warning light:
1. Right turn signal indicator light “ ”
2. High beam indicator light “ ”
3. Coolant temperature warning light “ ”
4. Anti-lock Brake System (ABS) warning light “ ”
5. Engine trouble warning light “ ”
6. Left turn signal indicator light “ ”
6
5
4
1
2
3
ABS
ABS
UBV3E0E0.book Page 3 Monday, September 26, 2016 3:42 PM

Instrument and control functions
3-4
3 
does not come on when the key is
turned to “ON”
 comes on or flashes while riding
 does not go off after traveling at a
speed of 10 km/h (6 mi/h) or high-
er
The ABS may not work correctly. If any
of the above occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 3-11 for an expla-
nation of the ABS.)
WARNING
EWA16041
If the ABS warnin g li ght does not go
off after travelin g at a speed of 10
km/h (6 mi/h) or hi gher, or if the
warnin g li ght comes on or flashes
while ri din g, the brake system re-
verts to conventional brakin g. If ei-
ther of the a bove occurs, or if the
warnin g li ght does not come on at
all, use extra caution to avoi d possi-
b le wheel lock during emer gency
b rakin g. Have a Yamaha dealer
check the brake system an d electri-
cal circuits as soon as possi ble.
TIP
The ABS warning light may come on
while accelerating the engine with the
vehicle on its centerstand, but this
does not indicate a malfunction.
EAUN0983
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
makin g any settin g chan ges to the
multi-function meter unit. Chang ing
settin gs while ri din g can d istract the
operator an d increase the risk of an
acci dent.
The multi-function meter unit is
equipped with the following:
 a speedometer
 a clock
 a fuel meter
 an instantaneous fuel consump-
tion meter
 a multi-function display
TIP
B e s u r e t o t u r n t h e k e y t o “ O N ” b e -
fore using the “SELECT” and “RE-
SET” buttons.
 For the UK: To switch the speed-
ometer between km/h and MPH,
press the “SELECT” button for
1. Fuel meter
2. Clock
3. Speedometer
4. Instantaneous fuel consumption meter
5. “RESET” button
6. Multi-function display
7. “SELECT” button
2314
675
UBV3E0E0.book Page 4 Monday, September 26, 2016 3:42 PM

Instrument and control functions
3-5
3
one second when the multi-func-
tion meter is in odometer mode,
tripmeter 1, or tripmeter 2 mode .
Speed
ometer
The speedometer shows the vehicle’s
traveling speed.
Clock
The clock uses a 12-hour time system.
To set the clock
1. Turn the key to “ON”.
2. Push the “SELECT” button and “RESET” button together for at
least two seconds.
3. When the hour digits start flash- ing, push the “RESET” button to
set the hours.
4. Push the “SELECT” button, and
the minute digits will start flashing.
5. Push the “RESET” button to set the minutes.
6. Push the “SELECT” button and then release it to start the clock. Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last segment and
fuel level warning indicator “ ” start
flashing, refuel as soon as possible.
TIP
If a problem is detected in the electrical
circuit, the following cycle is repeated
until the malfunction is corrected: fuel
level segments and fuel level warning
indicator “ ” flash eight times, then go
off for approximately 3 seconds. Have
a Yamaha dealer check the electrical
circuit.
1. Clock
11. Fuel meter
2. Fuel level warning indicator “ ”
12
UBV3E0E0.book Page 5 Monday, September 26, 2016 3:42 PM

Instrument and control functions
3-11
3
EAU12952
Rear brake lever
The rear brake lever is located on the
left side of the handlebar. To apply the
rear brake, pull this lever toward the
handlebar grip.
EAU66680
ABS
The Yamaha ABS (Anti-lock Brake
System) features a dual electronic con-
trol system, which acts on the front and
rear brakes independently.
Operate the brakes with ABS as you
would conventional brakes. If the ABS
is activated, a pulsating sensation may
be felt at the brake levers. In this situa-
tion, continue to apply the brakes and
let the ABS work; do not “pump” the
brakes as this will reduce braking ef-
fectiveness.
WARNING
EWA16051
Always keep a sufficient distance
from the vehicle ahea d to match the
ri din g speed even with ABS.
 The ABS performs best with
lon g b rakin g d istances.
 On certain surfaces, such as
rou gh or g ravel roa ds, the b rak-
in g d istance may be lon ger with
the ABS than without.
The ABS is monitored by an ECU,
which will revert the system to conven-
tional braking if a malfunction occurs.
TIP
 The ABS performs a self-diagno-
sis test each time the vehicle first
starts off after the key is turned to
“ON” and the vehicle has traveled
at a speed of 10 km/h (6 mi/h) or
higher. During this test, a “click-
ing” noise can be heard from the
front of the vehicle, and if either
brake lever is even slightly ap-
plied, a vibration can be felt at the
lever, but these do not indicate a
malfunction.
1. Rear brake lever
1
UBV3E0E0.book Page 11 Monday, September 26, 2016 3:42 PM
