2018 YAMAHA NIKEN fuse

Table of contents
Checking and lubricating the
sidestand ...................................6-27
Lubricating the swingarm pivots ...6-27
Checking the front fork..................6-28
Checking the steering ...................6-28
Lubricating the steering bearings .....................................6-29
Checking the wheel bearings ........6-29
Battery ...........................................6-29
Replacing the fuses .......................6-31
Vehicle lights .................................6-33
Stability bar ...................................6-33
Troubleshooting ............................6-33
Troubleshooting charts .................6-35
Motorcycle care an d stora ge ..........7-1
Matte color caution .........................7-1
Care .................................................7-1
Storage ............................................7-3
Specifications ....................................8-1
Consumer information .....................9-1
Identification numbers .....................9-1
Diagnostic connector ......................9-2
Vehicle data recording ....................9-2
In dex ................................................10-1
UBD5E0E0.book Page 2 Wednesday, April 25, 2018 2:23 PM

Description
2-2
2
EAU10421
Right view
2
1
1
4
3
6
7
8
9
5
1. Fuses (page 6-31)
2. Rear brake fluid reservoir (page 6-21)
3. Fuel tank cap (page 3-23)
4. Rebound damping force adjuster (page 3-30)
5. Compression damping force adjuster (page 3-30)
6. Coolant reservoir (page 6-13)
7. Engine oil level check window (page 6-11)
8. Engine oil filler cap (page 6-11) 9. Brake pedal (page 3-20)UBD5E0E0.book Page 2 Wednesday, April 25, 2018 2:23 PM

Instrument and control functions
3-33
3 
Do not dispose of a damag ed or
worn-out shock a bsor ber as-
sem bly yourself. Take the shock
a b sor ber assem bly to a Yamaha
d ealer for any service.
EAU49454

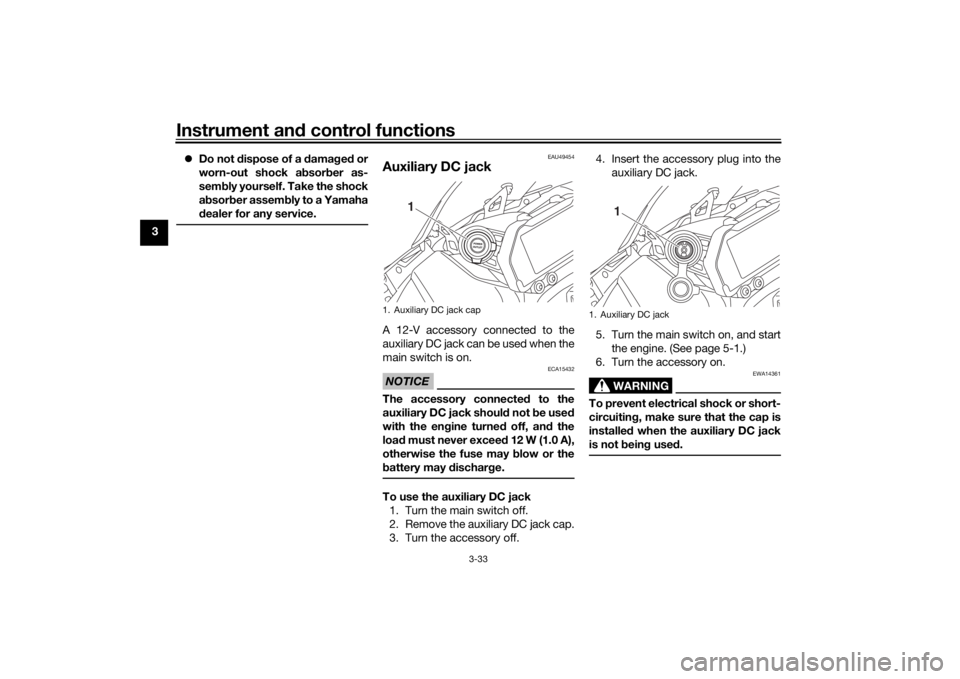

Auxiliary DC jackA 12-V accessory connected to the
auxiliary DC jack can be used when the
main switch is on.NOTICE
ECA15432
The accessory connecte d to the
auxiliary DC jack shoul d not b e used
with the en gine turne d off, an d the
loa d must never exceed 12 W (1.0 A),
otherwise the fuse may blow or the
b attery may d ischarge.To use the auxiliary DC jack
1. Turn the main switch off.
2. Remove the auxiliary DC jack cap.
3. Turn the accessory off. 4. Insert the accessory plug into the
auxiliary DC jack.
5. Turn the main switch on, and start the engine. (See page 5-1.)
6. Turn the accessory on.
WARNING
EWA14361
To prevent electrical shock or short-
circuitin g, make sure that the cap is
installe d when the auxiliary DC jack
is not bein g use d.
1. Auxiliary DC jack cap
1
1. Auxiliary DC jack
1
UBD5E0E0.book Page 33 Wednesday, April 25, 2018 2:23 PM

Periodic maintenance an d a djustment
6-31
6
EAU84650
Replacin g the fusesThe fuse boxes and individual fuses
are located under the rider seat (see
page 3-27) and behind panel A (see
page 6-9).
To access fuse box 1, the main fuse,
and the ABS motor fuse, remove the
rider seat. (See page 3-27.)
TIPTo access the ABS motor fuse, remove
the starter relay cover by pulling it up-
ward.
To access fuse box 2, fuse box 3, the
brake light fuse, and the cruise control
fuse, remove panel A. (See page 6-9.)
1. ABS motor spare fuse
2. ABS motor fuse
3. Fuse box 1
4. Main fuse
1 2
34
1. Fuel injection system fuse
2. ABS solenoid fuse
3. Electronic throttle valve fuse
4. Backup fuse (for clock and immobilizer sys-tem)
5. Heater fuse
6. Spare fuse
1234
65
1. Starter relay cover
2. ABS motor spare fuse
3. ABS motor fuse
1. Fuse box 2
2. Fuse box 3
3. Cruise control fuse
4. Brake light fuse
2 3
1
2
3
41
UBD5E0E0.book Page 31 Wednesday, April 25, 2018 2:23 PM

Periodic maintenance an d a djustment
6-32
6
If a fuse is blown, replace it as follows.1. Turn the main switch off and turn off the electrical circuit in ques-
tion.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a hi gher ampera ge
ratin g than recommen ded to avoi
d causin g extensive d am-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
3. Turn the main switch on and turn
on the electrical circuit in question
to check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
1. Signaling system fuse
2. ABS control unit fuse
3. Accessory fuse
4. Ignition fuse
5. Hazard fuse
6. Terminal fuse 1
7. Terminal fuse 2
8. Headlight fuse
9. Right radiator fan motor fuse
10.Left radiator fan motor fuse
11.Spare fuse
11 1
2
3
11
10 9876 5 4
Specifie
d fuses:
Main fuse: 50.0 A
ABS motor fuse:
30.0 A
Cruise control fuse: 1.0 A
Brake light fuse: 1.0 A
Specifie d fuses (fuse box 1):
Fuel injection system fuse: 25.0 A
ABS solenoid fuse: 20.0 A
Electronic throttle valve fuse:
7.5 A
Backup fuse: 7.5 A
Heater fuse: 10.0 A
Specifie d fuses (fuse box 2):
Signaling system fuse:
7.5 A
ABS control unit fuse:
5.0 A
Accessory fuse: 5.0 A
Ignition fuse: 15.0 A
Specifie d fuses (fuse box 3):
Hazard fuse: 7.5 A
Te r m i n a l f u s e 1 : 2.0 A
Te r m i n a l f u s e 2 :
2.0 A
Radiator fan motor fuse: 10.0 A × 2
Headlight fuse: 10.0 A
UBD5E0E0.book Page 32 Wednesday, April 25, 2018 2:23 PM

Periodic maintenance an d a djustment
6-33
6
EAU72980
Vehicle li ghtsThis model is equipped with full-LED
lighting. There are no user replaceable
bulbs.
If a light does not come on, check the
fuses and then have a Yamaha dealer
check the vehicle.NOTICE
ECA16581
Do not affix any type of tinte d film or
stickers to the head lig ht lens.
EAU84980
Sta bility barThis model is equipped with a stability
bar.NOTICE
ECA26440
The stab ility bar was not d esigne d to
support the wei ght of the vehicle. Do
not use the sta bility bar as a jackin g
point.
EAU25872
Trou bleshootin gAlthough Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWA15142
When checkin g the fuel system, d o
not smoke, an d make sure there are
no open flames or sparks in the ar-
ea, inclu din g pilot li ghts from water
1. Stability bar
1
UBD5E0E0.book Page 33 Wednesday, April 25, 2018 2:23 PM

10-1
10
Index
AABS....................................................... 3-20
ABS warning light ................................... 3-6
Air filter element.................................... 6-15
Auxiliary DC connector ......................... 3-34
Auxiliary DC jack .................................. 3-33BBattery .................................................. 6-29
Brake and clutch levers, checking and
lubricating........................................... 6-26
Brake and shift pedals, checking and lubricating........................................... 6-26
Brake fluid, changing............................ 6-23
Brake fluid level, checking.................... 6-21
Brake lever............................................ 3-20
Brake lever free play, checking ............ 6-19
Brake light switches ............................. 6-20
Brake pedal .......................................... 3-20CCables, checking and lubricating ......... 6-25
Canister ................................................ 6-11
Care ........................................................ 7-1
Catalytic converter ............................... 3-26
Clutch lever........................................... 3-18
Clutch lever free play, adjusting ........... 6-19
Coolant ................................................. 6-13
Coolant temperature warning light ......... 3-6
Cruise control indicator lights................. 3-5
Cruise control switches .......................... 3-4
Cruise control system............................. 3-8DData recording, vehicle........................... 9-2
Diagnostic connector ............................. 9-2
Dimmer/Pass switch............................... 3-4 D-mode (drive mode) ........................... 3-18
Drive chain, cleaning and lubricating ... 6-24
Drive chain slack .................................. 6-23
Drive mode switch ................................. 3-4
EEngine break-in ...................................... 5-3
Engine idling speed, checking ............. 6-15
Engine oil.............................................. 6-11
Engine serial number ............................. 9-1
Engine trouble warning light .................. 3-6FFront and rear brake pads, checking ... 6-20
Front fork, adjusting ............................. 3-30
Front fork, checking ............................. 6-28
Fuel ...................................................... 3-24
Fuel consumption, tips for reducing ...... 5-3
Fuel tank cap........................................ 3-23
Fuel tank overflow hose ....................... 3-26
Fuses, replacing ................................... 6-31HHandlebar switches ............................... 3-3
Hazard switch ........................................ 3-4
Helmet holding cable ........................... 3-28
High beam indicator light ....................... 3-5
Horn switch ............................................ 3-4IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-35
Immobilizer system ................................ 3-1
Immobilizer system indicator light ......... 3-7
Indicator lights and warning lights ......... 3-5MMain switch/steering lock ...................... 3-2
Maintenance and lubrication, periodic... 6-5Maintenance, emission control
system .................................................. 6-3
Matte color, caution................................ 7-1
MENU switch .......................................... 3-4
Model label ............................................. 9-1
Multi-function meter unit ...................... 3-11
NNeutral indicator light ............................. 3-5OOil level warning light .............................. 3-5PPanel, removing and installing ................ 6-9
Parking.................................................... 5-4
Part locations.......................................... 2-1QQuick shift system ................................ 3-19RRear view mirrors .................................. 3-30SSafety information................................... 1-1
Seats ..................................................... 3-27
SELECT switch ....................................... 3-4
Shift indicator light .................................. 3-7
Shifting.................................................... 5-2
Shift pedal............................................. 3-19
Shock absorber assembly, adjusting ... 3-31
Sidestand.............................................. 3-34
Sidestand, checking and lubricating .... 6-27
Spark plugs, checking .......................... 6-10
Specifications ......................................... 8-1
Stability bar ........................................... 6-33
Starting the engine ................................. 5-1
Steering bearings, lubricating ............... 6-29
Steering, checking ................................ 6-28
UBD5E0E0.book Page 1 Wednesday, April 25, 2018 2:23 PM
