Instrument and control functions
3-26
3
EAU80200
Fuel tank overflow hoseBefore operating the vehicle:
 Check the fuel tank overflow hose
connection.
 Check the fuel tank overflow hose
for cracks or damage, and replace
it if necessary.
 Make sure that the end of the fuel
tank overflow hose is not blocked,
and clean it if necessary.
 Make sure that the end of the fuel
tank overflow hose is positioned
as shown.
TIPSee page 6-11 for canister information.
EAU13434
Catalytic converterThis model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazar d or
b urns:
 Do not park the vehicle near
possi ble fire hazar ds such as
g rass or other materials that
easily burn.
 Park the vehicle in a place
where pe destrians or chil dren
are not likely to touch the hot
exhaust system.
 Make sure that the exhaust sys-
tem has coole d down before
d oin g any maintenance work.
 Do not allow the en gine to i dle
more than a few minutes. Lon g
i d lin g can cause a b uild-up of
heat.

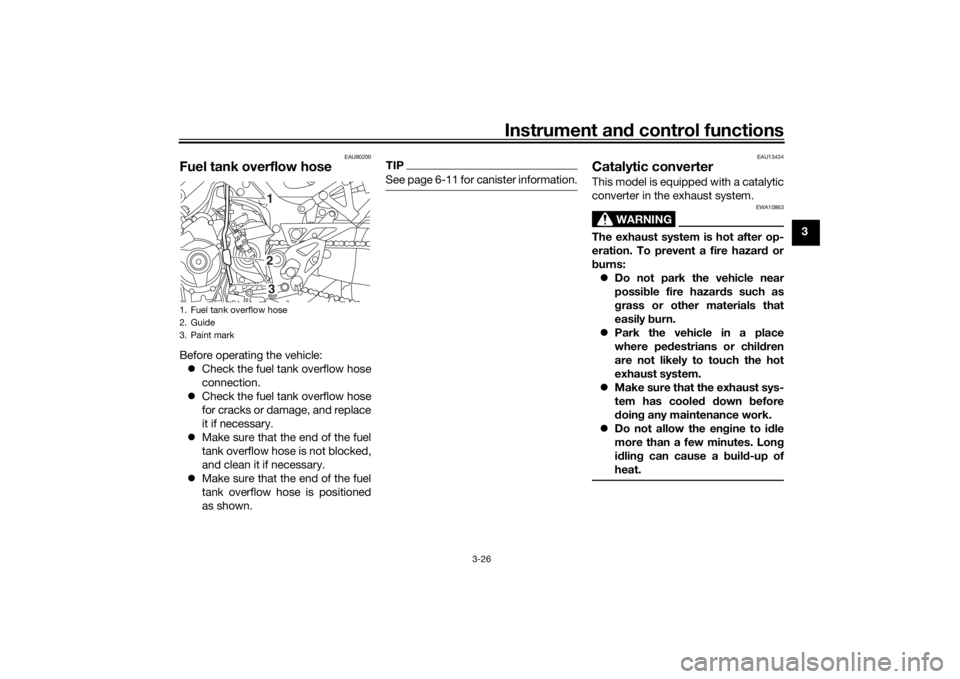

1. Fuel tank overflow hose
2. Guide
3. Paint mark
321
UBD5E0E0.book Page 26 Wednesday, April 25, 2018 2:23 PM

Instrument and control functions
3-27
3
NOTICE
ECA10702
Use only unlea ded g asoline. The use
of lead ed g asoline will cause unre-
pairab le damag e to the catalytic
converter.
EAU84580
SeatsPassen ger seat
To remove the passenger seat1. Open the seat lock cover, insert the key into the seat lock, and then
turn the key counterclockwise.
2. Lift the rear of the passenger seat and pull it backward. To install the passenger seat
1. Insert the projection on the front of
the passenger seat into the seat
holder as shown, and then push
the rear of the seat down to lock it
in place.
2. Remove the key.
Ri der seat
To remove the rider seat1. Remove the passenger seat, and then remove the hexagon wrench
located on the bottom of the seat.

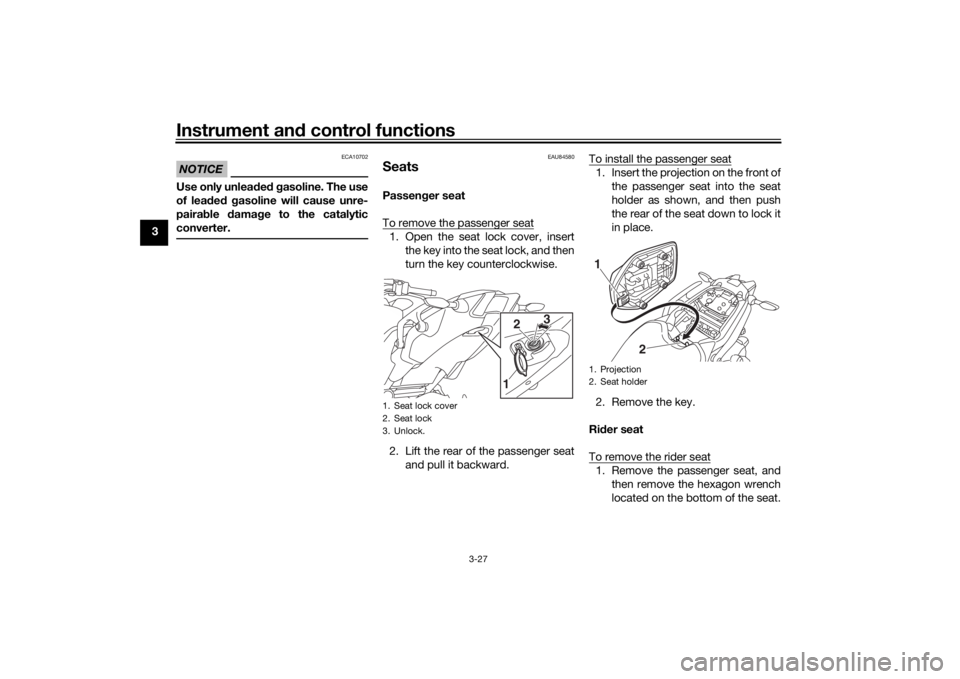

1. Seat lock cover
2. Seat lock
3. Unlock.
3
2
1
1. Projection
2. Seat holder1
2
UBD5E0E0.book Page 27 Wednesday, April 25, 2018 2:23 PM
