Page 14 of 674
12
Sharing Internet from the vehicle via Wi-Fi hotspot (tethering)523
No or poor Internet connection 524
Deleting Wi-Fi networks 525
Wi-Fi technology and security 525
Terms of use and data sharing 526
Activating and deactivating data sharing 526
Compatible file formats for media 526
Technical specifications for USB devices 527
Hard disk storage space 528
License agreement for audio and media 529
WHEELS AND TIRES
Tires540
Tire direction of rotation 542
Tread wear indicator 543
Tire terminology 543
Tire sidewall designations 544
Uniform Tire Quality Grading 546
Checking tire pressure 547
Adjusting tire pressure 548
Recommended tire pressure 549
Tire pressure monitoring system *
549
Calibrating the tire pressure monitor- ing system * 551
Viewing tire pressure status in thecenter display * 552
Action when warned of low tire pressure 553
When changing wheels 554
Tool kit 554
Jack *
555
Wheel bolts 555
Removing a wheel 556
Installing a wheel 558
Spare wheel 559
Accessing the spare wheel 560
Snow tires 561
Snow chains 561
Tire sealing system562
Using the tire sealing system 563
Inflate tires with the compressor included in the tire sealing system 567
Determining the vehicle's permittedweight 568

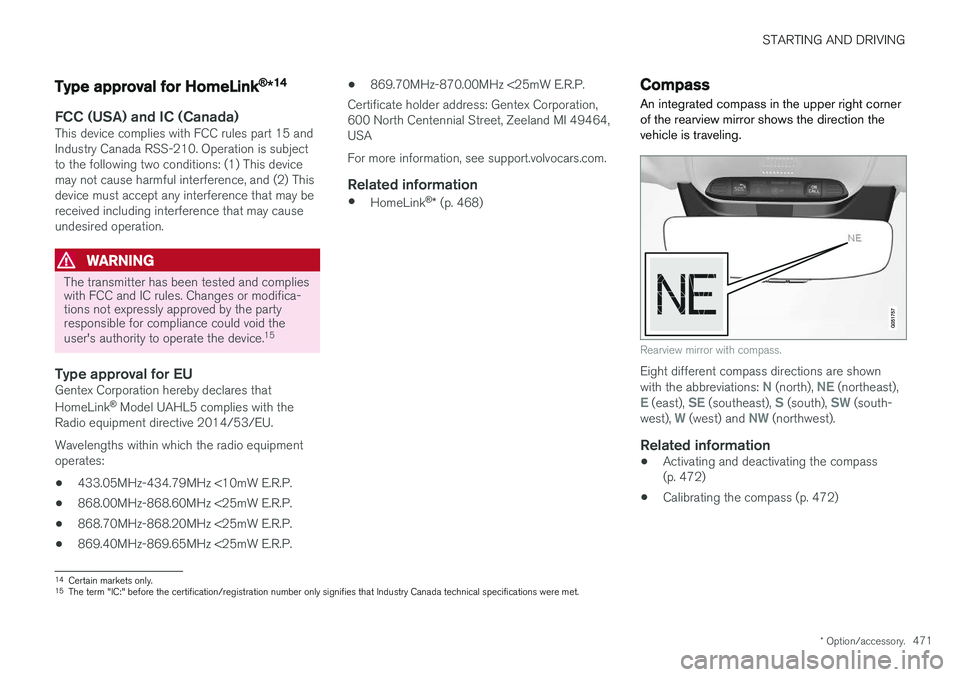

Page 473 of 674
STARTING AND DRIVING
* Option/accessory.471
Type approval for HomeLink®
*14
FCC (USA) and IC (Canada)This device complies with FCC rules part 15 and Industry Canada RSS-210. Operation is subjectto the following two conditions: (1) This devicemay not cause harmful interference, and (2) Thisdevice must accept any interference that may bereceived including interference that may causeundesired operation.
WARNING
The transmitter has been tested and complies with FCC and IC rules. Changes or modifica-tions not expressly approved by the partyresponsible for compliance could void the user's authority to operate the device. 15
Type approval for EUGentex Corporation hereby declares that HomeLink®
Model UAHL5 complies with the
Radio equipment directive 2014/53/EU. Wavelengths within which the radio equipment operates:
• 433.05MHz-434.79MHz <10mW E.R.P.
• 868.00MHz-868.60MHz <25mW E.R.P.
• 868.70MHz-868.20MHz <25mW E.R.P.
• 869.40MHz-869.65MHz <25mW E.R.P. •
869.70MHz-870.00MHz <25mW E.R.P.
Certificate holder address: Gentex Corporation,600 North Centennial Street, Zeeland MI 49464,USA For more information, see support.volvocars.com.
Related information
• HomeLink ®
* (p. 468)
Compass
An integrated compass in the upper right corner of the rearview mirror shows the direction thevehicle is traveling.
Rearview mirror with compass.
Eight different compass directions are shown with the abbreviations: N (north), NE (northeast),E (east), SE (southeast), S (south), SW (south-
west), W (west) and NW (northwest).
Related information
• Activating and deactivating the compass (p. 472)
• Calibrating the compass (p. 472)
14
Certain markets only.
15 The term "IC:" before the certification/registration number only signifies that Industry Canada technical specifications were met.
Page 506 of 674
AUDIO, MEDIA AND INTERNET
* Option/accessory.
504
Playing media via the USB port External audio sources, such as an iPod ® or
MP3 player, can be connected to the audio sys- tem via the vehicle's USB port.
Devices with rechargeable batteries can be charged when they are connected via the USB port and the ignition is in mode I, II or the engine
is running. The content on the external source can be read faster if it only contains data of a compatible for-mat. Video files can also be played via the USBport. Some MP3 players have their own file system that the vehicle has support for.
Related information
• Connecting a device via the USB port(p. 504)
• Playing media (p. 498)
• Video (p. 502)
• Ignition modes (p. 417)
• Technical specifications for USB devices(p. 527)
• Apple ®
CarPlay ®
* (p. 505)
• Android Auto
* (p. 508)
Connecting a device via the USBport
External audio sources, such as an iPod ®
or
MP3 player, can be connected to the audio sys- tem via any of the vehicle's USB ports.
If the vehicle has two USB ports, the phone must be connected to the port with the white frame to use Apple CarPlay * or Android Auto *.
USB ports (type A) in the tunnel console. Route the cable forward to help avoid pinching when the cover isclosed.
Related information
• Playing media (p. 498)
• Playing media via the USB port (p. 504)
• Media player (p. 497)
• Technical specifications for USB devices (p. 527) •
Technical specifications for USB devices(p. 527)
• Apple ®
CarPlay ®
* (p. 505)
• Android Auto
* (p. 508)
Page 529 of 674
AUDIO, MEDIA AND INTERNET
527
FormatFile extension
AVI .avi
AVI (DivX) .avi, divx
ASF .asf, .wmv
MKV .mkv
Subtitles
FormatFile extension
SubViewer .sub
SubRip .srt
SSA .ssa
DivX®
DivX-certified devices have been tested for high- quality DivX (.divx, .avi) video playback. When yousee the DivX logo, you have the freedom to playyour favorite DivX videos.
Profile DivX Home Theater
Video codec DivX, MPEG-4
Resolution 720x576Audio speed (bit rate) 4.8Mbps
Frame rate 30 fps
File extension .divx, .avi
Max. file size 4 GB
Audio codec MP3, AC3
Subtitles XSUBSpecial func- tions Multiple subtitles, multipleaudio, resume play
Reference Meets all requirements of the DivX Home Theaterprofile. Visit divx.com formore information and soft-ware tools to convert yourfiles into DivX HomeTheater video.
Related information
•Media player (p. 497)
• Video (p. 502)
• Playing DivX ®
(p. 502)
Technical specifications for USBdevices
For the contents of USB devices to be read, the following specifications must be met.
Any folder structures will not be shown in the center display during playback.
Max. number
Files 15 000
Folders 1 000
Folder levels 8
Playlists 100
Tracks in a playlist 1 000
Subfolders No limit
Technical specifications for the USB-A connector
• Type A port
• Version 2.0
• Voltage 5 V
• Max. current 2.1 A
Related information
•
Playing media via the USB port (p. 504)
