2018 VOLVO XC60 T8 fuse

MAINTENANCE AND SERVICE
610
Battery symbols
There are warning symbols and information on the batteries.
Wear protective goggles.
See the Owner's Manual for additional information.
Keep batteries away from children.
Batteries contain corrosive acid.
Avoid smoking, open
flames, and/or sparks.
Risk of explosion.
Recycle properly.
NOTE
A used start battery contains lead and must be recycled in an environmentally responsiblemanner.
Related information
• Start battery (p. 605)
• Hybrid battery (p. 609)
Fuses and fuseboxes
All electrical functions and components are pro- tected by a number of fuses in order to protectthe vehicle's electrical system from damage byshort circuiting or overloading.
WARNING
Never use a foreign object or a fuse with a higher amperage than that specified toreplace a fuse. This could cause significantdamage to the electrical system and possiblylead to a fire.
WARNING
Orange wiring may only be handled by quali- fied personnel.
WARNING
Several components in the vehicle work with high voltage that can be hazardous in case ofan incorrect procedure. Do not touch anything that is not clearly described in this Owner's Manual.
If any electrical component or function is not responding, the component may have blown afuse due to temporary overload. If the same fuse blows repeatedly, there may be a problem with the component. Volvo recommends contacting anauthorized Volvo workshop to have the compo-nent checked.

MAINTENANCE AND SERVICE
611
Location of fuseboxes
The illustration is generic - appearance may vary accord- ing to vehicle model.
Engine compartment
Under the glove compartment
Trunk/cargo compartment
Related information
•Replacing fuses (p. 611)
• Fuses in the cargo compartment (p. 619)
• Fuses in the engine compartment (p. 612)
• Fuses under the glove compartment (p. 616)
Replacing fuses All electrical functions and components are pro- tected by a number of fuses in order to protectthe vehicle's electrical system from damage byshort circuiting or overloading.
1. Refer to the fuse diagram to locate the fuse.
2. Pull out the fuse and examine it from the
side to determine if the curved metal wire in the fuse is intact.
3. If the wire is broken, replace the fuse with a new fuse of the same color and amperage.
WARNING
Never use a foreign object or a fuse with a higher amperage than that specified toreplace a fuse. This could cause significantdamage to the electrical system and possiblylead to a fire.
WARNING
Contact an authorized Volvo workshop for assistance replacing fuses not listed in theOwner's Manual. If performed incorrectly, sig-nificant damage can be caused to the electri-cal system.
Related information
• Fuses and fuseboxes (p. 610)
• Fuses in the cargo compartment (p. 619) •
Fuses in the engine compartment (p. 612)
• Fuses under the glove compartment (p. 616)

MAINTENANCE AND SERVICE
612
Fuses in the engine compartment
The fuses in the engine compartment help pro- tect electrical components such as engine andbrake functions.

MAINTENANCE AND SERVICE
}}
* Option/accessory.613
Fuse pliers are provided on the inside of the fuse box cover to assist in removing and insertingfuses. There are also spaces for several extra fuses in the fusebox.
PositionsThere is a decal with a diagram of the locationsof the fuses on the inside of the cover.
• Fuses 1–13, 18–30, 35–37 and 46–70 are"Micro" fuses.
• Fuses 14–17, 31–34, 38–45 and 71–78 are"MCase" fuses and should only be replaced by a workshop 17
.
FunctionAA
– –
– –
– –
Control module for actuator for engaging/changing gears, auto-matic transmission 5
High-voltage coolant heater control module
5
FunctionAA
Control module for A/C; heat exchanger cut-off valve; cut-offvalve for coolant through the cli-mate system5
Hybrid battery control module; high-voltage converter for com-bined high-voltage generator/starter motor with 500 V–12 Vvoltage converter5
– –
Converter for controlling feed to rear axle electric motor
10
Hybrid battery control module; high-voltage converter for com-bined high-voltage generator/starter motor with 500 V–12 Vvoltage converter10
Charge module 5
Cut-off valve for hybrid battery coolant; coolant pump 1 forhybrid battery
10
Coolant pump for electric drive system
10
FunctionAA
Hybrid component cooling fan 25
– –
– –
– –
– –
– –
– –
– –
– –
– –
12 V outlet in tunnel console, front15
12 V outlet in tunnel console between second-row seats15
12 V outlet in trunk/cargo com- partment
*
USB ports for iPad holders 15
– –
17
An authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE
615
FunctionAA
– –
Engine control module 20
Ignition coils; spark plugs 15
– –
– –
Transmission oil pump control module30
Vacuum pump control module 40
Transmission actuator 25
– –
– –
– –
A
Ampere
B LED (Light Emitting Diode)
Related information
• Fuses and fuseboxes (p. 610)
• Replacing fuses (p. 611)

MAINTENANCE AND SERVICE
616

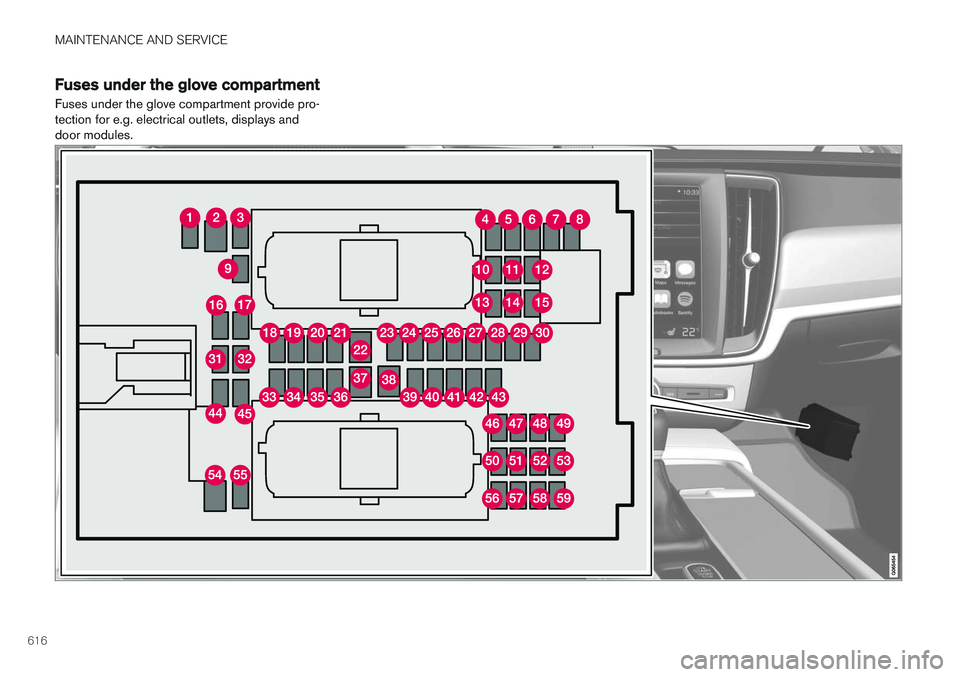

Fuses under the glove compartment
Fuses under the glove compartment provide pro- tection for e.g. electrical outlets, displays anddoor modules.

MAINTENANCE AND SERVICE
}}
* Option/accessory.617
Fuse pliers are provided on the inside of the fuse box cover to assist in removing and insertingfuses. There are also spaces for several extra fuses in the
distribution box in the engine compart-
ment .
Positions
•Fuses 1, 3-21, 23-36, 39-53 and 55-59 are "Micro" fuses.
• Fuses 2-22, 37-38 and 54 are "MCase"fuses and should only be replaced by a work- shop 18
.
FunctionAA
– –
– –
– –
Movement sensor * 5
Media player 5
Instrument panel 5
Center console buttons 5
Sun sensor 5
FunctionAA
– –
– –
Steering wheel module 5
Module for start knob and parking brake controls 5
Heated steering wheel
* module 15
– –
– –
– –
– –
Climate system control module 10
– –
Data link connector OBD-II 10
Center display 5
Climate system blower module (front) 40
USB HUB 5
FunctionAA
Instrument lighting; Interior lighting; Rearview mirror auto-dim function
*;
Rain and light sensors *; Rear tun-
nel console keypad, rear seat *;
Power front seats *; Rear door con-
trol panels; Climate system blower module left/right 7.5
Control module for driver support functions
5
Panoramic roof with sun curtain
*20
Head-up display
* 5
Passenger compartment lighting 5
– –
Ceiling console display (seat belt reminder/front passenger side air-bag indicator) 5
– –
Humidity sensor 5
Door module in right-side rear door 20
Fuses in the trunk/cargo compart- ment
10
18
An authorized Volvo workshop is recommended.

||
MAINTENANCE AND SERVICE
* Option/accessory.
618
FunctionAA
Control module for Internet-con- nected vehicle; Control module forVolvo On Call 5
Door module in left-side rear door 20
Audio control module (amplifier) (certain models only)
40
– –
Multi-band antenna module 5
Front seat massage function
*5
– –
Rear window wiper 15
Fuel pump control module 15
Relay windings for distribution box in engine compartment; Relaywindings for transmission oil pump 5
– –
Driver's seat heating 15
Front passenger's seat heating 15
Coolant pump 10
FunctionAA
– –
Door module in left-side front door 20
Active chassis control module
*20
– –
Sensus control module 10
– –
– –
Door module in right-side front door 20
– –
TV
* (certain markets only) 5
Primary fuse for fuses 53 and 58 15
A
Ampere
Related information
• Fuses and fuseboxes (p. 610)
• Replacing fuses (p. 611)
