2018 VOLVO V90 dimensions

MAINTENANCE AND SERVICE
591
Specifications
BatteryH7 AGMH8 AGM
Voltage (V) 12 12
Cold start capacity A
- CCA B
(A) 800
850
Dimensions, L×W×H 315×175×190 mm (12.4×6.9×7.5 inches) 353×175×190 mm (13.9×6.9×7.5 inches)
Capacity (Ah) 80 95
A
According to EN standard.
B Cold Cranking Amperes.
Volvo recommends that batteries are replaced by an authorized Volvo workshop.
CAUTION
When replacing the starter battery or support battery, an AGM 19
battery must be installed.
CAUTION
If replacing the starter battery, make sure you replace it with a battery with the same coldstart capacity and type as the original battery(see the decal on the battery).
NOTE
The size of the starter battery should conform to the dimensions of the original battery.
Related information
• Battery symbols (p. 593)
• Support battery (p. 592)
• Jump starting using another battery (p. 439)
19
Absorbed Glass Mat.

MAINTENANCE AND SERVICE
}}
593

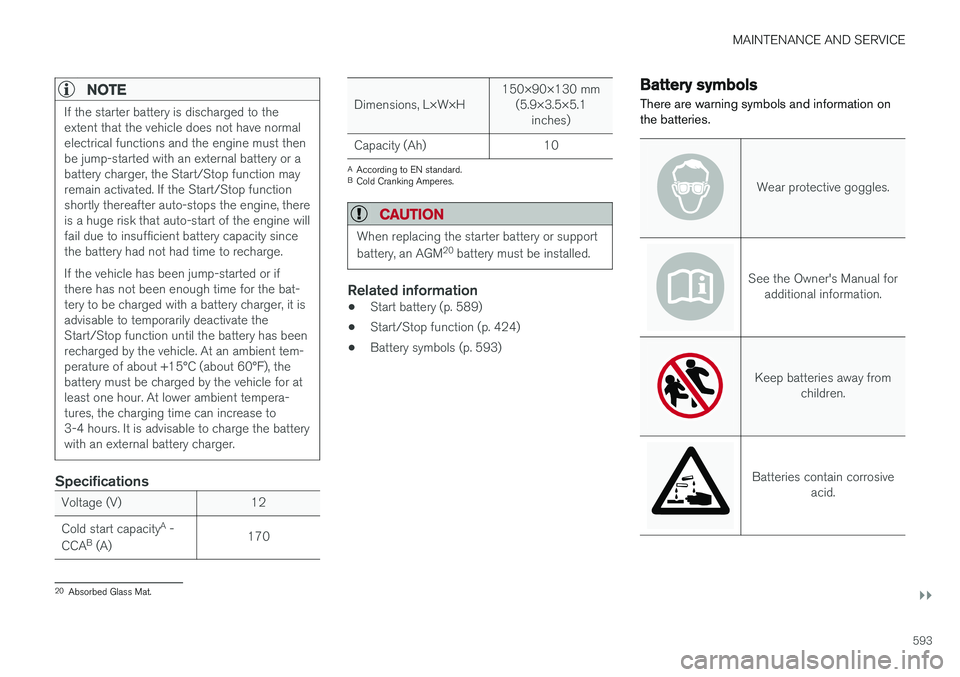

NOTE
If the starter battery is discharged to the extent that the vehicle does not have normalelectrical functions and the engine must thenbe jump-started with an external battery or abattery charger, the Start/Stop function mayremain activated. If the Start/Stop functionshortly thereafter auto-stops the engine, thereis a huge risk that auto-start of the engine willfail due to insufficient battery capacity sincethe battery had not had time to recharge. If the vehicle has been jump-started or if there has not been enough time for the bat-tery to be charged with a battery charger, it isadvisable to temporarily deactivate theStart/Stop function until the battery has beenrecharged by the vehicle. At an ambient tem-perature of about +15°C (about 60°F), thebattery must be charged by the vehicle for atleast one hour. At lower ambient tempera-tures, the charging time can increase to3-4 hours. It is advisable to charge the batterywith an external battery charger.
Specifications
Voltage (V) 12 Cold start capacityA
-
CCA B
(A) 170
Dimensions, L×W×H150×90×130 mm
(5.9×3.5×5.1 inches)
Capacity (Ah) 10
A According to EN standard.
B Cold Cranking Amperes.
CAUTION
When replacing the starter battery or support battery, an AGM 20
battery must be installed.
Related information
• Start battery (p. 589)
• Start/Stop function (p. 424)
• Battery symbols (p. 593)
Battery symbols
There are warning symbols and information on the batteries.
Wear protective goggles.
See the Owner's Manual for additional information.
Keep batteries away from children.
Batteries contain corrosive acid.
20Absorbed Glass Mat.

SPECIFICATIONS
}}
629
DimensionsThe vehicle's length, height, etc. are shown in the table.
Dimensionsmminches
A Ground clearance A
142 5.6
B Wheelbase 2941 115.8 C Length 4936 194.3
D Load length, floor, folded backrest 1988 78.3
E Load length, floor 1153 45.4 F Height 1475 58.1Dimensionsmminches
G Load height 704 27.7
H Wheel track, front 1628B
1618 C
1617 D
1623 E64.1
B
63.7 C
63.7 D
63.9 EDimensionsmminches
I Wheel track, rear 1629B
1619 C
1618 D
1624 E64.1
B
63.7 C
63.7 D
63.9 E
J Load width, floor 1130 44.5
K Width 1879F
1890 G74.0
F
74.4 G

||
SPECIFICATIONS
630
Dimensionsmminches
L Width incl. rearview mirrors 2019 79.5
M Width incl. folded rear- view mirrors 1895 74.6
A
At curb weight + 2 people. Varies slightly depending on tire dimensions, chassis, etc.)
B Vehicles with 17/18-inch wheels.
C Vehicles with 19-inch wheels.
D Vehicles with 20-inch wheels.
E Vehicles with 21-inch wheels.
F Chassis width.
G At door moldings.
Related information
• Weights (p. 631)

SPECIFICATIONS
637
Approved tire pressureThe following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- tion placard for information specific to the tiresinstalled on your vehicle at the factory.
Tire dimensionsCold tire pressure for up to five persons
Front
psi (kPa)
Rear
psi (kPa)
255/35 R20 39 (270)39 (270)
245/45 R18 255/40 R19 36 (250)
36 (250)
Temporary spare tireT125/80 R18 60 (420)
60 (420)
Related information
•Type designations (p. 626)
• Checking tire pressure (p. 525)

INDEX
642CZIP (Clean Zone Interior Package) 206
D
Data
recording 33 transferring between vehicle and work-
shop 568
Data sharing 504
Daytime running lights 156Decals location of 626
Defrosting 222
Detection of cyclist 333
Dimensions 629
Dipstick, electronic 578
Direction of rotation 520
Disengaging the shiftlock 417
Display lighting 166
Distance Alert 285, 286, 287 limitations 288
DivX ®
480
Door mirrors 173, 175 compass 450, 451
dimming 174
outer 173, 175
power folding 175
resetting 175
Driveline transmission 413
Drive mode 419 changing 421
Driver Alert Control 356 operation 357, 358
Driver Alert Control limitations 358
Driver performance 92, 93
Driver profile 139 edit 141
select 140
Driver support system 266 Driving cooling system 437
with a trailer 440
Driving economy 430
Driving through standing water 432 driving with a trailer towball load 632
towing capacity 632E
ECO climate 421
ECO mode 421
activate with function button 423
Economical driving 421, 430
Electrical outlet 550 use 552
Electrical system 589
Electric parking brake 407
Electronic immobilizer 246
emergency brake lights 163
Emission inspection readiness 566 Engine overheating 437
start 400
Start/Stop 424
turn off 402
Engine compartment coolant 580
engine oil 577
overview 577
Engine drag control 268
Engine oil 577 filling 578
filter 577
grade and volume 634

INDEX
643
Engine shutdown 402
Engine specifications 633Engine temperature
high 437
Environment 27Error messages Adaptive Cruise Control 303
see Messages and symbols 303, 318
Error messages in BLIS 346 Ethanol content max. 10% by volume 434
Exterior dimensions 629
F
Federal Clean Air Act 566
Ferry transport 428
Flat tire 540
Flooded road 432
Fluids, volumes 623, 636
Fluids and oils 635, 636 Fog lights front 161
rear 162
Four-C 428
Front seat blower 225
climate 214
heating 216, 217
temperature 227
ventilation 218
Front seat manual 188
Front seats, power 189 adjusting passenger seat from driver's
seat 195
adjusting seat 189
Lumbar support 194
massage 192, 193
memory function 190, 191
multifunction control 192, 193, 194
Side bolsters 194
FSC, environmental labeling 23
Fuel 434 Travel Link service 473
Fuel filling 433
Fuel gauge 89
Fuel requirements 434, 435 Fuel tank volume 636
Fuse box 594 Fuses below the glove compartment 599
general 594in engine compartment 596
in the cargo compartment 602
replacing 595
G
Gasoline grade 434 Gaugefuel gauge 89
Gear indicator 418 Gear selector positions automatic transmission 414
Glass laminated/reinforced 170
Glove compartment 553 Gracenote ®
479
Grocery bag holders 556
Gross vehicle weight 631
GSI - Gear shift indicator 418
Guide lines for Park Assist Camera 382
H
Handbrake 407, 408
Hand wash 612

INDEX
650Sunroof
pinch protection 170
Sun shade panoramic roof 176, 179
pinch protection 170
rear door 173
Sun visor 554 mirror lighting 166
Support battery 592 Symbols indicator symbols 95
Symbols and messages Adaptive Cruise Control 303
center display's status bar 126
Collision warner with auto-brake 340
Symbols and messages for Assistance at
risk of collision 374
system updates 569
T
Tailgate locking/unlocking 237, 250
open/close with foot movement 259
power 255
unlocking from inside 253
Technician certification 37
Temperature adjusting 227, 228, 229
perceived 203
Temporary spare spare tire 537
Temporary tire sealing system execution, checking 541
Inflating tires 545
location 540
overview 540
sealing compound 540
Terms and conditions services 34
users 504
Tire dimensions 522, 532
Tire pressure decal 527 Tire pressure monitoring calibrating 529
Tires 518 direction of rotation 520
glossary of terms 521
inflation pressure table 637
mounting 536
pressure 637
removal 534
rotation 519
specifications 522, 637
storage 518
tire pressure monitoring 527tire sealing 540
Tread depth 539
tread wear indicator 521
winter tires 539
Tire sealing system 541
Tire tread 521
Tools 532Top tether anchors (child restraint sys- tems) 72
Total airing function 233, 251
Towing 444
Towing capacity and towball load 632
Towing eyelet 445
TPMS - Tire Pressure Monitoring System 527
Traction control 268
Traffic information 461
Trailer 442 driving with a trailer 440
Lamps 443
swaying 442
Trailer Stability Assist 442 trailer 442
Trailer stabilizer 268
Transmission 413 automatic 414
