2018 VOLVO V60 CROSS COUNTRY jump start

6

Collision warning – symbols and messages220
Driver Alert System 222
Driver Alert Control (DAC) – introduction 222
Driver Alert Control (DAC) – operation 223
Driver Alert Control (DAC) – function 224
Driver Alert Control (DAC) – limitations 224
Driver Alert Control (DAC) – symbolsand messages 226
Lane Departure Warning (LDW) –introduction 228
Lane Departure Warning (LDW) –operation 229
Lane Departure Warning (LDW) -limitations 230
Lane Departure Warning (LDW) –symbols and messages 231
Lane Keeping Aid (LKA) – introduction 233
Lane Keeping Aid (LKA) – operation 234
Lane Keeping Aid (LKA) – limitations 236
Lane Keeping Aid (LKA) – symbolsand messages 237
Park assist – introduction 238
Park assist – function 238
Park assist – operation 240
Park assist – limitations 241
Park Assist Pilot (PAP) * – introduction
242

Park Assist Pilot (PAP) * – function
242
Park Assist Pilot (PAP) * – operation
243
Park Assist Pilot (PAP) * – limitations
245
Park Assist Pilot (PAP) * – symbols
and messages 246
Park assist – troubleshooting 246
Rear Park Assist Camera (PAC) – introduction 247
Rear Park Assist Camera (PAC) –function 247
Rear Park Assist Camera (PAC) –operation 248
Rear Park Assist Camera (PAC) –guiding and marker lines 249
Rear Park Assist Camera (PAC) –limitations 251
BLIS * – introduction
251
BLIS * – function
252
BLIS * – operation
253
BLIS * – Cross Traffic Alert (CTA)
254
BLIS * – limitations
255
BLIS * – messages
256
STARTING AND DRIVING
Starting the engine
258
Switching off the engine 260
Engine Remote Start (ERS) * – intro-
duction 260
Engine Remote Start (ERS) * – star-
ting the engine 261
Engine Remote Start (ERS) * –
switching off the engine 261
Jump starting 262
Transmission – general information 263
Transmission – positions 263
Transmission – Geartronic 265
Transmission – shiftlock override 267
Start/Stop – Hill Start Assist (HSA) 268
Start/Stop – introduction 268
Start/Stop – function 269
Start/Stop – Auto-stop exceptions 270
Start/Stop – Auto-start exceptions 270
Start/Stop – settings 271
Start/Stop – symbols and messages 272
ECO *
273
All Wheel Drive (AWD) 275
Hill Descent Control (HDC) – intro- duction 275
Hill Descent Control (HDC) – operation 276
Brakes – general 277

STARTING AND DRIVING
262
Jump startingFollow these instructions to jump start your vehi- cle's dead battery or to jump start another vehi-cle's dead battery using your vehicle.
G021347
Connecting the jumper cables
If the 12-volt auxiliary battery to be used is in another vehicle, check that the vehicles are nottouching to prevent premature completion of acircuit. Be sure to follow jump starting instruc-tions provided for the other vehicle. To jump start your vehicle:
1. Switch off the ignition (set the ignition to mode 0, see Ignition modes (p. 82)).
2. First connect the red jumper cable to the auxiliary battery's positive (+) terminal (1). 3. Fold back the cover over the positive (+) ter-
minal on your vehicle's battery (2), marked with a "+" sign, located under a folding cover.
4. Connect the black jumper cable to the auxili- ary battery's negative (–) terminal (3) and tothe ground point in your vehicle's enginecompartment (right engine mount at the top,on the outer screw) (4).
5. Start the engine in the assisting vehicle, then start the engine in the vehicle with dead bat-tery.
6. After the engine has started, first remove the negative (–) terminal jumper cable (black).Then remove the positive (+) terminal jumpercable (red).WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accesso- ries contain lead and lead compounds, chemi-cals known to the state of California to causecancer and reproductive harm. Wash handsafter handling.
CAUTION
Connect the jumper cables carefully to avoid short circuits with other components in theengine compartment.
WARNING
• Do not connect the jumper cable to any part of the fuel system or to any movingparts. Avoid touching hot manifolds.
• Batteries generate hydrogen gas, whichis flammable and explosive.
• Battery fluid contains sulfuric acid. Do notallow battery fluid to contact eyes, skin,fabrics or painted surfaces. If contactoccurs, flush the affected area immedi-ately with water. Obtain medical helpimmediately if eyes are affected.
• Never expose the battery to open flameor electric spark.
• Do not smoke near the battery.
• Failure to follow the instructions for jumpstarting can lead to injury.
Related information
• Starting the engine (p. 258)

STARTING AND DRIVING
281

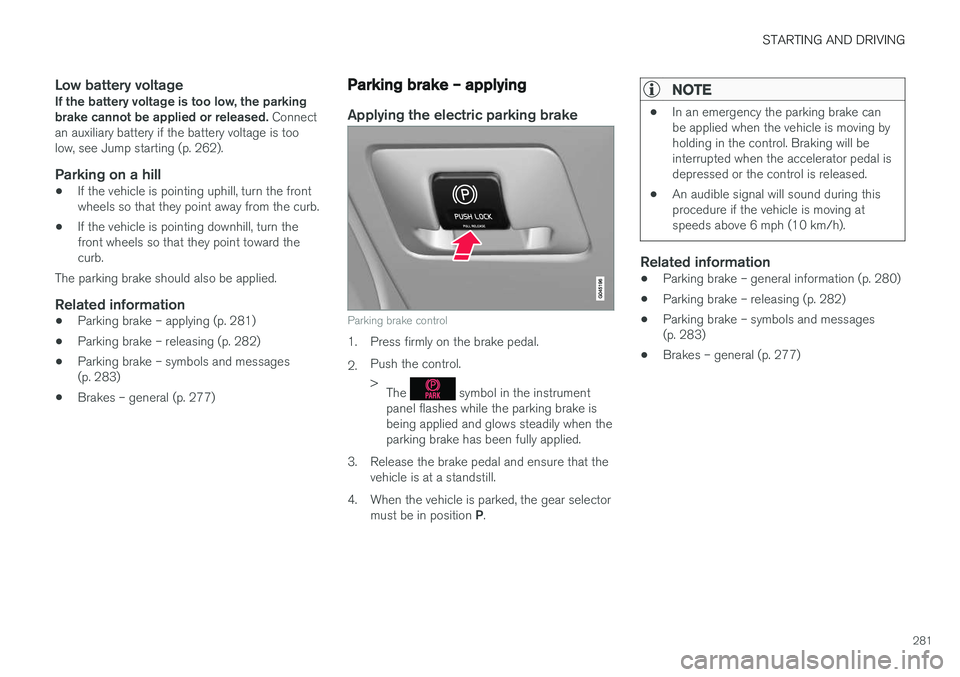

Low battery voltageIf the battery voltage is too low, the parking brake cannot be applied or released. Connect
an auxiliary battery if the battery voltage is toolow, see Jump starting (p. 262).
Parking on a hill
• If the vehicle is pointing uphill, turn the frontwheels so that they point away from the curb.
• If the vehicle is pointing downhill, turn thefront wheels so that they point toward thecurb.
The parking brake should also be applied.
Related information
• Parking brake – applying (p. 281)
• Parking brake – releasing (p. 282)
• Parking brake – symbols and messages(p. 283)
• Brakes – general (p. 277)
Parking brake – applying
Applying the electric parking brake
Parking brake control
1. Press firmly on the brake pedal. 2.Push the control. >
The
symbol in the instrument
panel flashes while the parking brake is being applied and glows steadily when theparking brake has been fully applied.
3. Release the brake pedal and ensure that the vehicle is at a standstill.
4. When the vehicle is parked, the gear selector must be in position P.
NOTE
• In an emergency the parking brake can be applied when the vehicle is moving byholding in the control. Braking will beinterrupted when the accelerator pedal isdepressed or the control is released.
• An audible signal will sound during thisprocedure if the vehicle is moving atspeeds above 6 mph (10 km/h).
Related information
•Parking brake – general information (p. 280)
• Parking brake – releasing (p. 282)
• Parking brake – symbols and messages (p. 283)
• Brakes – general (p. 277)

STARTING AND DRIVING
}}
295
Towing the vehicle Always check with state and local authorities before attempting to tow another vehiclebecause this type of towing is subject to regula-tions regarding maximum towing speed, lengthand type of towing device, lighting, etc.
1. With the remote key fully pressed into theignition slot 15
, press START/STOP ENGINE
for approximately 2 seconds to activate igni- tion mode II.
2. The remote key must remain in the ignition slot16
for the entire time that the vehicle is
being towed.
3. Keep the tow rope taut when the towing vehicle slows down by applying light pressure on the brake pedal. This will help prevent jar-ring movements of the vehicle being towed.
4. Be prepared to apply the brakes to stop the vehicle being towed.
CAUTION
General towing precautions:
• Please check with state and local author- ities before attempting this type of tow-ing, as vehicles being towed are subjectto regulations regarding maximum towingspeed, length and type of towing device,lighting, etc.
• If the vehicle's battery is dead, see Jumpstarting (p. 262) to provide current forreleasing the electric parking brake and to move the gear selector from the
P
position to N. If this is not possible, see
Transmission – shiftlock override (p. 267) for information about manually overridingthe shiftlock system to move the gear selector from P to N.
• Maximum speed: 50 mph (80 km/h). Do not exceed the maximum allowable tow-ing speed.
• Maximum distance with front wheels onground: 50 miles (80 km).
• The vehicle should only be towed in theforward direction.
Related information
• Towing eyelet (p. 295)
• Remote key – functions (p. 155)
Towing eyelet
When used, the towing eyelet should always be securing attached.
Removing the front/rear covers
15 Not necessary in vehicles with the optional keyless drive.
16 For vehicles with the optional keyless drive, the remote key must be in the vehicle.

INDEX
396Hill Start Assist (HSA) 263
Hoisting the vehicle 334 HomeLink
®
Wireless Control System 112,
113
Home safe lighting 101
Hood, opening/closing 337Horn 91
I
ID, Volvo 22
Ignition modes 81, 82
Immobilizer 154
Important information 15
Indicator lights 71, 73, 77
Infant seats 52
Inflatable Curtain 43
Inflation pressure 308, 309
Inflation pressure table 387
Information and warning symbols, table of 388
Information lights 71, 73, 77
Inspection readiness 335
Instrument lighting 97
"theater" lighting 97
Instrument overview 68, 71
Instrument panel 71, 116, 117
Integrated two-stage booster cushion 60, 62, 64
Interior Air Quality System 129
Interior lighting 100Internet connection booking service 335
ISOFIX/LATCH anchors 57
J
Jack attaching 303
location of 303
Jump starting 262
K
Key blade 152, 153, 154, 156, 157, 158, 159, 162
private locking 158
Keyless drive 161 general description 163, 164
starting the vehicle 258
Keyless locking/unlocking 161
L
Labels list of 377
location of 377
Lane Departure Warning (LDW) 228, 229, 230, 231
Lane Keeping Aid 233, 234, 236, 237
LATCH anchors 57
Leather care 372
Lighting panel 92
Loading the vehicle 146, 147, 312 roof loads 146
Locking 165, 166, 168 tailgate 168
Locking the vehicle 155
Locks, child safety 65
Low beams 93
Low coolant level 342
Low oil pressure warning light 77
