2018 VOLVO S90 technical specifications

11

SiriusXM Travel Link®
* - Fuel 463
SiriusXM Travel Link ®
* - Sports 464
Media player 465
Playing media 466
Controlling and changing media 467
Media searches 468
Gracenote ®
469
CD player *
469
Video 470
Playing video 470
Playing DivX ®
470
Video settings 471
Streaming media via Bluetooth ®
471
Connecting a device via Bluetooth ®
471
Playing media via the USB port 472
Connecting a device via the USB port 472
Apple ®
CarPlay ®
* 473
Using Apple ®
CarPlay ®
* 473
Settings for Apple ®
CarPlay ®
* 474
Tips for using Apple ®
CarPlay ®
* 475
Android Auto *
476
Using Android Auto *
476
Settings for Android Auto *
477

Tips for using Android Auto *
478
Phone 478
Connecting a phone to the car via Bluetooth for the first time 479
Connecting a phone to the car viaBluetooth automatically 481
Connecting a phone to the car viaBluetooth manually 481
Disconnecting a Bluetooth-con-nected phone 482
Switch between phones connectedvia Bluetooth 482
Removing a Bluetooth-connected phone 483
Handling phone calls 483
Handling text messages 484
Text message settings 485
Managing the phone book 485
Phone settings 486
Settings for Bluetooth devices 487
Internet-connected vehicle *
487
Connecting the car to the Internetvia a mobile device (Bluetooth) 489
Connecting the car to the Internetvia a mobile device (Wi-Fi) 489
Connect the car to the Internet viacar modem (SIM card) 490
Vehicle modem settings 491

Sharing Internet from the vehicle via Wi-Fi hotspot (tethering)491
No or poor Internet connection 492
Deleting Wi-Fi networks 493
Wi-Fi technology and security 493
Terms of use and data sharing 494
Activating and deactivating data sharing 494
Compatible file formats for media 494
Technical specifications for USB devices 495
Hard disk storage space 496
License agreement for audio and media 497

||
STARTING AND DRIVING
* Option/accessory.
440

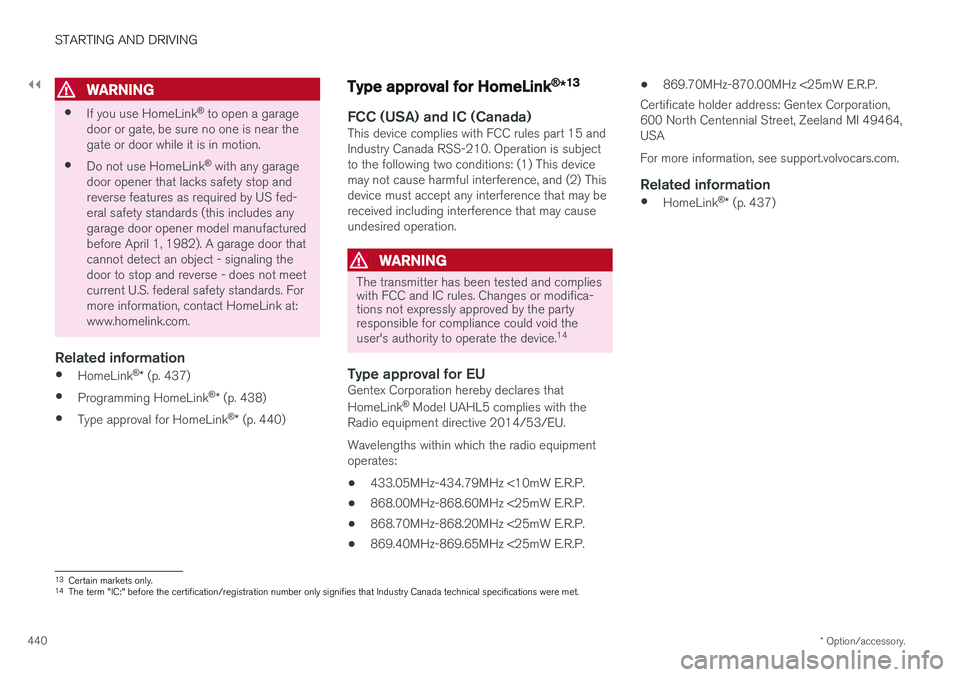

WARNING
• If you use HomeLink ®
to open a garage
door or gate, be sure no one is near the gate or door while it is in motion.
• Do not use HomeLink ®
with any garage
door opener that lacks safety stop andreverse features as required by US fed-eral safety standards (this includes anygarage door opener model manufacturedbefore April 1, 1982). A garage door thatcannot detect an object - signaling thedoor to stop and reverse - does not meetcurrent U.S. federal safety standards. Formore information, contact HomeLink at:www.homelink.com.
Related information
• HomeLink ®
* (p. 437)
• Programming HomeLink ®
* (p. 438)
• Type approval for HomeLink ®
* (p. 440)
Type approval for HomeLink®
*13
FCC (USA) and IC (Canada)This device complies with FCC rules part 15 and Industry Canada RSS-210. Operation is subjectto the following two conditions: (1) This devicemay not cause harmful interference, and (2) Thisdevice must accept any interference that may bereceived including interference that may causeundesired operation.
WARNING
The transmitter has been tested and complies with FCC and IC rules. Changes or modifica-tions not expressly approved by the partyresponsible for compliance could void the user's authority to operate the device. 14
Type approval for EUGentex Corporation hereby declares that HomeLink®
Model UAHL5 complies with the
Radio equipment directive 2014/53/EU. Wavelengths within which the radio equipment operates:
• 433.05MHz-434.79MHz <10mW E.R.P.
• 868.00MHz-868.60MHz <25mW E.R.P.
• 868.70MHz-868.20MHz <25mW E.R.P.
• 869.40MHz-869.65MHz <25mW E.R.P. •
869.70MHz-870.00MHz <25mW E.R.P.
Certificate holder address: Gentex Corporation,600 North Centennial Street, Zeeland MI 49464,USA For more information, see support.volvocars.com.
Related information
• HomeLink ®
* (p. 437)
13
Certain markets only.
14 The term "IC:" before the certification/registration number only signifies that Industry Canada technical specifications were met.

AUDIO, MEDIA AND INTERNET
* Option/accessory.
472
Playing media via the USB port External audio sources, such as an iPod ® or
MP3 player, can be connected to the audio sys- tem via the vehicle's USB port.
Devices with rechargeable batteries can be charged when they are connected via the USB port and the ignition is in mode I, II or the engine
is running. The content on the external source can be read faster if it only contains data of a compatible for-mat. Video files can also be played via the USBport. Some MP3 players have their own file system that the vehicle has support for.
Related information
• Connecting a device via the USB port(p. 472)
• Playing media (p. 466)
• Video (p. 470)
• Ignition modes (p. 397)
• Technical specifications for USB devices(p. 495)
• Apple ®
CarPlay ®
* (p. 473)
• Android Auto
* (p. 476)
Connecting a device via the USBport
External audio sources, such as an iPod ®
or
MP3 player, can be connected to the audio sys- tem via any of the vehicle's USB ports.
If the vehicle has two USB ports, the phone must be connected to the port with the white frame to use Apple CarPlay * or Android Auto *.
USB ports (type A) in the tunnel console. Route the cable forward to help avoid pinching when the cover isclosed.
USB ports (type A) on rear of tunnel console for charg- ing phones and tablets for example 6
.
Related information
• Playing media (p. 466)
• Playing media via the USB port (p. 472)
• Media player (p. 465)
• Technical specifications for USB devices (p. 495)
• Technical specifications for USB devices(p. 495)
• Apple ®
CarPlay ®
* (p. 473)
• Android Auto
* (p. 476)
6
It is not possible to playback media in the car's audio or media system via this input.

AUDIO, MEDIA AND INTERNET
495
FormatFile extension
AVI .avi
AVI (DivX) .avi, divx
ASF .asf, .wmv
MKV .mkv
Subtitles
FormatFile extension
SubViewer .sub
SubRip .srt
SSA .ssa
DivX®
DivX-certified devices have been tested for high- quality DivX (.divx, .avi) video playback. When yousee the DivX logo, you have the freedom to playyour favorite DivX videos.
Profile DivX Home Theater
Video codec DivX, MPEG-4
Resolution 720x576Audio speed (bit rate) 4.8Mbps
Frame rate 30 fps
File extension .divx, .avi
Max. file size 4 GB
Audio codec MP3, AC3
Subtitles XSUBSpecial func- tions Multiple subtitles, multipleaudio, resume play
Reference Meets all requirements of the DivX Home Theaterprofile. Visit divx.com formore information and soft-ware tools to convert yourfiles into DivX HomeTheater video.
Related information
•Media player (p. 465)
• Video (p. 470)
• Playing DivX ®
(p. 470)
Technical specifications for USBdevices
For the contents of USB devices to be read, the following specifications must be met.
Any folder structures will not be shown in the center display during playback.
Max. number
Files 15 000
Folders 1 000
Folder levels 8
Playlists 100
Tracks in a playlist 1 000
Subfolders No limit
Technical specifications for the USB-A connector
• Type A port
• Version 2.0
• Voltage 5 V
• Max. current 2.1 A
Related information
•
Playing media via the USB port (p. 472)
