KEY, LOCKS AND ALARM
}}
* Option/accessory.251
The door cannot be opened from the inside.
The door can be opened from both the out- side and the inside.
NOTE
•The door's knob control only locks that specific door, not both rear doors simulta-neously.
• There are no manual child safety locks onmodels equipped with electronic childsafety locks.
Related information
•Locking and unlocking from inside the vehi- cle (p. 247)
• Detachable key blade (p. 240)
Automatic locking when driving
The doors and trunk lid will automatically lock when the vehicle begins to move.
Related information
• Locking and unlocking from inside the vehi- cle (p. 247)
Opening and closing the power
trunk lid
*
The trunk lid can be opened and closed auto- matically with the optional power trunk release.
Opening the power trunk lidTo open the trunk lid, do one of the following:
–Press and hold the button on the
remote key until the tailgate begins to open.

||
KEY, LOCKS AND ALARM
* Option/accessory.
252
–Press and hold the button on the dash-
board until the tailgate begins to open.
–Press lightly on the trunk lid's outside handle.
–Move your foot in a kicking motion * under the
rear bumper.
Closing the power trunk lid
To close the trunk lid 18
, do one of the following:
–Press the button on the lower edge of
the trunk lid to close.
> The trunk lid will close automatically - the trunk lid will remain unlocked.
NOTE
The button remains active 24 hours after the tailgate was opened. After this time, the tail-gate must be closed manually.
–Press and hold the button on the
remote key.
> The trunk lid closes automatically and an audible signal sounds - the trunk lid will remain unlocked.
18Vehicles equipped with keyless locking and unlocking (Passive Entry *) have a button for closing and a button for closing and locking.

KEY, LOCKS AND ALARM
}}
* Option/accessory.253

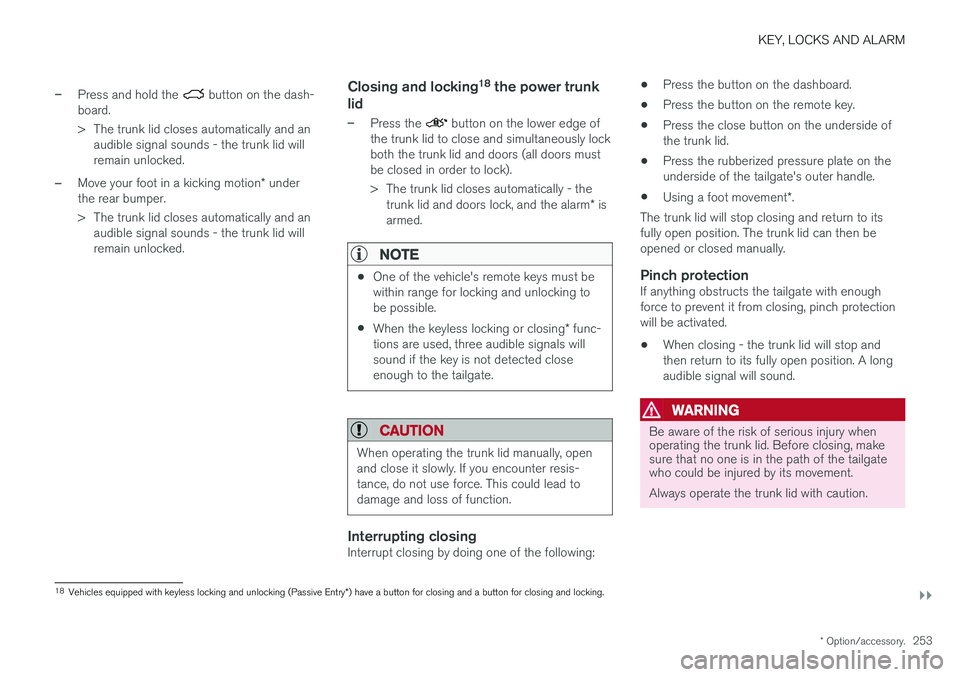

–Press and hold the button on the dash-
board.
> The trunk lid closes automatically and an audible signal sounds - the trunk lid will remain unlocked.
–Move your foot in a kicking motion * under
the rear bumper.
> The trunk lid closes automatically and an audible signal sounds - the trunk lid will remain unlocked.
Closing and locking 18
the power trunk
lid
–Press the button on the lower edge of
the trunk lid to close and simultaneously lock both the trunk lid and doors (all doors mustbe closed in order to lock).
> The trunk lid closes automatically - the
trunk lid and doors lock, and the alarm * is
armed.
NOTE
• One of the vehicle's remote keys must be within range for locking and unlocking tobe possible.
• When the keyless locking or closing
* func-
tions are used, three audible signals willsound if the key is not detected closeenough to the tailgate.
CAUTION
When operating the trunk lid manually, open and close it slowly. If you encounter resis-tance, do not use force. This could lead todamage and loss of function.
Interrupting closingInterrupt closing by doing one of the following: •
Press the button on the dashboard.
• Press the button on the remote key.
• Press the close button on the underside of the trunk lid.
• Press the rubberized pressure plate on theunderside of the tailgate's outer handle.
• Using a foot movement
*.
The trunk lid will stop closing and return to itsfully open position. The trunk lid can then beopened or closed manually.
Pinch protectionIf anything obstructs the tailgate with enoughforce to prevent it from closing, pinch protectionwill be activated.
• When closing - the trunk lid will stop andthen return to its fully open position. A longaudible signal will sound.
WARNING
Be aware of the risk of serious injury when operating the trunk lid. Before closing, makesure that no one is in the path of the tailgatewho could be injured by its movement. Always operate the trunk lid with caution.
18
Vehicles equipped with keyless locking and unlocking (Passive Entry *) have a button for closing and a button for closing and locking.

||
KEY, LOCKS AND ALARM
* Option/accessory.
254
Related information
• Opening and closing the trunk lid with foot movement
* (p. 254)
• Remote key range (p. 233)
Opening and closing the trunk lid
with foot movement
*
To make it easier to operate the trunk lid when your hands are full, it can be opened and closedby moving your foot in a forward kicking motionunder the rear bumper.
The sensor is located to the left of center under the rear bumper.
One of the vehicle's remote keys must be within range behind the vehicle (approx. 1 meter (3feet)) for opening and closing to be possible. Thisapplies even if the vehicle is unlocked in order toprevent the trunk lid from inadvertently openinge.g. at a car wash.
Foot movement operation
Kicking motion within the sensor's activation area.
–Make one slow forward kicking motion with
your foot under the left section of the rear bumper. Take a step back. Do not touch thebumper.
> A brief audible signal will sound when opening or closing is activated - the trunk lid will open/close. If the trunk lid is open, it will always close 19
when the foot motion sensor is
activated.
If several opening attempts have been made without the remote key in range behind the vehi-cle, foot movement operation will not be availablefor a short period of time.
19 Applies to vehicles with power trunk lid *.

KEY, LOCKS AND ALARM
}}
* Option/accessory.255
Do not keep your foot under the vehicle in a kick- ing motion. This may prevent activation.
Interrupting foot movement operation
–Make
one slow forward kicking motion while
the trunk lid is opening/closing to stop its movement.
> The trunk lid will stop closing and return to its fully open position. The trunk lid can then be opened or closed manually.
The remote key does not need to be within rangeof the vehicle to interrupt closing.
NOTE
There is a risk of reduced or lost function if there are large amounts of snow, ice, dirt, etc.on the rear bumper. Make sure to keep thebumper clean.
NOTE
Please note that the system could be inadver- tently activated in a car wash or similar if theremote key is within range.
Related information
• Keyless and touch-sensitive surfaces
*
(p. 243)
• Opening and closing the power trunk lid
*
(p. 251)
• Remote key range (p. 233)
Private Locking The trunk lid and rear seats can be locked using the private locking function, e.g. when the vehi-cle is left at a workshop or with a valet. The func-tion prevents the trunk lid from being opened,locks the rear seat in the upright position, andprevents the rear seat from being lowered.
The function button for private locking is located in the centerdisplay's Function view.Depending on the current sta- tus of the lock,
Private
Locking Unlocked or Private
Locking Locked will be dis-
played.
Related information
• Activating and deactivating private locking (p. 255)
Activating and deactivating privatelocking
Private locking is activated using the function button in the center display and a PIN code.
NOTE
For the valet lock function to be activated the car must be in at least ignition mode I.
Entering security code before initial useThe first time the function is used, a security code must be selected. This code can then beused to deactivate private locking if the selectedPIN code has been lost or forgotten. The securitycode functions as a PUK (security) code for allPIN codes used for private locking. Save the security code in a safe place.To create a security code:
1. Tap the button for private locking in Function
view.
> A pop-up window will appear.

||
KEY, LOCKS AND ALARM
* Option/accessory.
256 2. Enter your security code.
> The security code is saved. The privatelocking function is now ready for activa- tion.
If the system has been reset, the above proce-dure will need to be repeated.
Activating private locking
NOTE
The rear seat must be in the upright position when private locking is activated in order forthe seats to lock. Seats in the folded-downposition will not lock.
1. Tap the button for private locking in Function view.
> A pop-up window will appear. 2. Enter the code you would like to use to
unlock the trunk lid and rear seats and tap
Confirm.
> The trunk lid and rear seats will lock. A green indicator light will illuminate next to the button in Function view to confirmlocked status.
Deactivating private locking1. Tap the button for private locking in Function view.
> A pop-up window will appear.
2. Enter the code used for locking and tap
Confirm.
> The trunk lid and rear seats will unlock. The green indicator light next to the but- ton in Function view will go out to confirmunlocked status.
NOTE
If you have forgotten or lost your PIN code or if the PIN code has been entered incorrectlymore than three times, the security code canbe used to deactivate private locking.
NOTE
If private locking is activated and the vehicle is unlocked using Volvo On Call * or the Volvo
On Call * app, private locking will be deacti-
vated automatically.
Related information
• Private Locking (p. 255)

KEY, LOCKS AND ALARM
257
Alarm
The alarm emits sound and light signals if any- one without a valid remote key attempts to breakinto the vehicle or interferes with the start batteryor alarm siren.
When armed, the alarm will be triggered if:
• the hood, trunk lid or any door is opened.
• a battery cable is disconnected
• the alarm siren is disconnected.
Alarm signalsThe following occurs if the alarm is triggered:
• A siren will sound for 30 seconds or until the alarm is turned off.
• All turn signals will flash for 5 minutes oruntil the alarm is turned off.
If the reason the alarm was triggered is not recti- fied, the alarm cycle will repeat up to 10 times 20
.
Alarm indicator
A red indicator light on the dashboard shows the status of the alarm:
• Indicator off - the alarm is disarmed.
• Indicator flashes once every two seconds -the alarm is armed.
• The indicator flashes quickly after the alarmhas been disabled for up to 30 seconds or until the ignition is put in
I mode by turning
the start knob clockwise and then releasing - the alarm has been triggered.
In the event of alarm system failureIf a problem is detected in the alarmsystem, a symbol and the message
Alarm system failure Service
required will appear in the instrument
panel. Contact a workshop - an authorized Volvo workshop is recommended.
NOTE
Do not attempt to repair or alter any of the components in the alarm system yourself. Anysuch attempt could affect the terms and con-ditions of your insurance policy.
Related information
• Arming and disarming the alarm (p. 258)
20
Certain markets only.

KEY, LOCKS AND ALARM
* Option/accessory.
258
Arming and disarming the alarm
The alarm is armed when the vehicle is locked.
Arming the alarmLock and arm the vehicle by:
• pressing the lock button on the remote key
• touch the marked surface on the outside of the door handle or the rubberized pressure plate on the trunk lid 21
.
If the vehicle is equipped with both keyless lock- ing/unlocking * and power trunk lid, the button
on the lower edge of the trunk lid can also
be used to lock and arm the vehicle.
A red LED light on the dashboard will flash every other second when the vehicle is locked and the alarm isarmed.
Disarming the alarmUnlock and disarm the vehicle alarm by:
• pressing the unlock button on the remote key
•
grip a door handle or press the trunk lid's rubberized pressure plate 21
.
Disarming the alarm without a functioning
remote key
The vehicle can be unlocked and disarmed even if the remote key is not functioning, e.g. if thebattery is discharged.
1. Open the driver's door using the detachable
key blade.
> This will trigger the alarm.
Location of the backup key reader in the cup holder.
2. Place the remote key on the key symbol inthe backup reader in the tunnel console's cup holder. 3. Turn the start knob clockwise and release.
> The alarm will be disarmed.
Turning off a triggered alarm
–Press the unlock button on the remote key or put the ignition into mode I by turning the
start knob clockwise and then releasing it.
NOTE
• Remember that the alarm is armed when the vehicle is locked.
• The alarm will be triggered if any of thedoors is opened from the inside.
Automatically arming and disarming the alarm
Automatically arming the alarm helps prevent inadvertently leaving the vehicle without alarmprotection. If the vehicle is unlocked using the remote key (and the alarm is disarmed) but none of thedoors or trunk lid is opened within two minutes,the alarm will be automatically rearmed. The vehi-cle will also re-lock. On some markets, the alarm will be automatically armed following a slight delay after the driver'sdoor has been opened and closed without beinglocked.
21
Only vehicles with keyless locking and unlocking * (Passive Entry).
