2018 VOLKSWAGEN TIGUAN Button

Personalisation
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The personalisation function allows personalised vehicle settings, such as air conditioning system,
instrument cluster or lighting settings, to be saved in a user account. You have four user accounts
available. Users are identified using the vehicle key upon unlocking the vehicle. One user account
is assigned to each vehicle key.
Changes to the setup will be assigned to the active user account and saved upon locking the
vehicle or changing the user account.
Welcome and user account selection
When personalisation is activated, the name of the current user account appears on the instrument
cluster display for approximately ten seconds after you switch on the ignition.
During this time, you can select a user account using the buttons on the wiper lever or multifunction
steering wheel ⇒ Operation and display in the Infotainment system.
When you select a user account, the saved vehicle settings are activated.
User management and setup
When the ignition is switched on you can use the Personalisation menu in the Infotainment system
for user management and setup. Please proceed as follows to access the menu:
•Press the button or function button.
•Touch the Vehicle, function buttons and select Personalisation.
If the checkbox in the function button is ticked , the respective function is switched on.
MenuSubmenuSettings
PersonalisationActiveSwitch personalisation on and off.
Driver selection
Driver 1– Select a user account.
– Rename a user account (except Guest user
accountyf
– Copy the settings of the current user
account to another user account.
– Reset the stored settings of the selected
user account selected to the factory settings.
The user name and vehicle key assignment
will not be changed.
Driver 2
Driver 3
Driver Guest
Settings
Key assignment
Manual
A vehicle key is permanently assigned to a
user account.
Automatically
The vehicle key is automatically assigned to
the new, selected user account.
Assign key to current
user accountAssign a vehicle key to a user account.
Reset all
Reset the setups of all user accounts, user
account names and all vehicle key
assignments to default.
Switching user account
Select a user account in the Personalisation menu or in the Vehicle status menu.
•Press the button or function button.
•Press the Vehicle function button.
•Touch the function button and select the desired user account.
Manually assigning vehicle keys to user accounts
You can assign a vehicle key to the currently active user account. For this purpose, select Manual
key assignment.
•Touch the Settings function button.
•Select Personalisation.
•Touch the Assign key to current user account function button.
•Press the button on the vehicle key within five seconds ⇒ Vehicle key set.
Automatically assigning vehicle keys to user accounts
If you have selected Automatic key assignment, the following vehicle key is assigned to the user
account upon changing the user account:

Belt status display for the rear seats
After the ignition has been switched on, the belt status display ⇒ Fig. 32 on the instrument cluster
display shows the driver whether the rear seat passengers have fastened their seat belts. The
symbol indicates that the passenger on this seat has fastened their seat belt. The symbol
indicates that the seatbelt has not been fastened.
The belt status display will be shown for approximately 30 seconds if a seat belt is fastened or
unfastened on the rear seats. The display can be hidden by pressing the button in the
instrument cluster.
If a seat belt for one of the rear seats is unfastened while the vehicle is in motion, the belt status
display will flash for a maximum of 30 seconds. If the vehicle is travelling faster than approximately
25 km/h (15 mphyfDVLJQDOWRQHZLOODOVRVRXQG.
Frontal collisions and the laws of physics
Fig. 33 Unbelted occupants in a vehicle heading for a brick wall.
Fig. 34 Unbelted occupants in a vehicle striking a brick wall.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The physical principles involved in a frontal collision are relatively simple. As soon as the vehicle is
in motion ⇒ Fig. 33, both the moving vehicle and its passengers gain kinetic energy.
The higher the vehicle speed and the heavier the weight of the vehicle, the greater the amount of
energy that will have to be released in the event of an accident.
However, the most significant factor is the speed of the vehicle. For example, if the speed doubles
from 25 km/h to 50 km/h (15 mph to 31 mphyfWKHNLQHWLFHQHUJ\LQFUHDVHVE\DIDFWRURIIRXU.
The amount of kinetic energy depends on the speed of the vehicle and the weight of the vehicle
and passengers. The higher the speed and the heavier the weight, the greater the amount of
energy that will be released in the event of an accident.
Passengers not wearing seat belts are not connected to the vehicle. In the event of a frontal
collision they will continue to move forwards at the same speed at which the vehicle was travelling
before impact, until something stops them. Because the passengers in our example are not
restrained by seat belts, the entire amount of kinetic energy will be released only at the point of
impact against the wall ⇒ Fig. 34.
Even at speeds of approximately 30 km/h (19 mphyfWRDSSUR[LPDWHO\NPKPSK\f, the forces
acting on bodies in a collision can easily exceed one tonne (1,000 kgyf7KHVHIRUFHVDUHHYHQ
greater at higher speeds.
This example applies not only to frontal collisions, but to all accidents and collisions.
What happens to vehicle occupants who have not fastened their
seat belts
Incorrectly fastened or unfastened seat belts increase the risk of severe or fatal injuries.
Seat belts will only offer the optimum level of protection when they are fastened and used
properly.
WARNING

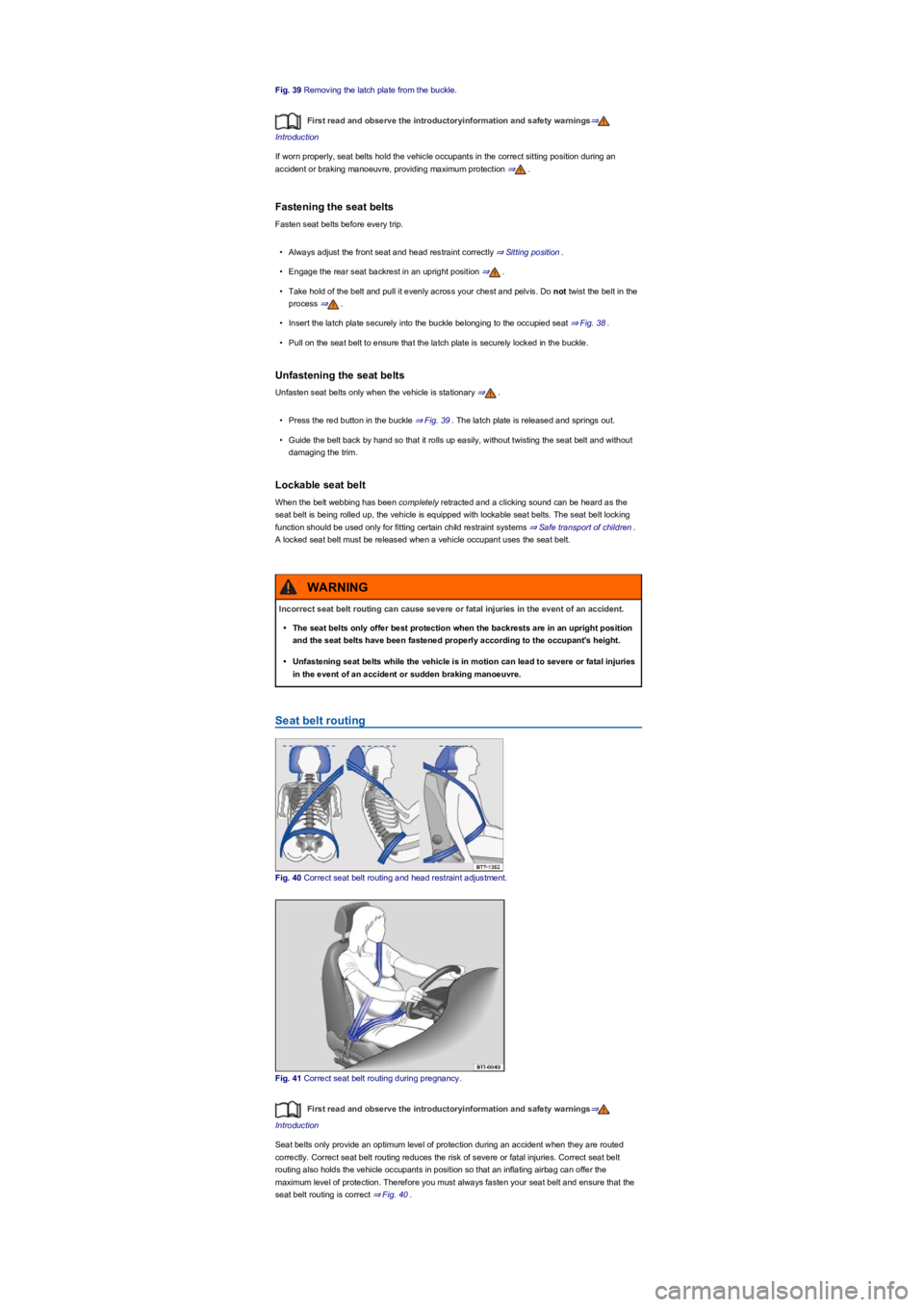

Fig. 39 Removing the latch plate from the buckle.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
If worn properly, seat belts hold the vehicle occupants in the correct sitting position during an
accident or braking manoeuvre, providing maximum protection ⇒.
Fastening the seat belts
Fasten seat belts before every trip.
•Always adjust the front seat and head restraint correctly ⇒ Sitting position.
•Engage the rear seat backrest in an upright position ⇒.
•Take hold of the belt and pull it evenly across your chest and pelvis. Do not twist the belt in the
process ⇒.
•Insert the latch plate securely into the buckle belonging to the occupied seat ⇒ Fig. 38.
•Pull on the seat belt to ensure that the latch plate is securely locked in the buckle.
Unfastening the seat belts
Unfasten seat belts only when the vehicle is stationary ⇒.
•Press the red button in the buckle ⇒ Fig. 39. The latch plate is released and springs out.
•Guide the belt back by hand so that it rolls up easily, without twisting the seat belt and without
damaging the trim.
Lockable seat belt
When the belt webbing has been completely retracted and a clicking sound can be heard as the
seat belt is being rolled up, the vehicle is equipped with lockable seat belts. The seat belt locking
function should be used only for fitting certain child restraint systems ⇒ Safe transport of children.
A locked seat belt must be released when a vehicle occupant uses the seat belt.
Seat belt routing
Fig. 40 Correct seat belt routing and head restraint adjustment.
Fig. 41 Correct seat belt routing during pregnancy.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Seat belts only provide an optimum level of protection during an accident when they are routed
correctly. Correct seat belt routing reduces the risk of severe or fatal injuries. Correct seat belt
routing also holds the vehicle occupants in position so that an inflating airbag can offer the
maximum level of protection. Therefore you must always fasten your seat belt and ensure that the
seat belt routing is correct ⇒ Fig. 40.
Incorrect seat belt routing can cause severe or fatal injuries in the event of an accident.
•The seat belts only offer best protection when the backrests are in an upright position
and the seat belts have been fastened properly according to the occupant's height.
•Unfastening seat belts while the vehicle is in motion can lead to severe or fatal injuries
in the event of an accident or sudden braking manoeuvre.
WARNING

Stop the vehicle at a safe distance away from moving traffic and on a suitable surface .
Switch on the hazard warning lights using the button Centre console.
Switch on the electronic parking brake Electronic parking brake.
Move the gear lever to neutral position or move the selector lever to P, Manual gearbox:
selecting a gear and DSG® dual clutch gearbox.
Stop the engine and remove the key from the ignition Starting and stopping the engine.
Ensure that all occupants exit the vehicle and go straight to a safe place away from
moving traffic, e.g. behind the safety barrier. Heed the country-specific regulations
concerning high-visibility waistcoats.
Take all vehicle keys with you when you leave the vehicle.
Place the warning triangle in position to draw the attention of other road users to your
vehicle.
Allow the engine to cool down and seek expert assistance.
Making you and your vehicle safe
Observe any legislation concerning the safety of a broken-down vehicle. For example, many
countries stipulate that you have to switch on the hazard warning lights and wear a high-visibility
vest ⇒ Equipment for an emergency.
Checklist
To ensure your own safety and that of your passengers, observe the following actions in the
specified order ⇒:
When the hazard warning lights are switched on, for example if you are being towed, you can still
indicate a change in direction or lane change by operating the turn signal. The warning lights will be
interrupted temporarily.
Examples of when to switch on the hazard warning lights:
•When traffic ahead suddenly starts moving more slowly or you reach the tail end of a traffic jam,
to will warn vehicles behind you.
•When there is an emergency.
•When the vehicle breaks down.
•When tow-starting or towing.
Always follow local regulations for the use of the hazard warning lights.
If the hazard warning lights are not working, you must use an alternative method of drawing
attention to the broken-down vehicle. This method must comply with traffic legislation.
Any broken-down vehicle poses a high accident risk for the vehicle occupants and for
other road users.
•Stop the vehicle as soon as possible and when safe to do so.
•Park the vehicle at a safe distance from moving traffic.
•Switch on the hazard warning lights.
•Never leave other persons alone in the vehicle, particularly children or people requiring
assistance. This applies in particular when the doors are locked. People locked in the
vehicle may be subjected to very high or very low temperatures.
WARNING
Ignoring any of the items on this important safety checklist can lead to accidents and
severe injuries.
•Always follow the instructions in the checklist and observe the general safety
procedures.
WARNING
The components of the exhaust system become very hot. This can cause fires and serious
injuries.
•Park the vehicle so that no part of the exhaust system can come into contact with any
inflammable material underneath the vehicle, e.g. dry grass, fuel.
WARNING
When pushing the vehicle by hand, do not press on the rear lights, the rear spoiler or large
panels. This could damage the vehicle and loosen the spoiler.
NOTICE

The symbol can differ depending on the version of the instrument cluster.
Information call, breakdown call and Emergency Call Service

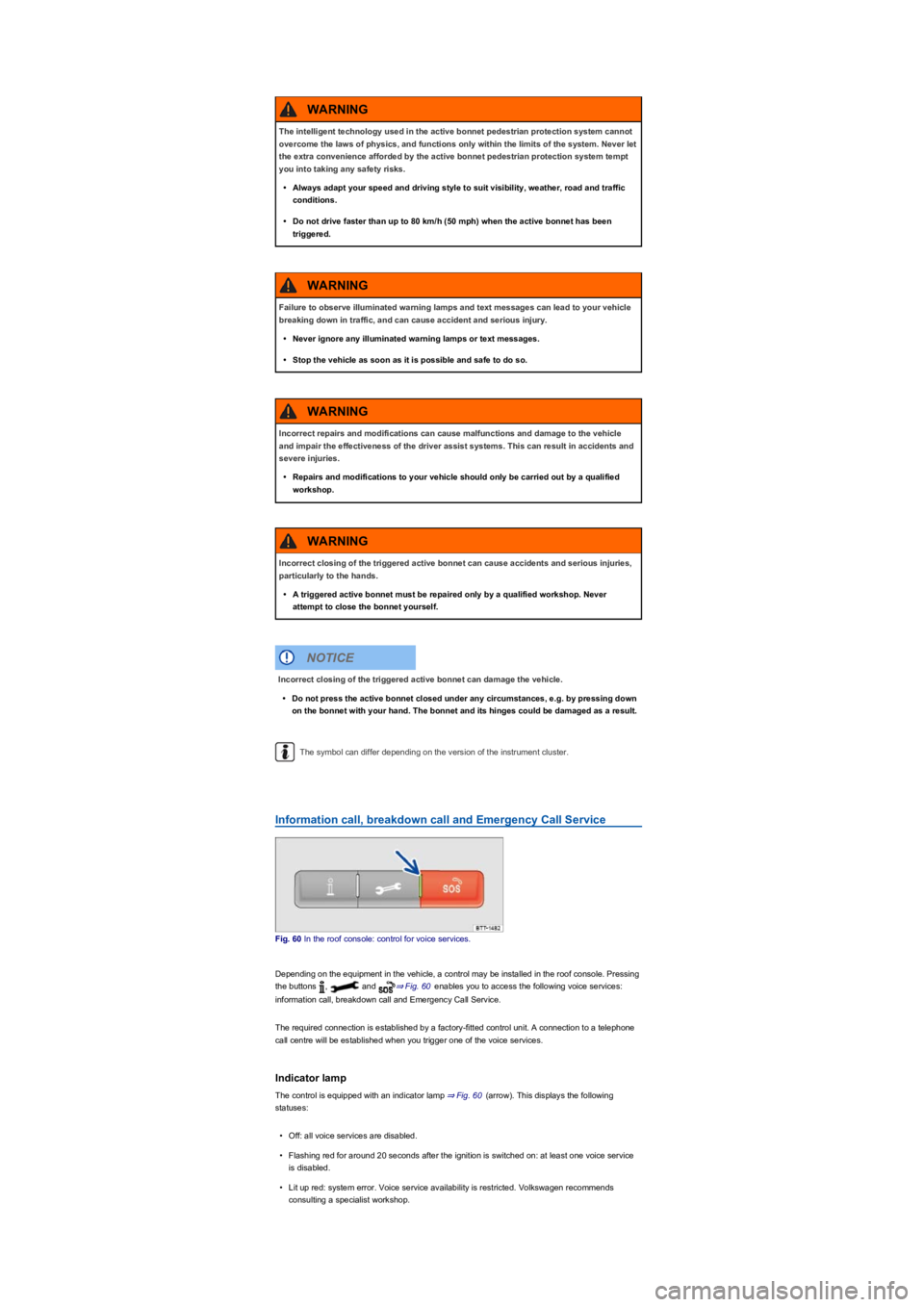

Fig. 60 In the roof console: control for voice services.
Depending on the equipment in the vehicle, a control may be installed in the roof console. Pressing
the buttons , and ⇒ Fig. 60 enables you to access the following voice services:
information call, breakdown call and Emergency Call Service.
The required connection is established by a factory-fitted control unit. A connection to a telephone
call centre will be established when you trigger one of the voice services.
Indicator lamp
The control is equipped with an indicator lamp ⇒ Fig. 60 (arrowyf7KLVGLVSOD\VWKHIROORZLQJ
statuses:
•Off: all voice services are disabled.
•Flashing red for around 20 seconds after the ignition is switched on: at least one voice service
is disabled.
•Lit up red: system error. Voice service availability is restricted. Volkswagen recommends
consulting a specialist workshop.
The intelligent technology used in the active bonnet pedestrian protection system cannot
overcome the laws of physics, and functions only within the limits of the system. Never let
the extra convenience afforded by the active bonnet pedestrian protection system tempt
you into taking any safety risks.
•Always adapt your speed and driving style to suit visibility, weather, road and traffic
conditions.
•Do not drive faster than up to 80 km/h (50 mphyfZKHQWKHDFWLYHERQQHWKDVEHHQ
triggered.
WARNING
Failure to observe illuminated warning lamps and text messages can lead to your vehicle
breaking down in traffic, and can cause accident and serious injury.
•Never ignore any illuminated warning lamps or text messages.
•Stop the vehicle as soon as it is possible and safe to do so.
WARNING
Incorrect repairs and modifications can cause malfunctions and damage to the vehicle
and impair the effectiveness of the driver assist systems. This can result in accidents and
severe injuries.
•Repairs and modifications to your vehicle should only be carried out by a qualified
workshop.
WARNING
Incorrect closing of the triggered active bonnet can cause accidents and serious injuries,
particularly to the hands.
•A triggered active bonnet must be repaired only by a qualified workshop. Never
attempt to close the bonnet yourself.
WARNING
Incorrect closing of the triggered active bonnet can damage the vehicle.
•Do not press the active bonnet closed under any circumstances, e.g. by pressing down
on the bonnet with your hand. The bonnet and its hinges could be damaged as a result.
NOTICE

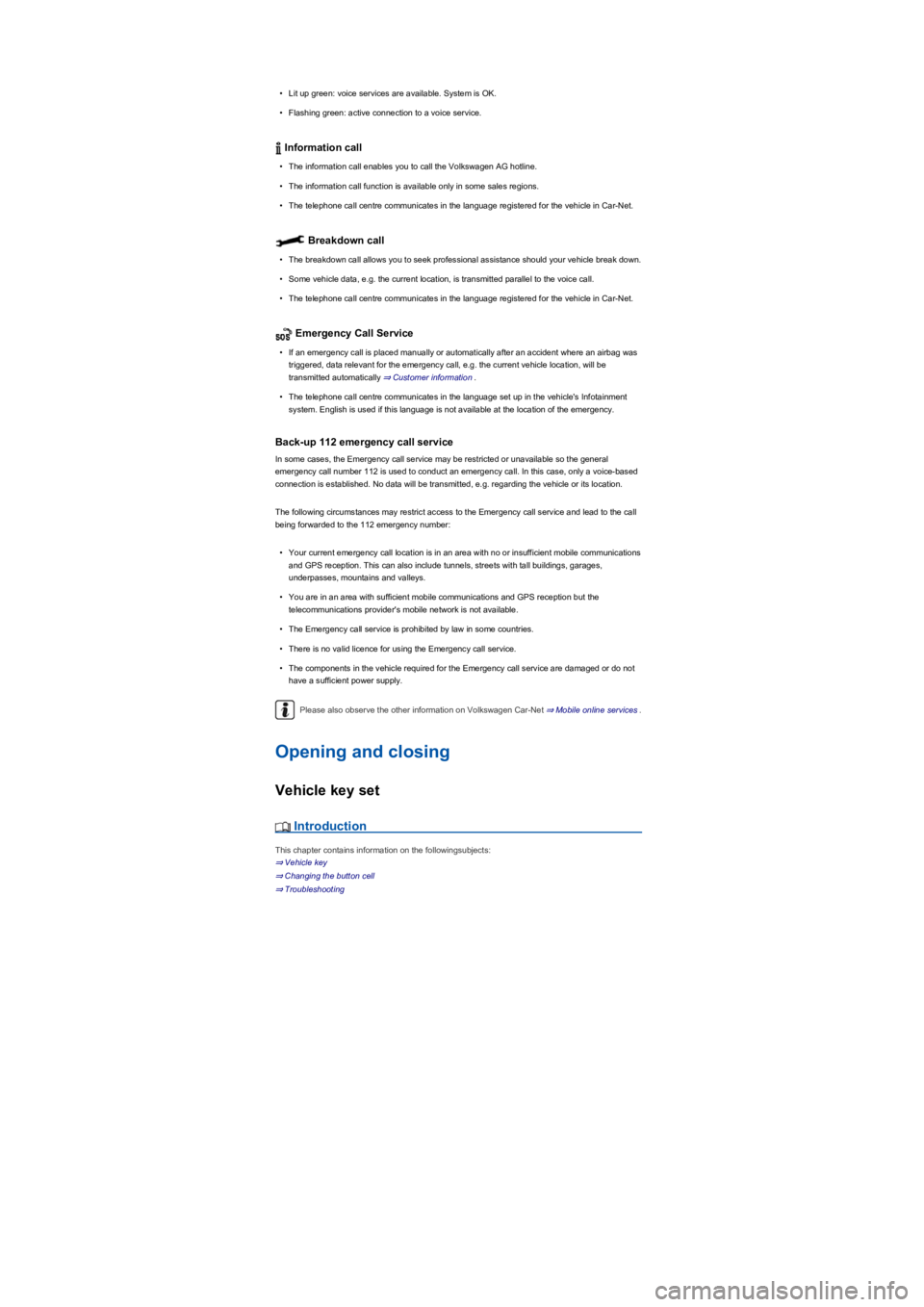

•Lit up green: voice services are available. System is OK.
•Flashing green: active connection to a voice service.
Information call
•The information call enables you to call the Volkswagen AG hotline.
•The information call function is available only in some sales regions.
•The telephone call centre communicates in the language registered for the vehicle in Car-Net.
Breakdown call
•The breakdown call allows you to seek professional assistance should your vehicle break down.
•Some vehicle data, e.g. the current location, is transmitted parallel to the voice call.
•The telephone call centre communicates in the language registered for the vehicle in Car-Net.
Emergency Call Service
•If an emergency call is placed manually or automatically after an accident where an airbag was
triggered, data relevant for the emergency call, e.g. the current vehicle location, will be
transmitted automatically ⇒ Customer information.
•The telephone call centre communicates in the language set up in the vehicle's Infotainment
system. English is used if this language is not available at the location of the emergency.
Back-up 112 emergency call service
In some cases, the Emergency call service may be restricted or unavailable so the general
emergency call number 112 is used to conduct an emergency call. In this case, only a voice-based
connection is established. No data will be transmitted, e.g. regarding the vehicle or its location.
The following circumstances may restrict access to the Emergency call service and lead to the call
being forwarded to the 112 emergency number:
•Your current emergency call location is in an area with no or insufficient mobile communications
and GPS reception. This can also include tunnels, streets with tall buildings, garages,
underpasses, mountains and valleys.
•You are in an area with sufficient mobile communications and GPS reception but the
telecommunications provider's mobile network is not available.
•The Emergency call service is prohibited by law in some countries.
•There is no valid licence for using the Emergency call service.
•The components in the vehicle required for the Emergency call service are damaged or do not
have a sufficient power supply.
Please also observe the other information on Volkswagen Car-Net ⇒ Mobile online services.
Opening and closing
Vehicle key set
Introduction
This chapter contains information on the followingsubjects:
⇒ Vehicle key
⇒ Changing the button cell
⇒ Troubleshooting

Vehicle key
Fig. 61 Vehicle key.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Key to ⇒ Fig. 61:
Central locking button: unlock the vehicle.
Unlock only the boot lid.
Central locking button: lock the vehicle.
Fold the key bit in and out.
Indicator lamp.
Indicator lamp
The indicator lamp in the vehicle key flashes when you press a button.
Press the buttons on the key only if the corresponding function is actually needed. Pressing
a button when the function is not required could lead to the vehicle being unlocked unintentionally
or the alarm going off. This also applies even when you are not within the effective range.
Changing the button cell
Swallowing batteries with a diameter of 20 mm, or other button cells, can result in severe
or even fatal injuries within a very short period of time.
•Always keep the vehicle key, key ring with batteries, spare batteries, round cells and
other batteries that are larger than 20 mm out of the reach of children.
•Call for medical help immediately you suspect that someone has swallowed a battery.
DANGER
Careless or unsupervised use of the vehicle key can lead to accidents or injuries.
•Always take all vehicle keys with you every time you leave the vehicle. Children or
unauthorised persons could lock the doors and the boot lid, start the engine or switch
on the ignition and operate electrical equipment such as the electric windows.
•Never leave children or people requiring assistance alone in the vehicle. They could
become trapped in the vehicle in an emergency and may not be able to get themselves
to safety. For example, locked vehicles may be subjected to very high or very low
temperatures depending on the season. This can cause serious injuries and illness or
fatalities, especially among small children.
•Never switch off the ignition while the vehicle is in motion. The steering column lock or
steering lock mechanism may be activated and you will no longer be able to steer the
vehicle.
WARNING
Every electric vehicle key contains electronic components. Protect the key from damage,
moisture and excessive vibration.
NOTICE

Fig. 62 Vehicle key: replacing the button cell.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Key to ⇒ Fig. 62:
Remove the cover.
Remove the button cell.
Volkswagen recommends having the button cell changed at a Volkswagen dealership or by a
qualified workshop ⇒.
•Fold out the key bit.
•Lever off the cover ⇒ Fig. 62①⇒.
•Lever the button cell out of the battery compartment ⇒ Fig. 62②.
•Press the new button cell into the battery compartment ⇒ Fig. 62②⇒.
•Press the cover onto the housing ⇒ Fig. 62①.
Dispose of discharged batteries in accordance with regulations governing the protection of
the environment.
Troubleshooting
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Synchronising the vehicle key
If the vehicle cannot be locked or unlocked with the vehicle key, synchronise the vehicle key or
replace the button cell (batteryyf ⇒ Changing the button cell.
•Fold out the key bit.
•Remove the cap on the driver door handle ⇒ Unlocking or locking the driver door manually.
•Stand next to the vehicle.
•Press the button on the vehicle key.
•Unlock the vehicle using the key bit.
•Fit the cap ⇒ Doors.
The synchronisation process is complete.
Indicator lamp does not flash
If the indicator lamp in the vehicle key does not flash, the button cell (batteryyfLQWKHYHKLFOHNH\
needs to be changed ⇒ Changing the button cell.
Replacement key
You will need to quote the vehicle identification number when ordering a vehicle key.
Several vehicle keys can be authorised for one vehicle.
You can obtain new vehicle keys at a Volkswagen dealership or qualified workshop.
The function of the vehicle key can be affected temporarily if there is more than one
transmitter in the direct vicinity working on the same frequency (e.g. a two-way radio or mobile
telephoneyf.
Obstacles between the vehicle key and the vehicle, bad weather conditions and a weak
button cell reduce the operating range.
If the buttons on the vehicle key ⇒ Fig. 61 or one of the central locking buttons ⇒ Central
locking system are pressed repeatedly within a short period of time, the central locking system will
switch off briefly to prevent overloading. The vehicle will then be unlocked. Lock the vehicle if
necessary.
•The vehicle key can be damaged if the battery is not changed properly.
•Unsuitable batteries can damage the vehicle key. Replace discharged batteries only
with new batteries of the same voltage rating, size and specification.
•Ensure that the battery is fitted the right way round.
NOTICE
