2018 VAUXHALL VIVA light

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............19
Seats, restraints ........................... 33
Storage ........................................ 51
Instruments and controls .............58
Lighting ........................................ 91
Climate control ............................. 97
Driving and operating .................106
Vehicle care ............................... 135
Service and maintenance ..........174
Technical data ........................... 178
Customer information ................188
Index .......................................... 196Contents

6In briefIn briefInitial drive informationVehicle unlocking
Press c to unlock the doors and load
compartment.
Manual door locks
To unlock the front doors or the tailgate, turn the key in the lock anti-
clockwise. To unlock a rear door, pull the interior lock button on the
respective door.
Open the doors by pulling the
handles.
To open the tailgate, push the switch
on the underside of the brand emblem and lift up slightly.
Radio remote control 3 20, Central
locking system 3 21.
Front doors 3 23.
Load compartment 3 24.

In brief111Central locking system ..........21
Power windows .....................29
2 Exterior mirrors .....................27
3 Cruise control .....................122
Speed limiter ...................... 123
Heated steering wheel ..........59
4 Turn and lane-change
signals, headlight flash,
low beam and high beam ......93
Exit lighting ........................... 95
Parking lights ........................ 94
5 Side air vents ...................... 103
6 Instruments .......................... 63
7 Driver Information Centre ...... 75
8 Steering wheel controls .......59
9 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer
system ................................... 60
10 Centre air vents .................. 103
11 Hazard warning flashers ......92
12 Info-Display ........................... 8013Anti-theft alarm system
status LED ........................... 25
14 Infotainment system
15 Glovebox .............................. 51
16 Climate control system .......... 97
17 AUX input, USB input
18 Selector lever, manual
transmission ....................... 113
Selector lever, manual
transmission automated ......114
19 Seat heating .......................... 36
20 Parking brake ......................118
21 Ignition switch with
steering wheel lock ............107
22 Horn ..................................... 60
Driver airbag ........................ 42
23 Bonnet release lever ..........137
24 Steering wheel adjustment ..59
25 Fuse box ............................ 152
26 Traction Control system .....119
City mode ............................ 121
Stop-start system ................109
Fuel selector ......................... 65
Lane departure warning .....126Electronic Stability Control . 120
27 Light switch .......................... 91
Headlight range
adjustment ........................... 92
Front fog light ........................ 93
Rear fog light ........................ 93
Brightness of instrument
panel illumination ..................94

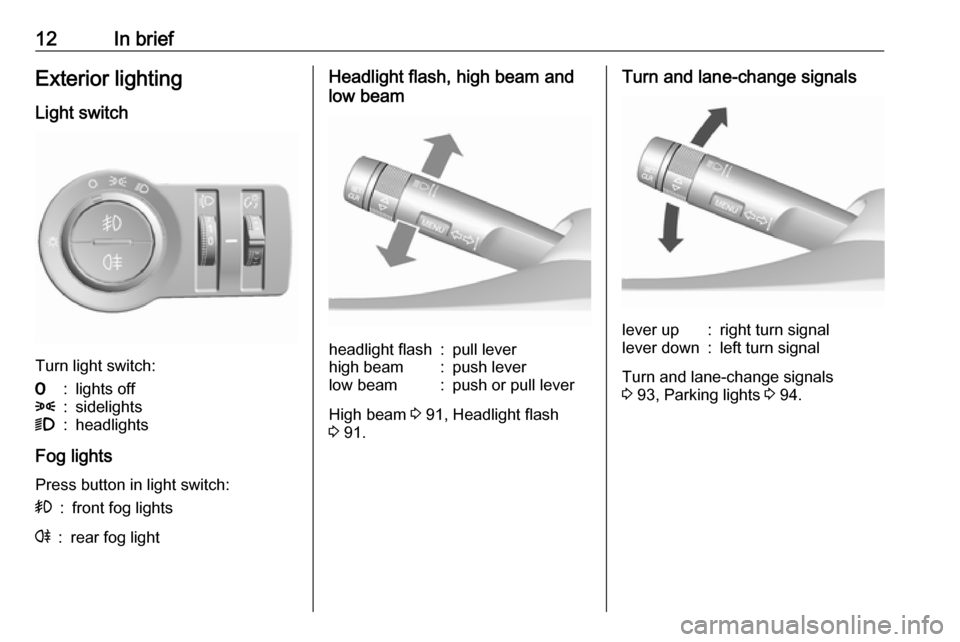

12In briefExterior lighting
Light switch
Turn light switch:
7:lights off8:sidelights9:headlights
Fog lights
Press button in light switch:
>:front fog lightsr:rear fog lightHeadlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 91, Headlight flash
3 91.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 93, Parking lights 3 94.

16In briefManual transmission automatedR:reverse, engage only when
vehicle is stationaryN:neutralD:automatic modeM:manual mode<:upshift in manual mode]:downshift in manual mode
Manual transmission automated
3 114.
Starting off
Check before starting off ● Tyre pressure and condition 3 155,
3 187.
● Engine oil level and fluid levels 3 138.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 27, 3 34,
3 38.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Manual transmission automated:
operate brake pedal.
Automatic transmission: operate
brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Turn key to position 3 and
release.

Keys, doors and windows21
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Key with foldaway key section
Extend the key and open the unit
sideways. Replace the battery
(battery type CR 2032), paying
attention to the installation position.
Close the unit and synchronise.
Memorised settings
Whenever the key is removed from
the ignition switch, the following
settings are automatically memorised by the key:
● lighting
● presets for Infotainment system
● central locking system
● comfort settings
The saved settings are automatically
used the next time the memorised key
is inserted into the ignition switch and
turned to position 1 3 107.
A precondition is that Personalization
By Driver is activated in the personal
settings of the Info-Display.
This must be set for each key used.
Vehicle personalisation 3 84.
Central locking system
Unlocks and locks doors and load compartment.Notice
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.
Unlocking
Press c.
Two settings are selectable in the
Info-Display:
● To unlock only the driver's door, press c once. To unlock all doors
and load compartment, press c
twice.
● Press c once to unlock all doors
and load compartment.

26Keys, doors and windowsStatus during the first 30 seconds of
anti-theft alarm system activation:LED illuminates:test, arming delayLED flashes
quickly:doors, tailgate or
bonnet not
completely closed, or system fault
Seek the assistance of a workshop in
the event of faults.
Deactivation Unlocking the vehicle by pressing c
deactivates anti-theft alarm system.
Alarm
When triggered, the alarm horn
sounds and the hazard warning lights flash simultaneously. The numberand duration of alarm signals are
stipulated by legislation.
The alarm can be silenced by
pressing any button on the radio
remote control or by switching on the
ignition.
The anti-theft alarm system can only
be deactivated by pressing c on the
radio remote control or by switching
on the ignition.
Vehicle messages 3 81.
If the vehicle's battery is to be
disconnected (e.g. for maintenance
work), the alarm siren must be
deactivated as follows: Switch the
ignition on then off, then disconnect
the vehicle's battery within
15 seconds.
Immobiliser The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.
The immobiliser is activated
automatically after the key has been removed from the ignition switch.
If the control indicator d flashes when
the ignition is on, there is a fault in the
system; the engine cannot be started. Switch off the ignition and repeat the
start attempt.
If the control indicator continues
flashing, attempt to start the engine
using the spare key and seek the
assistance of a workshop.Notice
The immobiliser does not lock the
doors. You should always lock the
vehicle after leaving it.
Switch on the anti-theft alarm
system 3 21, 3 25.
Control indicator d 3 74.

Keys, doors and windows27Exterior mirrors
Mirrors
The shape of the mirrors makes
objects appear smaller, which will
affect the ability to estimate
distances.
Manual adjustment
Adjust mirrors by swivelling lever in
required direction.
Electric adjustment
Select the relevant exterior mirror by
turning the control to left (L) or right
(R). Then swivel the control to adjust
the mirror.
In position 0 no mirror is selected.
Folding mirrors
For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the
mirror by applying slight pressure to
the mirror housing.Heated mirrors
Type 1
