2018 VAUXHALL VIVA Owner's Manual

In brief7Seat adjustmentLongitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.
Seat position 3 34, Seat adjustment
3 35.
Backrest inclination
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 34, Seat adjustment
3 35.
Seat height
Lever pumping motion
up:seat higherdown:seat lower
Seat position 3 34, Seat adjustment
3 35.

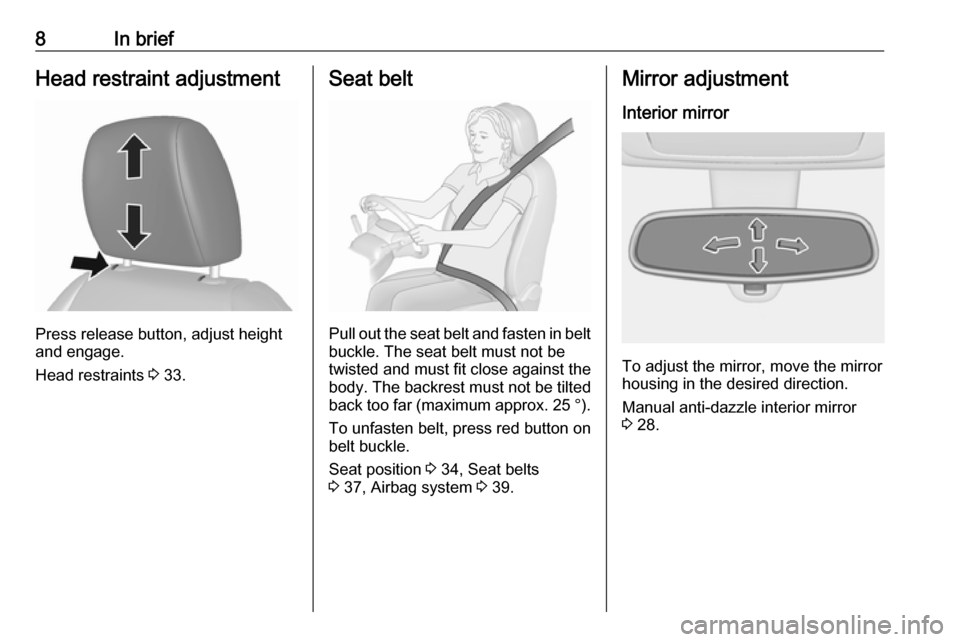

8In briefHead restraint adjustment
Press release button, adjust height
and engage.
Head restraints 3 33.
Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25 ° ).
To unfasten belt, press red button on belt buckle.
Seat position 3 34, Seat belts
3 37, Airbag system 3 39.
Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 28.

In brief9Exterior mirrorsManual adjustment
Swivel lever in required direction.
Exterior mirrors 3 27, Manual
adjustment 3 27.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Electric adjustment 3 27, Folding
exterior mirrors 3 27.
Heated exterior mirrors 3 27.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 39, Ignition
positions 3 107.

10In briefInstrument panel overview

In brief111Central locking system ..........21
Power windows .....................29
2 Exterior mirrors .....................27
3 Cruise control .....................122
Speed limiter ...................... 123
Heated steering wheel ..........59
4 Turn and lane-change
signals, headlight flash,
low beam and high beam ......93
Exit lighting ........................... 95
Parking lights ........................ 94
5 Side air vents ...................... 103
6 Instruments .......................... 63
7 Driver Information Centre ...... 75
8 Steering wheel controls .......59
9 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer
system ................................... 60
10 Centre air vents .................. 103
11 Hazard warning flashers ......92
12 Info-Display ........................... 8013Anti-theft alarm system
status LED ........................... 25
14 Infotainment system
15 Glovebox .............................. 51
16 Climate control system .......... 97
17 AUX input, USB input
18 Selector lever, manual
transmission ....................... 113
Selector lever, manual
transmission automated ......114
19 Seat heating .......................... 36
20 Parking brake ......................118
21 Ignition switch with
steering wheel lock ............107
22 Horn ..................................... 60
Driver airbag ........................ 42
23 Bonnet release lever ..........137
24 Steering wheel adjustment ..59
25 Fuse box ............................ 152
26 Traction Control system .....119
City mode ............................ 121
Stop-start system ................109
Fuel selector ......................... 65
Lane departure warning .....126Electronic Stability Control . 120
27 Light switch .......................... 91
Headlight range
adjustment ........................... 92
Front fog light ........................ 93
Rear fog light ........................ 93
Brightness of instrument
panel illumination ..................94

12In briefExterior lighting
Light switch
Turn light switch:
7:lights off8:sidelights9:headlights
Fog lights
Press button in light switch:
>:front fog lightsr:rear fog lightHeadlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 91, Headlight flash
3 91.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 93, Parking lights 3 94.

In brief13Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 92.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowE:interval wipingOFF:off
For single wipe when the wiper is off,press lever down to position 2.
Windscreen wiper 3 60.

14In briefWindscreen washer
Pull lever.
Windscreen washer system 3 60,
Washer fluid 3 140, Wiper blade
replacement 3 142.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch:continuous
operationlower switch:intermittent
operationmiddle position:offRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 61.
