2018 VAUXHALL CROSSLAND X change wheel

In brief111Power windows .....................37
2 Exterior mirrors .....................34
3 Cruise control .....................151
Speed limiter ....................... 153
4 Turn and lane-change
signals, headlight flash,
low/high beam, high beam
assist ................................... 114
Exit lighting ......................... 117
Parking lights ...................... 115
Buttons for Driver
Information Centre ................95
5 Side air vents ...................... 128
6 Instruments .......................... 84
Driver Information Centre ...... 95
7 Buttons for Driver
Information Centre ................95
8 Windscreen wiper and
washer, rear wiper and
washer ................................. 75
9 Head-up display ....................99
10 Centre air vents .................. 128
11 Hazard warning flashers ....113
12 Info-Display .......................... 9713Centre air vent ......................97
14 Anti-theft alarm system
status LED ........................... 32
15 Central locking system ..........24
16 Glovebox .............................. 64
Fuse box ............................ 201
17 Controls for Info-Display
operation ............................... 97
18 Climate control system ........ 120
19 USB charging port ................ 78
20 Parking assist/Advanced
parking assist .....................160
Lane departure warning .....173
Eco button for stop-start
system ................................. 137
Electronic Stability Control
and Traction Control ..........149
21 Power outlet .......................... 78
22 Manual transmission ..........147
Automatic transmission ......144
23 Manual parking brake .........148
24 Power button ....................... 133
25 Ignition switch .....................13226Steering wheel adjustment ..74
27 Horn ..................................... 75
28 Bonnet release lever ..........186
29 Storage ................................. 64
Fuse box ............................ 201
30 Head-up display ....................99
31 Light switch ........................ 110
Headlight range
adjustment ......................... 112
Front/rear fog lights ............114
Instrument illumination .......116

Seats, restraints51Airbag system
The airbag system consists of a
number of individual systems
depending on the scope of
equipment.
When triggered, the airbags inflate
within milliseconds. They also deflate
so quickly that it is often unnoticeable during the collision.9 Warning
The airbag system deploys in an
explosive manner, repairs must be performed by skilled personnel
only.
9 Warning
Adding accessories that change
the vehicle's frame, bumper
system, height, front end or side
sheet metal, may keep the airbag
system from working properly. The operation of the airbag system can
also be affected by changing any
parts of the front seats, seat belts,
airbag sensing and diagnostic
module, steering wheel,
instrument panel, inner door seals including the speakers, any of the
airbag modules, ceiling or pillar
trim, front sensors, side impact
sensors or airbag wiring.
Notice
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.
Do not affix any objects onto the
airbag covers and do not cover them with other materials. Have damagedcovers replaced by a workshop.
Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it may be
necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.
Do not make any modifications to
the airbag system as this will
invalidate the vehicle operating
permit.
Control indicator v for airbag systems
3 90.
Child restraint systems on front
passenger seat with airbag
systems
Warning according to ECE R94.02:
EN: NEVER use a rearward-facing
child restraint on a seat protected by
an ACTIVE AIRBAG in front of it;
DEATH or SERIOUS INJURY to the
CHILD can occur.
DE: Nach hinten gerichtete
Kindersitze NIEMALS auf einem Sitz
verwenden, der durch einen davor
befindlichen AKTIVEN AIRBAG

102Instruments and controlsWhen the vehicle is being driven, the
load reduction function temporarily
deactivates certain functions, such as
the air conditioning, the heated rear
screen, heated steering wheel, etc.
The deactivated functions are
reactivated automatically as soon as
conditions permit.Vehicle personalisation
The vehicle's behaviour can be
personalised by changing the settings in the Info-Display.
Depending on vehicle equipment and
country-specific regulations some of
the functions described below may
not be available.
Some functions are only displayed or
active when the engine is running.
Graphic-Info-Display
Press MENU to open the menu page.
Use four-way button to operate the
display:
Select ˆ Personalisation-
configuration , I OK .
Unit settings
Select Display configuration , I OK .
Select Choise of units , I OK .
Select desired settings, I OK .
Language settings
Select Display configuration , I OK .
Select Choise of language , I OK .
Select desired language, I OK .
Vehicle settings
Select Define vehicle parameters , I
OK .
In the corresponding submenus the
following settings can be changed:
● Lighting .
Follow me home headlamps :
Activation and setting duration
time.
Welcome lighting : Activation and
setting duration time.
● Comfort
Ambient lighting : Activation/
Deactivation.

114LightingWhen braking in an emergency, the
hazard warning flashers are switched
on automatically depending on the
force of deceleration. They are
switched off automatically the first
time you accelerate if you press ¨.
Turn and lane-change
signalslever up:right turn signallever down:left turn signal
A resistance point can be felt by moving the lever.
Move the lever past the resistance
point to switch on constantly. When
the steering wheel moves opposite,
the turn signal is automatically
deactivated. Switch off manually by
moving the lever to its original
position.
Tap shortly to switch on for three
flashes, e.g., when changing lanes.
Move the lever to the resistance point
and hold for flashing until lever is
released.
If you forget to cancel the turn and
lane-change signals for more than
twenty seconds, the volume of the
audible signal will increase if the
speed is above 40 mph.Front fog lights
Operated by pressing >.
Light switch in position AUTO:
switching on front fog lights will switch headlights on automatically.

152Driving and operatingActivation

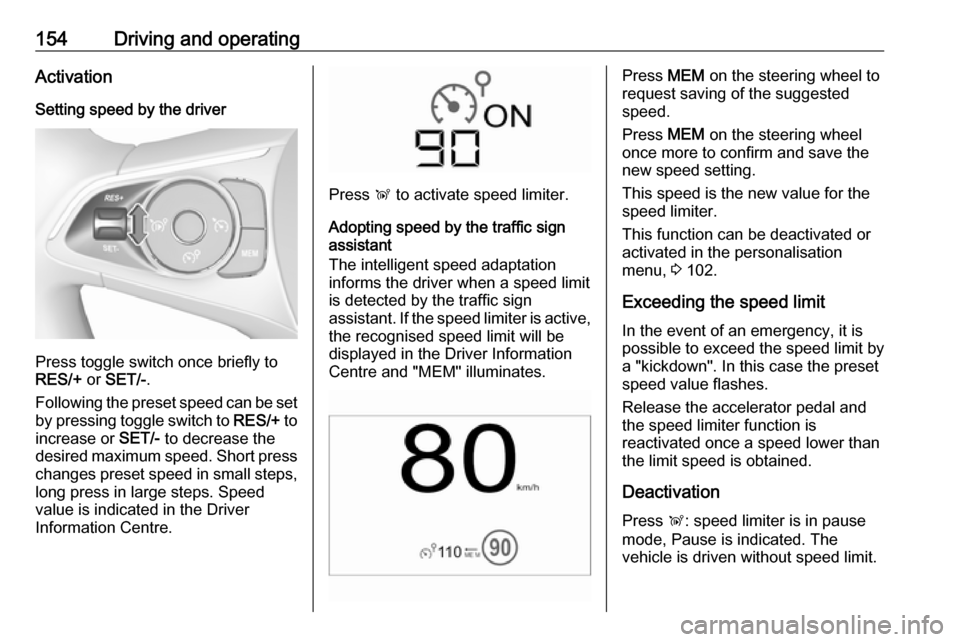

Setting speed by the driver
Accelerate to the desired speed and
press toggle switch once briefly to
RES/+ or SET/- . The current speed is
stored and maintained. Accelerator
pedal can be released.
The preset speed can then be
changed by pressing toggle switch to
RES/+ to increase or SET/- to
decrease the speed. Short press
changes speed in small steps, long
press in large steps.
Speed value is indicated in the Driver
Information Centre.
Adopting speed by the traffic sign
assistant
The intelligent speed adaptation
informs the driver when a speed limit
is detected by the traffic sign
assistant. If the cruise control is
active, the recognised speed limit will be displayed in the Driver Information
Centre and "MEM" illuminates.
Press MEM on the steering wheel to
request saving of the suggested
speed.
Press MEM on the steering wheel
once more to confirm and save the
new speed setting.
This speed is the new value for the
cruise control.
This function can be deactivated or activated in the personalisation
menu, 3 102.

154Driving and operatingActivation
Setting speed by the driver
Press toggle switch once briefly to
RES/+ or SET/- .
Following the preset speed can be set by pressing toggle switch to RES/+ to
increase or SET/- to decrease the
desired maximum speed. Short press
changes preset speed in small steps, long press in large steps. Speed
value is indicated in the Driver
Information Centre.
Press Ñ to activate speed limiter.
Adopting speed by the traffic sign
assistant
The intelligent speed adaptation
informs the driver when a speed limit
is detected by the traffic sign
assistant. If the speed limiter is active,
the recognised speed limit will be
displayed in the Driver Information
Centre and "MEM" illuminates.
Press MEM on the steering wheel to
request saving of the suggested
speed.
Press MEM on the steering wheel
once more to confirm and save the
new speed setting.
This speed is the new value for the
speed limiter.
This function can be deactivated or activated in the personalisation
menu, 3 102.
Exceeding the speed limit
In the event of an emergency, it is possible to exceed the speed limit by
a "kickdown". In this case the preset
speed value flashes.
Release the accelerator pedal and
the speed limiter function is
reactivated once a speed lower than
the limit speed is obtained.
Deactivation Press Ñ: speed limiter is in pause
mode, Pause is indicated. The
vehicle is driven without speed limit.

170Driving and operatingand on the left there is the view from
the rear displayed. The parking
sensors complete the information on
the view from above the vehicle.
Activation Panoramic view system is activated
by:
● engaging reverse gear
● driving up to 6 mph
Functionality
Different views can be selected in the left part of the display. Change the
type of view at any time during a
manoeuvre by pressing the touch
field in the left lower zone of the
display:
● Rear view
● Auto mode
● Zoom view
● 180° view
The display is immediately updated
with the type of view selected.
AUTO mode is activated by default. In
this mode, the system selects the
best view, standard or zoom, to
display according to the information
from the parking sensors.
The state of the system is not kept in
memory when the ignition is switched
off.Rear view
The area behind the vehicle is
displayed in the screen. The vertical
lines represent the width of the
vehicle with mirrors unfolded. The
direction of the lines changes with the position of the steering wheel.
The first horizontal line represents a
distance of about 30 cm beyond the
edge of vehicle's rear bumper. The
upper horizontal lines represent
distances of about one and two
metres beyond the edge of your
vehicle's rear bumper.
This view is available in AUTO mode
or in the view selection menu.

184Vehicle careVehicle careGeneral Information...................184
Accessories and vehicle modifications .......................... 184
Vehicle storage ........................185
End-of-life vehicle recovery .....185
Vehicle checks ........................... 186
Performing work ......................186
Bonnet ..................................... 186
Engine oil ................................. 187
Engine coolant ......................... 188
Washer fluid ............................ 188
Brakes ..................................... 189
Brake fluid ............................... 189
Vehicle battery ......................... 189
Diesel fuel system bleeding .....190
Wiper blade replacement ........191
Bulb replacement .......................191
Halogen headlights ..................191
LED headlights ........................ 194
Fog lights ................................. 194
Tail lights ................................. 194
Side turn signal lights ..............198
Number plate light ...................199
Interior lights ............................ 199
Instrument panel illumination ...199Electrical system ........................199
Fuses ....................................... 199
Engine compartment fuse box . 200
Instrument panel fuse box .......201
Vehicle tools .............................. 204
Tools ........................................ 204
Wheels and tyres .......................204
Winter tyres ............................. 204
Tyre designations ....................205
Tyre pressure .......................... 205
Tyre deflation detection system .................................... 206
Tread depth ............................. 207
Changing tyre and wheel size . 208
Wheel covers ........................... 208
Tyre chains .............................. 208
Tyre repair kit .......................... 209
Wheel changing .......................212
Spare wheel ............................ 214
Jump starting ............................. 216
Towing ....................................... 217
Towing the vehicle ...................217
Towing another vehicle ...........218
Appearance care .......................219
Exterior care ............................ 219
Interior care ............................. 221General Information
Accessories and vehiclemodifications
We recommend the use of genuine
parts and accessories and factory approved parts specific for your
vehicle type. We cannot assess or guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Any modification, conversion or other changes made to standard vehicle
specifications (including, without
limitation, software modifications,
modifications of the electronic control
units) may invalidate the warranty
offered by Vauxhall. Furthermore,
such changes may affect driver
assistance systems, may impact fuel
consumption, CO 2 emissions and
other emissions of the vehicle and
cause the vehicle to no longer
conform to the operating permit,
impacting the validity of your vehicle
registration.
