2018 VAUXHALL CORSA F key

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............20
Seats, restraints ........................... 35
Storage ........................................ 56
Instruments and controls .............74
Lighting ...................................... 114
Climate control ........................... 124
Driving and operating .................134
Vehicle care ............................... 190
Service and maintenance ..........237
Technical data ........................... 241
Customer information ................256
Index .......................................... 264Contents

In brief17Starting offCheck before starting off ● tyre pressure and condition 3 213, 3 254
● Engine oil level and fluid levels 3 193.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 28, 3 36,
3 41.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Manual transmission automated:
operate brake pedal.
Automatic transmission: operate
brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Diesel engines: turn the key to
position 2 for preheating and wait
until control indicator !
extinguishes.
● Turn the key to position 2 for
preheating and wait until control
indicator ! extinguishes.
● Turn key to position 3 and
release.
Starting the engine 3 136.

18In briefStop-start system
If the vehicle is at a low speed or at astandstill and certain conditions are
fulfilled, activate an Autostop as
follows:
Vehicles with manual transmission: ● Depress the clutch pedal.
● Engage neutral gear.
● Release the clutch pedal.
An Autostop is indicated by control
indicator D.
To restart the engine, depress the
clutch pedal again. Control indicator
D extinguishes.
Vehicles with manual transmission
automated:
If the vehicle is at a standstill with the
brake pedal depressed, Autostop is
activated automatically, indicated by
control indicator D.
Release the brake pedal or move
selector lever out of D to restart the
engine. Control indicator D
extinguishes.
Stop-start system 3 137.Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake. Activate the manual
parking brake without pressing the release button. Apply as
firmly as possible on a downhill slope or uphill slope. Depress
brake pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector
lever to position P before
removing the ignition key. On
an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or

In brief19set the selector lever to positionP before removing the ignition
key. Turn the front wheels
towards the kerb.
● Close the windows and the sunroof.
● Remove the ignition key from the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
For vehicles with automatic
transmission, the key can only
be removed when the selector
lever is in position P.
For vehicles with manual
transmission automated, the key can only be removed from
the ignition switch when the
parking brake is applied.
● Lock the vehicle by pressing e on
the radio remote control.
Activate the anti-theft alarm
system 3 27.
● The engine cooling fans may run
after the engine has been
switched off 3 192.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for
approx. 30 seconds before
switching off, in order to protect
the turbocharger.
Keys, locks 3 20, Laying-up the
vehicle for a long period of time
3 191.

20Keys, doors and windowsKeys, doors and
windowsKeys, locks ................................... 20
Keys .......................................... 20
Car Pass .................................... 21
Radio remote control .................21
Memorised settings ...................22
Central locking system ..............22
Automatic locking ......................24
Child locks ................................. 25
Doors ........................................... 25
Load compartment ....................25
Vehicle security ............................ 26
Anti-theft locking system ...........26
Anti-theft alarm system ..............27
Immobiliser ................................ 28
Exterior mirrors ............................ 28
Convex shape ........................... 28
Electric adjustment ....................28
Folding mirrors .......................... 29
Heated mirrors ........................... 29
Interior mirrors ............................. 29
Manual anti-dazzle ....................29
Automatic anti-dazzle ................30Windows...................................... 30
Windscreen ............................... 30
Manual windows ........................30
Power windows ......................... 30
Heated rear window ..................32
Heated windscreen ....................32
Sun visors .................................. 32
Roof ............................................. 33
Sunroof ...................................... 33Keys, locks
KeysCaution
Do not attach heavy or bulky itemsto the ignition key.
Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys, as
it is a component of the immobiliser
system.
Locks 3 233.
The code number of the adapter for
the locking wheel bolts is specified on a card. It must be quoted when
ordering a replacement adapter.
Wheel changing 3 225.

Keys, doors and windows21Lock cylinders
Designed to free-wheel if they are forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical, remove key and then re-insert it. If the
cylinder still free-wheels, turn the key through 180° and repeat operation.

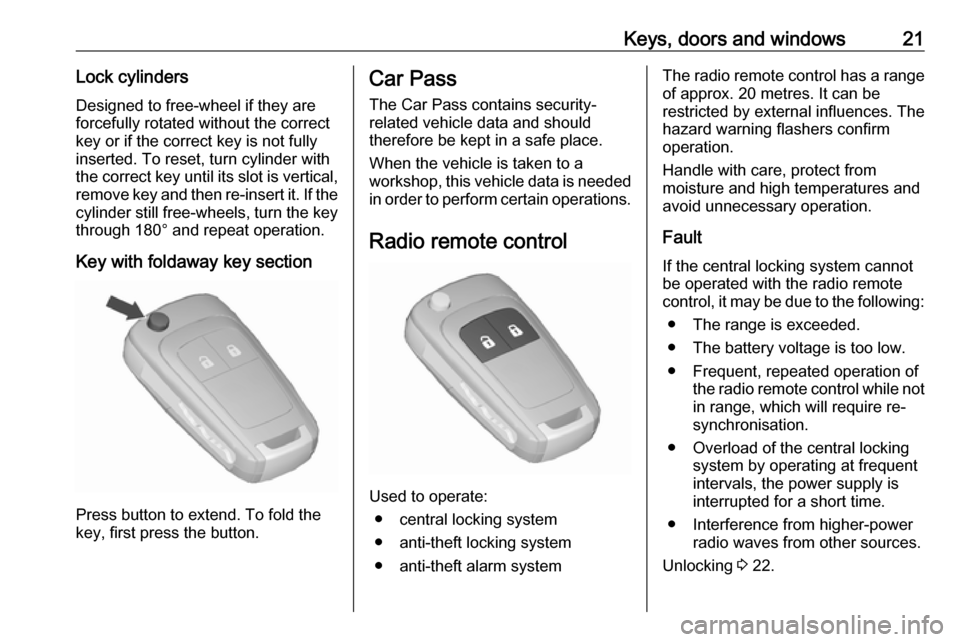

Key with foldaway key section
Press button to extend. To fold the
key, first press the button.
Car Pass
The Car Pass contains security-
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.
Radio remote control
Used to operate: ● central locking system
● anti-theft locking system
● anti-theft alarm system
The radio remote control has a range of approx. 20 metres. It can be
restricted by external influences. The
hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot be operated with the radio remote
control, it may be due to the following:
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the radio remote control while not
in range, which will require re-
synchronisation.
● Overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Unlocking 3 22.

22Keys, doors and windowsBasic settingsSome settings can be changed in the
Info-Display.
Vehicle personalisation 3 106.
Radio remote control battery
replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Extend the key and open the unit
sideways. Replace the battery
(battery type CR 2032), paying
attention to the installation position.
Close the unit and synchronise.
Memorised settings
Whenever the key is removed from
the ignition switch, the following
settings are automatically memorised by the key:
● lighting
● electronic climate control
● presets for Infotainment system
● central locking system
● comfort settings
The saved settings are automatically
used the next time the memorised key
is inserted into the ignition switch and
turned to position 1 3 135.
A precondition is that Personalization
by driver is activated in the personal
settings of the Info-Display. This must
be set for each key used.
Vehicle personalisation 3 106.
Central locking system Unlocks and locks doors, load
compartment and fuel filler flap.
From inside the vehicle with the doors locked, pull an interior door handle to
unlock the respective door.
Notice
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.

Keys, doors and windows23Notice
Three minutes after unlocking with
the remote control, the doors are relocked automatically if no door has
been opened.
Unlocking
Press c.
Two settings are selectable in the
Info-Display:
● To unlock only the driver's door, load compartment and fuel filler
flap; press c once. To unlock all
doors; press c twice.
● Press c once to unlock doors,
load compartment and fuel filler
flap.
Vehicle personalisation 3 106.
The setting can be saved for the key
being used.
Memorised settings 3 22.
Unlocking and opening the tailgate
3 25.
Locking
Close doors, load compartment and
fuel filler flap.
Press e.
If the driver's door is not closed
properly, the central locking system
will not work.
Central locking buttons Locks or unlocks doors, the load
compartment and fuel filler flap from
inside the passenger compartment.
