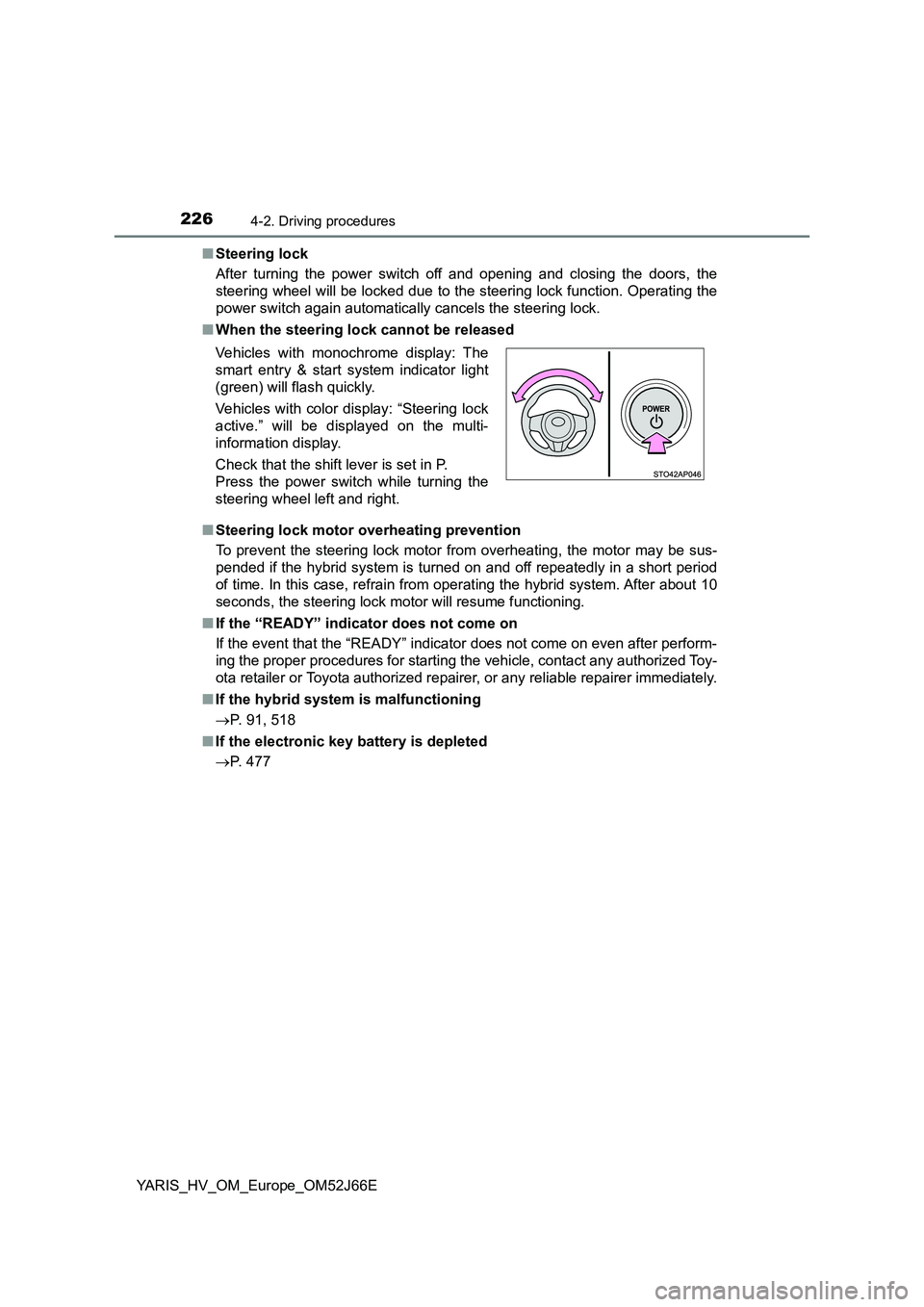

Page 226 of 632

2264-2. Driving procedures
YARIS_HV_OM_Europe_OM52J66E
■ Steering lock
After turning the power switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function. Operating the
power switch again automatically cancels the steering lock.
■ When the steering lock cannot be released
■ Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be sus-
pended if the hybrid system is turned on and off repeatedly in a short period
of time. In this case, refrain from operating the hybrid system. After about 10
seconds, the steering lock motor will resume functioning.
■ If the “READY” indicator does not come on
If the event that the “READY” indicator does not come on even after perform-
ing the proper procedures for starting t he vehicle, contact any authorized Toy-
ota retailer or Toyota authorized repair er, or any reliable repairer immediately.
■ If the hybrid system is malfunctioning
P. 91, 518
■ If the electronic key battery is depleted
P. 477
Vehicles with monochrome display: The
smart entry & start system indicator light
(green) will flash quickly.
Vehicles with color display: “Steering lock
active.” will be displayed on the multi-
information display.
Check that the shift lever is set in P.
Press the power switch while turning the
steering wheel left and right.

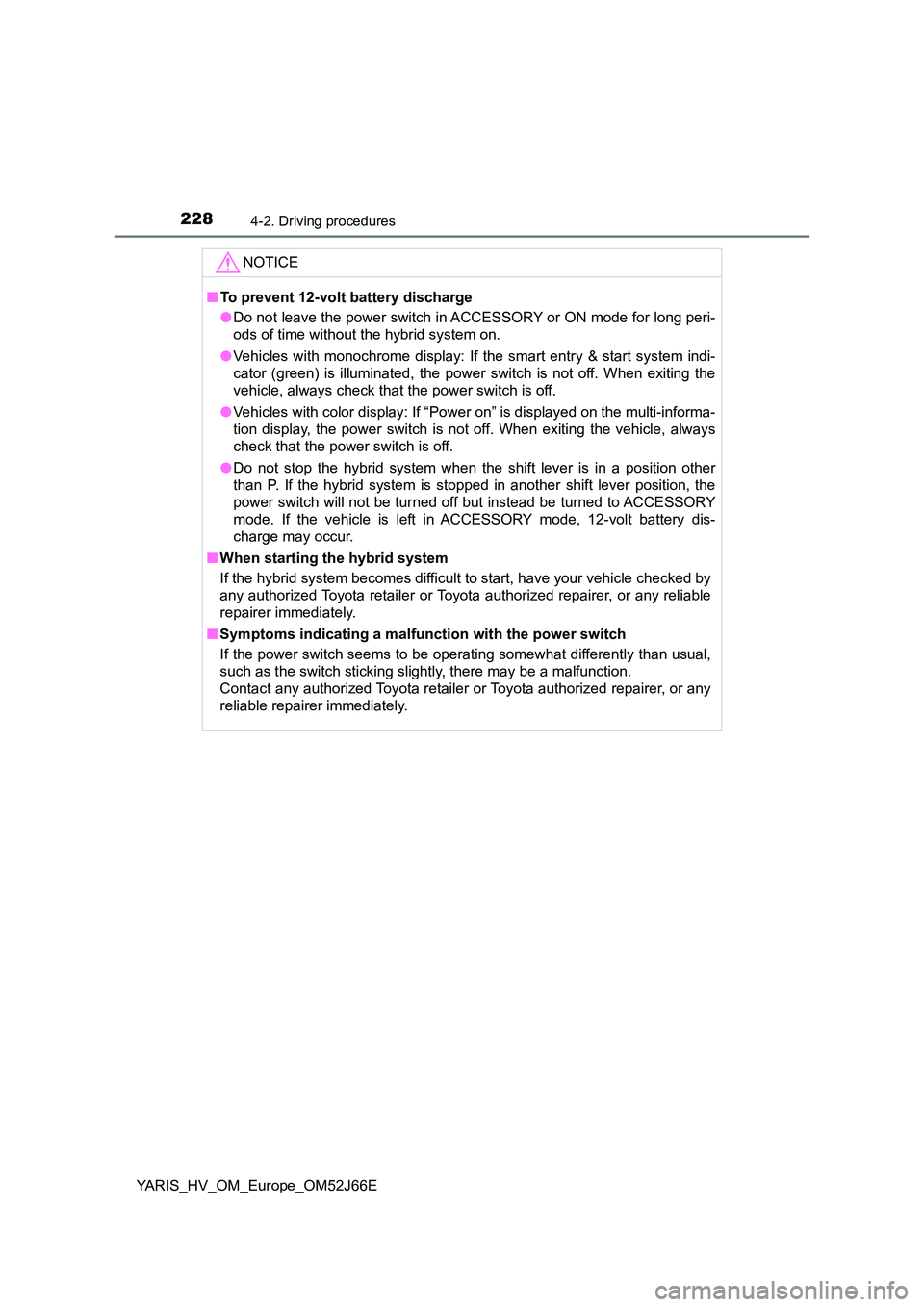

Page 228 of 632

2284-2. Driving procedures
YARIS_HV_OM_Europe_OM52J66E
NOTICE
■To prevent 12-volt battery discharge
● Do not leave the power switch in ACCESSORY or ON mode for long peri-
ods of time without the hybrid system on.
● Vehicles with monochrome display: If the smart entry & start system indi-
cator (green) is illuminated, the power switch is not off. When exiting the
vehicle, always check that the power switch is off.
● Vehicles with color display: If “Power on” is displayed on the multi-informa-
tion display, the power switch is not off. When exiting the vehicle, always
check that the power switch is off.
● Do not stop the hybrid system when the shift lever is in a position other
than P. If the hybrid system is stopped in another shift lever position, the
power switch will not be turned off but instead be turned to ACCESSORY
mode. If the vehicle is left in ACCESSORY mode, 12-volt battery dis-
charge may occur.
■ When starting the hybrid system
If the hybrid system becomes difficult to start, have your vehicle checked by
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
■ Symptoms indicating a malfunction with the power switch
If the power switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction.
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer immediately.
Page 229 of 632

229
4
4-2. Driving procedures
Driving
YARIS_HV_OM_Europe_OM52J66E
EV drive mode
Turns EV drive mode on/off
When EV drive mode is turned on,
the EV drive mode indicator will
come on.
Pressing the switch when in EV
drive mode will return the vehicle to
normal driving (using the gasoline
engine and electric motor [traction
motor]).
■ Situations in which EV drive mode cannot be turned on
It may not be possible to turn EV drive mode on in the following situations. If it
cannot be turned on, a buzzer will sound and a message will be shown on the
multi-information display.
● The temperature of the hybrid system is high.
The vehicle has been left in the sun, driven on a hill, driven at high speeds,
etc.
● The temperature of the hybrid system is low.
The vehicle has been left in temperatures lower than about 0°C (32°F) for a
long period of time etc.
● The gasoline engine is warming up.
● The hybrid battery (traction battery) is low.
• In the instrument cluster, the low traction battery warning light comes on.
( P. 521)
• The remaining battery level indicated in the energy monitor display is low.
( P. 133)
● Vehicle speed is high.
● The accelerator pedal is depressed firmly or the vehicle is on a hill etc.
● The windshield defogger is in use.
In EV drive mode, electric power is supplied by the hybrid bat-
tery (traction battery), and only the electric motor (traction
motor) is used to drive the vehicle.
This mode allows you to drive in residential areas early in the
morning and late at night, or in indoor parking lots etc. without
concern for noises and gas emissions.
Page 230 of 632

2304-2. Driving procedures
YARIS_HV_OM_Europe_OM52J66E
■ Switching to EV drive mode when the gasoline engine is cold
If the hybrid system is started while the gasoline engine is cold, the gasoline
engine will start automatically after a short period of time in order to warm up.
In this case, you will become unable to switch to EV drive mode.
After the hybrid system has started and the “READY” indicator has illumi-
nated, press the EV drive mode switch before the gasoline engine starts to
switch to EV drive mode.
■ Automatic cancelation of EV drive mode
When driving in EV drive mode, the gasoline engine may automatically restart
in the following situations. When EV drive mode is canceled, a buzzer will
sound and the EV drive mode indicator will flash and go off.
● The hybrid battery (traction battery) becomes low.
• In the instrument cluster, the low traction battery warning light comes on.
( P. 521)
• The remaining battery level indicated in the energy monitor display is low.
( P. 133)
● Vehicle speed is high.
● The accelerator pedal is depressed firmly or the vehicle is on a hill etc.
■ Possible driving distance when driving in EV drive mode
EV drive mode’s possible driving distance ranges from a few hundred meters
to approximately 1 km (0.6 miles). However, depending on vehicle conditions,
there are situations when EV drive mode cannot be used.
(The distance that is possible depends on the hybrid battery [traction battery]
level and driving conditions.)
■ Fuel economy
The hybrid system is designed to achieve the best possible fuel economy
during normal driving (using the gasol ine engine and electric motor [traction
motor]). Driving in EV drive mode more than necessary may lower fuel econ-
omy.
Page 236 of 632
2364-2. Driving procedures
YARIS_HV_OM_Europe_OM52J66E
Turn signal lever
Right turn
Lane change to the right (push
and hold the lever partway)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash until
you release the lever.
Left turn
■ Turn signals can be operated when
Vehicles without a smart entry & start system
The power switch is in the “ON” position.
Vehicles with a smart entry & start system
The power switch is in ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Operation instructions
1
2
3
4

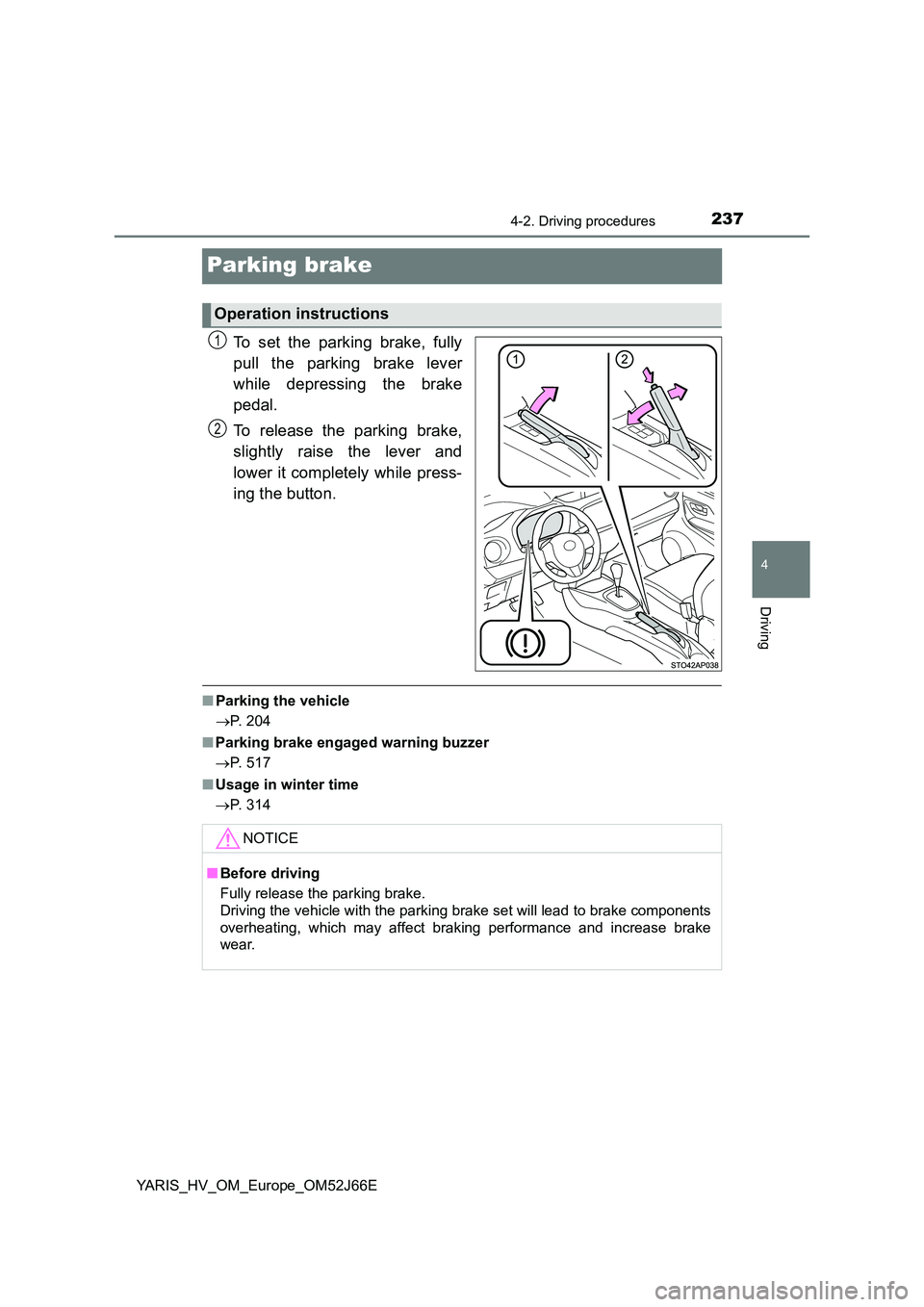

Page 237 of 632
237
4
4-2. Driving procedures
Driving
YARIS_HV_OM_Europe_OM52J66E
Parking brake
To set the parking brake, fully
pull the parking brake lever
while depressing the brake
pedal.
To release the parking brake,
slightly raise the lever and
lower it completely while press-
ing the button.
■ Parking the vehicle
P. 204
■ Parking brake engaged warning buzzer
P. 517
■ Usage in winter time
P. 314
Operation instructions
1
2
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
Page 238 of 632
2384-3. Operating the lights and wipers
YARIS_HV_OM_Europe_OM52J66E
Headlight switch
Turning the end of the lever turns on the lights as follows:
Off
The front position, tail,
license plate and instru-
ment panel lights turn on.
The headlights and all the
lights listed above turn on.
Vehicles without a smart
entry & start system: The
headlights, front position
lights, daytime running
lights and so on turn on
and off automatically
(when the power switch is
in the “ON” position.)
Vehicles with a smart entry
& start system: The head-
lights, front position lights,
daytime running lights and
so on turn on and off auto-
matically (when the power
switch is in ON mode.)
The headlights can be operated manually or automatically.
Operation instructions
1
2
3
4
Page 239 of 632
2394-3. Operating the lights and wipers
4
Driving
YARIS_HV_OM_Europe_OM52J66E
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams wi th the headlights on or off.
This system allows the low beam headlights to be turned on for 30
seconds when the power switch is turned off.
Pull the lever toward you and
release it with the light switch is in
or after turning the
power switch off.
Pull the lever toward you and
release it again to turn off the
lights.
Turning on the high beam headlights
1
2
Follow me home system (if equipped)
