1051-4. Theft deterrent system
1
For safety and security
YARIS_HV_OM_Europe_OM52J66E
Using the entry function (vehicles with a smart entry & start system
equipped with entry function):
Hold either front outside door handle or push up the back door opener
switch.
Using the wireless remote control:
Press .

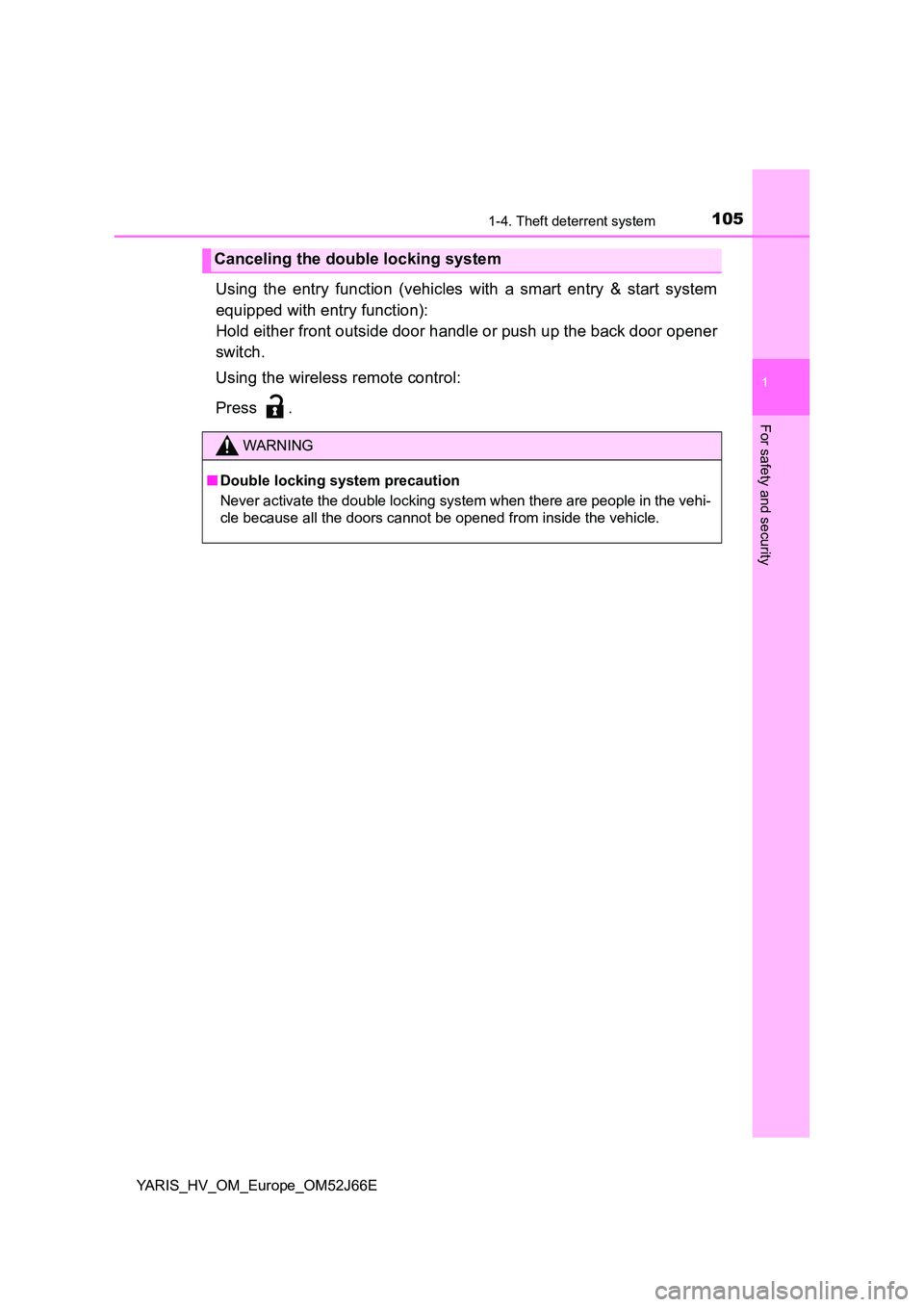

Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.

107
2Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
2. Instrument cluster
Warning lights and
indicators ......................... 108
Gauges and meters
(vehicles with
monochrome display) ...... 114
Gauges and meters
(vehicles with
color display) ................... 117
Multi-information display
(vehicles with
monochrome display) ...... 121
Multi-information display
(vehicles with
color display) ................... 125
Energy monitor/
consumption screen ........ 133

1082. Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
Warning lights and indicators
Vehicles with monochrome display
Vehicles with color display
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

1092. Instrument cluster
2
Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(Red)
Brake system warning
light ( P. 517)
*1
ABS warning light
( P. 519)
*1, 8Charging system
warning light ( P. 517)
*1Electric power steering
system warning light
( P. 519)
*9, 10Charging system
warning light ( P. 517)
*1, 2, 6PCS warning light
( P. 519)
*1, 8Low engine oil pressure
warning light ( P. 518)
*1, 3
Slip indicator (P. 520)
*9, 10
Low engine oil pressure
warning light ( P. 518)
*2, 8
(Yellow)
Automatic High Beam
indicator ( P. 520)
*1, 8High engine coolant
temperature warning
light ( P. 518)
*1
(Yellow)
Brake system warning
light ( P. 520)
*9, 10High engine coolant
temperature warning
light ( P. 518)
*2, 8
(Yellow)
Cruise control indicator
( P. 520)
*1, 8
Hybrid system warning
light ( P. 518)
*2, 8
(Yellow)
LDA indicator (P. 520)
*1
Malfunction indicator
lamp ( P. 518)
*2, 7, 8
(Yellow)
Lane marker indicators
( P. 520)
*1
SRS warning light
( P. 518)
*2, 4, 8
(Yellow)
Smart entry & start
system indicator
( P. 521, 529)

1102. Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
*1: These lights turn on when the power switch is turned to the “ON” position
(vehicles without a smart entry & start system) or ON mode (vehicles with
a smart entry & start system) to indicate that a system check is being per-
formed. They will turn off after the hybrid system on, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: If equipped
*3: The light turns on to indicate a malfunction.
*4: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*5: The light illuminate on the center panel.
*6: The light flashes to indicate a malfunction.
*7: The lights turn on with LDA indicator to indicate a malfunction.
*8: Vehicles with monochrome display
*9: Vehicles with color display
*10: The light illuminates on the multi-information display.
*1, 8
Low traction battery
warning light ( P. 521)
*1, 2
Tire pressure warning
light ( P. 522)
*8
Open door warning light
( P. 521)
*1, 9
Master warning light
( P. 522)
Low fuel level warning
light ( P. 521)
*1, 8
Hybrid system overheat
warning light ( P. 522)
Driver’s and front
passenger’s seat belt
reminder light ( P. 521)
*1, 8
P position request
warning light ( P. 523)
*5Rear passenger’s seat
belt reminder lights
( P. 521)
*3, 8
Go to service warning
light ( P. 524)

1112. Instrument cluster
2
Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 236)
*2
“SET” indicator
( P. 299)
Headlight high beam
indicator ( P. 239)
*2
(Green)
LDA indicator (P. 280)
*2
(Green)
Automatic High Beam
indicator ( P. 287)
*2, 7, 8
(Green)
Lane marker indicators
( P. 281)
Tail light indicator
( P. 238)
*1, 3
Slip indicator (P. 304)
*2Front fog light indicator
( P. 244)
*1, 8
“TRC OFF” indicator
( P. 304)
Rear fog light indicator
( P. 244)
*1VSC OFF indicator
( P. 305)
*2, 8
(Green)
Smart entry & start
system indicator
( P. 220)
*2, 3, 6, 8
PCS activation indicator
( P. 262, 267)
*2
(Green)
Cruise control indicator
( P. 299)
*1, 2, 5
PCS warning light
( P. 266)

1122. Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
*1: These lights turn on when the power switch is turned to the “ON” position
(vehicles without a smart entry & start system) or ON mode (vehicles with
a smart entry & start system) to indicate that a system check is being per-
formed. They will turn off after the hybrid system on, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: If equipped
*3: The light flashes to indicate that the system is operating.
*4: This light illuminates on the center panel.
*5: The light comes on when the system is turned off.
*6: The light comes on when system settings are changed.
*7: The light flashes in yellow to indicate that the vehicle is deviating from the
lane.
*8: Vehicles with monochrome display
*9: Vehicles with color display
*10: When the outside temperature is approximately 3°C (37°F) or lower, the
indicator will flash for approximately 10 seconds, then stay on.
EV drive mode indicator
( P. 229)
“PASSENGER AIR BAG” indicator
( P. 5 6 ) “ECO MODE” indicator
( P. 233)
EV indicator ( P. 88)
*9, 10Ice warning indicator
( P. 117)
“READY” indicator
( P. 216, 220)
*4

1132. Instrument cluster
2
Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer imme-
diately if this occurs.
