2018 TOYOTA RAV4 check engine

3 The indicator flashes to indicate that the system is operating.
5
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
5 ECO mode indicator
Electric power steering system
warning2
Ice warning indicator1
Intuitive parking assist indicator1
Pre-Collision System (PCS)
warning2
Rear passenger’s seat belt reminder
Vehicle Stability Control (VSC) OFF
indicator2
Slip indicator2,3
SPORT mode indicator
Seat belt reminder
(alarm will sound if speed is over 12 mph)
SRS airbag warning2
Theft deterrent/Engine immobilizer
system indicator
Turn signal indicator
Fog light indicator1
Headlight indicator
Headlight high beam indicator
Lane Departure Alert (LDA)
indicator
Low fuel level warning
Low Tire Pressure Warning2
Master warning2
Malfunction/Check Engine
indicator2
Eco driving indicator2

8
OVERVIEW
Pull up latch
and raise hood
Pull
Insert rod to hold
hood open
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check Engine “
”
indicator may illuminate.
Pull up
Driver seatTurn to open
Close
Fuel tank door release & cap
Hood release

28

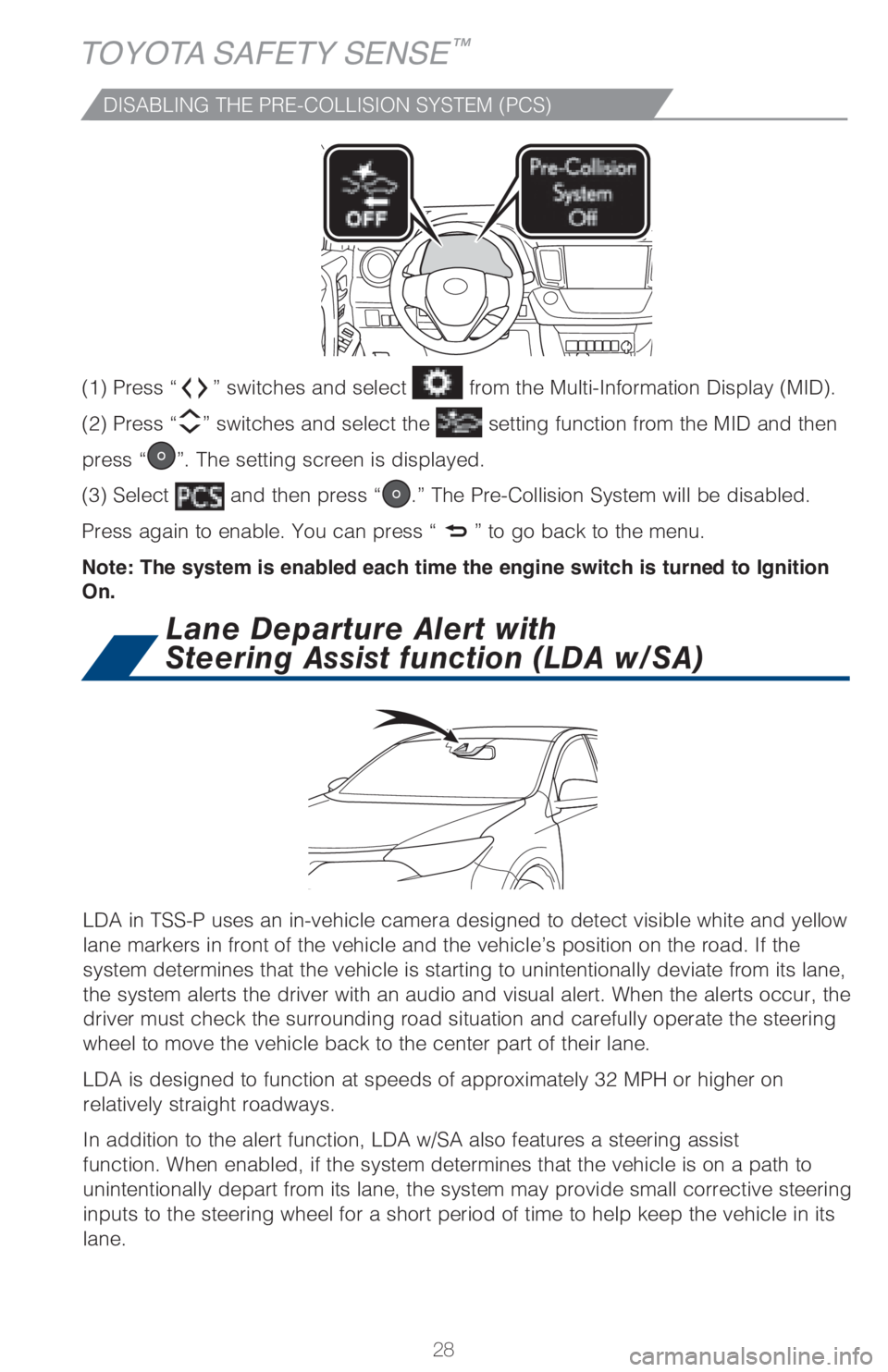

TOYOTA SAFETY SENSE™
LDA in TSS-P uses an in-vehicle camera designed to detect visible white and yellow
lane markers in front of the vehicle and the vehicle’s position on the road. If the
system determines that the vehicle is starting to unintentionally deviate from its lane,
the system alerts the driver with an audio and visual alert. When the alerts occur, the
driver must check the surrounding road situation and carefully operate the steering
wheel to move the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 MPH or higher on
relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering assist
function. When enabled, if the system determines that the vehicle is on a path to
unintentionally depart from its lane, the system may provide small corrective steering
inputs to the steering wheel for a short period of time to help keep the vehicle in its
lane.
Lane Departure Alert with
Steering Assist function (LDA w/SA)
DISABLING THE PRE-COLLISION SYSTEM (PCS)
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the setting function from the MID and then
press “
”. The setting screen is displayed.
(3) Select
and then press “.” The Pre-Collision System will be disabled.
Press again to enable. You can press “
” to go back to the menu.
Note: The system is enabled each time the engine switch is turned to Ignition
On.
