2018 TOYOTA PROACE VERSO deactivate airbag

22
Warning / indicator lampStateCauseAction / Observations
Passenger's front airbagfixed in the seat belt and front passenger's airbag warning lamps display.
The control switch, located at the passenger's end of the dashboard, is set to the "OFF" position.The passenger's front airbag is deactivated.You can install a rear ward facing child seat, unless there is a fault with the airbags (airbag warning lamp on).
Turn the control switch to the "ON" position to activate the passenger's front airbag; in this case, you must not install a child seat in the rear ward facing position on this seat.
Airbagson temporarily.This warning lamp comes on for a few seconds when you turn on the ignition, then goes off.
This warning lamp should go off when the engine is started.If it does not go off, contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately.
fixed.One of the airbag or seat belt pretensioner systems has a fault.Have them checked by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately.
Passenger's front airbagfixed.The control switch, located at the passenger's end of the dashboard, is at the "ON" position.The passenger's front airbag is activated.In this case, do not install a rear ward facing child seat on the front passenger seat.
Turn the control switch to the "OFF" position to deactivate the passenger's front airbag.You can install a rear ward facing child seat, unless there is a fault with the airbags (airbag warning lamp on).
Instruments

169
Front airbagsDeployment
The airbags are deployed, except the passenger front airbag if it is deactivated, in the event of a serious front impact to all or part of the front impact zone A, in the longitudinal centreline of the vehicle on a horizontal plane and directed from the front to the rear of the vehicle.The front airbag inflates between the thorax and head of the front occupant of the vehicle and the steering wheel, driver's side, and the dashboard, passenger side to cushion their for ward movement.System which protects the driver and passenger(s) in the event of a serious front impact in order to limit the risk of injury to the head and thorax.The driver's airbag is fitted in the centre of the steering wheel; the front passenger airbag is fitted in the dashboard above the glove box.
When driving, keep the glove box closed. Other wise there is a risk of injury in the event of an accident or sudden braking.
5
Safety

170
Deactivating the passenger front airbag
Only the passenger front airbag can be deactivated.
When the ignition is on, this warning lamp comes in the seat belt warning display screen. It stays on while the airbag is deactivated.
To assure the safety of your child, the passenger front airbag must be deactivated when you install a rear ward facing child seat on the front passenger seat.Other wise, the child would risk being seriously injured or killed if the airbag were deployed.
Reactivating the passenger front airbag
When you remove the child seat, with the ignition off, turn the switch to the "ON" position to reactivate the airbag and so assure the safety of your front passenger(s) in the event of an impact.
When the ignition is switched on, this warning lamp comes on in the seat belt warning display screen for approximately one minute to signal that the front airbag is activated.
Operating fault
If this warning lamp comes on in the instrument panel, you must contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional to have the system checked. The airbags may no longer be deployed in the event of a serious impact.
Lateral airbags
Deployment
The lateral airbags are deployed unilaterally in the event of a serious side impact applied to all or part of the side impact zone, perpendicular to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside towards the inside of the vehicle.
The lateral airbag inflates between the abdomen and head of the front occupant of the vehicle and the corresponding door trim panel.
If fitted to your vehicle, this is a system which protects the driver and front passenger in the event of a serious side impact in order to limit the risk of injury to the chest, between the abdomen and head.Each lateral airbag is fitted in the seat backrest frame, door side.F With the ignition off, insert the key in the passenger airbag deactivation switch.F Turn it to the "OFF" position.F Remove the key keeping the switch in the new position.
Safety

175
Passenger seat in the fully back and highest position.
Rearward facing

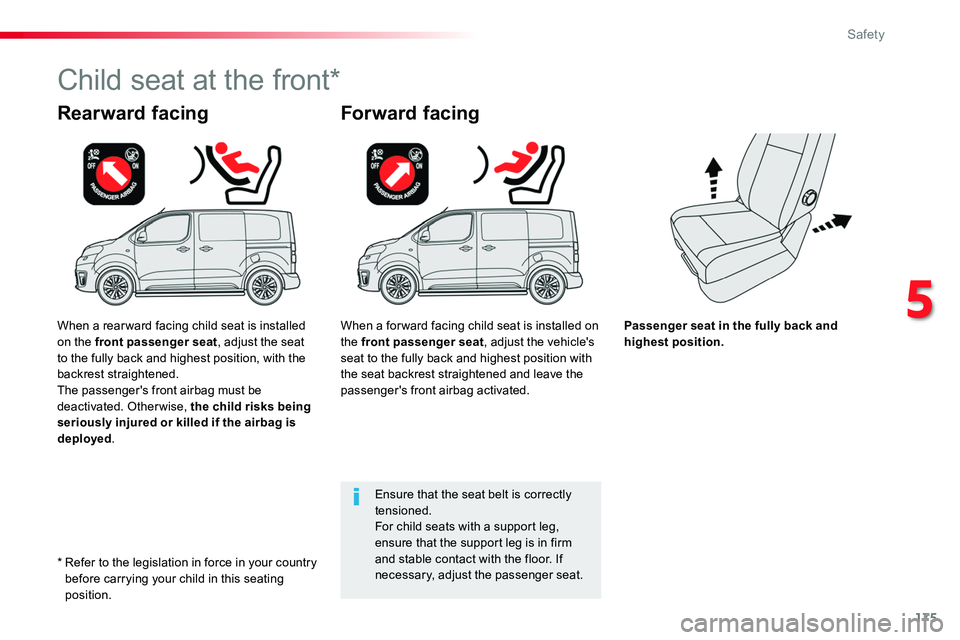

Child seat at the front*
Forward facing
Ensure that the seat belt is correctly tensioned.For child seats with a support leg, ensure that the support leg is in firm and stable contact with the floor. If necessary, adjust the passenger seat.
When a rear ward facing child seat is installed on the front passenger seat, adjust the seat to the fully back and highest position, with the backrest straightened.The passenger's front airbag must be deactivated. Otherwise, the child risks being seriously injured or killed if the airbag is deployed.
When a for ward facing child seat is installed on the front passenger seat, adjust the vehicle's seat to the fully back and highest position with the seat backrest straightened and leave the passenger's front airbag activated.
* Refer to the legislation in force in your country before carrying your child in this seating position.
5
Safety

182
(a) Universal child seat: child seat that can be installed in any vehicle using the seat belt.(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.(c) Consult the legislation in force in your country before installing your child on this seat.(d) When a rear ward facing child seat is installed on the front passenger seat,
the front passenger airbag must be deactivated. Other wise the child risks being seriously injured or even killed if the airbag is deployed. When a for ward facing child seat is installed on the front passenger seat, the front passenger airbag must remain active.(e) To install a child seat on a rear seat, move the seat in front for ward, then straighten the backrest to leave sufficient space for the child seat and the child's legs.(f) To install a child seat on a rear seat, rear ward facing or for ward facing, adjust the rear seat to the fully back position with the backrest straightened.
Remove and stow the head restraint before installing a child seat with backrest on a passenger seat.Refit the head restraint once the child seat has been removed.
U Seat suitable for the installation of a child seat secured using the seat belt and universally approved, rear ward facing and/or forward facing.X Seat not suitable for the installation of a chld seat of the weight group indicated.
Safety

189
Child seatsInstalling a booster
cushion
Recommendations
The legislation on carrying a child on the front passenger seat is specific to each country. Refer to the legislation in force in the country in which you are driving.Deactivate the passenger front airbag when a rear ward facing child seat is installed on the front passenger seat. Otherwise, the child would risk being seriously injured or killed if the airbag were deployed.
For optimum installation of the forward facing child seat, ensure that the back of the child seat is as close as possible to the backrest of the vehicle's seat, or in contact if possible.The head restraint must be removed before installing a child seat with a backrest on the passenger seat.Ensure that the head restraint is stowed or attached securely so that it is not thrown around the vehicle in the event of sharp braking.Refit the head restraint as soon as the child seat is removed.
The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident.Check that there is no seat belt or seat belt buckle under the child seat as this could destabilise it.Remember to fasten the seat belts or the child seat harnesses keeping the slack in relation to the child's body to a minimum, even for short journeys.For the installation of a child seat using a seat belt, ensure that this is well tensioned on the child seat and that it is holding the child seat firmly against the seat of your vehicle. If your front passenger seat is adjustable, move it for ward if necessary.At the rear seats, always leave sufficient space between the front seat and:- a rear ward facing child seat,- the feet of a child seated in a for ward facing child seat.For this, move the front seat for ward and if necessary straighten its backrest.
Children at the front
The chest part of the seat belt must be positioned on the child's shoulder without touching the neck.Ensure that the lap part of the seat belt passes correctly over the child's thighs.Toyota recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.
As a safety precaution, do not leave:- one or more children alone and unsupervised in a vehicle,- a child or an animal in a vehicle which is exposed to the sun, with the windows closed,- the keys within reach of children inside the vehicle.To prevent accidental opening of the doors, use the child lock.Take care not to open the rear windows by more than one third.To protect young children from the rays of the sun, fit side blinds on the rear windows.
5
Safety
