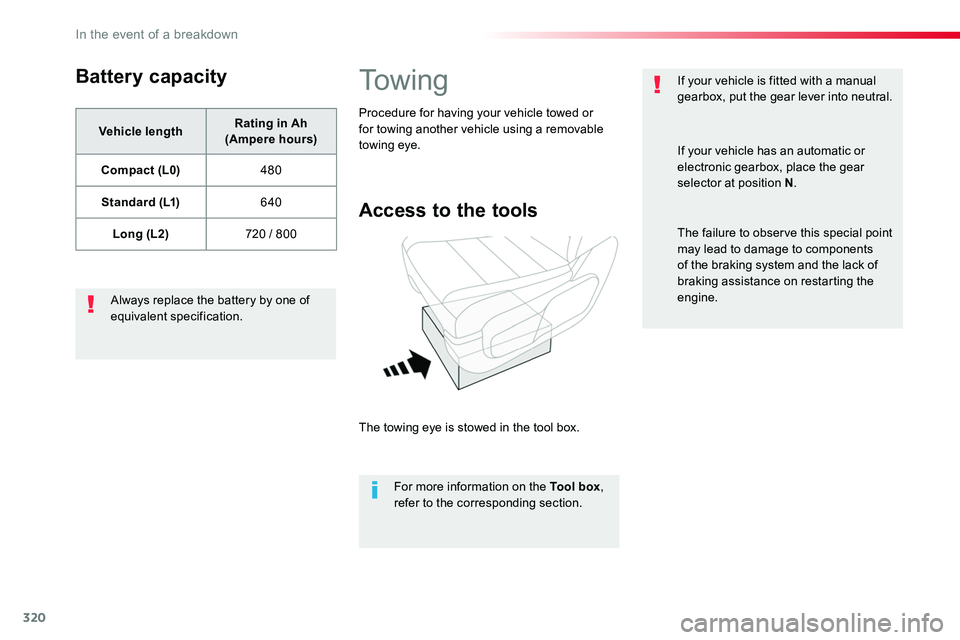

320
Battery capacity
Vehicle lengthRating in Ah (Ampere hours)
Compact (L0)480
Standard (L1)640
Long (L2)720 / 800
Always replace the battery by one of equivalent specification.
To w i n g
Access to the tools
The towing eye is stowed in the tool box.
For more information on the Tool box, refer to the corresponding section.
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
If your vehicle is fitted with a manual gearbox, put the gear lever into neutral.
If your vehicle has an automatic or electronic gearbox, place the gear selector at position N.
The failure to observe this special point may lead to damage to components of the braking system and the lack of braking assistance on restarting the engine.
In the event of a breakdown

321
F On the front bumper, press the cover (as shown above) to unclip it.F Screw the towing eye in fully.F Install the towing arm.F Switch on the hazard warning lamps on the towed vehicle.F Move off gently and drive slowly over a short distance only.
Towing your vehicle
F On the rear bumper, press the cover (as shown above) to unclip it.F Screw the towing eye in fully.F Install the towing arm.F Switch on the hazard warning lamps on the towed vehicle.F Move off gently and drive slowly over a short distance only.
Towing another vehicleGeneral
recommendations
Observe the legislation in force in your c o unt r y.Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.The driver must remain at the wheel of the towed vehicle and must have a valid driving licence.When towing a vehicle with all four wheels on the ground, always use an approved towing arm; rope and straps are prohibited.The towing vehicle must move off gently.When towing a vehicle with the engine off, there is no longer any power assistance for braking or steering.In the following cases, you must always call on a professional recovery service:- vehicle broken down on a motor way or fast road,- four-wheel drive vehicle,- when it is not possible to put the gearbox into neutral, unlock the
steering, or release the parking brake,- towing with only two wheels on the
ground,- where there is no approved towing arm available...
8
In the event of a breakdown

325
EURO 6 Diesel engines
* Increased payload.
EngineEngine codeGearboxEngine oil capacity with filter replacement (litres)LengthUnbraked trailer weight (kg) 8-9 seats
Trailer nose weight (kg) 8-9 seats
1.6D- 4D 95HP3 W Z-T V(DV6FDU)Manual(5-speed)5.6
L0, L1, L2
750
72
L1*, L2*80
1.6D- 4D 95HP3 W Z-T V(DV6 FUD)
ETG6 electronic(6-speed)5.6
L0, L1, L272
L1*, L2*80
1.6D- 4D 115 H P3 W Z- H V(DV6FCU)Manual(6-speed)5.6
L0, L1, L272
L1*, L2*80
9
Technical data

326
* Increased payload.
EngineEngine codeGearboxEngine oil capacity with filter replacement (litres)LengthUnbraked trailer weigt (kg) 8-9 seats
Trailer nose weight (kg) 8-9 seats
2.0D- 4D 120 H P4W Z- F T V(DW10FE)-6 .1
L0, L1, L2
750
-
L1*, L2*-
2.0D- 4D 150HP4W Z- F T V(DW10FDU)Manual(6-speed)6 .1
L0, L1, L2
750
92
L1*, L2*10 0
2.0D- 4D 180HP4W Z- FH V(DW10 FC)
E AT 6 automatic(6-speed)5 .1
L0, L1, L280
L1*, L2*88
Technical data

498
G
I
Head restraints, front .........................................................91, 93Head-up display ............................................218Heated bench seat ..........................................94Heating ..........................................125, 127, 136Heating, programmable ..........................83, 137Hill start assist control ..................................202Horn...............................................................159
Gauge, fuel........................................13, 14, 261Gearbox, automatic ...................13, 14, 19, 195, 200, 202, 205, 214, 215, 229, 233, 277, 316Gearbox, electronic .................................13, 14, 198, 202, 210, 214, 215, 277
Identification, vehicle ....................................327Ignition on..............................................195, 198Immobiliser, electronic ................49, 59, 63, 201Indicator, AdBlue® range .................................33Indicator, coolant temperature ........................29Indicator, engine oil level ................................32Indicator lamps, operation ........................15-28Indicators, direction ......................................146Inflating tyres ..........................................11, 237Inflating tyres and accessories (using the kit) ..............................................285Instrument panel, LCD text .............................13Instrument panel, matrix .................................14Intelligent Traction Control ............................160ISOFIX ...................................................183 -18 6
Gearbox, manual ...................................19, 202, 203, 214, 215, 229, 233, 277Gear shift indicator .......................................204Gear lever, automatic gearbox .......................................................205Gear lever, electronic gearbox .......................................................277Gear lever, manual gearbox .........................203Glove box ......................................................111G . P. S . ...................................................342, 358Grab handles ................................................115Guide-me-home ............................................148
Hazard warning lamps ..........................15 8, 282Headlamp beam height .................................153Headlamps, automatic dipping ..................................................27, 151Headlamps, automatic illumination ..........................................14 4, 147Headlamps, dipped beam .............................27, 14 4, 299, 301, 303Headlamps, halogen .............................299, 301Headlamps, main beam ............................27, 14 4, 299, 302, 303Headlamps, Xenon ..............................299, 303Headlamp wash ............................................15 6
H
Filling the fuel tank ................................261, 263Filter, air ........................................................276Filter, oil .........................................................276Filter, particle ........................................275, 276Filter, passenger compartment ..............................................276Finisher, wheel trim .......................................297Fitting a wheel ...............................................296Fitting roof bars .............................................268Fittings, interior .....................................11 0 , 115Fitting the mats .............................................11 0Flap, fuel filler ................................................261Flashing indicators ........................................146Foglamps, rear .............................145, 305, 308Foglamps, front ....................145, 150, 299, 304Foglamps, rear .............................145, 305, 308Forward collision warning ........21, 239-2 41, 243Frequency (radio) .........................384, 440, 478Fuel..........................................................11, 263Fuel consumption ......................................11, 40Fuel tank..........................................................18Fuses .............................................................311
F
Alphabetical index
