2018 TOYOTA PROACE lane assist

.
.
Driving recommendations 196Starting-switching off the engine, manual key, remote control 199Starting-switching off the engine, "Smart Entry & Start System" 202Parking brake 205Hill start assist 2065 -speed manual gearbox 2076 -speed manual gearbox 207Gear ef ficiency indicator 208Automatic gearbox 209Electronic gearbox 214Stop & Start 218Head-up display 222Adjustable Speed Limiter (ASL) 224Road Sign Assist 225Speed limiter 229Cruise control 232Adaptive cruise control 236For ward collision warning and Autonomous emergency braking system with Pedestrian Detection 243Lane Departure Alert 248Driver Attention Alert 250Blind spot monitoring system 252Parking sensors 255Reversing camera, interior mirror 258180° rear vision 259Tyre Pressure Warning System (TPWS 262
Fuel tank 265Diesel misfuel prevention 266Snow chains 268Towing a trailer 269Energy economy mode 270Accessories 271Roof bars / Roof rack 273Changing a wiper blade 274Bonnet 276Diesel engine 277Checking levels 278Checks 281AdBlue® and SCR system (BlueHDi Diesel) 283
Warning triangle (stowing) 287Tool box 287Temporary puncture repair kit 290Changing a wheel 296Changing a bulb 303Changing a fuse 31612 V battery 321Towing 325Running out of fuel (Diesel) 327
Dimensions 328Engines 332Weights 332Identification markings 337
DrivingPractical information
In the event of a breakdown
Technical data
Emergency or assistance 338Toyota Pro Touch with navigation system 3 41To y o t a P r o To u c h 429Toyota Radio Bluetooth® 483
Audio and telematics
Alphabetical index
Contents

7
Locking / unlocking from inside 72-73Electric sliding door(s) 78 - 86Cabin / loading area selectivity 47- 48, 55Electric child lock 194Hazard warning lamps 160Reinitialising the Tyre Pressure Warning System (TPWS) 263 -264Deactivating Stop & Start 220Deactivating the DSC/ASR system 163
Adjusting the steering wheel 99Horn 161
Head-up display 222-223
Instruments and controls (cont.)
Wiper control 156 -159Trip computer 40 - 42
Memorising speeds 224Speed limiter 229-231Cruise control 232-235Dynamic cruise control 236 -242
Instrument panels 14-16Warning lamps 17-30Coolant temperature 31Service indicator 31-33Oil level indicator 34AdBlue® range indicator 35 -37Distance recorder 38Gear efficiency indicator 208Lighting dimmer 39Trip computer 40 - 42Setting the time and date 46Driver Attention Alert 250 -251
Electric windows 98Adjusting the electric mirrors 143
Toyota Traction Select 163, 164-165Fuel burner heater / Remote controlled fuel burner heater 138 -140Alarm 95-97Manually adjusting the headlamp beam height 155Lane Departure Alert 248 -249Blind spot monitoring system 252-254Automatic headlamp dipping 153 -154
Setting the time and date 46180º Rear vision 259 -261Adjustable Speed Limiter (ASL) 224Road Sign Assist 225 -228, 231, 234, 238For ward collision warning 243 -245Autonomous emergency braking 243, 246 -249Deactivating Stop & Start 220
Lighting control 146 -151Direction indicators 148
.
Over view

44
Driving menu
The systems with settings that can be adjusted are detailed in the table below.For more information on a driving assistance system refer to the corresponding section.
ButtonCorresponding functionComments
Tyre Pressure Warning System (TPWS) initialisationReinitialisation of the yre Pressure Warning System (TPWS).
Blind spot monitoring systemActivation/Deactivation of the function.
Stop & Star t systemActivation/Deactivation of the function.
or
Lane Departure AlertActivation/Deactivation of the function.
Automatic headlamp dipActivation/Deactivation of the function.
Instruments

238
MEM

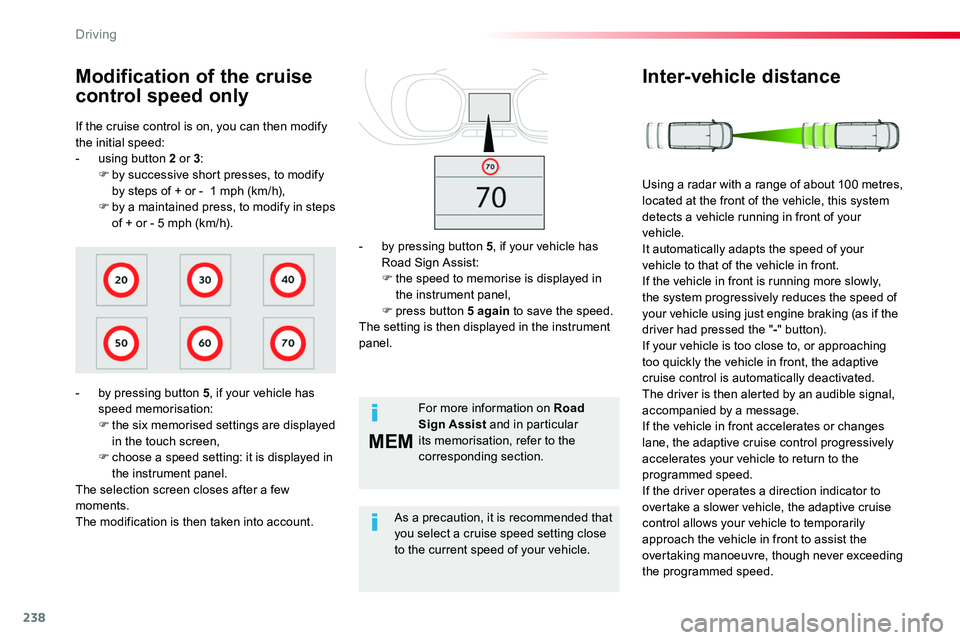

If the cruise control is on, you can then modify the initial speed:- using button 2 or 3:F by successive short presses, to modify by steps of + or - 1 mph (km/h),F by a maintained press, to modify in steps of + or - 5 mph (km/h).
Modification of the cruise
control speed only
- by pressing button 5, if your vehicle has speed memorisation:F the six memorised settings are displayed in the touch screen,F choose a speed setting: it is displayed in the instrument panel.The selection screen closes after a few moments.The modification is then taken into account.
For more information on Road Sign Assist and in particular its memorisation, refer to the corresponding section.
As a precaution, it is recommended that
you select a cruise speed setting close to the current speed of your vehicle.
- by pressing button 5, if your vehicle has Road Sign Assist:F the speed to memorise is displayed in the instrument panel,F press button 5 again to save the speed.The setting is then displayed in the instrument panel.
Inter-vehicle distance
Using a radar with a range of about 100 metres, located at the front of the vehicle, this system detects a vehicle running in front of your
vehicle.It automatically adapts the speed of your vehicle to that of the vehicle in front.If the vehicle in front is running more slowly, the system progressively reduces the speed of your vehicle using just engine braking (as if the driver had pressed the "-" button).If your vehicle is too close to, or approaching too quickly the vehicle in front, the adaptive cruise control is automatically deactivated. The driver is then alerted by an audible signal, accompanied by a message.If the vehicle in front accelerates or changes lane, the adaptive cruise control progressively accelerates your vehicle to return to the programmed speed.If the driver operates a direction indicator to overtake a slower vehicle, the adaptive cruise control allows your vehicle to temporarily approach the vehicle in front to assist the overtaking manoeuvre, though never exceeding the programmed speed.
Driving

252
Blind spot monitoring system
A warning lamp appears in the door mirror on the side in question:- immediately, when being overtaken,- after a delay of about one second, when overtaking a vehicle slowly.
This driving assistance system warns the driver of the presence of another vehicle in the blind spot angle of their vehicle (areas masked from the driver's field of vision), as soon as this presents a potential danger.
The alert is given by a warning lamp which comes on in the door mirror on the side in question as soon as a vehicle - car, lorry, bicycle - is detected and the following conditions are fulfilled:- all the vehicles must be moving in the same direction and on adjacent lanes,- the speed of your vehicle is between 7 and 87 mph (12 and 140 km/h),- when you overtake a vehicle with a speed difference of less than 6 mph (10 km/h),- when a vehicle overtakes you with a speed difference of less than 15 mph (25 km/h),- the traffic must be flowing normally,- in the case of an overtaking manoeuvre, if this is prolonged and the vehicle being overtaken returns to the blind spot,- you are driving on a straight or slightly curved road,- your vehicle is not pulling a trailer, a caravan...
This system is designed to improve safety when driving and is in no circumstances a substitute for the use of the interior rear view mirror and door mirrors. It is the driver's responsibility to constantly check the traffic, to assess the distances and relative speeds of other vehicles and to predict their movements before deciding whether to change lane.The blind spot sensor system does not replace the need for vigilance on the part of the driver.
Driving

509
Maintenance, routine ......................................12Markings, identification .................................337Mat ........................................................119, 202Memorising a speed .....................................224Menu ...................352, 354, 356, 358, 360, 362, 370, 372, 374, 378, 384, 386, 388, 390, 392, 400, 402, 404, 412, 414, 416, 434, 440, 442, 444, 446, 448, 456, 458, 460, 468, 470, 472Menu, main ...................................................487Menus (audio) ......................................345, 433Messages ..............................................410, 466Messages, quick ...................................411, 467Mirror, rear view ............................................145Mirror, vanity .................................................11 9Mirrors, door..................133, 134, 143, 144, 252Misfuel prevention .........................................266Mountings, Isofix ...................................186, 190MP3 CD .........................................................494
Labels ......................................................11, 11 6Labels, identification .....................................337Ladder ...........................................................272Lane Departure Alert (LDWS) ........29, 248, 249Level, brake fluid ...........................................279Level, Diesel additive ............................280, 281Level, engine coolant ..............................31, 279Level, engine oil ......................................34, 278Level, headlamp wash ..........................158, 280Level, power steering fluid ............................279Level, screenwash fluid ........................158, 280Levels and checks ................................27 7-2 8 0Lighting dimmer ..............................................39Lighting ....................................................30, 146Lighting, cornering ........................................152Lighting, guide-me home ..............................150Lighting, welcome .........................................151Load reduction mode ....................................270Load restraint ................................................12 2Loading area fittings .....................................12 2Loading ...................................................12, 273Localised Assistance Call .............................338Locating your vehicle ................................52, 67Locking from the inside .............................72, 73Locking ....................................50, 55, 57, 64, 71Low fuel level ..........................................20, 265Lumbar ..........................................................10 0
LM
Navigation ............352, 354, 356, 358, 360, 362Navigation, connected ..................370, 372, 374Net, cargo......................................................10 6Net, high load retaining .................................123Number plate lamps ..............................311, 314
N
Oil change .....................................................278Oil consumption ............................................278Oil, engine .....................................................278On-board tools ......................................287, 289Opening the bonnet ......................................276Opening the boot ................................47, 59, 94Opening the doors .......47, 59, 74, 78 - 81, 83, 93Opening to 180° ..............................................91Opening to 90/180/235° ..................................92
Pads, brake ...................................................282Paint colour code ..........................................337Parking brake ..................................18, 205, 282Parking sensors, audible and visual .............256Parking sensors, front ...................................256Parking sensors, rear............................255, 256Plates, identification......................................337Platform cab ..........................................315, 332Player, Apple® ..............................399, 455, 495Player, MP3 CD .............................................494Player, USB ..................................398, 454, 492Port, USB .............................122, 398, 454, 492Pressures, tyres ...................290, 295, 302, 337Pre-tensioning seat belts ..............................169Priming pump ................................................327Priming the fuel system ................................327Profiles ..................................................418, 474Protecting children ........................171, 174 -176 , 182, 187, 188, 190, 193Puncture ........................................................290
O
P
.
Alphabetical index
