2018 TOYOTA PRIUS transmission oil

224
PRIUS_OM_OM47B89U_(U)
4-1. Before driving
NOTICE
■When encounterin g flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle:
● Engine stalling
● Short in electrical components
● Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following:
● Brake function
● Changes in quantity and quality of oil and fluid used for the engine, hybrid
transmission, etc.
● Lubricant condition for the bearings and suspension joints (where possi-
ble), and the function of all joints, bearings, etc.
If the shift control system is damaged by flooding, it may not be possible to
shift the shift position to P, or from P to other positions. When the shift posi-
tion cannot be changed from P to any other position, the front wheels will
lock, and you will be unable to tow the vehicle with the front wheels on the
ground, as the front wheels may be locked. In this case, transport the vehi-
cle with both front wheels or all four wheels lifted.

764
PRIUS_OM_OM47B89U_(U)
9-1. Specifications

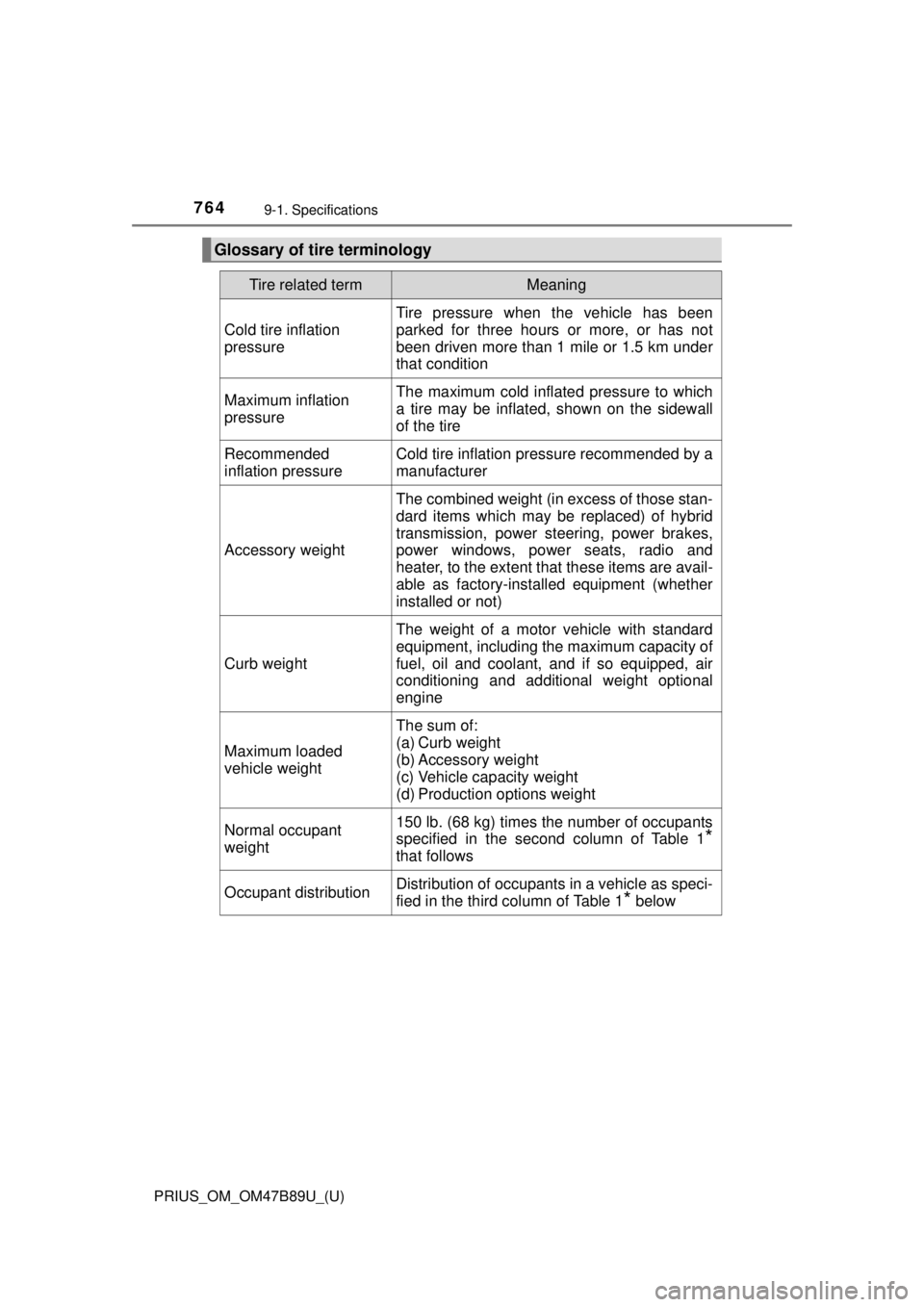

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended
inflation pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of hybrid
transmission, power steering, power brakes,
power windows, power seats, radio and
heater, to the extent t hat these items are avail-
able as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below

807Alphabetical index
PRIUS_OM_OM47B89U_(U)
EngineAccessory mode ................... 233
Compartment ........................ 604
Engine switch........................ 231
Exhaust gas precautions ........ 56
Hood ..................................... 601
How to start the hybrid system ......... ....................... 231
Identification number ............ 746
If the hybrid system will not start .............................. 724
If your vehicle has to be stopped in an
emergency.......................... 665
Ignition switch (power switch) .................... 231
Overheating .......................... 735
Power switch......................... 231
Engine coolant Capacity ................................ 750
Checking ............................... 608
Preparing and checking before winter....................... 418
Engine oil Capacity ................................ 748
Checking ............................... 605
Oil pressure warning light ..... 673
Preparing and checking before winter....................... 418
Engine switch .......................... 231
Auto power off function ......... 233
Changing the power switch modes...................... 233
If your vehicle has to be stopped in an
emergency.......................... 665
Starting the hybrid system .... 231 EPS
(Electronic Power Steering)
Function ................................ 408
Warning light......................... 674
EV indicator ............................. 119
EV drive mode ......................... 237
Event data recorder (EDR) ........................................ 11
Exhaust gas precautions .......... 56
Flat tire ..................................... 691
Floor mats .................................. 26
Fluid Brake .................................... 751
Transmission ........................ 751
Washer ................................. 616
Fog lights Replacing light bulbs ............ 660
Switch ................................... 258
Footwell lights ......................... 538
Front doors .............................. 171
Front fog lights Replacing light bulbs ............ 660
Switch ................................... 258
Front passenger occupant classification system .............. 50
Front passenger’s seat belt reminder light................. 675
Front seats ............................... 190
Adjustment............................ 190
Cleaning ............................... 588
Correct driving posture ........... 28
Head restraints ..................... 195
Seat heaters ......................... 536
Front side marker lights
Light switch ........................... 248
Replacing light bulbs ............ 660
F
