2018 TOYOTA AVENSIS headlight bulb

13Pictorial index
AVENSIS_OM_OM20C79E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 312
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . P. 394, 401
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 611
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 468
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 623
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 312
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 468
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 570, 554
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 612
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 600
Headlights/front position lights/daytime running
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Cornering/fog light
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Stop lights
Back-up lights
*2
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 219, 226
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Rear fog light
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 501, Watts: P. 625)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13
14
15

15Pictorial index
AVENSIS_OM_OM20C79E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 312
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . P. 394, 401
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 611
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 468
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 623
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 312
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 468
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 570, 554
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 612
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 600
Headlights/front position lights/daytime running
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Cornering/fog light
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Stop lights
Back-up lights
*2
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 219, 226
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Rear fog light
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 501, Watts: P. 625)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13
14
15

5017-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
7
Maintenance and care

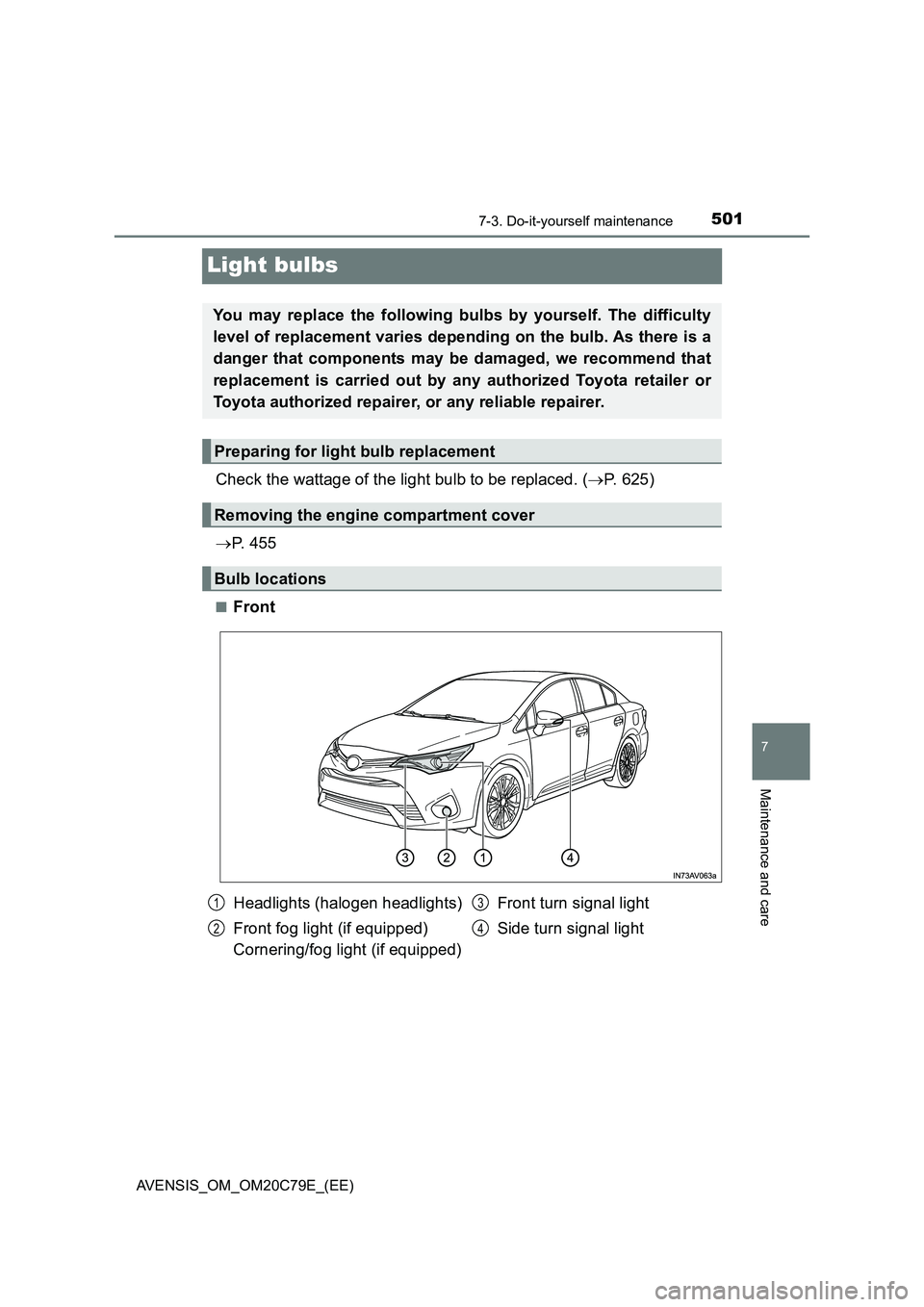

Light bulbs
Check the wattage of the light bulb to be replaced. (P. 625)
P. 4 5 5
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Preparing for light bulb replacement
Removing the engine compartment cover
Bulb locations
Headlights (halogen headlights)
Front fog light (if equipped)
Cornering/fog light (if equipped)Front turn signal light
Side turn signal light1
2
3
4

5037-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
7
Maintenance and care

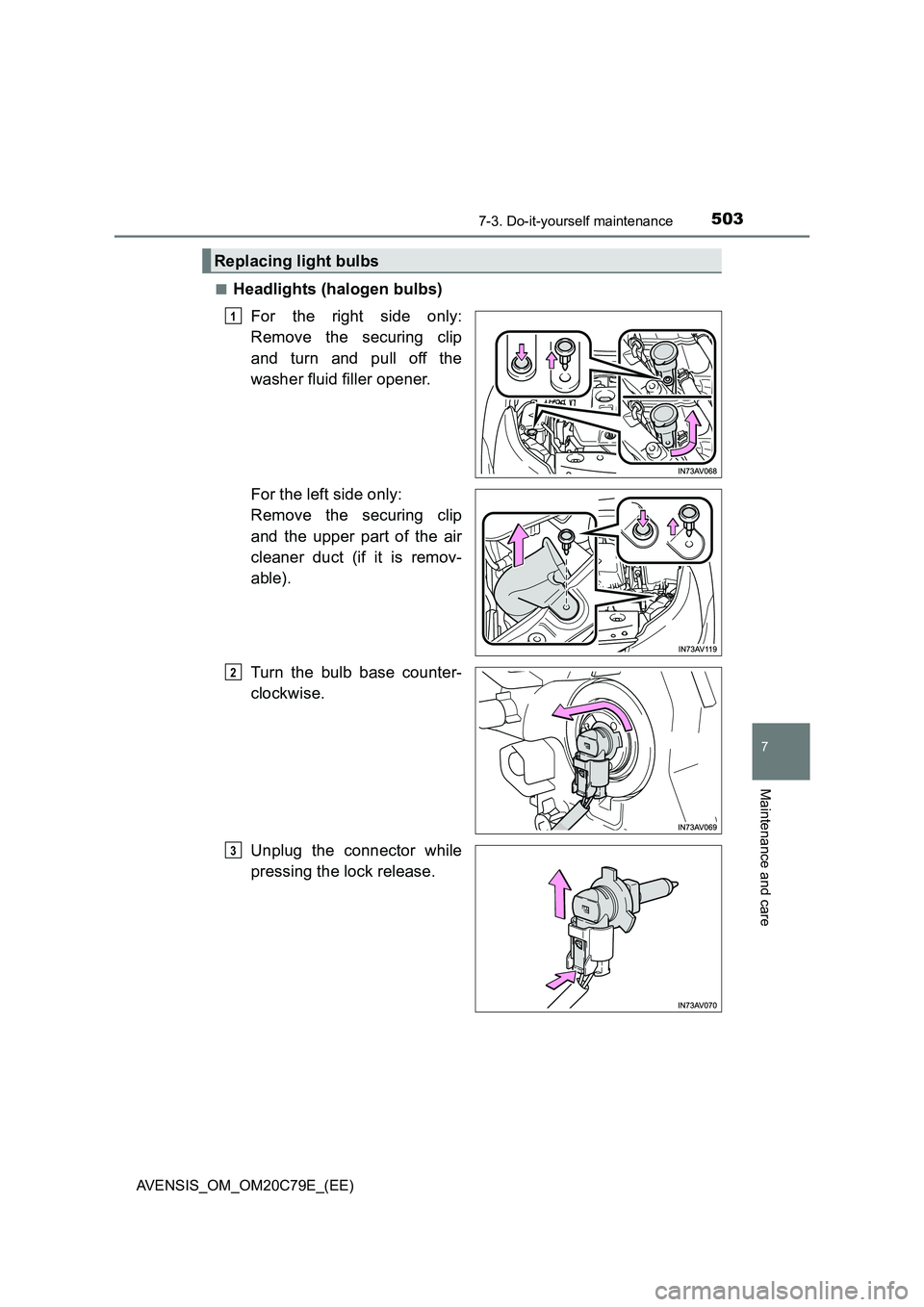

■Headlights (halogen bulbs)
For the right side only:
Remove the securing clip
and turn and pull off the
washer fluid filler opener.
For the left side only:
Remove the securing clip
and the upper part of the air
cleaner duct (if it is remov-
able).
Turn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3

5047-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)

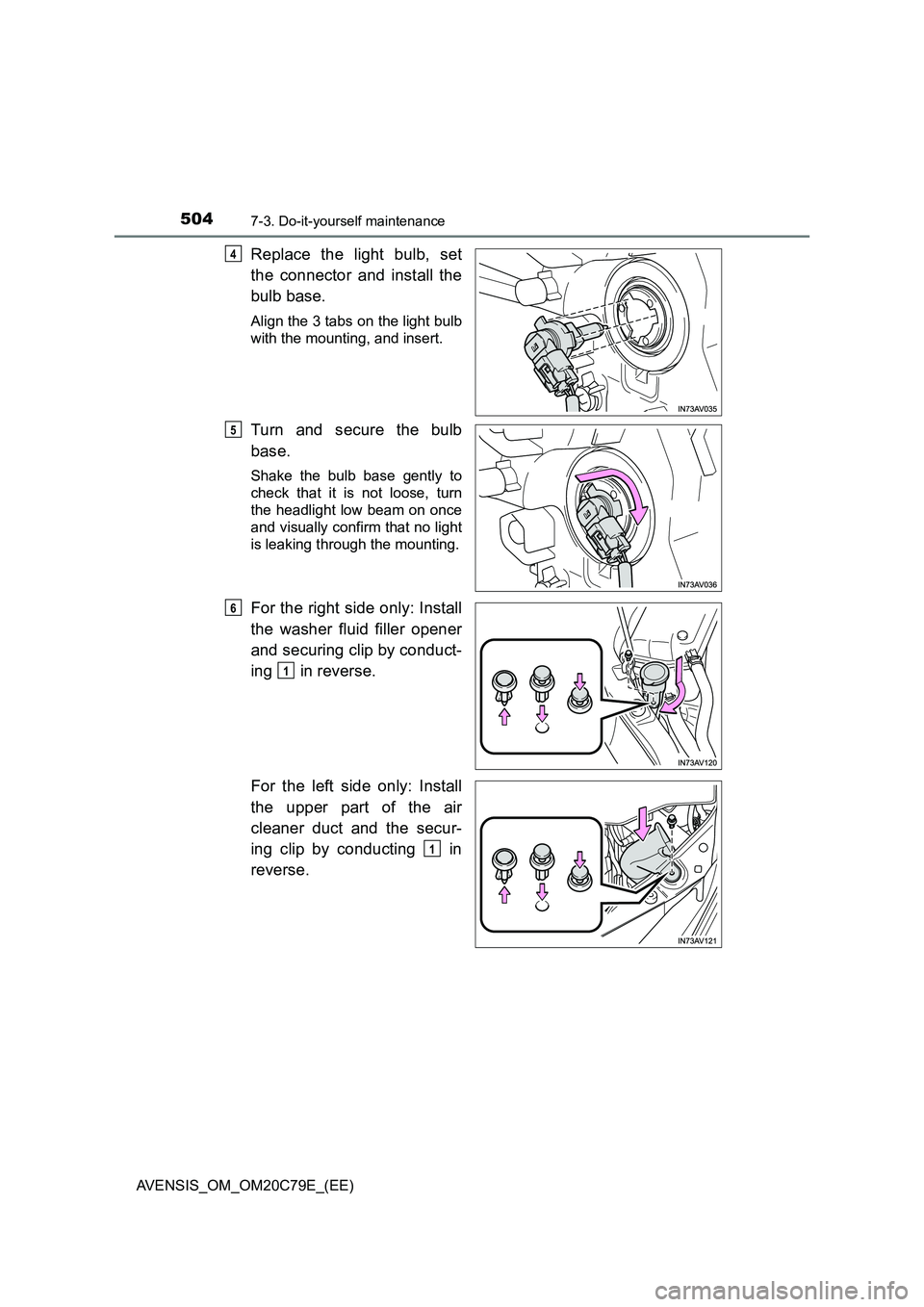

Replace the light bulb, set
the connector and install the
bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlight low beam on once
and visually confirm that no light
is leaking through the mounting.
For the right side only: Install
the washer fluid filler opener
and securing clip by conduct-
ing in reverse.
For the left side only: Install
the upper part of the air
cleaner duct and the secur-
ing clip by conducting in
reverse.
4
5
6
1
1

5157-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
7
Maintenance and care

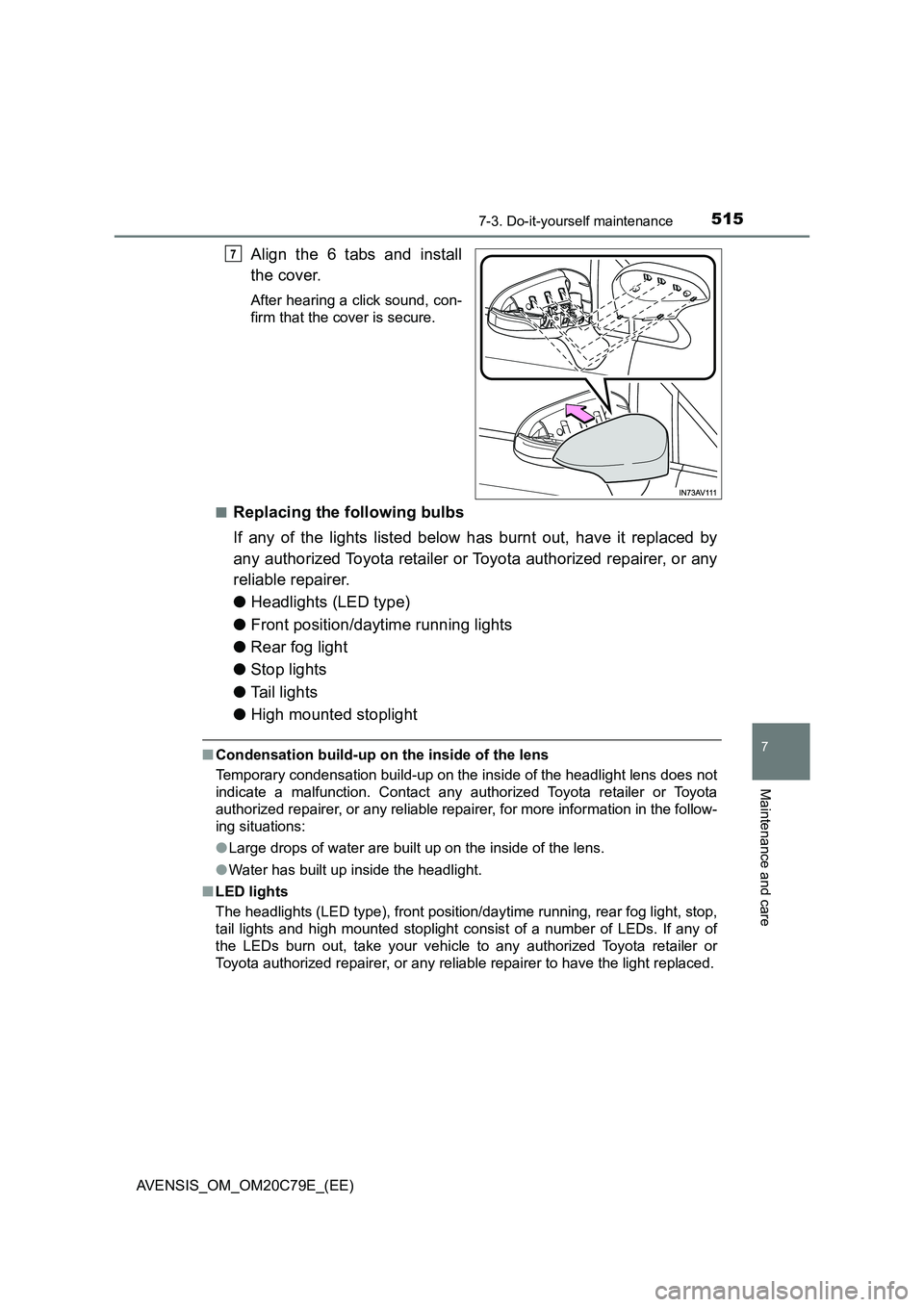

Align the 6 tabs and install
the cover.
After hearing a click sound, con-
firm that the cover is secure.
■
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
●Headlights (LED type)
●Front position/daytime running lights
●Rear fog light
●Stop lights
●Tail lights
●High mounted stoplight
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer, for more information in the follow-
ing situations:
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■LED lights
The headlights (LED type), front position/daytime running, rear fog light, stop,
tail lights and high mounted stoplight consist of a number of LEDs. If any of
the LEDs burn out, take your vehicle to any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer to have the light replaced.
7

5167-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
WARNING
■Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

6259-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
9
Vehicle specifications

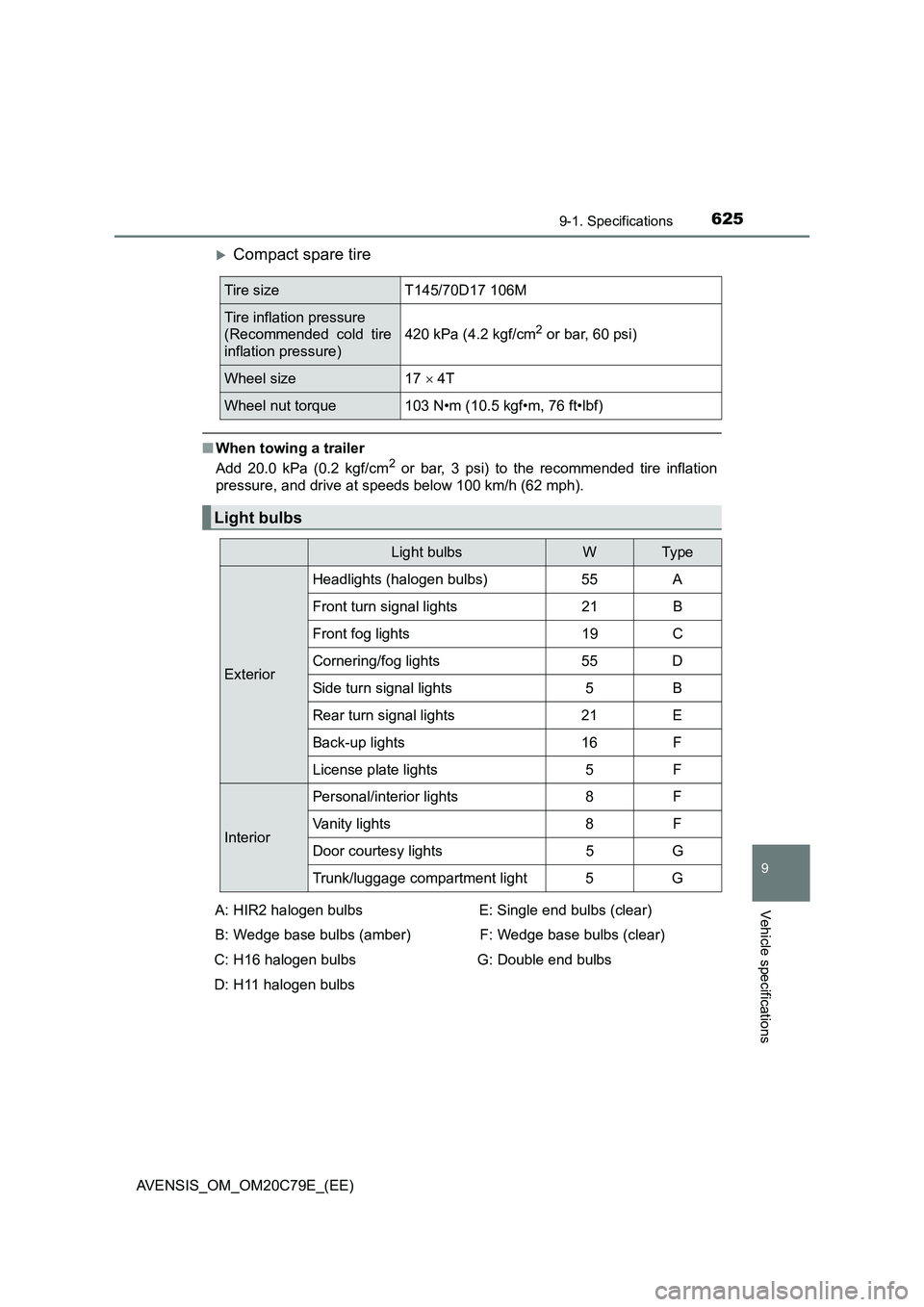

Compact spare tire
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure, and drive at speeds below 100 km/h (62 mph).
Tire size T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17  4T
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
ExteriorHeadlights (halogen bulbs) 55 A
Front turn signal lights 21 B
Front fog lights 19 C
Cornering/fog lights 55 D
Side turn signal lights 5 B
Rear turn signal lights 21 E
Back-up lights 16 F
License plate lights 5 F
InteriorPersonal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 G
Trunk/luggage compartment light 5 G
A: HIR2 halogen bulbs
B: Wedge base bulbs (amber)
C: H16 halogen bulbs
D: H11 halogen bulbsE: Single end bulbs (clear)
F: Wedge base bulbs (clear)
G: Double end bulbs
