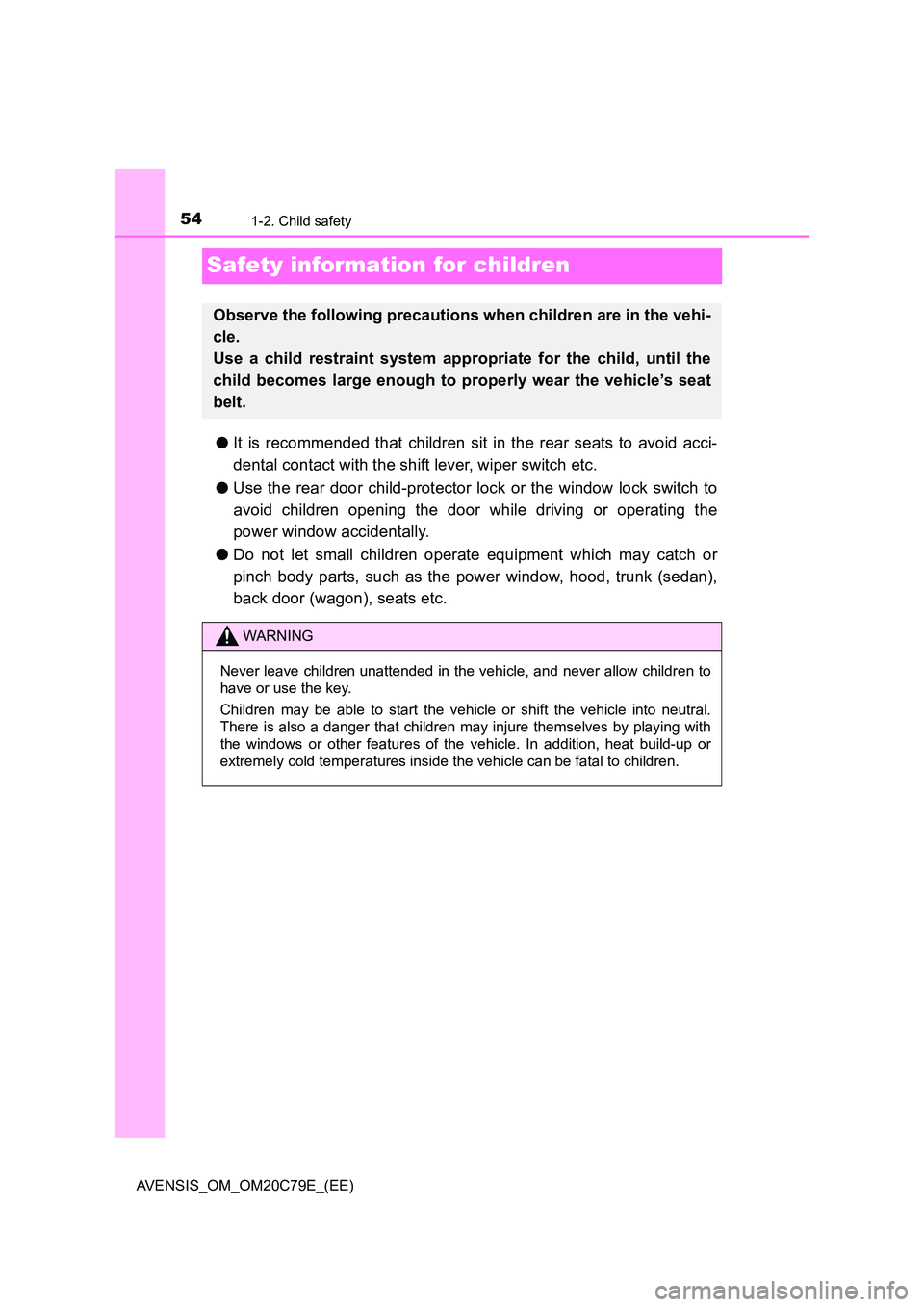

541-2. Child safety
AVENSIS_OM_OM20C79E_(EE)
Safety information for children
●It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally.
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, trunk (sedan),
back door (wagon), seats etc.
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

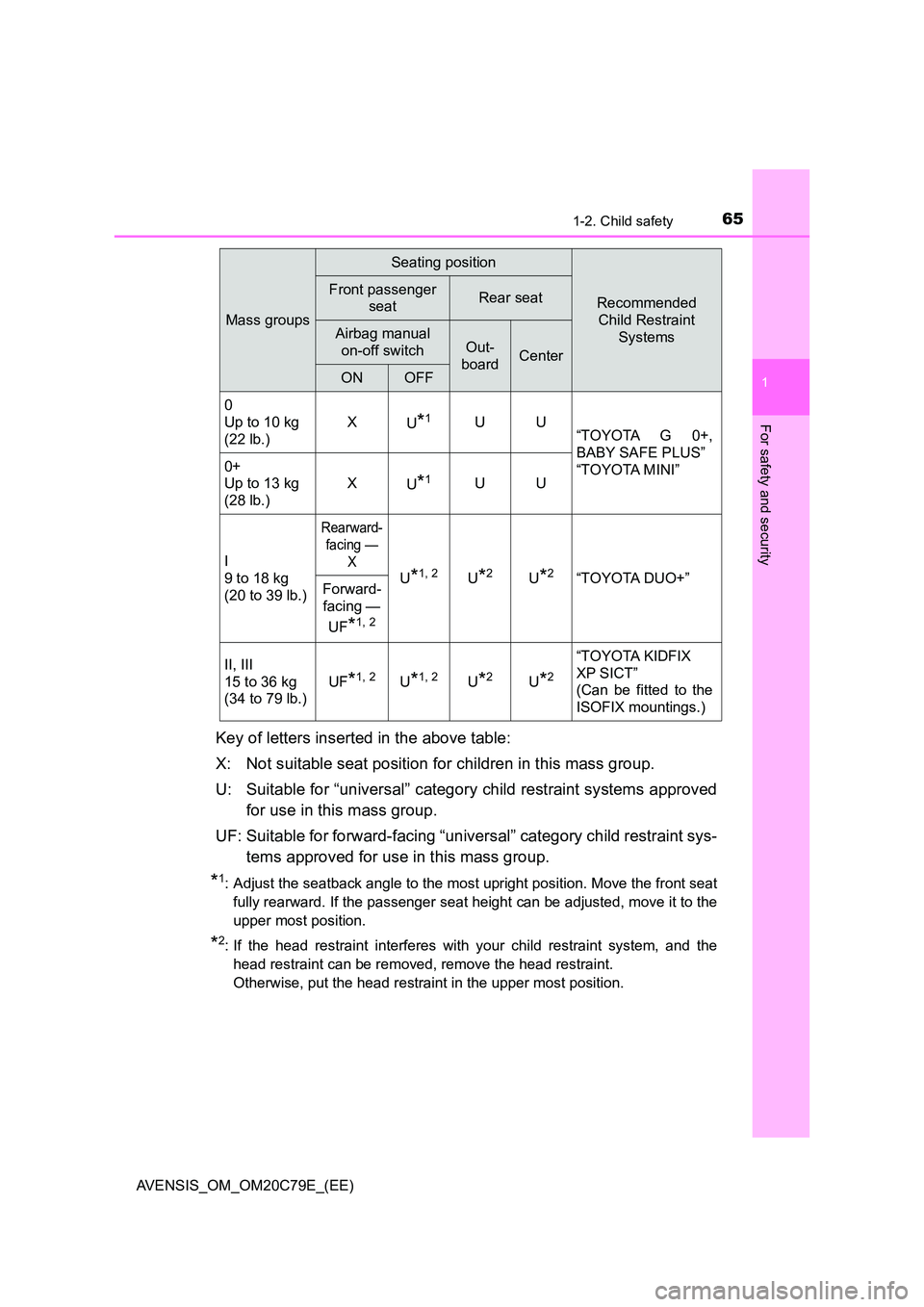

651-2. Child safety
1
AVENSIS_OM_OM20C79E_(EE)
For safety and security
Key of letters inserted in the above table:
X: Not suitable seat position for children in this mass group.
U: Suitable for “universal” category child restraint systems approved
for use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint sys-
tems approved for use in this mass group.
*1: Adjust the seatback angle to the most upright position. Move the front seat
fully rearward. If the passenger seat height can be adjusted, move it to the
upper most position.
*2: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
Mass groups
Seating position
Recommended
Child Restraint
Systems
Front passenger
seatRear seat
Airbag manual
on-off switchOut-
boardCenter
ONOFF
0
Up to 10 kg
(22 lb.)
X U*1UU “TOYOTA G 0+,
BABY SAFE PLUS”
“TOYOTA MINI” 0+
Up to 13 kg
(28 lb.)
X U*1UU
I
9 to 18 kg
(20 to 39 lb.)
Rearward-
facing —
X
U*1, 2U*2U*2“TOYOTA DUO+” Forward-
facing —
UF*1, 2
II, III
15 to 36 kg
(34 to 79 lb.)
UF*1, 2U*1, 2U*2U*2
“TOYOTA KIDFIX
XP SICT”
(Can be fitted to the
ISOFIX mountings.)

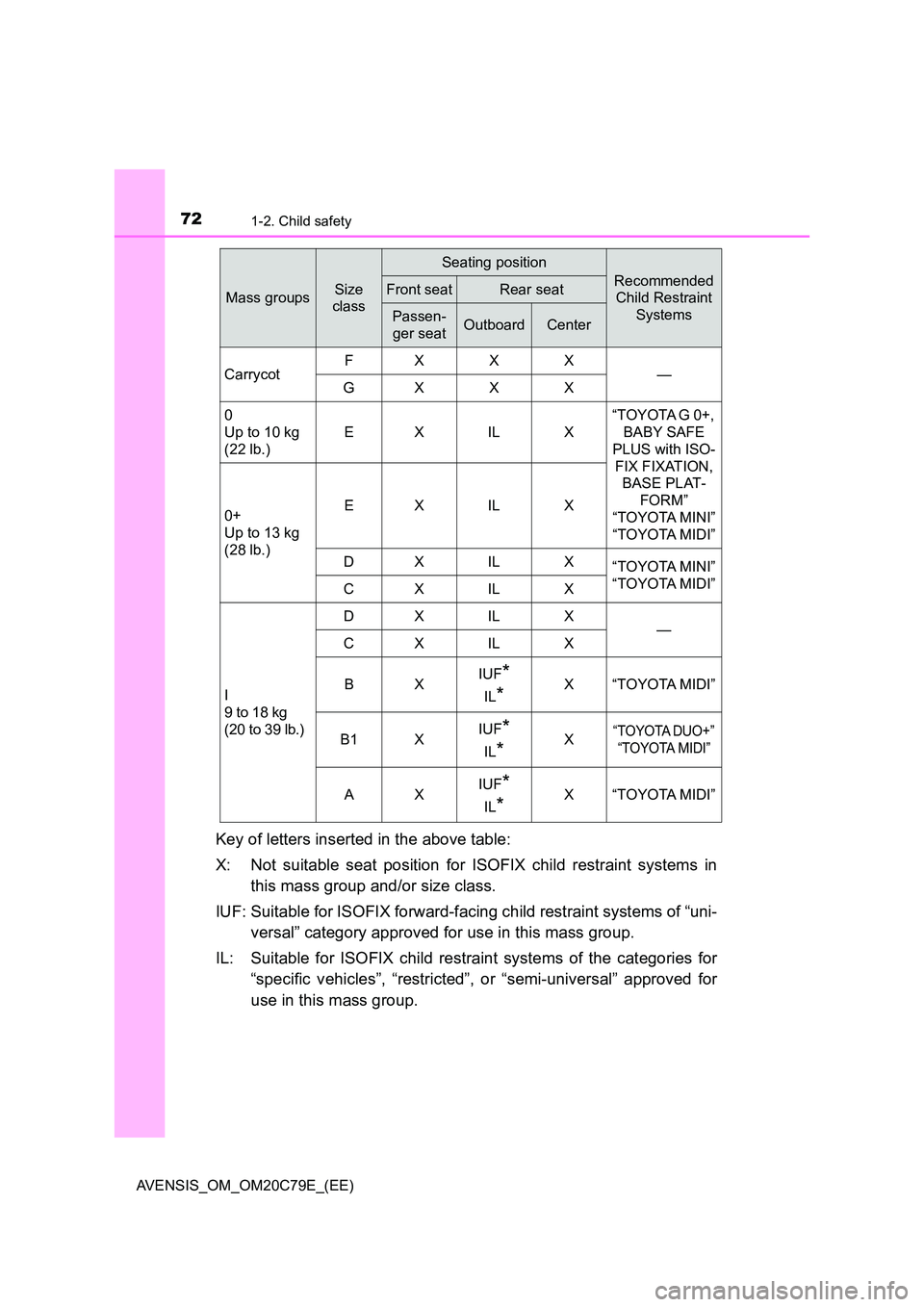

721-2. Child safety
AVENSIS_OM_OM20C79E_(EE)
Key of letters inserted in the above table:
X: Not suitable seat position for ISOFIX child restraint systems in
this mass group and/or size class.
IUF: Suitable for ISOFIX forward-facing child restraint systems of “uni-
versal” category approved for use in this mass group.
IL: Suitable for ISOFIX child restraint systems of the categories for
“specific vehicles”, “restricted”, or “semi-universal” approved for
use in this mass group.
Mass groupsSize
class
Seating position
Recommended
Child Restraint
Systems
Front seatRear seat
Passen-
ger seatOutboardCenter
Carrycot FXXX — GXXX
0
Up to 10 kg
(22 lb.)
EX IL X
“TOYOTA G 0+,
BABY SAFE
PLUS with ISO-
FIX FIXATION,
BASE PLAT-
FORM”
“TOYOTA MINI”
“TOYOTA MIDI”
0+
Up to 13 kg
(28 lb.)
EX IL X
DX IL X “TOYOTA MINI”
“TOYOTA MIDI” CX IL X
I
9 to 18 kg
(20 to 39 lb.)
DX IL X —CX IL X
BX IUF*
IL*X“TOYOTA MIDI”
B1 X IUF*
IL*X“TOYOTA DUO+”
“TOYOTA MIDI”
AX IUF*
IL*X“TOYOTA MIDI”

741-2. Child safety
AVENSIS_OM_OM20C79E_(EE)
■i-Size child restraint systems fastened with ISOFIX (ECE
R129) - Compatibility table
If your child restraint system is of “i-Size” category, you can install it
on the positions mentioned by i-U in the table below.
Child restraint system category can be found in the child restraint
system manual.
Key of letters inserted in the above table:
X: Not suitable for use with i-Size child restraint systems.
i-U: Suitable for i-Size “universal” child restraint systems forward and
rearward facing.
*: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next to
the child restraint without interfering with it or affecting seat belt effec-
tiveness. Be sure your seat belt fits snugly across your shoulder and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in death or
serious injury.
● When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child restraint sys-
tem.
Seating position
Front seatRear seat
Passenger seatOutboardCenter
i-Size child
restraint systemsXi-U*X

781-3. Theft deterrent system
AVENSIS_OM_OM20C79E_(EE)
Engine immobilizer system
Vehicles without smart entry & start system
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with smart entry & start system
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The indicator light stops flashing after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that the
system has been canceled.
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.

791-3. Theft deterrent system
1
AVENSIS_OM_OM20C79E_(EE)
For safety and security
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

901-3. Theft deterrent system
AVENSIS_OM_OM20C79E_(EE)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
● The door is unlocked using the key.
● A person inside the vehicle opens a door
or hood.
● The battery is recharged or replaced
when the vehicle is locked.

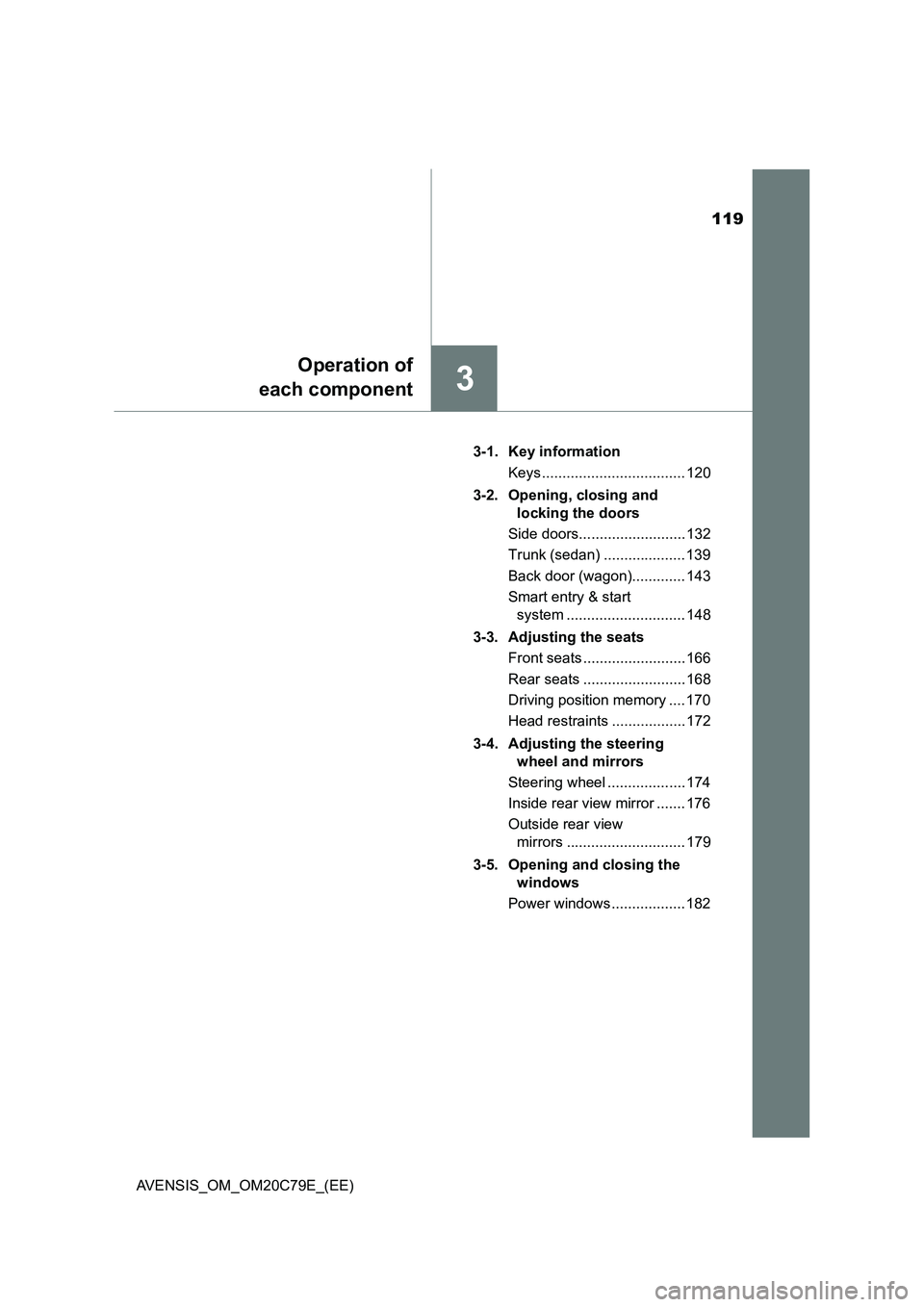

119
3
Operation of
each component
AVENSIS_OM_OM20C79E_(EE)3-1. Key information
Keys ................................... 120
3-2. Opening, closing and
locking the doors
Side doors.......................... 132
Trunk (sedan) .................... 139
Back door (wagon)............. 143
Smart entry & start
system ............................. 148
3-3. Adjusting the seats
Front seats ......................... 166
Rear seats ......................... 168
Driving position memory .... 170
Head restraints .................. 172
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 174
Inside rear view mirror ....... 176
Outside rear view
mirrors ............................. 179
3-5. Opening and closing the
windows
Power windows .................. 182
