2018 TOYOTA AURIS tow

5218-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises
■Location of the emergency tire puncture repair kit
Towing eyelet Emergency tire puncture
repair kit
12

5418-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises
Once the hybrid system has started, remove the jumper cables in
the exact reverse order from which they were connected.
Close the exclusive jump starting terminal cover, and reinstall the
fuse box cover to its original position.
When installing, first hook the fuse box cover onto the two rear tabs.
Once the hybrid system starts, have the vehicle inspected at any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional as soon as possible.
■ Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■ To prevent 12-volt battery discharge
● Turn off the headlights and the audio system while the hybrid system is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ When the 12-volt battery is removed or discharged
● The hybrid system may not start. (P. 436)
● If the 12-volt battery is depleted with the shift position in P, it will not be pos-
sible to shift the shift position other than P. In this case, the vehicle cannot
be towed without lifting both front wheels because the front wheels are
locked by the parking lock. ( P. 485)
● When the 12-volt battery is reconnected, start the hybrid system, depress
the brake pedal, and confirm that it is possible to shift into each shift posi-
tion.
■ Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even when
the vehicle is not in use, due to natural discharge and the draining effects of
certain electrical appliances. If the vehicle is left for a long time, the 12-volt
battery may discharge, and the hybrid system may be unable to start. (The
12-volt battery recharges automatically while the hybrid system is operating.)
9
10

5508-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)

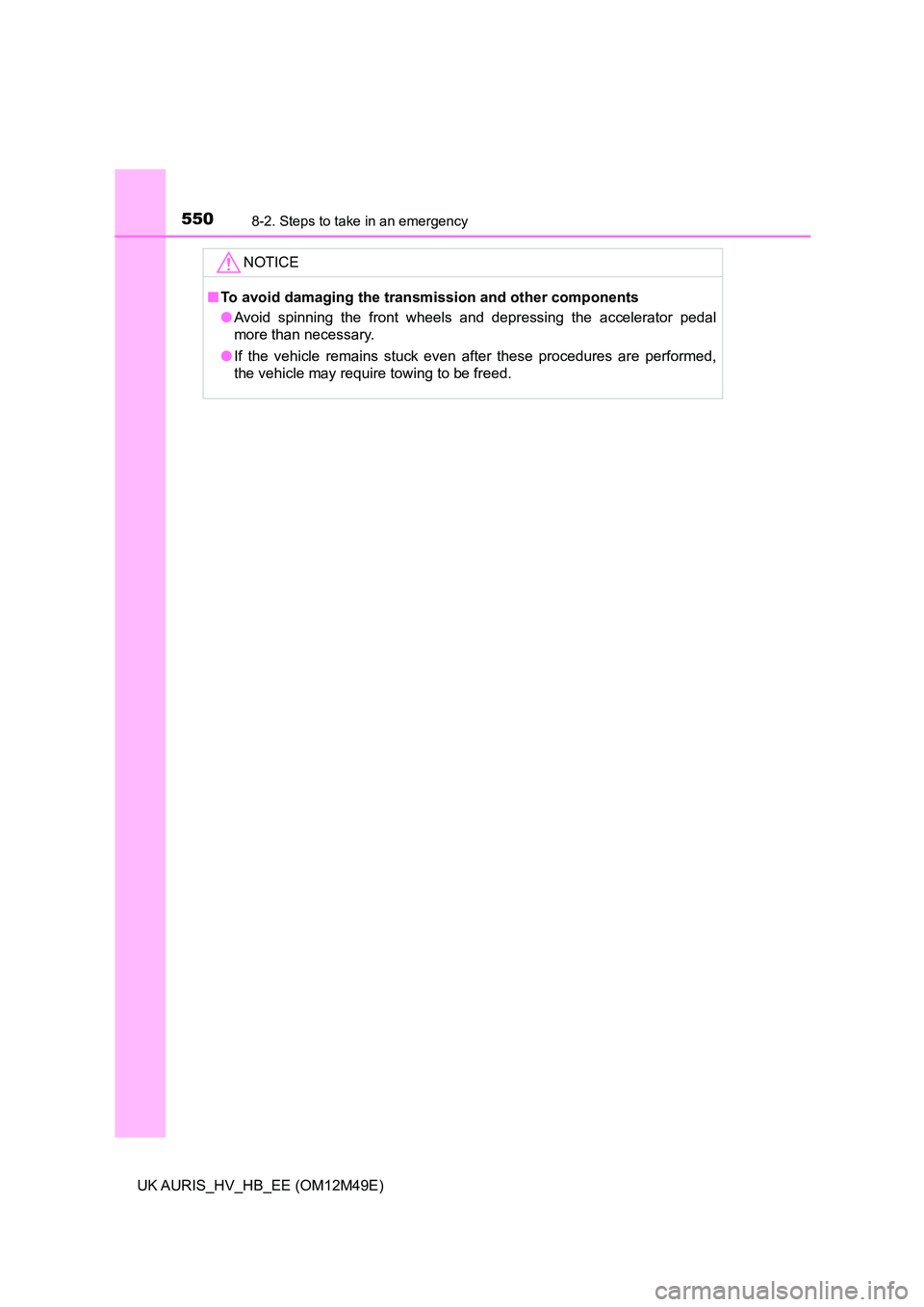

NOTICE
■To avoid damaging the transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

552
UK AURIS_HV_HB_EE (OM12M49E)
9-1. Specifications
*1: Unladen vehicles
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 205/55R16 tires
*4: Vehicles with 225/45R17 tires
*5: Gross vehicle mass is specified on the information tag (manufacturer’s
label). (P. 204)
*6: Vehicles with towing package (P. 201)
Maintenance data (f uel, oil level, etc.)
Dimensions and weights
Overall length 4330 mm (170.5 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11475 mm (58.1 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front
1535 mm (60.4 in.)*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4
Rear
1525 mm (60.0 in.)*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*4
Gross vehicle mass*51840 kg (4057 lb.)
1815 kg (4002 lb.)
Maximum permis-
sible axle capacity
Front 1020 kg (2249 lb.)
Rear 1010 kg (2227 lb.)
Drawbar load*655 kg (121 lb.)
Towing capacity*6385 kg (848 lb.)

5629-1. Specifications
UK AURIS_HV_HB_EE (OM12M49E)
17-inch tires
Compact spare tire
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire size225/45R17 91W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)260 (2.6, 38)260 (2.6, 38)
160 km/h (100
mph) or less230 (2.3, 33)230 (2.3, 33)
Wheel size17  7 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT125/70D17 98M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4 T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

582Alphabetical index
UK AURIS_HV_HB_EE (OM12M49E)
Emergency, in case of
If a warning light turns on ...... 491
If a warning message is
displayed ............................ 498
If the 12-volt battery is
discharged .......................... 539
If the electronic key does
not operate properly ........... 536
If the hybrid system
will not start......................... 536
If the warning buzzer
sounds ................................ 491
If you have a flat tire...... 507, 519
If you think something is
wrong .................................. 490
If your vehicle becomes
stuck ................................... 549
If your vehicle has to be
stopped in an emergency ... 483
If your vehicle needs to be
towed .................................. 484
If your vehicle
overheats ............................ 544
Emergency brake signal ......... 306
Emergency flashers................. 482
Emergency tire puncture
repair kit ................................. 519
Energy monitor ........................ 115
Engine....................................... 554
ACCESSORY mode ............. 213
Compartment ........................ 427
Engine switch........................ 213
Hood ..................................... 424
How to start the hybrid
system .......... ...................... 211
Identification number ............ 553
If the hybrid system
will not start ........................ 534
Ignition switch
(power switch) .................... 211
Overheating .......................... 544
Power switch......................... 211
Engine coolant ......................... 430
Capacity ................................ 558
Checking ............................... 430
Preparing and checking
before winter....................... 314
Warning light ......................... 491
Engine oil ................................. 428
Capacity ................................ 555
Checking ............................... 428
Preparing and checking
before winter....................... 314
Engine switch .......................... 211
EPS (Electric Power
Steering)................................. 306
Warning light ......................... 492
EV drive mode.......................... 217

590Alphabetical index
UK AURIS_HV_HB_EE (OM12M49E)
Tire pressure warning
system .................................... 440
Function ................................ 440
Initializing .............................. 440
Installing tire pressure
warning valves and
transmitters ........................ 440
Registering ID codes............. 441
Tire pressure warning reset
switch.................................. 441
Warning light ......................... 494
Tires .......................................... 439
Chains ................................... 315
Checking ............................... 439
Emergency tire puncture
repair kit .............................. 519
If you have a flat tire...... 507, 519
Inflation pressure .................. 560
Replacing .............................. 507
Rotating tires ......................... 439
Size ....................................... 560
Snow tires ............................. 316
Spare tire .............................. 507
Tire pressure warning
system .......... ...................... 440
Warning light ......................... 494
Tools ................................. 508, 521
Top strap .................................... 66
Towing
Emergency towing ................ 484
Towing capacity .................... 552
Towing eyelet ........................ 487
Trailer towing ........................ 201
Toyota parking
assist-sensor ......................... 284
Toyota Safety Sense ............... 246
Automatic High Beam ........... 270
LDA (Lane Departure
Alert) ................................... 265
PCS (Pre-Crash Safety
system) .............. ................. 252
RSA (Road Sign Assist)........ 274
Traction battery
(hybrid battery) ........................ 75
Traction Control (TRC) ............ 305
Traction motor
(electric motor) ........................ 71
Trailer towing .......................... 201
Transmission ........................... 219
TRC (Traction Control) ............ 305
Trip meters ............................... 108
Turn signal lights..................... 227
Replacing light bulbs............. 467
Turn signal lever ................... 227
Wattage ................................ 563
USB port*................................. 320
Vanity lights ............................. 391
Wattage ................................ 563
Vanity mirrors .......................... 405
Vehicle identification
number ................................... 553
Vehicle Stability Control
(VSC) ...................................... 305
VSC (Vehicle Stability
Control) .................................. 305
