2018 SUBARU OUTBACK engine

8
Gauges
Outback 2.5i
Immediate Attention
Caution
Informational
Tachometer
Temperature gaugeTrip meter and odometerTrip meter reset button
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Charge warning
Oil pressure warning
Brake system
Power steering warning
High beam indicator light
Engine oil level warning
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)ECO gauge
2926966_18a_Subaru_Outback_QRG_050417.indd 85/4/17 3:34 PM

9
Speedometer
Fuel gauge
Gauges
Vehicle Dynamics Control/
Vehicle Dynamics Control
operation
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger airbag ON
(Located on overhead console)
Front passenger airbag OFF (Located on overhead console)
Low windshield washer fluid
Hill holder
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control SET
indicator light
2926966_18a_Subaru_Outback_QRG_050417.indd 95/4/17 3:35 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

10
Tachometer
Temperature gauge Trip meter and odometer
Gauges
Outback 2.5i Premium
Outback 2.5i Limited
Outback 2.5i Touring
Outback 3.6R Limited
Outback 3.6R Touring
Immediate Attention
Caution
Informational
Trip meter reset button
ECO gauge
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Charge warning
Oil pressure warning
Brake system
Power steering warning
Door open (if equipped)
High beam indicator light
Engine oil level warning
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
2926966_18a_Subaru_Outback_QRG_050417.indd 105/4/17 3:35 PM

11
SpeedometerFuel gauge
Gauges
Vehicle Dynamics Control/
Vehicle Dynamics Control
operation
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger airbag ON
(Located on overhead console)
Front passenger airbag OFF (Located on overhead console)
Low windshield washer fluid
Hill holder
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control SET
indicator light
2926966_18a_Subaru_Outback_QRG_050417.indd 115/4/17 3:35 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

15
Windshield Wipers
To turn on the wipers, press the wiper control lever down one level for
intermittent, two levels for low, or three levels for high speed. Return the
lever to the “OFF” position to stop the wipers. For a single wipe,\
move the
lever up. To spray washer fluid, pull and hold the lever toward you.
To operate the rear wiper, rotate the end of the knob upward to the
intermittent, continuous, or wash position. When the rear wiper is off,
rotate the knob downward to wash and wipe the rear window.
Daytime Running Lights
Daytime running lights are standard on your vehicle. Only a reduced brightness
high beam will be automatically turned on when the engine has started, the parking
brake is fully released and the light switch is in the “OFF” or “
” position.
The brightness of the illumination of the high beam headlights is reduced by
the daytime running light system. You must always switch on your headlights
when it is dark outside by turning the light switch to the “
” position.
1
2
3
INT.
LOW
HIGH OFF
Controls
2926966_18a_Subaru_Outback_QRG_050417.indd 155/4/17 3:36 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

22
Electronic Parking Brake
To apply, push the brake pedal and pull up the parking
brake switch. The brake system warning light on
the instrument panel and the indicator light on the
parking brake switch will illuminate.
To release, make sure all doors are closed and your
seatbelt is fastened, then gently push the accelerator
pedal. Or, while the ignition switch is in the ON position
and the brake pedal is pushed in, push down the
parking brake switch.
X-MODE® (if equipped)
X-MODE® is the integrated control system of the engine,
AWD and Vehicle Dynamics Control system. Press the
X-MODE button to activate. Press it again to deactivate.
Please refer to your Owner’s Manual for operational
parameters and details about this feature.
While Operating
Paddle Shift Control Switches (if equipped)
• Temporary use: Even when the selector is in the
“D” (Drive) position, you can temporarily shift the
gear by pulling the “+” or “–” paddle shift control
switch. The transmission will automatically
switch back to Normal Mode.
• When the selector lever is in Manual Mode,
shift to the next higher gear by pulling the “+” paddle shift cont\
rol switch on the steering
wheel. Pull the “–” paddle shift control switch to shift into the next lower gear.
Manual Shifting Operation
Arrow-shaped lights in the center of the instrument panel show whether an u\
pshift is possible
and whether a downshift is possible.
Hill Holder™ Function
To activate, press the Hill Holder switch. To deactivate, press the Hill Holder switch again.
When the Hill Holder function is activated, the parking brake will be au\
tomatically applied when
stopped on an uphill or downhill slope with the brake pedal pushed down.\
The brake system
warning light on the instrument panel and the indicator light on the parkin\
g brake
switch will illuminate.
2926966_18a_Subaru_Outback_QRG_050417.indd 225/4/17 3:37 PM

23
While
Operating
1
Automatic Transmission Shift Mode
The Continuously Variable Transmission (CVT) gives you ultimate control with two
different driving modes: Normal Mode and Manual Mode.
Normal Mode
When the selector lever is in the “D” (Drive) position, the tran\
smission is in Normal
shift mode. The shift position indicator on the instrument panel shows “\
D” and the
transmission automatically shifts into a suitable forward gear.
Manual Mode
In Manual Mode, you select the desired gear position to obtain necessary
acceleration and engine braking. Moving the selector lever left into the\
manual gate
1 from the “D” (Drive) position causes the transmission to change in\
to Manual
Mode. To shift, use the paddle shift control switches. The shift position indicator
shows the selected gear position.
2926966_18a_Subaru_Outback_QRG_050417.indd 235/4/17 3:37 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

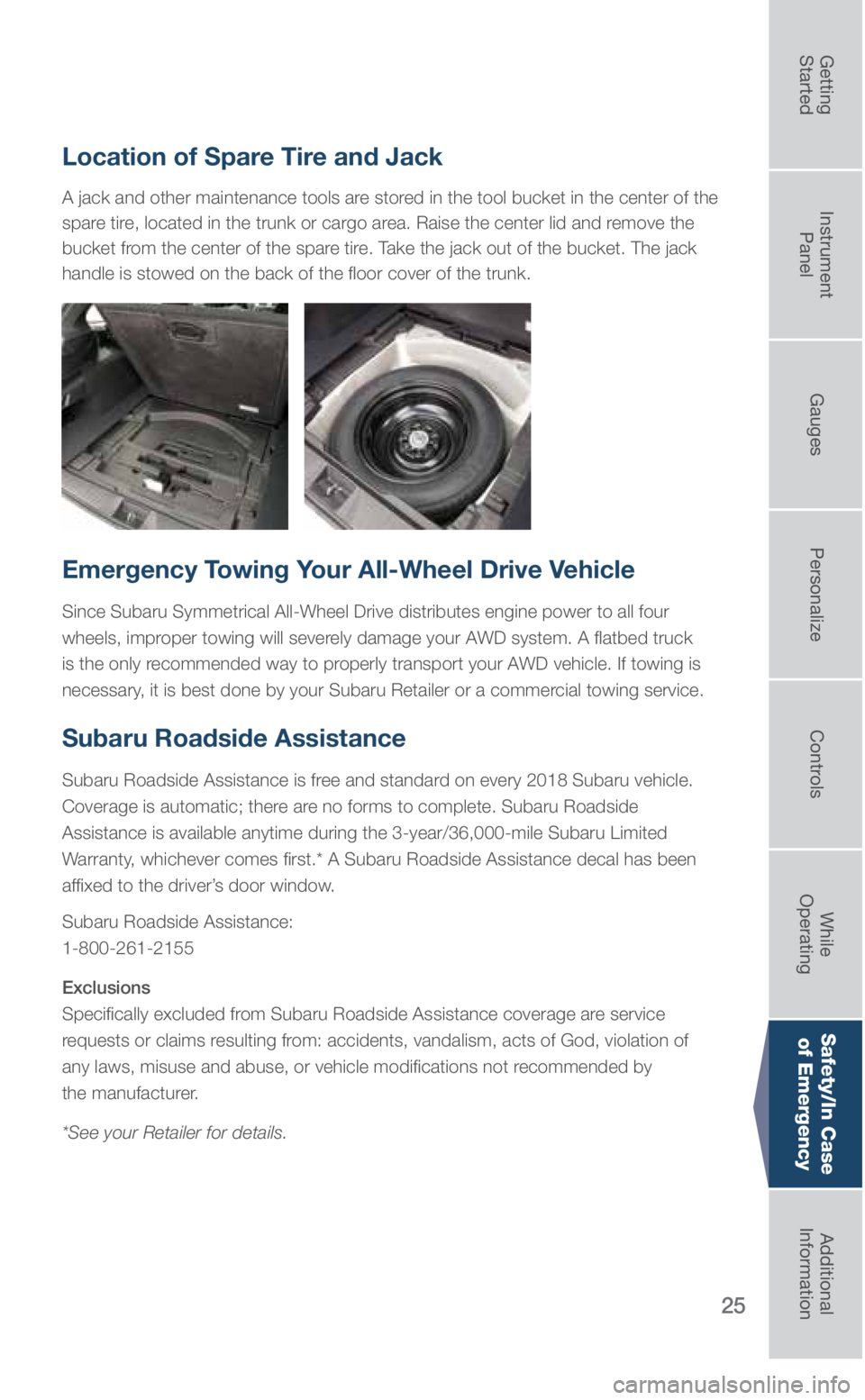

25
Safety/In Case of Emergency
Location of Spare Tire and Jack
A jack and other maintenance tools are stored in the tool bucket in the center of the
spare tire, located in the trunk or cargo area. Raise the center lid and remove the
bucket from the center of the spare tire. Take the jack out of the bucket. The jack
handle is stowed on the back of the floor cover of the trunk.
Emergency Towing Your All-Wheel Drive Vehicle
Since Subaru Symmetrical All-Wheel Drive distributes engine power to all\
four
wheels, improper towing will severely damage your AWD system. A flatbed truck
is the only recommended way to properly transport your AWD vehicle. If towing is
necessary, it is best done by your Subaru Retailer or a commercial towing service.
Subaru Roadside Assistance
Subaru Roadside Assistance is free and standard on every 2018 Subaru vehicle.
Coverage is automatic; there are no forms to complete. Subaru Roadside
Assistance is available anytime during the 3-year/36,000-mile Subaru Lim\
ited
Warranty, whichever comes first.* A Subaru Roadside Assistance decal has been \
affixed to the driver’s door window.
Subaru Roadside Assistance:
1-800-261-2155
Exclusions
Specifically excluded from Subaru Roadside Assistance coverage are service
requests or claims resulting from: accidents, vandalism, acts of God, violation of
any laws, misuse and abuse, or vehicle modifications not recommended by
the manufacturer.
*See your Retailer for details.
