2018 SKODA OCTAVIA light

Front interior lightsFig. 73
Operation of the front light: Version 1/version 2
Positions of the rocker switch
A
.

Ambient lightingFig. 76
Setting the ambient lighting
The ambient lighting illuminates the side door trim panels in colour, and the
footwell in white.
The lighting only works when the dipped or parking lights are on. The lighting is also switched on automatically after opening the door (e.g.
when getting in or out).
The lighting can be adjusted in Infotainment in the 
menu /
e

Fig. 261
Driving situation / indicator light in the right outside mirror indi-
cates the driving situation

After the start of the regulation, the CCS regulates the vehicle to the current
speed and warning light  illuminates in the instrument cluster.
The automatic control interruption occurs if any of the following conditions
are met.

WARNINGThe maximum vertical load and the maximum trailer load must not be ex-ceeded - there is risk of accident!
Towing a trailer
Driving speed
For safety reasons, do not drive faster than 100 km/h when towing a trailer.
Immediately reduce your speed as soon as even the slightest swaying of the
trailer is detected. Never attempt to stop the trailer from “swaying” by accel-
erating.
Brakes
Apply the brakes in good time! If the trailer is fitted with a trailer brake, apply
the brakes gently at first, then brake firmly. This will avoid brake jolts resulting
from the trailer wheels locking.
On downhill sections shift down a gear in good time to also use the engine as a
brake.
WARNINGAlways drive particularly carefully with the trailer.
CAUTION
With frequent towing, the vehicle is excessively loaded so this must also be
checked between service intervals.
Anti-theft alarm system
The alarm is triggered if, with a vehicle with activated anti-theft alarm (herein-
after only warning system), the electrical connection to the trailer (accessory)
is interrupted.
Always switch off the anti-theft alarm system before a trailer (accessory) is
coupled or uncoupled

Vehicle tool kitFig. 327
Vehicle tool kit
The box with the tool kit is located in the storage compartment for the spare
wheel and may be secured with tape, depending on specification.
Depending on the vehicle configuration, it may not contain all the compo-
nents listed in the on-board tool kit.
Screwdriver
Key for removing and installing the tail light
Adapter for anti-theft wheel bolts
Towing eye
Clamps for removing the wheel trims
Jack with sign
Crank for the jack
Wheel wrench
Extraction pliers for the wheel bolt caps
Breakdown kit
12345678910WARNING
v The factory-supplied lifting jack is only intended for your model of vehi-
cle. Under no circumstances attempt to lift other vehicles or loads with this

Bulb arrangement in the halogen headlightsFig. 355
Left headlight

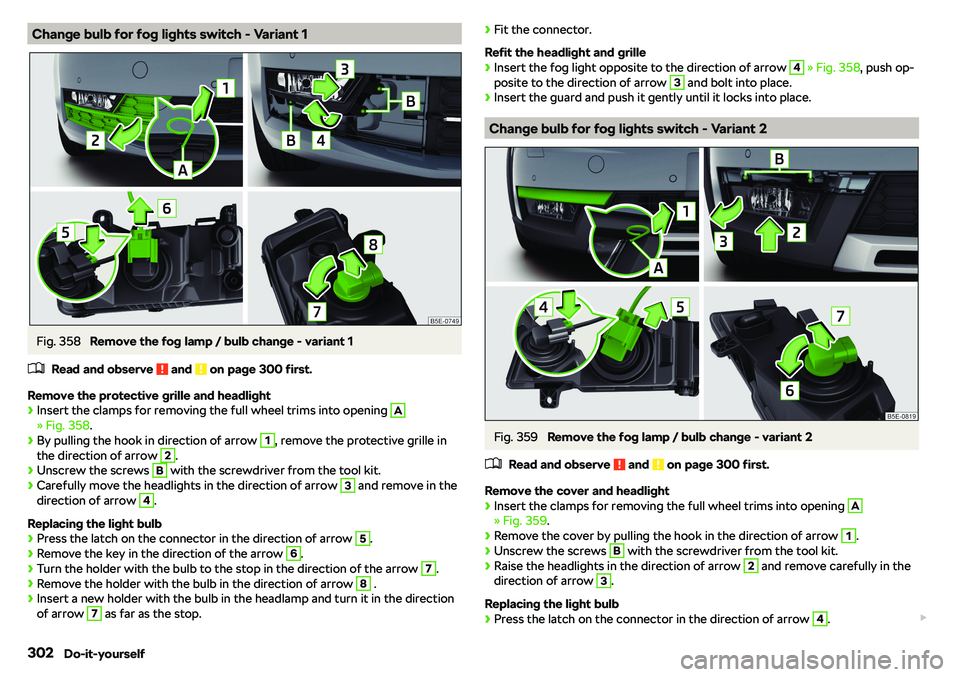

Change bulb for fog lights switch - Variant 1Fig. 358
Remove the fog lamp / bulb change - variant 1
