Page 2 of 58

About this manualThis manual contains information, recom-mendations, suggestions and advice about
your radio system. The other sections of the
on-board documentation also contain impor-
tant instructions that both driver and passen-
gers must be aware of for their own safety.
Ensure that the on-board documentation is kept in the vehicle at all times. This is espe-cially important when lending or selling thevehicle to another person.
This manual describes the features of the ve-
hicle at the time of drafting this text. Some of
the features described below will be intro- duced in the future or will only be available incertain markets.
Some details on the drawings may vary from
its vehicle and must be interpreted as a
standard representation.
The colour of the display and the informa-
tion displayed on it may vary depending on
the model of your vehicle.
The component location instructions are
based on the direction of the vehicle unless otherwise specified.
The audiovisual material is only meant to
help the users better understand some fea-
tures of the car. It is not a replacement for the
instruction manual. Access the instructionmanual to see the complete information andwarnings.
The features marked with an asterisk
are included by default only in certain
versions of the model, supplied as op-
tional only for certain versions or only of-
fered in certain countries.
Trademarks are marked with
Page 16 of 58
RadioDigital radio mode (DAB, DAB+ and
DMB audio)*Fig. 11
Main DAB RADIO menu.
The DAB radio receiver is compatible with the
standards DAB, DAB+ and DMB audio.
In Europe, digital radio is transmitted via band
III frequencies (from 174 MHz to 240 MHz).
The frequencies of the two bands are refer-
red to as “ channels” and each has a channel
name (e.g. 1 2
A
).
Several available DAB stations are combined
into one channel in an “ ensemble”.
Starting DAB radio mode
In the RADIO main menu, press the function
key

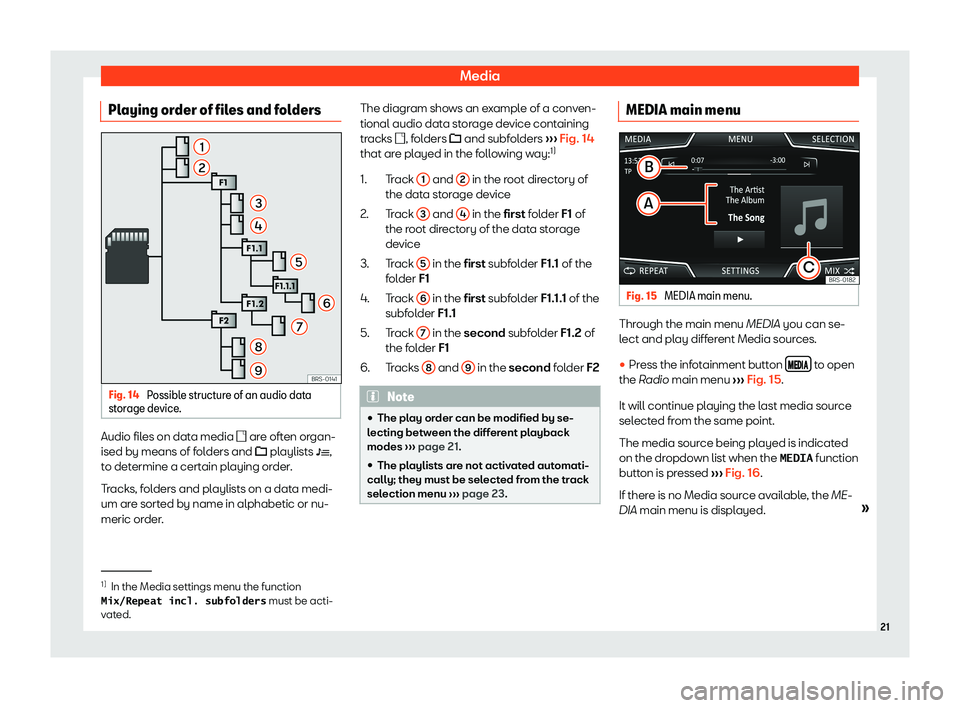

Page 21 of 58
MediaMedia
Media mode Introduction
Media sources are audio sources containing
audio files on various different data storage devices (e.g. SD memory card, USB, external
MP3 player, etc.). These audio files can be played by the infotainment system from its
corresponding drives or audio input sockets
(memory card slot, AUX-IN multi-media sock- et etc.)
Note
Page 22 of 58
