Driving
●
Never u se s
prays to cold start the engine. CAUTION
● The s tar

ter motor or the engine may be
damaged if you try to start the engine while
driving or if you restart it immediately after
switching it off.
● If the engine is cold, avoid high engine
speeds, p
ushing the engine too hard and rap-
id acceleration.
● Do not start the engine by pushing the ve-
hicle or t
owing it. Unburnt fuel could enter
the catalytic converter and damage it. Note
● Do not w ait

until the engine warms up with
the vehicle stationary; if you have good visi-
bility through the windows, start driving im-
mediately. This helps the engine reach oper-
ating temperature faster and reduces emis-
sions.
● Electrical components with a high power
cons
umption are switched off temporarily
when the engine starts.
● When starting with a cold engine, noise
level
s may briefly increase. This is quite nor-
mal, and no cause for concern.
● When the outside temperature is below
+5°C (+41°F), if the en
gine is diesel, some
smoke may appear under the vehicle when
the fuel-operated auxiliary heater is on. Stopping the engine
3 Valid for vehicles: with Keyless Access
StepSwitch off the engine with the starter
button
››› page 183.
1.Stop the vehicle completely ››› .
2.Press and hold the brake pedal until the step
4 is performed.
3.If you are driving an automatic vehicle, place
the selector lever in position P.
4.Connect the electronic parking brake
››› page 186.
5.
Briefly press the start-up button ››› Fig. 178.
The START ENGINE STOP button blinks again. If
the engine fails to switch off, perform an
emergency disconnect ››› page 183.
6.If the vehicle is equipped with a manual
gearbox, put it into 1st or reverse. WARNING
Never switch off the engine while the vehicle
is mo

ving. This could cause loss of control of
the vehicle, accidents and serious injury.
● The airbags and belt tensioners do not
work when the ignition i
s switched off.
● The brake servo does not work with the en-
gine off. Ther
efore, you need to press the
break pedal harder to brake the vehicle. ●
Po w

er steering does not work when the en-
gine is not running. You need more strength
to steer when the engine is switched off.
● If the ignition is switched off, the steering
column c
ould be locked, making it impossible
to control the vehicle. CAUTION
If the engine is made to work hard for a long
time, it ma

y overheat after being switched
off. To prevent damage to the engine before
switching it off, leave it idle for approx. 2 mi-
nutes in neutral. Note
After switching off the engine, the cooling fan
ma y

continue to operate in the engine com-
partment for a few more minutes, even with
the ignition off. The radiator fan is automati-
cally switched off. “My Beat” Function
For vehicles with a convenience key there is
the “M
y
B

eat” function. This feature provides
an additional indication of the vehicle igni-
tion system.
When accessing the vehicle, e.g. by opening
the doors with the remote control, the START ENGINE STOP button flashes, calling at-
t ention t
o the r

elevant starter system button. »
185
Technical data
Advice
Operation
Emergencies
Safety

Operation

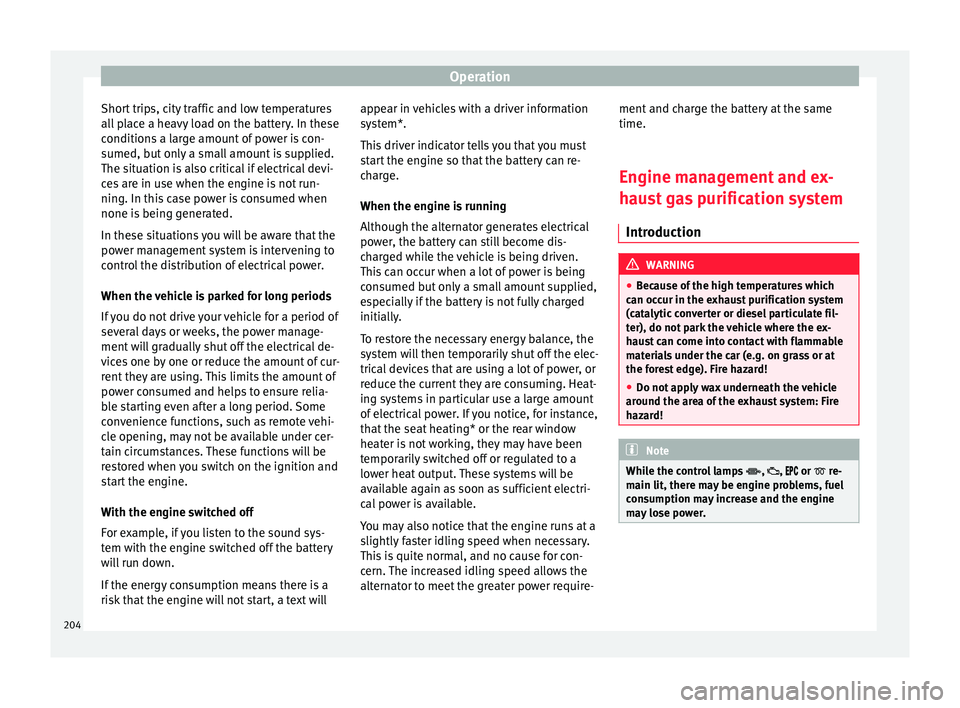

Short trips, city traffic and low temperatures
al l
p
lace a heavy load on the battery. In these
conditions a large amount of power is con-
sumed, but only a small amount is supplied.
The situation is also critical if electrical devi-
ces are in use when the engine is not run-
ning. In this case power is consumed when
none is being generated.
In these situations you will be aware that the
power management system is intervening to
control the distribution of electrical power.
When the vehicle is parked for long periods
If you do not drive your vehicle for a period of
several days or weeks, the power manage-
ment will gradually shut off the electrical de-
vices one by one or reduce the amount of cur-
rent they are using. This limits the amount of
power consumed and helps to ensure relia-
ble starting even after a long period. Some
convenience functions, such as remote vehi-
cle opening, may not be available under cer-
tain circumstances. These functions will be
restored when you switch on the ignition and
start the engine.
With the engine switched off
For example, if you listen to the sound sys-
tem with the engine switched off the battery
will run down.
If the energy consumption means there is a
risk that the engine will not start, a text will appear in vehicles with a driver information
syst
em*.
This driver indicator tells you that you must
start the engine so that the battery can re-
charge.
When the engine is running
Although the alternator generates electrical
power, the battery can still become dis-
charged while the vehicle is being driven.
This can occur when a lot of power is being
consumed but only a small amount supplied,
especially if the battery is not fully charged
initially.
To restore the necessary energy balance, the
system will then temporarily shut off the elec-
trical devices that are using a lot of power, or
reduce the current they are consuming. Heat-
ing systems in particular use a large amount
of electrical power. If you notice, for instance,
that the seat heating* or the rear window
heater is not working, they may have been
temporarily switched off or regulated to a
lower heat output. These systems will be
available again as soon as sufficient electri-
cal power is available.
You may also notice that the engine runs at a
slightly faster idling speed when necessary.
This is quite normal, and no cause for con-
cern. The increased idling speed allows the
alternator to meet the greater power require- ment and charge the battery at the same
time.
Engine management and ex-
haus

t gas purification system
Introduction WARNING
● Bec au

se of the high temperatures which
can occur in the exhaust purification system
(catalytic converter or diesel particulate fil-
ter), do not park the vehicle where the ex-
haust can come into contact with flammable
materials under the car (e.g. on grass or at
the forest edge). Fire hazard!
● Do not apply wax underneath the vehicle
around the ar
ea of the exhaust system: Fire
hazard! Note
While the control lamps , ,  or  re-
m ain lit, ther

e may be engine problems, fuel
consumption may increase and the engine
may lose power. 204

Checking and refilling levels
CAUTION
● Do not mi x
cleaning products recommen-
ded by SEAT with other products. This could
lead to flocculation and may block the wind-
screen washer jets.
● When topping up service fluids, make abso-
lutely c
ertain that you fill the fluids into the
correct reservoirs. Using the wrong fluids
could cause serious malfunctions and engine
damage!
● Not having windscreen wiper fluid reduces
vis
ibility through the windscreen, and leads
to loss of visibility in headlights in models
with headlight washer. Battery
Gener a
l

informationRead the additional information carefully
› ›
›

 page 59.
The battery is located in the engine compart-
ment and is almost maintenance-free. It is
checked as part of the Inspection Service.
Nevertheless, check the terminals are clean
and have the correct tightening torque, espe-
cially in summer and winter.
Disconnecting the battery
The battery should only be disconnected in
exceptional cases. When the battery is dis- connected, some of the vehicle's functions
are “los

t” (››› table on page 305). These
functions will require resetting after the bat-
tery is reconnected.
Deactivate the anti-theft alarm* before you
disconnect the battery Otherwise the alarm
will be triggered.
FunctionReprogramming
One-touch function of
the electric windows››› page 141, One-touch
opening and closing.
Remote control key
If the vehicle does not re-
spond to the key, they
should be synchronised
››› page 134.
Digital clock››› page 116.
ESC warning lampAfter driving for a few me-
tres, the warning lamp goes
out again. If the vehicle is not used for long periods
The
v
ehic

le has a system for monitoring the
current consumption when the engine is left
unused for long periods of time ››› page 203.
Some functions, such as the interior lights, or
the remote door opening, may be temporarily
disabled to prevent the battery from running
flat. These functions will come back on as
soon as the ignition is switched on and the
engine started. Winter conditions
During the w

inter, the starting power may be
reduced, and if necessary, the battery should
be charged ››› in Important safety warn-
in g
s

for handling a vehicle battery on
page 306
Important safety warnings for han-
dling a v
ehicle battery All work on batteries requires specialist
kno
wl
edg

e. Please refer to a SEAT Official
Service or a workshop specialising in batter-
ies: risk of burns or exploding battery!
The battery must not be opened. Never try to
change the fluid level of the battery. Other-
wise explosive gas is released from the bat-
tery that could cause an explosion. 
Wear eye protection.

Battery acid is very corrosive and caustic. Wear
protective gloves and eye protection. In the event
of electrolyte splashes, rinse off with plenty of
water.

Fires, sparks, open flames and smoking are pro-
hibited.

The battery should only be charged in a well-ven-
tilated zone. Risk of explosion!

Keep children away from acid and batteries!»
305
Technical data
Advice
Operation
Emergencies
Safety

Index
Audible warning signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
144
se at
belt not fastened . . . . . . . . . . . . . . . . . . . . 79
warning and control lamps . . . . . . . . . . . . . . . 119
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Auto Hold function . . . . . . . . . . . . . . . . . . . . . . . . 211
Auto Lock (central locking) . . . . . . . . . . . . . . . . . 125
Automatic car washes switching the Auto Hold function off . . . . . . . . 212
Automatic dipped beam control . . . . . . . . . . . . . 146
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . 193 downhill speed control . . . . . . . . . . . . . . . . . . 198
driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
emergency program . . . . . . . . . . . . . . . . . . . . . 199
kick-down feature . . . . . . . . . . . . . . . . . . . . . . . 197
launch control program . . . . . . . . . . . . . . . . . . 197
manual release of the selector lever . . . . . . . . . 49
safety interlock for ignition key . . . . . . . . . . . . 181
selector lever lock . . . . . . . . . . . . . . . . . . . . . . . 194
selector lever positions . . . . . . . . . . . . . . . . . . 193
steering wheel with gear shift paddles . . . . . . 195
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . 193, 195
towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Auxiliary heater . . . . . . . . . . . . . . . . . . . . . . . . . . 177 activating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
electric consumers . . . . . . . . . . . . . . . . . . . . . . 180
operating instructions . . . . . . . . . . . . . . . . . . . 180
programming . . . . . . . . . . . . . . . . . . . . . . . . . . 179
remote control . . . . . . . . . . . . . . . . . . . . . . . . . 178
remote control range . . . . . . . . . . . . . . . . . . . . 179
special features . . . . . . . . . . . . . . . . . . . . . . . . 178
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
things to note . . . . . . . . . . . . . . . . . . . . . . . . . . 180 B
Batter
y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
replacement in the remote control (auxiliary heater) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Belt tensioners control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Belt tightening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Bench seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Bicycle rack fitting on the retractable tow hitch . . . . . . . . . 277
maximum load . . . . . . . . . . . . . . . . . . . . . . . . . 277
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Blind spot detector (BSD) . . . . . . . . . . . . . . . . . . 237 control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 237
driving situations . . . . . . . . . . . . . . . . . . . . . . . 240
indication in the external rear view mirror . . . 238
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 298 opening the bonnet . . . . . . . . . . . . . . . . . . . . . 299
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188 brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
brake servo . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
electronic parking brake . . . . . . . . . . . . . . . . . 186
emergency braking function . . . . . . . . . . . . . . 187
new brake pads . . . . . . . . . . . . . . . . . . . . . . . . 188
Braking front assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
BSD see Blind spot detector (BSD) . . . . . . . . . . . . . 237
BSD Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232 C
Camera
c
leaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
cleanliness . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 AdBlue tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
windscreen washer water . . . . . . . . . . . . . . . . 304
Car-care products . . . . . . . . . . . . . . . . . . . . . . . . . 285
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . 204 malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
CD-ROM player (navigation) . . . . . . . . . . . . . . . . 161
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . . . . 134
central locking switch . . . . . . . . . . . . . . . . . . . . 128
electric windows . . . . . . . . . . . . . . . . . . . . . . . . 140
emergency locking . . . . . . . . . . . . . . . . . . . . . . . 16
Keyless Access . . . . . . . . . . . . . . . . . . . . . . . . . 129
Panoramic sliding/tilting sunroof . . . . . . . . . . 140
remote control key . . . . . . . . . . . . . . . . . . . . . . 127
selective unlocking system . . . . . . . . . . . . . . . 127
Central wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . 64
Centre console . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cetane number (diesel fuel) . . . . . . . . . . . . . . . . 294
Changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . . 106 dipped beam . . . . . . . . . . . . . . . . . . . . . . . . . . 107
fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
main beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
number plate light . . . . . . . . . . . . . . . . . . . . . . 110
rear bulb in the side panel . . . . . . . . . . . . . . . . 109
rear light in the rear lid . . . . . . . . . . . . . . . . . . . 110
turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . 64 subsequent work . . . . . . . . . . . . . . . . . . . . . . . . 67
330

Index
Changing gear en g
agin
g gears (manual gearbox) . . . . . . . . . 192
Changing settings CAR menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Changing the blades . . . . . . . . . . . . . . . . . . . . . . . 97
Changing the wiper blades . . . . . . . . . . . . . . . . . . 71
Charging the battery . . . . . . . . . . . . . . . . . . . . . . 306
Checking levels engine compartment . . . . . . . . . . . . . . . . . . . . 298
Childproof locks electric windows . . . . . . . . . . . . . . . . . . . . . . . . 139
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 91 categorisation into groups . . . . . . . . . . . . . . . . . 92
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
safety instructions . . . . . . . . . . . . . . . . . . . . 24, 90
securing with seat belt . . . . . . . . . . . . . . . . . . . . 25
Top Tether system . . . . . . . . . . . . . . . . . . . . . 26, 29
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285 alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
carbon parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Easy Connect control panel . . . . . . . . . . . . . . . 289
exhaust pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
leather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
natural leather . . . . . . . . . . . . . . . . . . . . . . . . . 291
plastic parts . . . . . . . . . . . . . . . . . . . . . . 288, 289
radio screen . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
rims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
washing the vehicle . . . . . . . . . . . . . . . . . . . . . 285
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Close sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
re
ar lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
sun blind (sunroof) . . . . . . . . . . . . . . . . . . . . . . 143
sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Clutch (warning lamp) . . . . . . . . . . . . . . . . . . . . . 199
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Coming Home function . . . . . . . . . . . . . . . . . . . . 148
Connectivity Box . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Control and warning lamps . . . . . . . . . . . . . 46, 119 adaptive cruise control . . . . . . . . . . . . . . . . . . . 222
airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
applying the brake . . . . . . . . . . . . . . . . . . . . . . 222
ASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
audible warning signal . . . . . . . . . . . . . . . . . . 119
blind spot detector (BSD) . . . . . . . . . . . . . . . . 237
cruise control system (CCS) . . . . . . . . . . . . . . . 212
depress the brake . . . . . . . . . . . . . . . . . . . . . . . 217
diesel particulate filter . . . . . . . . . . . . . . . . . . . 204
electromechanical steering . . . . . . . . . . . . . . . 200
emission control . . . . . . . . . . . . . . . . . . . . . . . . 205
engine management . . . . . . . . . . . . . . . . . . . . 205
engine pre-heating/fault system . . . . . . . . . . . 205
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
gear change . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Hill Descent Control . . . . . . . . . . . . . . . . . . . . . 210
instrument panel . . . . . . . . . . . . . . . . . . . . . 46, 48
instrument panel display . . . . . . . . . . . . . . . . . . 47
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
parking assistant (RCTA) . . . . . . . . . . . . . . . . . 237
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
remote control (auxiliary heater) . . . . . . . . . . . 178
seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . 214 Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
tow hit
ch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 275
tyre monitoring system . . . . . . . . . . . . . . . . . . 312
Controls and displays general instrument panel . . . . . . . . . . . . . . . . . 113
Controls for the windows . . . . . . . . . . . . . . . 18, 139
Controls on the steering wheel operating the audio, telephone and naviga-tion system . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Coolant checking level . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Cooling coolant temperature gauge . . . . . . . . . . . . . . . 117
Cooling system checking coolant . . . . . . . . . . . . . . . . . . . . . . . 302
topping up coolant . . . . . . . . . . . . . . . . . . . . . . 302
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Correct position . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
front passenger . . . . . . . . . . . . . . . . . . . . . . . . . 75
Correct sitting position rear seat passengers . . . . . . . . . . . . . . . . . . . . . 76
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . 44, 212 operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Cruise control system . . . . . . . . . . . . . . . . . . . . . . 212 warning and indication lamp . . . . . . . . . . . . . . 212
D Dangers in not using the seat belt . . . . . . . . . . . . 81
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Data sticker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Deactivating the front passenger front airbag . . . 22
Deactivation of front airbag . . . . . . . . . . . . . . . . . . 88
Defective bulbs changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . 106
331

Index
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Int erior lights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 28
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
J Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64, 95 mounting points . . . . . . . . . . . . . . . . . . . . . . . . . 66
Journey data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
K
Key-operated switch . . . . . . . . . . . . . . . . . . . . . . . . 88
Keyless-Entry see Keyless Access . . . . . . . . . . . . . . . . . . . . . . 129
Keyless-Exit see Keyless Access . . . . . . . . . . . . . . . . . . . . . . 129
Keyless Access Easy Open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Keyless-Entry . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Keyless-Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Press & Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
special characteristics . . . . . . . . . . . . . . . . . . . 132
starting the engine . . . . . . . . . . . . . . . . . . . . . . 184
unlocking and locking the vehicle . . . . . . . . . . 129
Keyless Access locking and ignition system see Keyless Access . . . . . . . . . . . . . . . . . . . . . . 129
Keys assign key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
car key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
driver messages (mechanical contact) . . . . . . 181
remote control . . . . . . . . . . . . . . . . . . . . . . . . . 126
replacing the battery . . . . . . . . . . . . . . . . . . . . 133
spare key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
synchronising . . . . . . . . . . . . . . . . . . . . . . . . . . 134
unlocking and locking . . . . . . . . . . . . . . . 15, 127 Kick-down
automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 197
manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 244
Knee airbags safety information . . . . . . . . . . . . . . . . . . . . . . . 23
L
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230 cleaning the camera area . . . . . . . . . . . . . . . . . 287
Lane Assist system see Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . 230
Launch control (automatic gearbox) . . . . . . . . . . 197
Leather: care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Leaving Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Lifting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Light Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Lighting of the instrument panel . . . . . . . . . . . . . 151
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 144 audible signals . . . . . . . . . . . . . . . . . . . . . . . . . 144
AUTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . 106
coming home . . . . . . . . . . . . . . . . . . . . . . . . . . 148
cornering lights . . . . . . . . . . . . . . . . . . . . . . . . 148
daytime running lights . . . . . . . . . . . . . . . . . . . 145
dipped beam headlight . . . . . . . . . . . . . . . . . . 144
fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
hazard warning lights . . . . . . . . . . . . . . . . . . . . 31
interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . 152
leaving home . . . . . . . . . . . . . . . . . . . . . . . . . . 149
light control . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
lighting of instruments . . . . . . . . . . . . . . . . . . 151
lighting of the controls . . . . . . . . . . . . . . . . . . . 151
lights range control . . . . . . . . . . . . . . . . . . . . . 151
main beam lever . . . . . . . . . . . . . . . . . . . . . . . . 145
main beam lights . . . . . . . . . . . . . . . . . . . . . . . 144
main beams . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
motorway light . . . . . . . . . . . . . . . . . . . . . . . . . 150 parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 150
rea
ding lights . . . . . . . . . . . . . . . . . . . . . . . . . . 152
side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . 145
welcome light . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Lights range control . . . . . . . . . . . . . . . . . . . . . . . 151
Load compartment in the luggage compartment see Loading the luggage compartment . . . . . 162
Loading the luggage compartment . . . . . . . . . . . 162
Loading the vehicle fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 165
luggage compartment . . . . . . . . . . . . . . . . . . . . 16
roof carrier system . . . . . . . . . . . . . . . . . . . . . . 170
tailboard for transporting long items . . . . . . . 164
trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Locking and unlocking in the door cylinder . . . . . . . . . . . . . . . . . . . . . . 15
Locking the front passenger door manually . . . . . 16
Luggage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Luggage compartment . . . . . . . . . . . . . . . . . . . . . . 16 automatic locking . . . . . . . . . . . . . . . . . . . . . . . 139
electric opening and closing . . . . . . . . . . . . . . 137
luggage compartment lighting . . . . . . . . . . . . 152
luggage compartment variable floor . . . . . . . . 167
manual release mechanism . . . . . . . . . . . . . . . . 17
net bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
special characteristics of the electric rear lid . 138
storing the rear shelf . . . . . . . . . . . . . . . . . . . . 164
see also Loading the luggage compartment . 162
Luggage compartment floor . . . . . . . . . . . . . . . . 167
Luggage compartment variable floor . . . . . . . . . 167
Luggage net luggage compartment . . . . . . . . . . . . . . . . . . . 166
Lumbar support . . . . . . . . . . . . . . . . . . . . . . . . . . 156
335

Index
M M ain be
am a
ssist . . . . . . . . . . . . . . . . . . . . . . . . . 146
Main beam lever . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Main panel turn signal and main beam lever . . . . . . . . . . . 145
Maintenance intervals . . . . . . . . . . . . . . . . . . . . . 300
Malfunction adaptive cruise control . . . . . . . . . . . . . . . . . . . 222
catalytic converter . . . . . . . . . . . . . . . . . . . . . . 204
clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
diesel particulate filter . . . . . . . . . . . . . . . . . . . 204
emergency braking assistance system (FrontAssist) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 279
Manual air conditioning . . . . . . . . . . . . . . . . . . . . 53
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . 192 towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Manual release mechanism rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Manual unlocking and locking . . . . . . . . . . . . . . . 97
Maximum trailer weight loading the trailer . . . . . . . . . . . . . . . . . . . . . . . 279
MFD see Driver information system . . . . . . . . . . . . . . 36
Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Mobile telephones . . . . . . . . . . . . . . . . . . . . . . . . 284
Model plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Multi-collision brake . . . . . . . . . . . . . . . . . . . . . . 190
Multi-function display (MFD) . . . . . . . . . . . . . . . . . 36
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
My Beat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
N Natural leather cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291 Navigation system
CD-ROM pla yer . . . . . . . . . . . . . . . . . . . . . . . . . 161
Net bag luggage compartment . . . . . . . . . . . . . . . . . . . 166
Noises adaptive cruise control . . . . . . . . . . . . . . . . . . . 222
auxiliary heater . . . . . . . . . . . . . . . . . . . . . . . . . 180
brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . 187
tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67, 307
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
O Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 partial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
reset button . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
On-board computer see Driver information system . . . . . . . . . . . . . . 36
One-touch opening and closing electric windows . . . . . . . . . . . . . . . . . . . . . . . . 141
Open and close windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
fuel tank flap . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
sun blind (sunroof) . . . . . . . . . . . . . . . . . . . . . . 143
sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Opening and closing . . . . . . . . . . . . . . . . . . 15, 125 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
by remote control . . . . . . . . . . . . . . . . . . . . . . . 127 fuel tank flap . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
in the door cylinder . . . . . . . . . . . . . . . . . . . . . . 15
r
ear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
rear lid with electric opening and closing . . . . 137
sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
with the central locking switch . . . . . . . . . . . . 128
Operating malfunction Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . 41
P
Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287 care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Paintwork code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Panoramic sliding sunroof convenience opening and closing . . . . . . . . . 140
see also Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 141
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249 automatic braking intervention . . . . . . . . . . . . 257
automatic interruption . . . . . . . . . . . . . . . . . . . 250
conditions for exiting a parking space . . . . . . 256
exiting a parking space (only for parallelspaces) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
operating malfunction . . . . . . . . . . . . . . . . . . . 249
parallel parking . . . . . . . . . . . . . . . . . . . . . . . . 254
parking conditions . . . . . . . . . . . . . . . . . . . . . . 254
perpendicular parking . . . . . . . . . . . . . . . . . . . 254
see Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . 249
stopping prematurely . . . . . . . . . . . . . . . . . . . . 250
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187, 196 with Park Assist . . . . . . . . . . . . . . . . . . . . . . . . 254
Parking aid adjusting the display and audible warn-ings . . . . . . . . . . . . . . . . . . . . . . . . . . . 261, 265
336

Index
automatic activation . . . . . . . . . . . . . . . . . . . . 260
driv in
g w
ith a trailer . . . . . . . . . . . . . . . . . . . . . 262
malfunction . . . . . . . . . . . . . . . . . . . . . . . 261, 265
rear parking aid . . . . . . . . . . . . . . . . . . . . . . . . 262
sensors and camera: cleaning . . . . . . . . . . . . . 287
towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 265
visual indication . . . . . . . . . . . . . . . . . . . 260, 264
Parking aid system see Parking aid . . . . . . . . . . . . . . . . . . . . 257, 262
Parking assistance parking system plus . . . . . . . . . . . . . . . . . . . . . 257
see Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . 249
surroundings warning . . . . . . . . . . . . . . . . . . . 257
Parking assistance (RCTA) . . . . . . . . . . . . . . . . . . 237 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Parking assistant . . . . . . . . . . . . . . . . . . . . . . . . . 241
Parking assistant (RCTA) . . . . . . . . . . . . . . . . . . . 241
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 activate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
automatic activation . . . . . . . . . . . . . . . . . . . . 187
automatic release . . . . . . . . . . . . . . . . . . . . . . . 186
emergency braking function . . . . . . . . . . . . . . 187
release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Parking distance warning system see Parking aid . . . . . . . . . . . . . . . . . . . . 257, 262
Parking (automatic gearbox) . . . . . . . . . . . . . . . . 196
ParkPilot see Parking aid . . . . . . . . . . . . . . . . . . . . 257, 262
Particulate filter (diesel) . . . . . . . . . . . . . . . . . . . 204
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Passenger see Correct sitting position . . . . . . . . . 74, 75, 76
Passenger-side instrument panel left-hand drive . . . . . . . . . . . . . . . . . . . . . . . . . . 12
right-hand drive . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Petrol
additiv es . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Plastic parts: cleaning . . . . . . . . . . . . . . . . 288, 289
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Positioning seat belts during pregnancy . . . . . . . . . . . . . . . . . . . . . . . . 83
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Power management . . . . . . . . . . . . . . . . . . . . . . . 203
Power socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162 trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Power steering see Electromechanical steering . . . . . . . . . . . . 200
Pre-heating system control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Preheating the engine . . . . . . . . . . . . . . . . . . . . . 184
Press & Drive starter button . . . . . . . . . . . . . . . . . . . . . . . . . . 183
starting the engine . . . . . . . . . . . . . . . . . . . . . . 184
Puncture action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
R Racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Radar sensor . . . . . . . . . . . . . . . . . . . . . . . . 219, 223
Radio-operated remote control see Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Radio screen: cleaning . . . . . . . . . . . . . . . . . . . . 289
Radio transmitters . . . . . . . . . . . . . . . . . . . . . . . . 284
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154 control of the function . . . . . . . . . . . . . . . . . . . 154
Raising the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 66
RCTA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241 see Parking assistance (RCTA) . . . . . . . . . . . . . 237 Rear
headr ests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Rear-view mirror anti-dazzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
interior anti-dazzle . . . . . . . . . . . . . . . . . . . . . . 155
Rear Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270 instructions for use . . . . . . . . . . . . . . . . . . . . . 271
parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
special characteristics . . . . . . . . . . . . . . . . . . . 271
Rear Assist system . . . . . . . . . . . . . . . . . . . . . . . . 270
Rear bulbs in the side panel disassemble the rear light . . . . . . . . . . . . . . . . 109
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17 see also Luggage compartment . . . . . . . . . . . 137
Rear lights in the rear lid disassemble the bulb holder . . . . . . . . . . . . . . 110
Rear parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Rear seat backrest folding down . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
folding down and lifting the backrest . . . . . . . 159
lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Rear seat passengers see Correct sitting position . . . . . . . . . 74, 75, 76
Rear shelf storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Rear View Camera . . . . . . . . . . . . . . . . . . . . . . . . . 270
Refuelling fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
opening fuel tank flap . . . . . . . . . . . . . . . . . . . 292
Remote control key unlocking and locking . . . . . . . . . . . . . . . . . . . 127
Remote control (auxiliary heater) . . . . . . . . . . . . 178 replacing the battery . . . . . . . . . . . . . . . . . . . . 178
Removing and attaching head restraints . . . . . . 157
Repair work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
337
