Advice

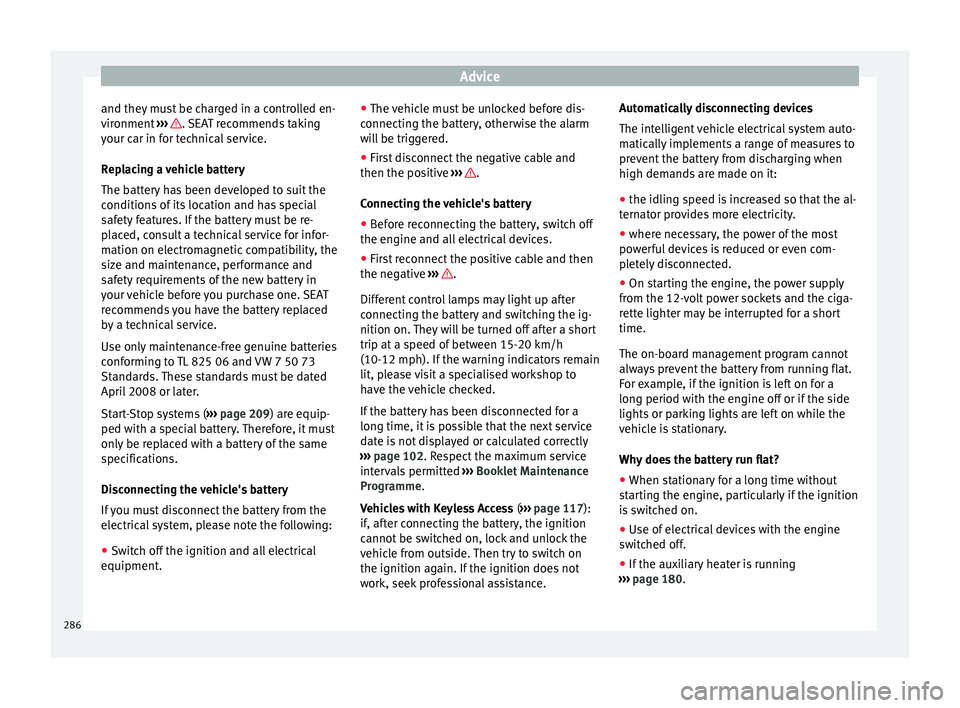

and they must be charged in a controlled en-
v ir
onment
››› . SEAT recommends taking
y our c
ar in f
or technical service.
Replacing a vehicle battery
The battery has been developed to suit the
conditions of its location and has special
safety features. If the battery must be re-
placed, consult a technical service for infor-
mation on electromagnetic compatibility, the
size and maintenance, performance and
safety requirements of the new battery in
your vehicle before you purchase one. SEAT
recommends you have the battery replaced
by a technical service.
Use only maintenance-free genuine batteries
conforming to TL 825 06 and VW 7 50 73
Standards. These standards must be dated
April 2008 or later.
Start-Stop systems ( ››› page 209) are equip-
ped with a special battery. Therefore, it must
only be replaced with a battery of the same
specifications.
Disconnecting the vehicle's battery
If you must disconnect the battery from the
electrical system, please note the following:
● Switch off the ignition and all electrical
equipment. ●
The vehic le must be unlocked before dis-
connecting the battery, otherwise the alarm
will be triggered.
● First disconnect the negative cable and
then the positiv
e ››› .
C onnectin
g the
vehicle's battery
● Before reconnecting the battery, switch off
the engine and all
electrical devices.
● First reconnect the positive cable and then
the negativ
e ››› .
Diff er
ent
control lamps may light up after
connecting the battery and switching the ig-
nition on. They will be turned off after a short
trip at a speed of between 15-20 km/h
(10-12 mph). If the warning indicators remain
lit, please visit a specialised workshop to
have the vehicle checked.
If the battery has been disconnected for a
long time, it is possible that the next service
date is not displayed or calculated correctly
››› page 102. Respect the maximum service
intervals permitted ››› Booklet Maintenance
Programme.
Vehicles with Keyless Access (››› page 117):
if, after connecting the battery, the ignition
cannot be switched on, lock and unlock the
vehicle from outside. Then try to switch on
the ignition again. If the ignition does not
work, seek professional assistance. Automatically disconnecting devices
The intellig

ent vehicle electrical system auto-
matically implements a range of measures to
prevent the battery from discharging when
high demands are made on it:
● the idling speed is increased so that the al-
ternat
or provides more electricity.
● where necessary, the power of the most
power
ful devices is reduced or even com-
pletely disconnected.
● On starting the engine, the power supply
from the 12-v
olt power sockets and the ciga-
rette lighter may be interrupted for a short
time.
The on-board management program cannot
always prevent the battery from running flat.
For example, if the ignition is left on for a
long period with the engine off or if the side
lights or parking lights are left on while the
vehicle is stationary.
Why does the battery run flat?
● When stationary for a long time without
star
ting the engine, particularly if the ignition
is switched on.
● Use of electrical devices with the engine
switc
hed off.
● If the auxiliary heater is running
›››
page 180.
286

Wheels and tyres
WARNING
Incorrectly securing the battery or using the
wron g b
attery can cause short-circuits, fire
and serious injuries.
● Always use only maintenance free batteries
that do not
run flat alone and whose proper-
ties, specifications and size correspond to
the standard battery. The specifications are
indicated on the battery case. WARNING
A highly explosive mixture of gases is re-
le a

sed when the battery is under charge.
● The batteries should be charged in a well-
ventil
ated room only.
● Never charge a frozen or recently thawed
batter
y. A flat battery can also freeze at tem-
peratures close to 0°C (+32°F).
● Always replace a battery which has frozen.
● Battery cables not correctly connected may
cause a shor
t circuit. Reconnect first the posi-
tive cable and then the negative cable. CAUTION
● Never di s

connect the battery if the ignition
is switched on or if the engine is running.
This could damage the electrical system or
electronic components.
● Never plug accessories that supply current,
such a
s solar panels or a battery charger, to
the 12-volt power sockets or the cigarette lighter. This could damage the vehicle's elec-
trica
l

system. For the sake of the environment
● Di spo

se of the battery in an environment-
friendly manner. Batteries contain toxic sub-
stances such as sulphuric acid and lead.
● Battery acid can contaminate the environ-
ment. If it
has leaked use adequate care col-
lecting it (gloves and protective glasses), and
dispose of it correctly. Wheels and tyres
T y
r

es
Introduction The SEAT Alhambra is equipped as standard
with anti-p
u

ncture technology tyres (Conti-
Seal). In the event of a puncture or air leak of
up to 5 mm, the tyre seals the hole with a
protective layer inside the tread.
The inclusion of this technology means that
there is no type of spare wheel included in
the vehicle's equipment.
SEAT recommend that all work on tyres and
wheels is carried out by a specialised work-
shop. These workshops have the necessary
special tools and replacement parts, trained
personnel and facilities for disposing of the
old tyres while respecting the environment.
SEAT recommends taking your car in for tech-
nical service. WARNING
The vehicle cannot be totally controlled or
brak ed if

the tyres (new or used) are worn or
damaged.
● Incorrect use of wheels and tyres could
make driv
ing more dangerous and result in
serious accidents and damage. » 287
Technical data
Advice
Operation
Emergencies
Safety

Technical features
Technical data
T ec
hnic
al features
Important information Important The information in the vehicle documentation
alwa
y

s takes precedence over the informa-
tion in this Instruction Manual.
All technical specifications provided in this
documentation are valid for the standard
model in Spain. The vehicle data card inclu-
ded in the Maintenance Programme or the
vehicle registration documents shows which
engine is installed in the vehicle.
The figures may be different depending
whether additional equipment is fitted, for
different models, for special vehicles and for
other countries. Abbreviations used in the Technical Specifi-
cation
s

section
kWKilowatt, engine power measurement.
PSPferdestärke (horsepower), formerly
used to denote engine power.
rpmRevolutions per minute - engine speed.
NmNewton metres, unit of engine torque.
CZCetane number, indication of the diesel
combustion power.
RONResearch octane number, indication of
the knock resistance of petrol. Vehicle identification data
Fig. 255
Vehicle identification number. Vehicle identification number
The
v
ehic

le identification number (chassis
number) can be read from outside the vehicle through a viewer in the windscreen
›››
Fig. 255. This viewer is located in the lower
part of the windscreen. The vehicle identifica-
tion number (chassis number) is also stam-
ped on the right water drain channel. The wa-
ter drain channel is located between the sus-
pension tower and the wing. Open the bon-
net to read the vehicle identification number
 ››› page 271.
Vehicle data plate
The vehicle data plate is attached to the lug-
gage compartment, and contains the follow-
ing information:
● Vehicle identification number (chassis
number).
● Vehicle type, engine power, gearbox type.
● Engine and gearbox code, paint number,
interior equipment.
● Option

al extras, PR numbers.
These dat
a are also provided in the Mainte-
nance Programme.
Type plate
The type plate is visible when the driver door
is opened, on the lower part of the strut. Ve-
hicles for certain export countries do not
have a type plate.
The manufacturer's type plate contains the
following data: »
297
Technical data
Advice
Operation
Emergencies
Safety

Index
Driving through water . . . . . . . . . . . . . . . . . . . . . 204
Driv in
g tip
s
for a loaded vehicle . . . . . . . . . . . . . . . . . . . . . 152
Driving with a trailer extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
technical requirements . . . . . . . . . . . . . . . . . . 238
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Dynamic chassis control (DCC) control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Dynamic Chassis Control (DCC) . . . . . . . . . . . . . . 233 fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Dynamic headlight range control . . . . . . . . . . . . 135
E E10 see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . 267
EDL see Electronic differential lock . . . . . . . . . . . . . 205
EDS see Brake assist system . . . . . . . . . . . . . . . . . . 206
Electrical devices . . . . . . . . . . . . 173, 174, 183, 242
Electrical socket trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Electric child safety lock . . . . . . . . . . . . . . . . . . . 123
Electric sliding door opening and closing . . . . . . . . . . . . . . . . . . . . 122
rollback anti-trap function . . . . . . . . . . . . . . . . 123
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 see Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Electronic differential lock . . . . . . . . . . . . . . . . . . 205
Electronic differential lock system (EDS) . . . . . . 206
Electronic drive torque management (XDS) . . . . 206
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . 187 operating fault . . . . . . . . . . . . . . . . . . . . . . . . . 183
Electronic Stability Control (ESC) . . . . . . . . . . . . 205 Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
bul bs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 46
emergency towing of the vehicle . . . . . . . . . . . . 51
extinguishers . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
first aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
hazard warning lights . . . . . . . . . . . . . . . . . . . 134
jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
replacing a blown fuse . . . . . . . . . . . . . . . . . . . . 44
vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . 83
warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . 83
Emergency braking function . . . . . . . . . . . . . . . . 190
Emergency locking and unlocking . . . . . . . . . . . . 90 driver door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
panoramic sliding sunroof . . . . . . . . . . . . . . . . . 15
passenger side door . . . . . . . . . . . . . . . . . . . . . . 11
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Emergency unlocking doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Emission control system control and warning lamps . . . . . . . . . . . . . . . 202
Emissions data . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Engine assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 52
noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Engine and ignition . . . . . . . . . . . . . . . . . . . . . . . 183 12 volt power sockets . . . . . . . . . . . . . . . . . . . 173
ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
starting the engine . . . . . . . . . . . . . . . . . 184, 186
starting the engine with Keyless Access . . . . . 185 stopping the engine . . . . . . . . . . . . . . . . . . . . . 187
unauthori
sed vehicle key . . . . . . . . . . . . . . . . . 184
Engine bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Engine compartment . . . . . . . . . . . . . . . . . . 13, 271 battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42, 283
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 42, 281
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 41, 277
engine oil . . . . . . . . . . . . . . . . . . . . . 40, 274, 277
opening and closing . . . . . . . . . . . . . . . . . . . . 273
windscreen washer reservoir . . . . . . . . . . 42, 283
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 checking the level . . . . . . . . . . . . . . . . . . 277, 280
control and warning lamps . . . . . . . . . . . . . . . 278
G12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 41, 279
G12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
G13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41, 279
specifications . . . . . . . . . . . . . . . . . . . . . . 41, 279
tank filler neck . . . . . . . . . . . . . . . . . . . . . . . . . 280
temperature indicator . . . . . . . . . . . . . . . . . . . 278
topping-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Engine management . . . . . . . . . . . . . . . . . . . . . . 202 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 274 checking oil level . . . . . . . . . . . . . . . . . . . . . . . 276
consumption . . . . . . . . . . . . . . . . . . . . . . 276, 277
control and warning lamps . . . . . . . . . . . . . . . 275
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 275
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Environment environmental compatibility . . . . . . . . . . . . . . 200
Environmental ecological driving . . . . . . . . . . . . . . . . . . . . . . . 200
Environmental tip refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
311

Index
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
S pec
ific
ations
combined weight . . . . . . . . . . . . . . . . . . . . . . . 245
drawbar load . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Speed rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Stabilising the vehicle and trailer combination . 244
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Start-Stop function . . . . . . . . . . . . . . . . . . . . . . . . 209 driving with a trailer . . . . . . . . . . . . . . . . . . . . . 237
Start assist see Start assist system . . . . . . . . . . . . . . . . . . 208
Starter button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Starting assistance description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
positive pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 25
Steering control and warning lamps . . . . . . . . . . . . . . . 198
counter steering assistance system . . . . . . . . 199
electromechanical . . . . . . . . . . . . . . . . . . . . . . 199
power steering . . . . . . . . . . . . . . . . . . . . . . . . . 199
steering column lock . . . . . . . . . . . . . . . . . . . . 199
tendency to pull to one side . . . . . . . . . . . . . . 293
Steering wheel Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Steering wheel controls . . . . . . . . . . . . . . . . . . . . 108
Storage compartment for (sun)glasses . . . . . . . . . . . . . 166
Storage compartment in the roof console . . . . . 167
Storage compartments . . . . . . . . . . . . . . . . . . . . 166 cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
drawers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
glove compartment . . . . . . . . . . . . . . . . . . . . . 168 glove compartment lighting . . . . . . . . . . . . . . 136
instrument
panel . . . . . . . . . . . . . . . . . . . . . . . 167
other storage compartments . . . . . . . . . . . . . . 170
portable waste bin . . . . . . . . . . . . . . . . . . . . . . 170
rear footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
roof console . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Sun blind anti-trap function . . . . . . . . . . . . . . . . . . . . . . . 130
opening and closing . . . . . . . . . . . . . . . . . . . . 129
rear side windows . . . . . . . . . . . . . . . . . . . . . . 137
Sun protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Switch hazard warning lights . . . . . . . . . . . . . . . . . . . 134
Switching lights off . . . . . . . . . . . . . . . . . . . . . . . 131
Switching lights on . . . . . . . . . . . . . . . . . . . . . . . 131
Switching the ignition on and off . . . . . . . . . . . . . 25
Symbols see Control and warning lamps . . . . . . . . 34, 107
Systems tyre monitoring systems . . . . . . . . . . . . . . . . . 234
T Technical data engine oil specifications . . . . . . . . . . . . . . . . . 275
roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Technical details capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
loads on the axles . . . . . . . . . . . . . . . . . . . . . . 298
tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Technical features . . . . . . . . . . . . . . . . . . . . . . . . 297
Technical modifications . . . . . . . . . . . . . . . . . . . . 248
Technical specifications dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Telephone management three button unit . . . . . . . . . . . . . . . . . . . . . . . . 110 Tightening torque . . . . . . . . . . . . . . . . . . . . . . . . . 299
wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
TIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Tiredness detection . . . . . . . . . . . . . . . . . . . . . . . 232
Top Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . . 24
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 88
Tow hitch electric release . . . . . . . . . . . . . . . . . . . . . . . . . 239
fitting a bicycle carrier . . . . . . . . . . . . . . . . . . . 240
function control . . . . . . . . . . . . . . . . . . . . . . . . 242
Towing blind spot detector (BSD) . . . . . . . . . . . . . . . . 230
parking distance warning system . . . . . . . . . . 212
special characteristics . . . . . . . . . . . . . . . . . . . 230
things to note . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . 237 optical parking system . . . . . . . . . . . . . . . . . . . 213
Towing the vehicle . . . . . . . . . . . . . . . . . 51, 88, 183 driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
front towline anchorage . . . . . . . . . . . . . . . . . . . 89
rear towline anchorage . . . . . . . . . . . . . . . . . . . 89
Towline anchorages . . . . . . . . . . . . . . . . . . . . . . . . 51
Traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Traction control system . . . . . . . . . . . . . . . . . . . . 205
Traction control (ASR) . . . . . . . . . . . . . . . . . 206, 207
Traffic signal detection . . . . . . . . . . . . . . . . . . . . 230
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237 adjusting the headlights . . . . . . . . . . . . . . . . . 243
anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . . . . 241
connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
drawbar load . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
driving with a trailer . . . . . . . . . . . . . . . . . . . . . 243
electrically releasing the hitch ball . . . . . . . . . 239
electrical socket . . . . . . . . . . . . . . . . . . . . . . . . 241
317
