5.9
FRONT HEADLIGHTS: changing bulbs
Direction indicators
Unscrew bulb holder 1 a quarter of a
turn, then replace the bulb.
Bulb type: PY21W.
The bulbs detailed below can be re-
placed. However, we would advise you
to have them replaced by an authorised
dealer if it proves difficult.
1A
Obtain an emergency kit containing
a set of spare bulbs and fuses from
an approved Dealer.
Main beam/dipped headlights
Remove cover A.
Unscrew bulb holder 2 and remove the
set from its housing.
Disconnect the bulb.
Bulb type: H7.
It is essential to use anti U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
Do not touch the bulb glass.
When the bulb has been changed,
make sure you refit the cover correctly.
During re-assembly, make sure you do
not trap the wiring with the bulb holder.
Daytime running lights
Please contact an authorised dealer.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
2
Do not do any work under
the bonnet when the vehicle
is charging or when the igni-
tion is switched on.
Please note when work-
ing close to the engine that
it may be hot. The engine
cooling fan may also start
at any moment. The
label
in the engine compartment reminds
you of this.
Risk of injury.
5.25

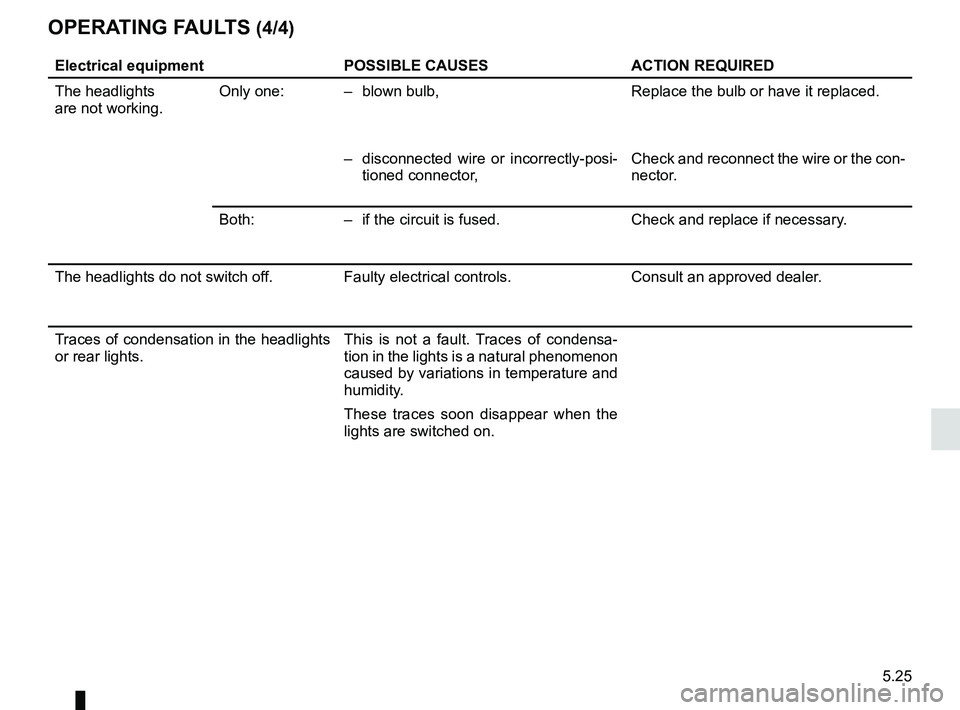

OPERATING FAULTS (4/4)
Electrical equipmentPOSSIBLE CAUSESACTION REQUIRED
The headlights
are not working. Only one: – blown bulb,
Replace the bulb or have it replaced.
– disconnected wire or incorrectly-posi- tioned connector, Check and reconnect the wire or the con-
nector.
Both: – if the circuit is fused. Check and replace if necessary.
The headlights do not switch off. Faulty electrical controls. Consult an approved dealer.
Traces of condensation in the headlights
or rear lights. This is not a fault. Traces of condensa-
tion in the lights is a natural phenomenon
caused by variations in temperature and
humidity.
These traces soon disappear when the
lights are switched on.
7.3
ALPHABETICAL INDEX (3/5)
instrument panel ..............................................1.62 → 1.68
instrument panel ...........................................1.62 → 1.74, 1.81
instrument panel messages...................................1.67 → 1.74
interior trim maintenance ..................................................... 4.12 – 4.13
ionizer ................................................................\
................ 3.17
L
levels: brake fluid ...................................................................... 4.5
coolant ................................................................\
........... 4.4
windscreen washer reservoir ......................................... 4.5
lighting: exterior .............................................................1.81 → 1.83
instrument panel .......................................................... 1.81
interior ...............................................................\
.. 3.22, 5.12
lights adjustment .............................................................\
...... 1.84
lights: adjusting ..............................................................\
........ 1.84
brake lights ....................................................... 5.10 – 5.11
dipped beam headlights ............................... 1.62, 1.81, 5.9
direction indicators ............................ 1.62, 1.79, 5.9 – 5.10
fog lights .................................................... 1.62, 1.83, 5.11
hazard warning ............................................................ 1.79
indicator lights .............................................................. 5.11
main beam headlights .................................. 1.62, 1.82, 5.9
number plate lights ...................................................... 5.11
reversing lights ............................................................. 5.11
side lights ............................................................ 1.81, 5.10
locking the doors ..........................................1.18 → 1.28, 1.31
M
maintenance: bodywork ........................................................... 4.9 → 4.11
interior trim ........................................................ 4.12 – 4.13 mechanical .........................................4.2 – 4.3, 6.7
→ 6.12
map reading lights ............................................................. 3.22
methods of restraint in addition to the seat belts ...1.37 → 1.43
multimedia (equipment) ..................................................... 3.33
multimedia equipment .............................................. 3.33, 5.16
N
navigation .............................................................\
............. 3.33
navigation system .............................................................. 3.33
O
opening the doors ..................................................1.27 → 1.30
operating faults .............................................1.73, 5.22 → 5.25
P
paintwork maintenance ...................................................... 4.9 → 4.11
parking distance control.........................................2.28 → 2.31
pedestrian warning system ................................................ 1.80
power-assisted steering..................................................... 1.77
practical advice ....................................................... 2.10 – 2.11
presentation of the electric vehicle important recommendations .......................................... 1.7
pretensioners .........................................................1.37 → 1.40
R
radio........................................................................\
........... 3.33
range of the traction battery.......................................2.7 → 2.9
rear bench seat.................................................................. 3.28
rear parcel shelf ................................................................. 3.29
rear seats functions ..............................................................\
........ 3.28
rear view camera .................................................... 2.30 – 2.31
rear view mirrors ................................................................ 1.78
RENAULT ANTI-INTRUDER DEVICE (RAID) ................... 1.31
