2018 RENAULT TWIZY engine

2.4
Parking the vehicle
With the vehicle at a standstill, press
switch N.
Warning light 3 comes on the instru-
ment panel.
Engage the handbrake (please see the
“Handbrake” information in Section 2).
GEAR CONTROL (2/2)
In the event of an impact to the underside of the vehicle (e.g.: striki\
ng a
post, raised kerb or other street furniture), this may result in damage\
to
the vehicle (e.g.: twisted axle), the electrical circuit or the tracti\
on battery.
Do not touch the circuit elements or any fluids or liquids.
To prevent any risk of accident, have your vehicle checked by an authoris\
ed
dealer.
Risk of serious injury or electric shock.
N
3
NB: when the ignition is switched
off, the gear control automatically
switches to position N.
Temporary stop
At a standstill and with the engine run-
ning, when position D or R is engaged,
a beep will sound and warning light
Ṑ
flashes until one of the following condi-
tions is met:
– brake pedal pressed;
– accelerator pedal pressed;
– N switch pressed;
– the handbrake is secured.

3.2

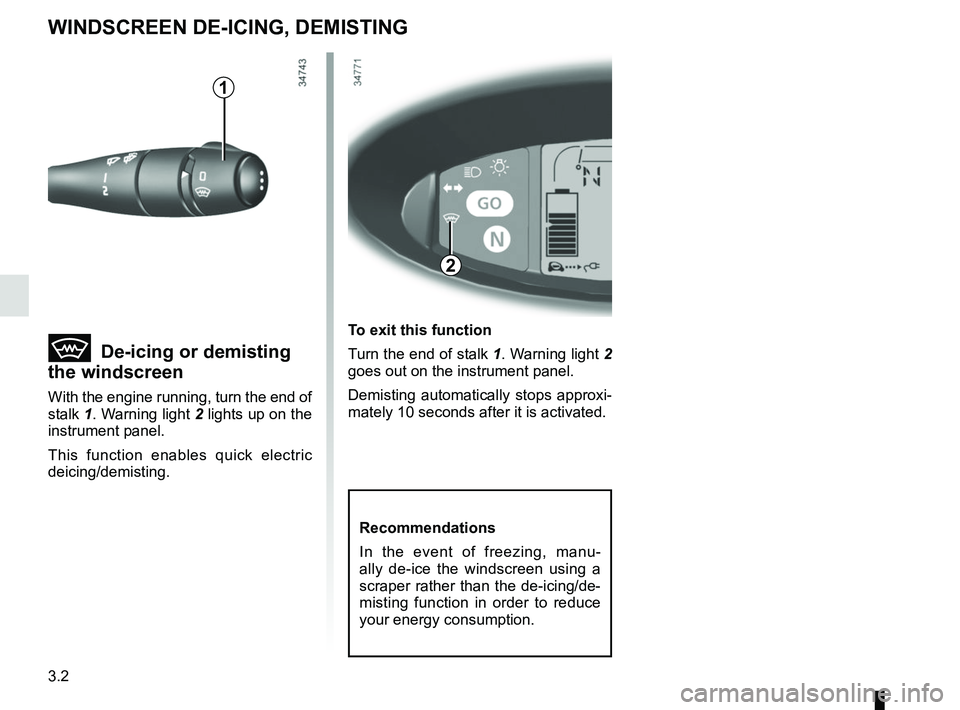

WINDSCREEN DE-ICING, DEMISTING
1
 De-icing or demisting
the windscreen
With the engine running, turn the end of
stalk 1. Warning light 2 lights up on the
instrument panel.
This function enables quick electric
deicing/demisting.
To exit this function
Turn the end of stalk 1. Warning light 2
goes out on the instrument panel.
Demisting automatically stops approxi-
mately 10 seconds after it is activated.
2
Recommendations
In the event of freezing, manu-
ally de-ice the windscreen using a
scraper rather than the de-icing/de-
misting function in order to reduce
your energy consumption.

4.6
BODYWORK MAINTENANCE (1/2)
A well-maintained vehicle will last
longer. It is therefore recommended to
maintain the exterior of the vehicle reg-
ularly.
Some parts may look different over time
(e.g.: bleaching, etc.)
Your vehicle has been treated with very
effective anti-corrosion products. It is
nevertheless subject to various outside
influences.
Corrosive agents in the atmosphere
– atmospheric pollution (built-up and
industrial areas);
– saline atmospheres (near the sea,
particularly in hot weather);
– seasonal and damp weather condi-
tions (e.g. road salt in winter, water
from road cleaners, etc.).
Minor impacts
Abrasive action
Dust and sand in the air, mud, road grit
thrown up by other vehicles, etc.
You should take a number of minor pre-
cautions in order to safeguard your ve-
hicle against such risks.You should
Wash your car frequently, with the
engine off , with cleaning products rec-
ommended by the manufacturer (never
use abrasive products). Rinse thor-
oughly beforehand with a jet:
– spots of tree resin and industrial
grime;
– mud in the wheel arches and under-
neath the body which forms damp
patches;
– bird droppings , which cause a
chemical reaction with the paint that
rapidly discolours paintwork and
may even cause the paint to peel
off;
wash the vehicle immediately to
remove these marks since it is im-
possible to remove them by polish-
ing;
– salt, particularly in the wheel arches
and underneath the body after driv-
ing in areas where the roads have
been gritted.
Remove any plant matter (resin, leaves,
etc.) from the vehicle regularly. Respect local regulations about wash-
ing vehicles (e.g. do not wash your ve-
hicle on a public highway).
Observe the vehicle stopping distances
when driving on gravelled surfaces to
prevent paint damage.
Repair, or have repaired quickly, areas
where the paint has been damaged, to
prevent corrosion spreading.
Remember to visit the body shop pe-
riodically in order to maintain your
anti-corrosion warranty. Refer to the
Maintenance Document.
If it is necessary to clean mechani-
cal components, hinges, etc., spray
them with products approved by our
Technical Department to protect them
after they have been cleaned.
We have selected special products
to care for your vehicle and you can
obtain these from the manufactur-
er’s accessory outlets.

4.7
BODYWORK MAINTENANCE (2/2)
Cleaning the roof
Use a soft cloth or cotton wool.
Soak it lightly with a protective agent
recommended by our Technical
Department.
Spread the protective agent carefully
in circular movements using a soft or a
cotton cloth.
What you should not do
Wash the vehicle in bright sunlight or
freezing temperatures.
Do not scrape off mud or dirt without
pre-wetting.
Allow dirt to accumulate on the exterior.
Allow rust to form following minor im-
pacts.
Do not use solvents not approved by
our Technical Department to remove
stains as this could damage the paint-
work.
Do not drive in snow or muddy condi-
tions without washing the vehicle, par-
ticularly under the wheel arches and
body.Degrease or clean using
high-pressure cleaning
equipment or by spray-
ing on products not ap-
proved by our Technical
Department:
– mechanical components (e.g.:
engine compartment);
– underbody;
– parts with hinges (e.g.: inside the
doors);
– painted plastic external fittings (e.g.:
bumpers).
Doing this could give rise to corrosion
or operational faults.

5.13
WIPER BLADE
Check the condition of the wiper
blades. How long they last depends
on you:
– clean the blades and the wind-screen regularly with soapy
water;
– do not use them when the wind- screen is dry;
– free them from the windscreen when they have not been used
for a long time.
– In freezing weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the wiper
motor overheating).
– Keep an eye on the condition of
the blade.
Replace the wiper blades as soon
as they begin to lose efficiency:
approximately once a year.
When changing the blade, when it
has been removed, do not let the
wiper arm fall against the window:
risk of breaking the window.Replacement
With the ignition on and the engine
stopped:
– lift windscreen wiper arm 2 as far as
it will go;
– pivot blade 1 until it is removed from
its hinge.
Refitting
To refit the wiper blade, clip the blade
onto its hinge. Make sure that the blade
is correctly locked in position.
1
2

5.17
OPERATING FAULTS (1/3)
The following advice will enable you to carry out quick, temporary repai\
rs. For safety reasons you should always contact
an approved dealer as soon as possible.
FAULTSPOSSIBLE CAUSES WHAT TO DO
Impossible to charge the
traction battery. No electrical current in domes-
tic sockets or poor connection of
cable to domestic socket. Check your installation (circuit breaker, programmer,
etc.).
Check the connections (power socket, etc.). Please
refer to the information on “Electric vehicle: charging”
in Section 1.
The outdoor temperature is ex-
tremely low. Recharge your vehicle in a more suitable environ-
ment. Please refer to the information on “Electric ve-
hicle: charging” in Section 1.
The cord is defective. Please see an authorised dealer to replace it.
The steering column remains
locked. Steering wheel locked.
Move the steering wheel while pressing the engine
start button (refer to Section 2 “Starting the engine”).
Vibrations. Tyres incorrectly inflated or dam-
aged. Check the tyre pressures. If this is not the problem,
have them checked by an approved Dealer.
The engine performance is
limited. The outdoor temperature is ex-
tremely high. Opt for a calmer driving style.
The traction battery reserve has
been reached. Recharge the traction battery as soon as possible.
Please refer to the information on “Electric vehicle:
charging” in Section 1.
The vehicle will not start. The charging flap is open or not
properly closed. Check that the charging flap is correctly locked. In
other cases, contact an authorised dealer as soon as
possible.

6.1
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 6.3
Engine specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.3
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 6.6
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.13

6.3
ENGINE IDENTIFICATION PLATE/ENGINE SPECIFICATION
Please quote the information on the
engine plate or label A in all corre-
spondence or orders.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
A
2
3
1
A
Engine specification
Engine type 1: 3CG
