2018 RENAULT TWINGO tow bar

2.46
Breakdown of a vehicle with an
automatic gearbox
Please refer to the information on
“Towing” in Section 5.
When setting off, if the lever is locked
in position P, even though you are de-
pressing the brake pedal and pressing
the unlocking button 2, the lever can
still be released manually.
AUTOMATIC TRANSMISSION (4/4)
Operating faults
When three horizontal bars on the dis-
play 3 come on accompanied by the
warning light
© or ®, this in-
dicates a gearbox fault. Contact an au-
thorised dealer as soon as possible. To do this, unclip the base of the gear
lever
5 starting on the side below the
air conditioning controls. Then raise the
button 6 and simultaneously press the
unlock button 2 on the lever.
For safety reasons, do not
switch off the ignition before
the vehicle has come to a
complete standstill.
5
2
3
6
6
3
Warning light ® re-
quires you to stop immedi-
ately, for your own safety,
as soon as traffic conditions
allow.

4.12

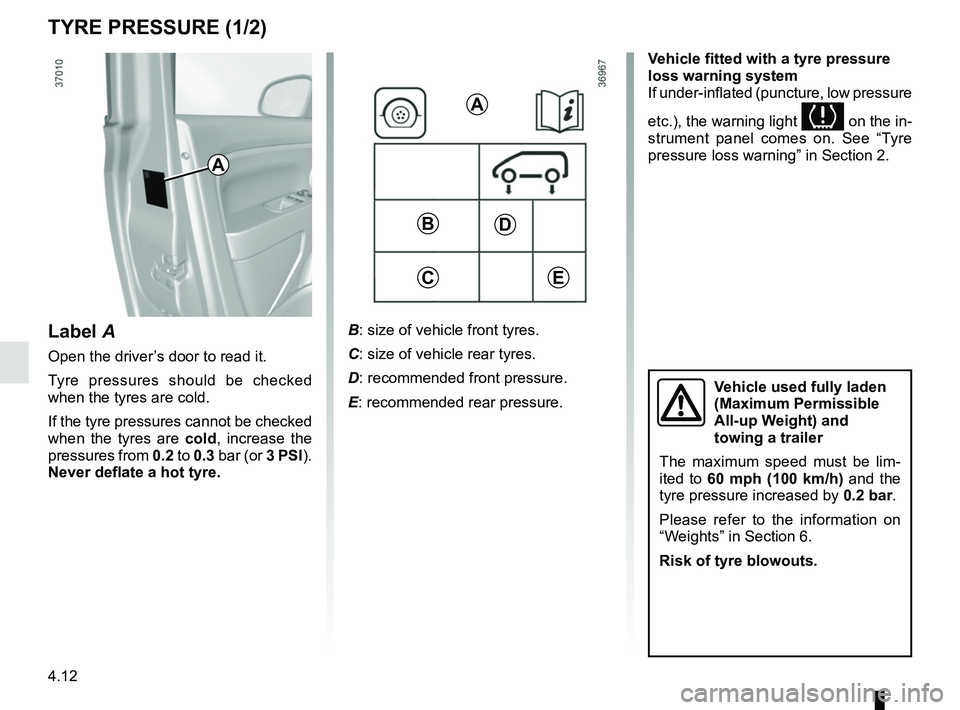

TYRE PRESSURE (1/2)
B: size of vehicle front tyres.
C: size of vehicle rear tyres.
D: recommended front pressure.
E: recommended rear pressure.
A
D
E
B
C
Label A
Open the driver’s door to read it.
Tyre pressures should be checked
when the tyres are cold.
If the tyre pressures cannot be checked
when the tyres are cold, increase the
pressures from 0.2 to 0.3 bar (or 3 PSI).
Never deflate a hot tyre.
A
Vehicle fitted with a tyre pressure
loss warning system
If under-inflated (puncture, low pressure
etc.), the warning light
 on the in-
strument panel comes on. See “Tyre
pressure loss warning” in Section 2.
Vehicle used fully laden
(Maximum Permissible
All-up Weight) and
towing a trailer
The maximum speed must be lim-
ited to 60 mph (100 km/h) and the
tyre pressure increased by 0.2 bar.
Please refer to the information on
“Weights” in Section 6.
Risk of tyre blowouts.

5.29
TOWING: breakdown recovery (2/2)
Only use the front and rear towing
points 4.
(never use the drive shafts or any other
part of the vehicle)
This towing point may only be used for
towing: never use it for lifting the vehi-
cle directly or indirectly.Access to towing points
Unclip the cover 6 by inserting a flat-
blade screwdriver or similar under the
cover. Screw in the tow eye 5 by hand
as far as possible.
Only use the tow eye 5 located under
the passenger footwell alongside the
inflation kit; unscrew the two screws 8.
6
5
4
Never leave tools unse-
cured in the vehicle: there
is a risk that they may be
thrown about during brak-
ing. After use, check that the tow
eye is properly stored away in its
housing: there is a risk of injury.
5
8
– Use a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed
must be able to brake.
– A vehicle must not be towed if it is
not fit to be driven.
– Avoid accelerating or braking suddenly when towing, as this
may result in damage being
caused to the vehicle.
– In all cases, it is advisable not to exceed 15.5 mph (25 km/h).
– Do not push the vehicle if the steering column is locked.

7.4
ALPHABETICAL INDEX (4/5)
radio frequency remote control/keyuse ....................................................................\
...1.2 → 1.4
rear bench seat.................................................................. 3.24
rear lights number plate lights ...................................................... 5.13
rear seats........................................................................\
... 1.14 functions ..............................................................\
........ 3.24
rear view camera .................................................... 2.41 – 2.42
rear view mirrors ................................................................ 1.39
remote control door locking batteries ............................................................ 5.20 – 5.21
remote control door locking unit ................................1.2 → 1.4
RENAULT ANTI-INTRUDER DEVICE (RAID) ................... 1.10
replacement parts ................................................................ 6.7
reverse gear selecting ..................................................2.10, 2.43 → 2.46
reversing sensor ..................................................... 2.39 – 2.40
roof bars ........................................................................\
.... 3.29
roof rack roof bars ....................................................................... 3.29
running in ........................................................................\
..... 2.2
S
seat belt pretensioners front seat belt ...................................................1.15 → 1.18
seat belts .............................................1.12 → 1.18, 1.21, 1.48
service sheets..........................................................6.8 → 6.13
side indicator lights changing bulbs ............................................................. 5.14
side protection devices ...................................................... 1.20
signals and lights ...................................................1.58 → 1.63
speakers location ...............................................................\
......... 5.16
special features of petrol vehicles ....................................... 2.9
speed limiter .................................................1.47, 2.32 → 2.34
starting the engine .....................................2.2 – 2.3, 2.5 → 2.8steering wheel
adjustment .............................................................\
...... 1.22
Stop & Start ......................................................1.47, 2.5 → 2.8
Stop & Start function..................................................2.5 → 2.8
stopping the engine ............................................................. 2.3
storage compartment.............................................3.17 → 3.21
storage compartments ...........................................3.17 → 3.21
sun visor ........................................................................\
.... 3.20
sunroof........................................................................\
....... 3.15
switching on the vehicle ignition ................................. 2.2 – 2.3
T
tailgate ........................................................... 3.25, 3.27 – 3.28
tanks and reservoirs brake fluid ...................................................................... 4.9
coolant ................................................................\
........... 4.8
tanks and reservoirs: windscreen washer ...................................................... 4.10
technical specifications ..............................................6.4 → 6.7
telephone ..............................................................\
............. 3.30
temperature regulation ............................................3.7 → 3.12
towing breakdown ........................................................ 5.28 – 5.29
towing a caravan ................................................................. 6.6
towing hitch........................................................................\
5.29
towing rings ....................................................................... 3.28
towing weights ..................................................................... 6.6
transporting children ..........................1.23 – 1.24, 1.26 → 1.36
transporting objects in the luggage compartment ........................................ 3.28
on the roof ...................................................................... 6.6
trip computer and warning system... 1.44 → 1.48, 1.50 → 1.55
tyre inflation kit...........................................................5.3 → 5.6
tyre pressure...............................2.17 → 2.25, 4.12 – 4.13, 5.8
tyre pressure loss warning.....................................2.17 → 2.25
tyre pressures ......................................................... 4.12 – 4.13
