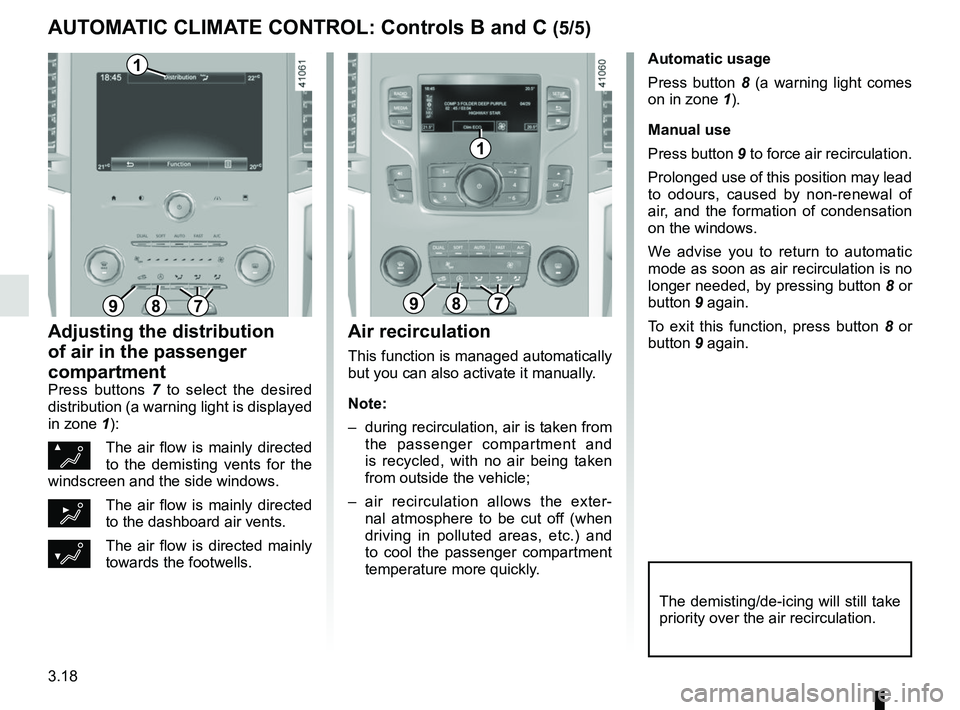

3.18
Automatic usage
Press button 8 (a warning light comes
on in zone 1).
Manual use
Press button 9 to force air recirculation.
Prolonged use of this position may lead
to odours, caused by non-renewal of
air, and the formation of condensation
on the windows.
We advise you to return to automatic
mode as soon as air recirculation is no
longer needed, by pressing button 8 or
button 9 again.
To exit this function, press button 8 or
button 9 again.
Adjusting the distribution
of air in the passenger
compartment
Press buttons 7 to select the desired
distribution (a warning light is displayed
in zone 1):
ØThe air flow is mainly directed
to the demisting vents for the
windscreen and the side windows.
½The air flow is mainly directed
to the dashboard air vents.
¿The air flow is directed mainly
towards the footwells.
The demisting/de-icing will still take
priority over the air recirculation.
Air recirculation
This function is managed automatically
but you can also activate it manually.
Note:
– during recirculation, air is taken from the passenger compartment and
is recycled, with no air being taken
from outside the vehicle;
– air recirculation allows the exter- nal atmosphere to be cut off (when
driving in polluted areas, etc.) and
to cool the passenger compartment
temperature more quickly.
897897
1
1
AUTOMATIC CLIMATE CONTROL: Controls B and C (5/5)

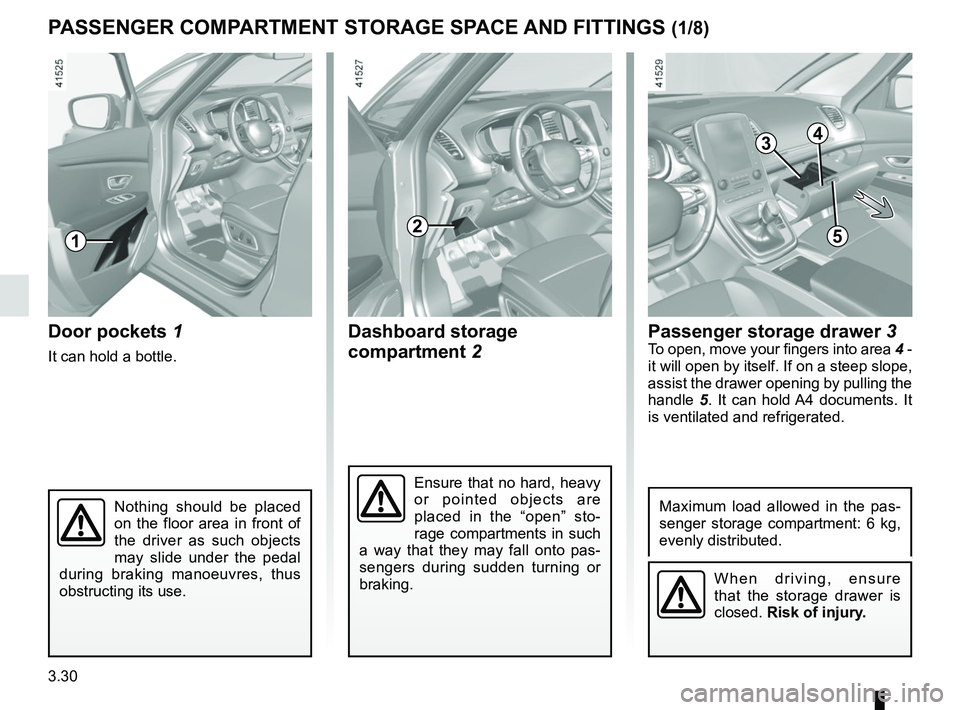

3.30
Passenger storage drawer 3To open, move your fingers into area 4 -
it will open by itself. If on a steep slope,
assist the drawer opening by pulling the
handle 5. It can hold A4 documents. It
is ventilated and refrigerated.Dashboard storage
compartment 2Door pockets 1
It can hold a bottle.
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/8)
1
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
2
Maximum load allowed in the pas-
senger storage compartment: 6 kg,
evenly distributed.
When driving, ensure
that the storage drawer is
closed. Risk of injury.
34
5

4.2
BONNET (1/2)Unlocking the bonnet catch
To unlock, push tab 3 at the same time
as opening the bonnet.
Opening the bonnet
Lift the bonnet, guiding it up, and it
will rest in position with the help of two
struts 2.
To open, pull handle
1, located on the
left-hand side of the dashboard.Please note when work-
ing close to the engine that
it may be hot. In addition,
the engine cooling fan may
start at any moment. The

warning light in the engine compart-
ment reminds you of this.
Risk of injury.
1
Do not press down on the
bonnet: there is a risk that
the bonnet may accidentally
close.
Before performing any
action in the engine com-
partment, the ignition must
be switched off (please see
the information on “Starting, stop-
ping the engine” in Section 2).
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in the park position.
Risk of injury.
2
3

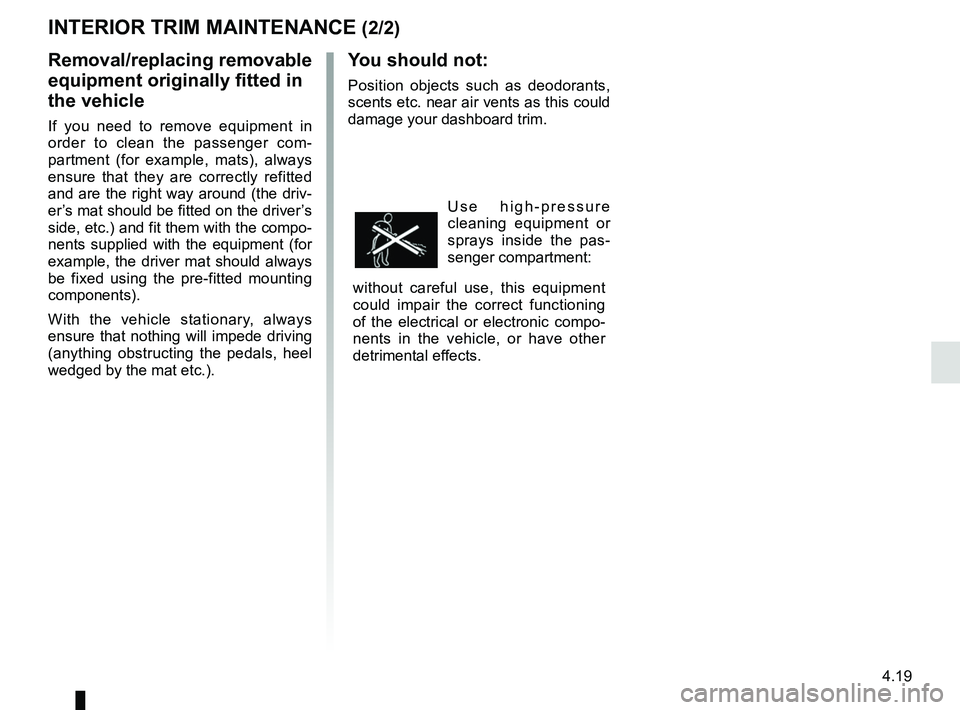

4.19
You should not:
Position objects such as deodorants,
scents etc. near air vents as this could
damage your dashboard trim.
Use high-pressure
cleaning equipment or
sprays inside the pas-
senger compartment:
without careful use, this equipment
could impair the correct functioning
of the electrical or electronic compo-
nents in the vehicle, or have other
detrimental effects.
INTERIOR TRIM MAINTENANCE (2/2)
Removal/replacing removable
equipment originally fitted in
the vehicle
If you need to remove equipment in
order to clean the passenger com-
partment (for example, mats), always
ensure that they are correctly refitted
and are the right way around (the driv-
er’s mat should be fitted on the driver’s
side, etc.) and fit them with the compo-
nents supplied with the equipment (for
example, the driver mat should always
be fixed using the pre-fitted mounting
components).
With the vehicle stationary, always
ensure that nothing will impede driving
(anything obstructing the pedals, heel
wedged by the mat etc.).

5.7
If the recommended pressure of
1.8 bar cannot be achieved after
15 minutes, repair is impossible. Do
not drive the vehicle. Consult an au-
thorised dealer.
TYRE INFLATION KIT (3/4)
Nothing should be placed
around the driver’s feet
as such objects may slide
under the pedals during
sudden braking manoeuvres and
obstruct their use.
Once the tyre is correctly inflated,
remove the kit: unscrew the inflation
adapter slowly from the container 1 to
prevent any product spatter and store
the container in plastic packaging to
prevent product leaks.
– Affix the driving recommendation label (located under the container) to
the dashboard where the driver can
see it.
– Put the kit away.
– At the end of this initial inflation op- eration, air will still escape from the
tyre. You must drive a short distance
in order to seal the hole.1– Start immediately and drive at a speed of 12.4 to 37.2 mph (20 to
60 km/h) in order to distribute the
product evenly in the tyre; after driv-
ing a distance of 1.86 miles (3 km),
stop and check the pressure.
– If the pressure is higher than 1.3 bar but lower than the recommended
pressure (refer to the label affixed to
the edge of the driver’s door), adjust
it. Otherwise, contact an approved
dealer: the tyre cannot be repaired.

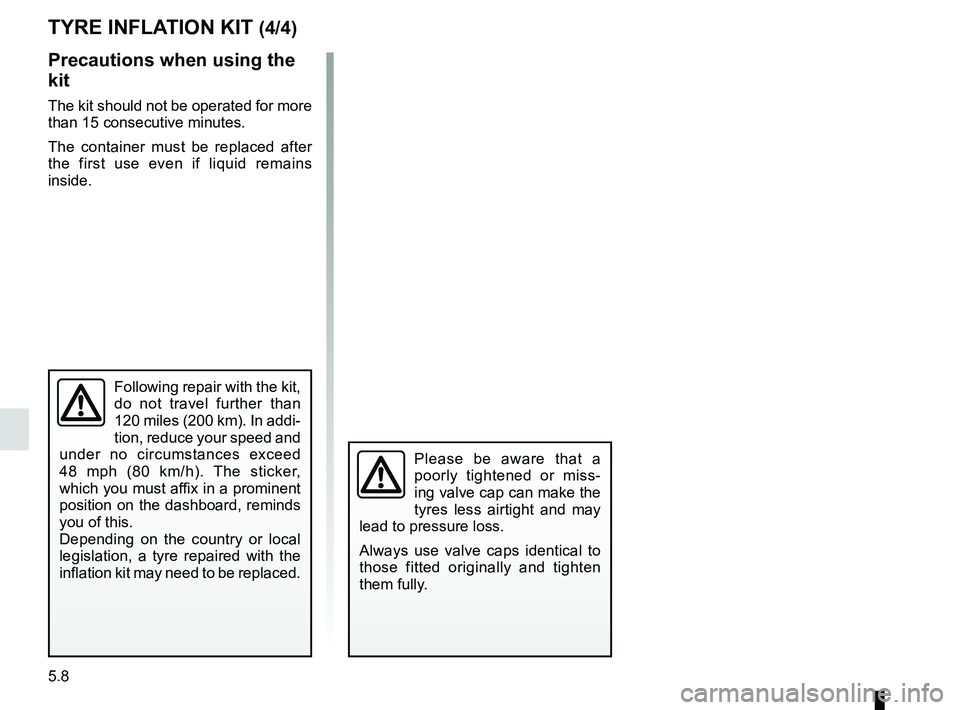

5.8
Precautions when using the
kit
The kit should not be operated for more
than 15 consecutive minutes.
The container must be replaced after
the first use even if liquid remains
inside.
TYRE INFLATION KIT (4/4)
Following repair with the kit,
do not travel further than
120 miles (200 km). In addi-
tion, reduce your speed and
under no circumstances exceed
48 mph (80 km/h). The sticker,
which you must affix in a prominent
position on the dashboard, reminds
you of this.
Depending on the country or local
legislation, a tyre repaired with the
inflation kit may need to be replaced.
Please be aware that a
poorly tightened or miss-
ing valve cap can make the
tyres less airtight and may
lead to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.

5.28
FUSES (2/2)
Allocation of fuses
(the presence of certain fuses depends on the vehicle equipment level)\
Symbol Allocation SymbolAllocation
HWindscreen washer“Hybrid Assist” system
ëThird row accessories socket, boot accessories
socketÝTowbar socket
ÆFront cigarette lighter, front and rear second row
accessories socketDiagnostic socket, audio alarm
Not usedÌHorn
Heated door mirrorsInstrument panel, dashboard control lighting
×Brake lights, passenger compartment central unitRear electric windows
\bParking brakefFront windscreen wiper
Additional servoDDirection indicator lights, hazard warning lights
îRadio, multifunction screen, multimedia acces-
sories sockets, parking brake controlRear USB sockets on console
Passenger compartment centre unit, rear wiper,
rear fog light
OLocking the doors and luggage compartment

7.1
ALPHABETICAL INDEX (1/6)
A
ABS ....................................................................\
...2.35 → 2.39
accessories........................................................................\
5.33
accessories socket ................................................... 3.23, 3.38
adaptive cruise control...........................................2.74 → 2.81
additional methods of restraint .....................1.32 → 1.35, 1.38
side protection ............................................................. 1.37
to the rear seat belts ........................................1.32 → 1.36
adjusting your driving position ........................................... 1.28
advice on antipollution ....................................................... 2.30
air bag....................................................................1.32 → 1.38
activating the front passenger air bags ........................ 1.61
deactivating the front passenger air bags .................... 1.59
air conditioning ....................................3.6 → 3.13, 3.19 – 3.20
A
air vent (Hybrid Assist).............................................. 3.45, 3.50
A
air vents ...................................................................... 3.4 – 3.5
anti-corrosion check ..............................................6.15 → 6.20
anti-corrosion protection .................................................... 4.15
anti-lock braking system: ABS ...............................2.35 → 2.39
antipollution advice .................................................................\
......... 2.30
armrest: front ..................................................................\
............ 3.33
ashtray ................................................................\
............... 3.38
assisted parking............................... 2.82 → 2.86, 2.89 → 2.92
automatic gearbox (use) ........................................2.93 → 2.95
automatic gearbox selector lever...........................2.93 → 2.95
B
battery..................................................................... 4.11 – 4.12 troubleshooting ................................................. 5.29 – 5.30
battery (remote control) ..................................................... 5.32 blind spot warning signal .......................................2.55
→ 2.58
blind spot: warning signal ......................................2.55 → 2.58
bonnet........................................................................\
. 4.2 – 4.3
brake fluid ........................................................................\
.... 4.9
bulbs changing ..........................................................5.17 → 5.23
C
catalytic converter................................................... 2.12 – 2.13
central door locking ...............1.2 – 1.3, 1.5, 1.12 → 1.15, 1.18
changing a bulb .....................................................5.17 → 5.23
changing a wheel.................................................... 5.12 – 5.13
changing gear ...............................................2.20, 2.93 → 2.95
child restraint/seat .............................1.39 – 1.40, 1.42 → 1.58
child safety.........................1.6, 1.39 – 1.40, 1.42 → 1.58, 3.24
child seats..........................................1.39 – 1.40, 1.42 → 1.58
children .......................................................... 1.39 – 1.40, 1.40
children (safety) .......................................................... 1.6, 3.24
cigar lighter ........................................................................\
3.38
cleaning: inside the vehicle .............................................. 4.18 – 4.19
clock ..................................................................\
................ 1.90
closing the doors ...................................................1.13 → 1.17
control instruments ................................................. 1.78 – 1.79
controls ...............................................................\
...1.62 → 1.65
coolant ................................................................\
................. 4.8
courtesy light .....................................3.27 – 3.28, 5.24 → 5.26
courtesy mirrors ................................................................. 3.29
cruise control .........................................................2.67 → 2.73
cruise control-speed limiter....................................2.67 → 2.73
customised vehicle settings ................................... 1.88 – 1.89
customising the vehicle settings ............................ 1.88 – 1.89
D
dashboard..............................................................1.62 → 1.65
daytime running lights........................................................ 1.98
