2018 RENAULT CAPTUR engine coolant

1.48
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it lights up when you are driving, it in-
dicates a fault in the anti-lock braking
system.
Braking will then be as normal, without
the ABS. Contact an approved Dealer
as soon as possible.
ÔCoolant temperature warn-
ing light
This comes on when the ignition is
switched on.
If it turns red, stop and let the engine
idle for a minute or two.
The temperature should lower and the
warning light should return to a blue
colour. If not, stop the engine. Let the
engine cool down before checking the
coolant.
Contact an approved Dealer.
WARNING LIGHTS (3/5)
Warning light for the elec-
tronic stability program
(ESC) and traction control system
This lights up when the ignition is
switched on and goes out after a few
seconds.
There are several reasons for the warn-
ing light to come on: please refer to the
information on “Driver correction de-
vices and aids” in Section 2.
ÄToxic Fume Filter System
Warning Light
On vehicles which are equipped with it,
if the vehicle is in the engine standby
phase this light comes on when you
start the engine and, depending on the
vehicle, when you switch off the ignition
(refer to the information on the “Stop
and Start function” in Section 2) then
goes out.
– If it lights up continuously, consult your approved dealer as soon as
possible;
– if it flashes, reduce the engine speed until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Refer to the information on “Advice:
antipollution, fuel economy and driving”
in Section 2.
A
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

4.1

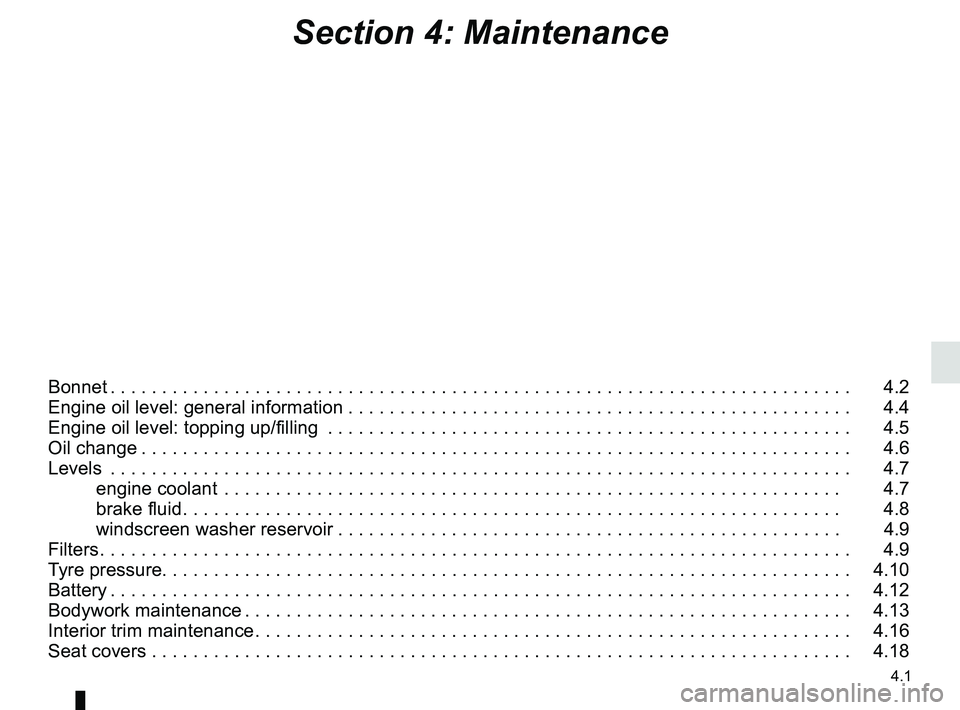

Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . 4.4
Engine oil level: topping up/filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . 4.5
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . 4.7
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
windscreen washer reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . 4.9
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
Tyre pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.12
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 4.13
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . 4.16
Seat covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.18

4.7
Frequency of checking coolant level
Check the coolant level regularly
(very severe damage is likely to be
caused to the engine if it runs out of
coolant).
If the level needs to be topped up, only
use products approved by our Technical
Department which ensure:
– protection against freezing;
– an anti-corrosion protection for the cooling system.
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
No operations should be
carried out on the cooling
circuit when the engine is
hot.
Risk of burns.
Replacement interval
Refer to the Maintenance Document for
your vehicle.
Coolant level
With the engine switched off and on
level ground, the level when cold must
be between the MINI and MAXI marks
on reservoir 1.
Top this level up when cold before it
reaches the MINI mark.
LEVELS (1/3)
1
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in the park position.
Risk of injury.Before performing any
action in the engine com-
partment, the ignition must
be switched off (please see
the information on “Starting, stop-
ping the engine” in Section 2).

5.39

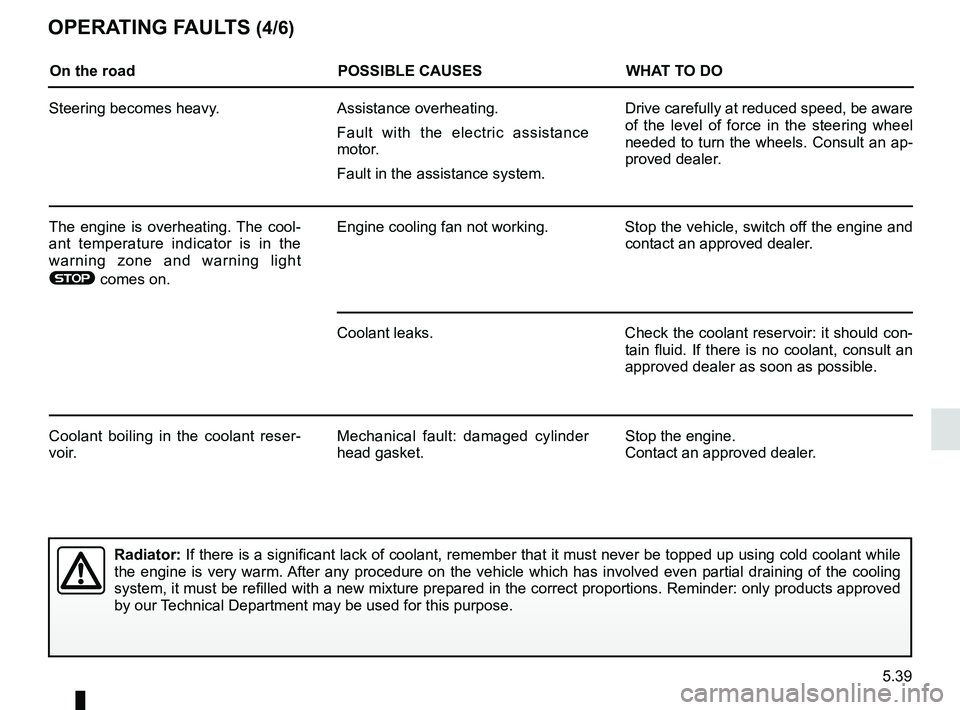

OPERATING FAULTS (4/6)
On the roadPOSSIBLE CAUSESWHAT TO DO
Steering becomes heavy. Assistance overheating.
Fault with the electric assistance
motor.
Fault in the assistance system. Drive carefully at reduced speed, be aware
of the level of force in the steering wheel
needed to turn the wheels. Consult an ap-
proved dealer.
The engine is overheating. The cool-
ant temperature indicator is in the
warning zone and warning light
® comes on. Engine cooling fan not working. Stop the vehicle, switch off the engine and
contact an approved dealer.
Coolant leaks. Check the coolant reservoir: it should con- tain fluid. If there is no coolant, consult an
approved dealer as soon as possible.
Coolant boiling in the coolant reser-
voir. Mechanical fault: damaged cylinder
head gasket. Stop the engine.
Contact an approved dealer.
Radiator:
If there is a significant lack of coolant, remember that it must never b\
e topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial drain\
ing of the cooling
system, it must be refilled with a new mixture prepared in the correct p\
roportions. Reminder: only products approved
by our Technical Department may be used for this purpose.

7.2
ALPHABETICAL INDEX (2/5)
doors/tailgate .........................................................\
..1.2 → 1.15
driver assistance....................................................2.23 → 2.47
driver’s position .....................................................1.42 → 1.50
driving ........2.2 → 2.5, 2.10 – 2.11, 2.13 → 2.17, 2.20 → 2.27,
2.31 → 2.41, 2.48 → 2.50
driving aids ............................................................2.23 → 2.47
driving position settings ............................................................1.19 → 1.22
driving recommendations ......................................2.13 → 2.17
E
ECO driving ...........................................................2.13 → 2.17
ECO mode ........................................................................\
. 2.15
electric beam height adjustment ............................. 1.71 – 1.72
electric windows ..................................................... 3.13 – 3.14
electronic stability control: ESC .............................2.23 → 2.27
emergency brake assist.........................................2.23 → 2.27
emergency braking ................................................2.23 → 2.27
emergency key ..........................................................1.2 → 1.4
emergency spare wheel ............................................. 5.2 – 5.3
engine technical specifications .................................................. 6.5
engine coolant ..................................................................... 4.7
engine oil ...................................................................4.4 → 4.6
engine oil capacity ...................................................... 4.5 – 4.6
engine oil level ...........................................................4.4 → 4.6
engine specifications .................................................... 6.3, 6.5
engine standby ..........................................................2.6 → 2.9
engine start/stop button .............................................2.3 → 2.5
environment ............................................................\
........... 2.19
ESC: electronic stability control ....................1.48, 2.23 → 2.27
external temperature ......................................................... 1.65
F
faults operating faults ................................................5.36 → 5.41filter
air filter ........................................................................\
... 4.9
oil filter .................................................................. 4.5 – 4.6
passenger compartment filter ........................................ 4.9
fitting a radio ...................................................................... 5.22
fittings ...............................................................\
.....3.18 → 3.22
front passenger air bag deactivation ................................. 1.39
front seat adjustment .............................................. 1.17 – 1.18
front seats ........................................................................\
.. 4.18 adjustment .......................................................1.16 → 1.19
fuel advice on fuel economy ...................................2.13 → 2.17
consumption ....................................................2.13 → 2.17
filling ........................................................1.46, 1.76 → 1.78
grade ................................................................1.76 → 1.78
fuel consumption ...................................................2.13 → 2.17
fuel economy .........................................................2.13 → 2.17
fuel filler cap ..........................................................1.76 →
1.78
fuel level ................................................................1.46 →

1.51
fuel tank capacity ...............................................................\
......... 1.76
fuel tank capacity ...................................................1.76 → 1.78
fuses ..................................................................\
....5.23 → 5.27
G
gear lever........................................................................\
... 2.12
H
handbrake........................................................................\
.. 2.12
hands-free telephone integrated control ............................ 3.34
hazard warning lights signal .............................................. 1.70
headlight beam adjustment .................................... 1.71 – 1.72
headrest.................................................................... 1.16, 3.24
heated seats ...................................................................... 1.17
heated windscreen ..................................................3.7 → 3.10
heating and air conditioning system ........................ 3.4 → 3.11

7.4
ALPHABETICAL INDEX (4/5)
parking assistance: assisted parking .....................2.44 → 2.47
parking distance control.........................................2.38 → 2.41
power-assisted steering..................................................... 1.63
pretensioners .........................................................1.23 → 1.26
puncture...................................................5.2 → 5.7, 5.9 – 5.10
R
radio........................................................................\
........... 3.34
rear bench seat................................... 3.25 – 3.26, 4.21 – 4.22
rear parcel shelf ................................................................. 3.28
rear seat ................................................................. 4.21 – 4.22
rear seats........................................................................\
... 1.21 functions ........................................................... 3.25 – 3.26
rear view camera .................................................... 2.42 – 2.43
rear view mirrors ................................................................ 1.66
RENAULT ANTI-INTRUDER DEVICE (RAID) ................... 1.15
RENAULT card battery ................................................................\
.......... 5.28
use ................................................... 1.2 → 1.10, 2.3 → 2.5
RENAULT card battery ...................................................... 5.28
replacement parts ................................................................ 6.7
reverse gear selecting ..................................................2.12, 2.48 → 2.50
reversing sensor ....................................................2.38 → 2.41
roof bars ........................................................................\
.... 3.33
roof rack roof bars ....................................................................... 3.33
running in ........................................................................\
..... 2.2
S
seat belt pretensioners front seat belt ...................................................1.23 → 1.26
seat belts ......................................................1.19 → 1.26, 1.29
seat trim .................................................................4.18 → 4.22
seats: trim ..............................................................4.18 → 4.22
service sheets..........................................................6.8 → 6.13side protection devices ...................................................... 1.28
signals and lights ...................................................1.67 → 1.72
speakers location ...............................................................\
......... 5.22
special features of diesel versions..................................... 2.11
special features of petrol vehicles ..................................... 2.10
speed limiter .................................................1.49, 2.31 → 2.33
starting the engine .....................................................2.3 → 2.9
steering wheel adjustment .............................................................\
...... 1.63
Stop & Start ......................................................1.49, 2.6 → 2.9
Stop & Start function..................................................2.6 → 2.9
stopping the engine ...................................................2.3 → 2.5
storage compartment.............................................3.18 → 3.22
storage compartments ...........................................3.18 → 3.22
sun visor ................................................................... 3.15, 3.18
switching on the vehicle ignition ................................2.3 → 2.5
T
tailgate ..........................................................3.27, 3.29 → 3.31
tanks and reservoirs brake fluid ...................................................................... 4.8
coolant ................................................................\
........... 4.7
tanks and reservoirs: windscreen washer ........................................................ 4.9
technical specifications ..............................................6.4 → 6.7
telephone ..............................................................\
............. 3.34
temperature regulation ............................................3.7 → 3.12
tool kit ........................................................................\
.......... 5.7
towing breakdown ........................................................ 5.34 – 5.35
towing equipment ......................................................... 3.32
towing a caravan ........................................................ 3.32, 6.6
towing equipment fitting ................................................................\
............ 3.32
towing hitch...................................................... 5.7, 5.34 – 5.35
