2018 Ram ProMaster Owner's Manual

EVENT DATA RECORDER (EDR)
This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record data that
will assist in understanding how a vehicle’s systems per-
formed under certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle.
Please refer to “Occupant Restraint Systems” in “Safety”
for further information on the Event Data Recorder (EDR).
7
IN CASE OF EMERGENCY 223

SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING .................227
▫ Maintenance Plan ..................... .228
▫ Heavy Duty Use Of The Vehicle ............231
 ENGINE COMPARTMENT .................232
▫ 3.6L Engine ......................... .232
▫ Checking Oil Level — Gas Engine ...........233
▫ Adding Washer Fluid ...................233
▫ Maintenance-Free Battery .................233
 DEALER SERVICE ...................... .234
▫ Engine Oil .......................... .235
▫ Engine Oil Filter ...................... .236
▫ Engine Air Cleaner Filter .................236
▫ Air Conditioner Maintenance ..............237
▫ Body Lubrication ..................... .239▫
Windshield Wiper Blades .................239
▫ Exhaust System ....................... .240
▫ Cooling System ....................... .241
▫ Brake System ........................ .246
▫ Automatic Transmission (3.6L Gasoline Engine
Only) .............................. .247
 RAISING THE VEHICLE ..................248
 TIRES ............................... .248
▫ Tire Safety Information ..................248
▫ Tires — General Information ..............258
▫ Tire Types ........................... .264
▫ Spare Tires — If Equipped ................265
▫ Wheel
And Wheel Trim Care ..............267
▫ Tire Chains (Traction Devices) .............269

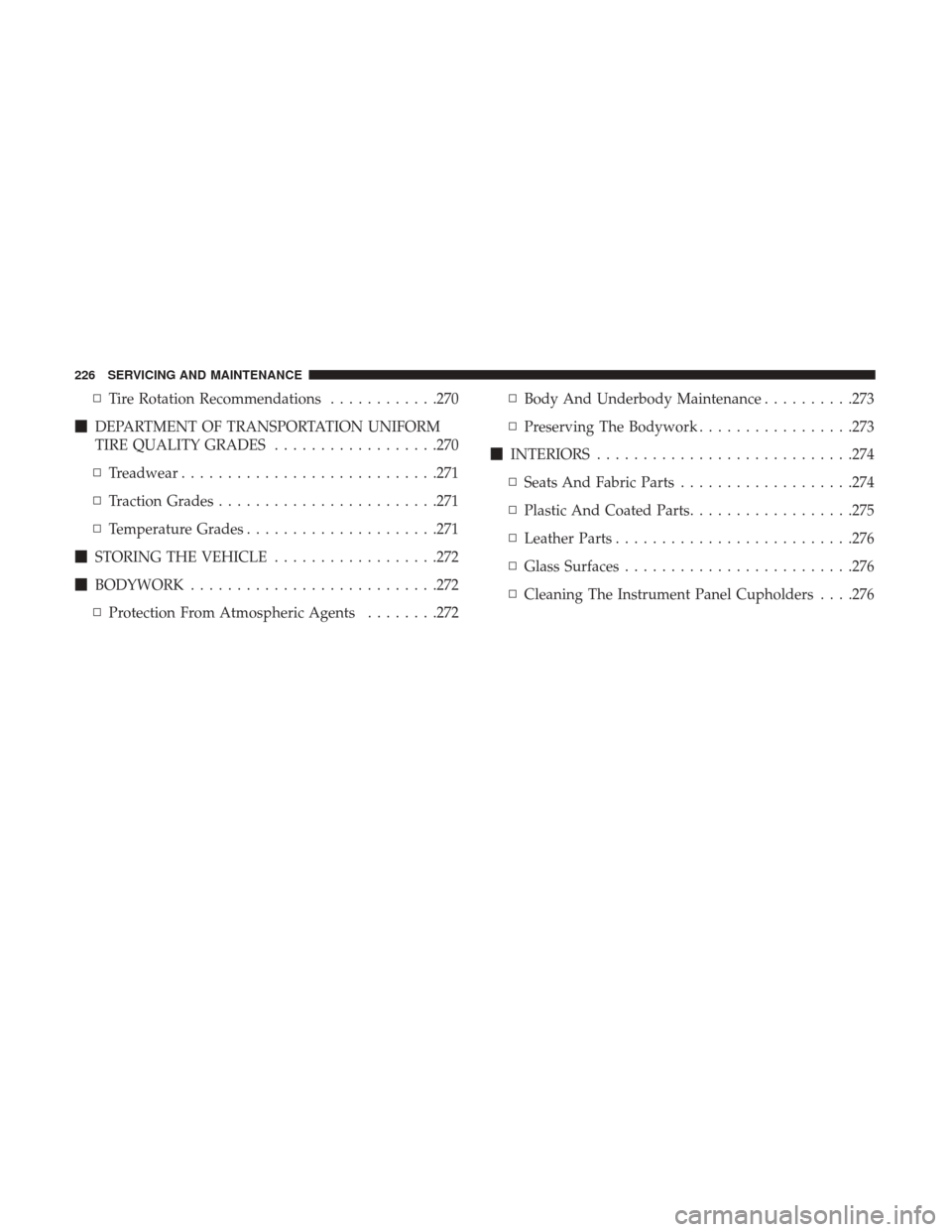

8

▫Tire Rotation Recommendations ............270
 DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES ..................270
▫ Treadwear ........................... .271
▫ Traction Grades ....................... .271
▫ Temperature Grades .....................271
 STORING THE VEHICLE ..................272
 BODYWORK .......................... .272
▫ Protection From Atmospheric Agents ........272▫
Body And Underbody Maintenance ..........273
▫ Preserving The Bodywork .................273
 INTERIORS ........................... .274
▫ Seats And Fabric Parts ...................274
▫ Plastic And Coated Parts ..................275
▫ Leather Parts ......................... .276
▫ Glass Surfaces ........................ .276
▫ Cleaning The Instrument Panel Cupholders . . . .276
226 SERVICING AND MAINTENANCE

SCHEDULED SERVICING
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate in the instrument cluster.
This means that service is required for your vehicle.
Operating conditions such as frequent short-trips, trailer
tow, and extremely hot or cold ambient temperatures will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset by
referring to the steps described under “Instrument Cluster
Display” in “Getting To Know Your Instrument Panel” for
further information.NOTE:
Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km), twelve months or 350
hours of engine run time, whichever comes first. The 350
hours of engine run or idle time is generally only a concern
for fleet customers.
Severe Duty All Models
Change Engine Oil at 4,000 miles (6,500 km) or 350 hours of
engine run time if the vehicle is operated in a dusty and off
road environment or is operated predominately at idle or
only very low engine RPM’s. This type of vehicle use is
considered Severe Duty.
Once A Month Or Before A Long Trip:
• Check engine oil level
• Check windshield washer fluid level
• Check the tire inflation pressures and look for unusual
wear or damage
• Check the fluid levels of the coolant reservoir, brake
master cylinder, and power steering and fill as needed
• Check function of all interior and exterior lights
8
SERVICING AND MAINTENANCE 227

Maintenance Plan
Required Maintenance Intervals
Refer to the maintenance plan on the following pages for
the required maintenance intervals.
At Every Oil Change Interval As Indicated By OilChange Indicator System:
•Change oil and filter.
• Rotate the tires. Rotate at the first sign of irregular
wear, even if it occurs before the oil indicator
system turns on.
• Inspect battery and clean and tighten terminals as
required.
• Inspect brake pads, shoes, rotors, drums, hoses and
park brake.
• Inspect engine cooling system protection and hoses.
• Inspect exhaust system.
• Inspect engine air cleaner if using in dusty or
off-road conditions.
228 SERVICING AND MAINTENANCE

Mileage or time passed (which-ever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional Inspections
Inspect the CV joints. XX X XX
Inspect front suspension, tie rod
ends, boot seals, and replace if
necessary. XXX X X X X
Inspect the brake pads, replace as
necessary. XXX X X X X
Additional Maintenance
Replace engine air filter. XX X XX
Replace cabin/air conditioning
filter. XXX X X X X
Replace Brake Fluid every two
years. * XXX X X X X
Replace spark plugs. ** X
Flush and replace the engine cool-
ant at 10 years or 150,000 miles
(240,000 km) whichever comes
first. XX
8
SERVICING AND MAINTENANCE 229

Mileage or time passed (which-ever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Change automatic transmission
fluid and filter. XX
Inspect and replace PCV valve if
necessary. X
* The brake fluid change interval is time based only,
mileage intervals do not apply.
** The spark plug change interval is mileage based only,
yearly intervals do not apply.
230 SERVICING AND MAINTENANCE
