2018 Ram 4500 Chassis Cab ESP

2. Shift the transmission into NEUTRAL.
3. While still rolling, rotate the transfer case control switchto the desired position.
4. After the desired position indicator light is ON (not flashing), shift the transmission back into gear.
Alternate Procedure
1. Bring the vehicle to a complete stop.
2. With the ignition switch in the ON position and the engine running, shift the transmission into NEUTRAL.
3. Rotate the transfer case control switch to the desired position.
4. After the desired position indicator light is ON (not flashing), shift the transmission back into gear.
NOTE:
• If Steps 1 or 2 of either the Preferred or Alternate
Procedure are not satisfied prior to attempting the shift,
then the desired position indicator light will flash con-
tinuously while the original position indicator light is
ON, until all requirements have been met. •
The ignition switch must be in the ON position for a
shift to take place and for the position indicator lights to
be operable. If the ignition switch is not in the ON
position, the shift will not take place and no position
indicator lights will be on or flashing.
LIMITED-SLIP DIFFERENTIAL
The limited-slip differential provides additional traction on
snow, ice, mud, sand and gravel, particularly when there is
a difference between the traction characteristics of the
surface under the right and left rear wheels. During normal
driving and cornering, the limited-slip unit performs simi-
larly to a conventional differential. On slippery surfaces,
however, the differential delivers more of the driving effort
to the rear wheel having the better traction.
The limited-slip differential is especially helpful during
slippery driving conditions. With both rear wheels on a
slippery surface, a slight application of the accelerator will
supply maximum traction. When starting with only one
rear wheel on an excessively slippery surface, slight mo-
mentary application of the parking brake may be necessary
to gain maximum traction.
6
STARTING AND OPERATING 265

•PTO must be correctly installed using the vehicle pro-
vided circuits.
The instrument cluster will display a PTO Onmessage for
five seconds if the above conditions are met. Otherwise, the
instrument cluster will display a message To Operate PTO
Shift To Park indicating what operator action should be
taken to engage the PTO mode.
The customer has the choice to operate the PTO by utilizing
the cruise control switches or by utilizing a remote control
(provided by the PTO supplier). To operate the feature
using the cruise control switches, the customer must first
activate the PTO switch which will turn on the PTO. In
order to increase or decrease the engine idle speed, to
optimize the PTO function, the “RESUME/ACCEL” and
“DECEL” cruise switches can be used respectively. To
disengage PTO operation and return to “standard vehicle
operation” simply toggle the PTO switch to the OFF
position.
The torque converter clutch (TCC) will automatically en-
gage at engine speeds above 1,200 RPM (engine speed) in
PTO stationary mode. Once engaged, the TCC will remain
applied and will not disengage until the engine speed falls
below 1,000 RPM. TCC engagement is desirable for certain
types of PTO applications (Automatic Transmission Only). To operate the PTO via a remote switch, the customer must
make sure the above conditions are met. It is vital for
proper operation that the PTO and remote have been
installed correctly, paying special attention to ensure the
vehicle provided wiring has been connected properly. This
is the responsibility of the installer of the PTO and
switches/remote system. It is the responsibility of the PTO
manufacturer to ensure that their electrical (switches and
remote) system is compatible with the vehicle’s electrical
architecture and software functionality.
NOTE:
Single set speed can be programmed via the PTO
menu on the instrument cluster display. Further details are
available at the Ram Truck Bodybuilders web site located
at rambodybuilder.com
Mobile Mode
To operate the PTO in this mode the vehicle must meet the
following conditions:
•Mobile mode is activated via the menu on the instru-
ment cluster display.
• (ON/OFF) switch has been activated.
• Vehicles with automatic transmission must be in PARK
or DRIVE.
6
STARTING AND OPERATING 267

•Parking brake must not be applied.
• Brake pedal must not be applied.
• No vehicle, brake or clutch switch faults present.
• Vehicle engine must be running.
• PTO must be correctly installed using the vehicle pro-
vided circuits.
The customer may choose to use the PTO while the vehicle
is moving. To do so, the PTO function must be activated
prior to taking the vehicle out of PARK. This is accom-
plished by activating the upfitter-provided PTO on/off
switch. At this point, the customer may place the vehicle in
a forward or reverse gear and have PTO operation once the
vehicle begins to move. To disengage PTO operation and
return to “standard vehicle operation” simply toggle the
on/off switch to the OFF position.
NOTE: For application specific information with respect
to PTO and pump requirements and additional vehicle
information (wiring schematics, preset idle values, engine
speed limits, and vehicle hardware and software require-
ments) please refer to the Body Builders Guide by access-
ing rambodybuilder.com and choosing the appropriate
links.POWER STEERING
Hydraulic Power Steering
The standard power steering system will give you good
vehicle response and increased ease of maneuverability in
tight spaces. The system will provide mechanical steering
capability if power assist is lost.
If for some reason the power assist is interrupted, it will
still be possible to steer your vehicle. Under these condi-
tions, you will observe a substantial increase in steering
effort, especially at very low vehicle speeds and during
parking maneuvers.
NOTE:
• Increased noise levels at the end of the steering wheel
travel are considered normal and do not indicate that
there is a problem with the power steering system.
• Upon initial start-up in cold weather, the power steering
pump may make noise for a short amount of time. This
is due to the cold, thick fluid in the steering system. This
noise should be considered normal, and it does not in
any way damage the steering system.
268 STARTING AND OPERATING

obstacle behind the fascia/bumper, or it could provide a
false indication that an obstacle is behind the fascia/
bumper.
• Ensure the ParkSense system is OFF if objects such as
bicycle carriers, trailer hitches, etc., are placed within 18
inches (45 cm) from the rear fascia/bumper while driv-
ing the vehicle. Failure to do so can result in the system
misinterpreting a close obstacle as a sensor problem,
causing the PARKSENSE UNAVAILABLE SERVICE
REQUIRED message to appear in the instrument cluster
display.
• On vehicles equipped with a tailgate, ParkSense should
be disabled when the tailgate is in the lowered or open
position and the vehicle is in REVERSE. A lowered
tailgate could provide a false indication that an obstacle
is behind the vehicle.
WARNING!
• Drivers must be careful when backing up even when
using ParkSense. Always check carefully behind
your vehicle, look behind you, and be sure to check
for pedestrians, animals, other vehicles, obstructions,
(Continued)
WARNING! (Continued)
and blind spots before backing up. You are respon-
sible for safety and must continue to pay attention to
your surroundings. Failure to do so can result in
serious injury or death.
• Before using ParkSense, it is strongly recommended
that the ball mount and hitch ball assembly is
disconnected from the vehicle when the vehicle is
not used for towing. Failure to do so can result in
injury or damage to vehicles or obstacles because the
hitch ball will be much closer to the obstacle than the
rear fascia when the loudspeaker sounds the con-
tinuous tone. Also, the sensors could detect the ball
mount and hitch ball assembly, depending on its size
and shape, giving a false indication that an obstacle
is behind the vehicle.
CAUTION!
• ParkSense is only a parking aid and it is unable to
recognize every obstacle, including small obstacles.
Parking curbs might be temporarily detected or not
detected at all. Obstacles located above or below the
(Continued)
6
STARTING AND OPERATING 279

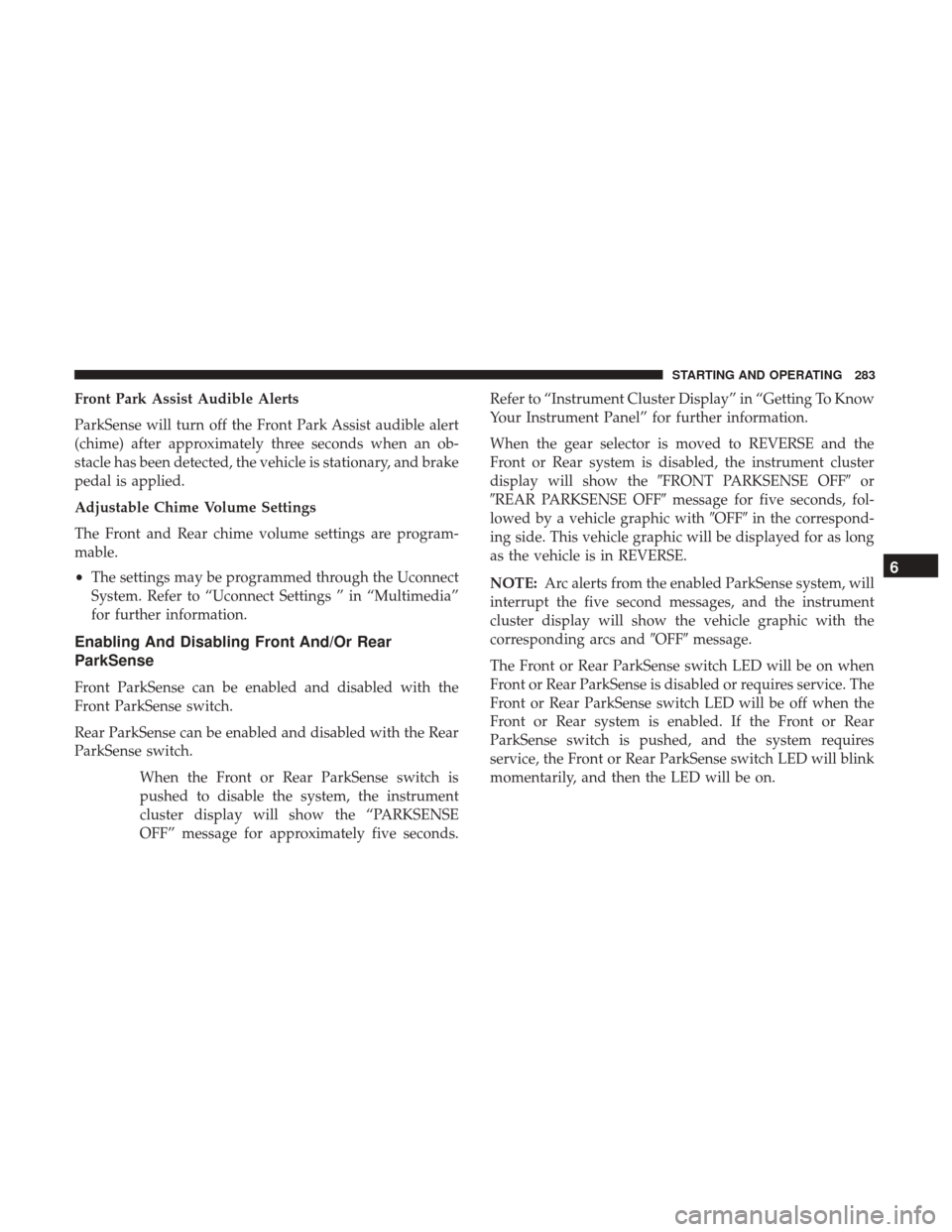

Front Park Assist Audible Alerts
ParkSense will turn off the Front Park Assist audible alert
(chime) after approximately three seconds when an ob-
stacle has been detected, the vehicle is stationary, and brake
pedal is applied.
Adjustable Chime Volume Settings
The Front and Rear chime volume settings are program-
mable.
•The settings may be programmed through the Uconnect
System. Refer to “Uconnect Settings ” in “Multimedia”
for further information.
Enabling And Disabling Front And/Or Rear
ParkSense
Front ParkSense can be enabled and disabled with the
Front ParkSense switch.
Rear ParkSense can be enabled and disabled with the Rear
ParkSense switch.
When the Front or Rear ParkSense switch is
pushed to disable the system, the instrument
cluster display will show the “PARKSENSE
OFF” message for approximately five seconds. Refer to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.
When the gear selector is moved to REVERSE and the
Front or Rear system is disabled, the instrument cluster
display will show the
FRONT PARKSENSE OFF or
REAR PARKSENSE OFF message for five seconds, fol-
lowed by a vehicle graphic with OFFin the correspond-
ing side. This vehicle graphic will be displayed for as long
as the vehicle is in REVERSE.
NOTE: Arc alerts from the enabled ParkSense system, will
interrupt the five second messages, and the instrument
cluster display will show the vehicle graphic with the
corresponding arcs and OFFmessage.
The Front or Rear ParkSense switch LED will be on when
Front or Rear ParkSense is disabled or requires service. The
Front or Rear ParkSense switch LED will be off when the
Front or Rear system is enabled. If the Front or Rear
ParkSense switch is pushed, and the system requires
service, the Front or Rear ParkSense switch LED will blink
momentarily, and then the LED will be on.
6
STARTING AND OPERATING 283

ParkSense System Usage Precautions
NOTE:
•Ensure that the front and rear bumper are free of snow,
ice, mud, dirt and debris to keep the ParkSense system
operating properly.
• Jackhammers, large trucks, and other vibrations could
affect the performance of ParkSense.
• When you turn Front or Rear ParkSense off, the instru-
ment cluster display will read “FRONT PARKSENSE
OFF” or “REAR PARKSENSE OFF.” Furthermore, once
you turn Front or Rear ParkSense off, it remains off until
you turn it on again, even if you cycle the ignition key.
• When you move the gear selector to the REVERSE
position and Front or Rear ParkSense is turned off, the
instrument cluster display will show the FRONT
PARKSENSE OFF orREAR PARKSENSE OFF mes-
sage for five seconds, followed by a vehicle graphic with
OFF in the corresponding side. This vehicle graphic
will be displayed for as long as the vehicle is in
REVERSE. •
ParkSense, when on, will reduce the volume of the radio
when it is sounding a tone.
• Clean the ParkSense sensors regularly, taking care not to
scratch or damage them. The sensors must not be
covered with ice, snow, slush, mud, dirt or debris.
Failure to do so can result in the system not working
properly. The ParkSense system might not detect an
obstacle behind or in front of the fascia/bumper, or it
could provide a false indication that an obstacle is
behind or in front of the fascia/bumper.
• Use the ParkSense switch to turn the ParkSense system
off if obstacles such as bicycle carriers, trailer hitches,
etc. are placed within 18 inches (45 cm) from the rear
fascia/bumper. Failure to do so can result in the system
misinterpreting a close obstacle as a sensor problem,
causing the “PARKSENSE UNAVAILABLE SERVICE
REQUIRED” message to be appear in the instrument
cluster display.
• On vehicles equipped with a tailgate, ParkSense should
be disabled when the tailgate is in the lowered or open
position. A lowered tailgate could provide a false indi-
cation that an obstacle is behind the vehicle.
6
STARTING AND OPERATING 285

WARNING!
•Drivers must be careful when backing up even when
using ParkSense. Always check carefully behind
your vehicle, look behind you, and be sure to check
for pedestrians, animals, other vehicles, obstructions,
and blind spots before backing up. You are respon-
sible for safety and must continue to pay attention to
your surroundings. Failure to do so can result in
serious injury or death.
• Before using ParkSense, it is strongly recommended
that the ball mount and hitch ball assembly is
disconnected from the vehicle when the vehicle is
not used for towing. Failure to do so can result in
injury or damage to vehicles or obstacles because the
hitch ball will be much closer to the obstacle than the
rear fascia when the loudspeaker sounds the con-
tinuous tone. Also, the sensors could detect the ball
mount and hitch ball assembly, depending on its size
and shape, giving a false indication that an obstacle
is behind the vehicle.
CAUTION!
• ParkSense is only a parking aid and it is unable to
recognize every obstacle, including small obstacles.
Parking curbs might be temporarily detected or not
detected at all. Obstacles located above or below the
sensors will not be detected when they are in close
proximity.
• The vehicle must be driven slowly when using
ParkSense in order to be able to stop in time when an
obstacle is detected. It is recommended that the
driver looks over his/her shoulder when using
ParkSense.
PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED
Your vehicle may be equipped with the ParkView Rear
Back Up Camera that allows you to see a image of the rear
surroundings of your vehicle whenever the gear selector is
put into REVERSE or whenever it is initiated through the
Backup Camera button in theControlsmenu. Whenever
the gear selector is put into REVERSE, the image will be
displayed in the rearview mirror display (if equipped) or
286 STARTING AND OPERATING

IN CASE OF EMERGENCY
CONTENTS
HAZARD WARNING FLASHERS ............320
 ASSIST AND SOS MIRROR — IF EQUIPPED . . . .320
 BULB REPLACEMENT ....................325
▫ Replacement Bulbs .....................325
▫ Replacing Exterior Bulbs ..................326
 FUSES ............................... .331
▫ Power Distribution Center ................332
 JACKING AND TIRE CHANGING ...........339
▫ 4500/5500 Models ..................... .339
▫ Preparations For Jacking ..................339
▫ Jacking Instructions 4500 And 5500 Series ......340
▫ To Stow The Flat Or Spare — If Equipped .....344
▫ Hub Caps/Wheel Covers — If Equipped ......344
JUMP STARTING ....................... .345
▫ Preparations For Jump Start ...............346
▫ Jump Starting Procedure ..................347
 IF YOUR ENGINE OVERHEATS .............348
 GEAR SELECTOR OVERRIDE ..............349
 FREEING A STUCK VEHICLE ..............350
 TOWING A DISABLED VEHICLE ............352
▫ Two-Wheel Drive Models .................353
▫ Four-Wheel Drive Models .................353
▫ Emergency Tow Hooks — If Equipped ........354
 ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) .............................. .355
 EVENT DATA RECORDER (EDR) ............355
7
