and ice. Every surface has a different effect on your
vehicle’s steering, handling and traction. Controlling your
vehicle is one of the keys to successful off-road driving, so
always keep a firm grip on the steering wheel and maintain
a good driving posture. Avoid sudden accelerations, turns
or braking. In most cases there are no road signs, posted
speed limits or signal lights. Therefore you will need to use
your own good judgment on what is safe and what isn’t.
When on a trail you should always be looking ahead for
surface obstacles and changes in terrain. The key is to plan
your future driving route while remembering what you are
currently driving over.
CAUTION!
Never park your vehicle over dry grass or other com-
bustible materials. The heat from your vehicle exhaust
system could cause a fire.
WARNING!
Always wear your seat belt and firmly tie down cargo.
Unsecured cargo can become projectiles in an off-road
situation.
When To Use Low Range
When driving off-road, shift into 4LO (Low Range) for
additional traction or to improve handling and control on
slippery or difficult terrain. Due to the lower gearing, low
range will allow the engine to operate in a higher power
range. This will allow you to idle over obstacles and down
hills, with improved control and less effort. Also, use 4LO
(Low Range) in rain, ice, snow, mud, sand, to get heavy
loads rolling, improve traction, or whenever 4HI (High
Range) traction will not do the job.
Driving In Snow, Mud And Sand
There is a drastic reduction in traction when driving in
snow, mud or sand. The vehicle will be less responsive to
steering, acceleration and braking inputs. Therefore you
should accelerate slowly, leave greater stopping distances
and avoid abrupt vehicle maneuvers. You want to keep a
slow constant steady pace. The key is to maintain the
vehicle’s momentum.
•Snow – In heavy snow or for additional control and
traction at slower speeds, shift the transmission to a low
gear and shift the transfer case to 4LO (Low Range) if
necessary. Do not shift to a lower gear than necessary to
maintain headway. Over-revving the engine can spin the
wheels and traction will be lost. If you start to slow to a
364 STARTING AND OPERATING

stop, try turning your steering wheel no more than a ¼
turn quickly back and forth, while still applying throttle.
This will allow the tires to get a freshbiteand help
maintain your momentum.
CAUTION!
On icy or slippery roads, do not downshift at high
engine RPMs or vehicle speeds because engine brak-
ing may cause skidding and loss of control.
• Mud – Deep mud creates a great deal of suction around
the tires and is very difficult to get through. You should
use 4LO (Low Range) with a gear low enough to
maintain your momentum without shifting. If you start
to slow to a stop, try turning your steering wheel no
more than a ¼ turn quickly back and forth for additional
traction. Mud holes pose an increased threat of vehicle
damage and getting stuck. They are normally full of
debris from previous vehicles getting stuck. As a good
practice before entering any mud hole, get out and
determine how deep it is, if there are any hidden
obstacles and if the vehicle can be safely recovered if
stuck. •
Sand – Soft sand is very difficult to travel through with
full tire pressure. When crossing soft sandy spots in a
trail maintain your vehicle’s momentum and do not
stop. The key to driving in soft sand using the appro-
priate tire pressure, accelerating slowly, avoiding abrupt
maneuvers and maintaining the vehicle’s momentum. If
you are going to be driving on large soft sandy areas or
dunes, reduce your tire pressure to a minimum of 15 psi
(103 kPa) to allow for a greater tire surface area. Reduced
tire pressure will drastically improve your traction and
handling, while driving on the soft sand, but you must
return the tires to normal air pressure before driving on
pavement or other hard surfaces. Be sure you have a
way to air the tires back up prior to reducing the
pressure.
CAUTION!
Reduced tire pressures may cause tire unseating and
total loss of air pressure. To reduce the risk of tire
unseating, while at a reduced tire pressure, reduce your
speed and avoid sharp turns or abrupt maneuvers.
6
STARTING AND OPERATING 365

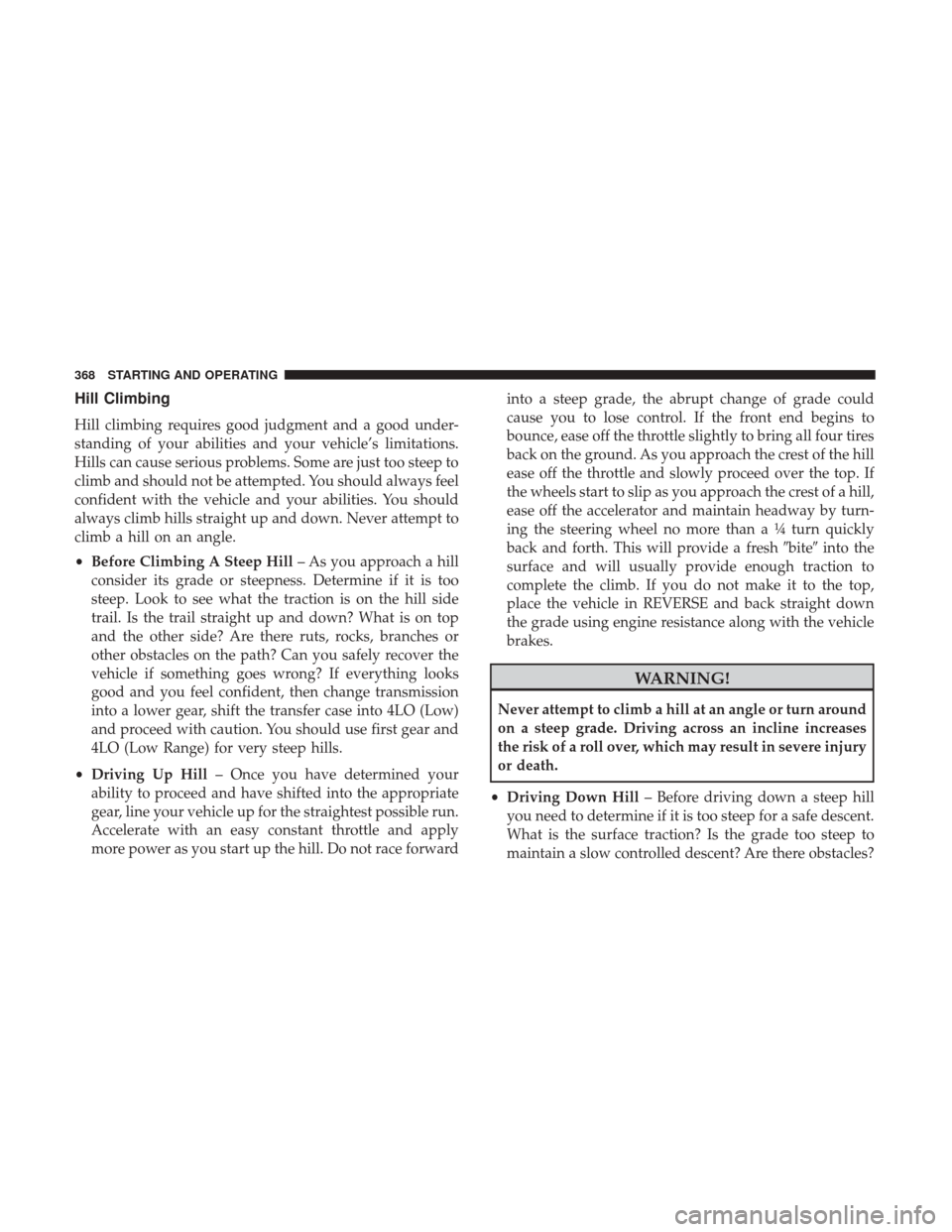

Hill Climbing
Hill climbing requires good judgment and a good under-
standing of your abilities and your vehicle’s limitations.
Hills can cause serious problems. Some are just too steep to
climb and should not be attempted. You should always feel
confident with the vehicle and your abilities. You should
always climb hills straight up and down. Never attempt to
climb a hill on an angle.
•Before Climbing A Steep Hill – As you approach a hill
consider its grade or steepness. Determine if it is too
steep. Look to see what the traction is on the hill side
trail. Is the trail straight up and down? What is on top
and the other side? Are there ruts, rocks, branches or
other obstacles on the path? Can you safely recover the
vehicle if something goes wrong? If everything looks
good and you feel confident, then change transmission
into a lower gear, shift the transfer case into 4LO (Low)
and proceed with caution. You should use first gear and
4LO (Low Range) for very steep hills.
• Driving Up Hill – Once you have determined your
ability to proceed and have shifted into the appropriate
gear, line your vehicle up for the straightest possible run.
Accelerate with an easy constant throttle and apply
more power as you start up the hill. Do not race forward into a steep grade, the abrupt change of grade could
cause you to lose control. If the front end begins to
bounce, ease off the throttle slightly to bring all four tires
back on the ground. As you approach the crest of the hill
ease off the throttle and slowly proceed over the top. If
the wheels start to slip as you approach the crest of a hill,
ease off the accelerator and maintain headway by turn-
ing the steering wheel no more than a ¼ turn quickly
back and forth. This will provide a fresh
biteinto the
surface and will usually provide enough traction to
complete the climb. If you do not make it to the top,
place the vehicle in REVERSE and back straight down
the grade using engine resistance along with the vehicle
brakes.
WARNING!
Never attempt to climb a hill at an angle or turn around
on a steep grade. Driving across an incline increases
the risk of a roll over, which may result in severe injury
or death.
• Driving Down Hill – Before driving down a steep hill
you need to determine if it is too steep for a safe descent.
What is the surface traction? Is the grade too steep to
maintain a slow controlled descent? Are there obstacles?
368 STARTING AND OPERATING

Is it a straight descent? Is there plenty of distance at the
base of the hill to regain control if the vehicle descends
too fast? If you feel confident in your ability to proceed
then make sure you are in 4LO (Low Range) with the
transmission in first gear (manually select first gear on
automatic transmissions) and proceed with caution.
Allow engine braking to control the descent and apply
your brakes if necessary, but do not allow the tires to
lock.
WARNING!
Do not descend a steep grade in NEUTRAL. Use
vehicle brakes in conjunction with engine braking.
Descending a grade too fast could cause you to lose
control and be seriously injured or killed.
• Driving Across An Incline – If at all possible avoid
driving across an incline. If it is necessary, know your
vehicle’s abilities. Driving across an incline places more
weight on the down hill wheels, which increases the
possibilities of a down hill slide or rollover. Make sure
the surface has good traction with firm and stable soils.
If possible transverse the incline at an angle heading
slightly up or down.
WARNING!
Driving across an incline increases the risk of a roll-
over, which may result in severe injury.
• If You Stall Or Begin To Lose Headway – If you stall or
begin to lose headway while climbing a steep hill, allow
your vehicle to come to a stop and immediately apply
the brake. Restart the engine and shift into REVERSE.
Back slowly down the hill allowing the compression
braking of the engine and transmission to help regulate
your speed. If the brakes are required to control vehicle
speed, apply them lightly and avoid locking or skidding
the tires.
WARNING!
If the engine stalls or you lose headway or cannot
make it to the top of a steep hill or grade, never attempt
to turn around. To do so may result in tipping and
rolling the vehicle, which may result in severe injury.
Always back carefully straight down a hill in RE-
VERSE. Never back down a hill in NEUTRAL using
only the vehicle brakes. Never drive diagonally across
a hill, always drive straight up or down.
6
STARTING AND OPERATING 369

water depth, approach angle, and bottom condition.
Murky or muddy water holes are where you want to
hook up tow straps prior to entering. This makes for a
faster, cleaner and easier vehicle recovery. If you are able
to determine you can safely cross, than proceed using
the low and slow method.
CAUTION!
Muddy waters can reduce the cooling system effective-
ness by depositing debris onto the radiator.
• Crossing Ditches, Streams, Shallow Rivers Or Other
Flowing Water – Flowing water can be extremely dan-
gerous. Never attempt to cross a fast running stream or
river even in shallow water. Fast moving water can
easily push your vehicle downstream sweeping it out of
control. Even in very shallow water, a high current can
still wash the dirt out from around your tires putting
you and your vehicle in jeopardy. There is still a high
risk of personal injury and vehicle damage with slower
water currents in depths greater than the vehicle’s
running ground clearance. You should never attempt to
cross flowing water which is deeper than the vehicle’s
running ground clearance. Even the slowest current can
push the heaviest vehicle downstream out of control if the water is deep enough to push on the large surface
area of the vehicle’s body. Before you proceed determine
the speed of the current, the water’s depth, approach
angle, bottom condition and if there are any obstacles,
then cross at an angle heading slightly upstream using
the low and slow technique.
WARNING!
Never drive through fast moving deep water. It can
push your vehicle downstream, sweeping it out of
control. This could put you and your passengers at risk
of injury or drowning.
Airing Down For Off-Road Driving
Running lower tire pressure off-road can improve your
ride comfort and vehicle traction. Reducing the tire air
pressure allows the tire to bulge slightly, improving its
surface area for better flotation and ability to mold or form
to the ground contour. Different terrain, tires, and vehicles
require different tire pressure. Hard surfaces like rock and
heavier vehicles require higher pressures than softer sur-
faces such as sand and lighter vehicles. You will need to
experiment to determine what is right for your situation. It
is easier and faster to let air out than it is to replace it so,
6
STARTING AND OPERATING 371

driving and cornering, the limited-slip unit performs simi-
larly to a conventional differential. On slippery surfaces,
however, the differential delivers more of the driving effort
to the rear wheel having the better traction.
The limited-slip differential is especially helpful during
slippery driving conditions. With both rear wheels on a
slippery surface, a slight application of the accelerator will
supply maximum traction. When starting with only one
rear wheel on an excessively slippery surface, slight mo-
mentary application of the parking brake may be necessary
to gain maximum traction.
WARNING!
On vehicles equipped with a limited-slip differential
never run the engine with one rear wheel off the
ground since the vehicle may drive through the rear
wheel remaining on the ground. You could lose control
of the vehicle.
Care should be taken to avoid sudden accelerations when
both rear wheels are on a slippery surface. This could cause
both rear wheels to spin, and allow the vehicle to slide
sideways on the crowned surface of a road or in a turn.
WINCH USAGE — POWER WAGON ONLY (IF
EQUIPPED)
Things To Know Before Using Your Winch
General Winch Information
Your vehicle is equipped with an electric vehicle recovery
winch. This winch uses the electrical power from the
vehicle charging system to power a motor that winds wire
rope into the winch drum via planetary gear reduction. By
nature, a winch is capable of generating very high forces
and should be used with care. Do not operate the winch
without reading and understanding the complete winch
owner’s manual.
Tensioning The Wire Rope
The winch rope must be properly tensioned before use.
Follow the instructions below to tension the rope:
1. Un-spool the wire rope leaving five wraps of rope on the winch drum.
2. Attach the hook to a suitable anchor point.
376 STARTING AND OPERATING

difference in the surface traction under the rear (driving)
wheels.
WARNING!
Rapid acceleration on slippery surfaces is dangerous.
Unequal traction can cause sudden pulling of the rear
wheels. You could lose control of the vehicle and
possibly have a collision. Accelerate slowly and care-
fully whenever there is likely to be poor traction (ice,
snow, wet, mud, loose sand, etc.).
Driving Through Water
Driving through water more than a few inches/centimeters
deep will require extra caution to ensure safety and pre-
vent damage to your vehicle.
Flowing/Rising Water
WARNING!
Do not drive on or across a road or path where water is
flowing and/or rising (as in storm run-off). Flowing
water can wear away the road or path’s surface and
(Continued)
WARNING!(Continued)
cause your vehicle to sink into deeper water. Further-
more, flowing and/or rising water can carry your ve-
hicle away swiftly. Failure to follow this warning may
result in injuries that are serious or fatal to you, your
passengers, and others around you.
Shallow Standing Water
Although your vehicle is capable of driving through shal-
low standing water, consider the following Cautions and
Warnings before doing so.
WARNING!
•Driving through standing water limits your vehicle’s
traction capabilities. Do not exceed 5 mph (8 km/h)
when driving through standing water.
• Driving through standing water limits your vehicle’s
braking capabilities, which increases stopping dis-
tances. Therefore, after driving through standing
water, drive slowly and lightly press on the brake
pedal several times to dry the brakes.
(Continued)
442 STARTING AND OPERATING

WARNING!(Continued)
•Never use a tire with a smaller load index or capacity,
other than what was originally equipped on your
vehicle. Using a tire with a smaller load index could
result in tire overloading and failure. You could lose
control and have a collision.
• Failure to equip your vehicle with tires having ad-
equate speed capability can result in sudden tire
failure and loss of vehicle control.
CAUTION!
Replacing original tires with tires of a different size may
result in false speedometer and odometer readings.
Tire Types
All Season Tires — If Equipped
All Season tires provide traction for all seasons (Spring,
Summer, Fall, and Winter). Traction levels may vary be-
tween different all season tires. All season tires can be
identified by the M+S, M&S, M/S or MS designation on the
tire sidewall. Use all season tires only in sets of four; failure
to do so may adversely affect the safety and handling of
your vehicle.
Summer Or Three Season Tires — If Equipped
Summer tires provide traction in both wet and dry condi-
tions, and are not intended to be driven in snow or on ice.
If your vehicle is equipped with Summer tires, be aware
these tires are not designed for Winter or cold driving
conditions. Install Winter tires on your vehicle when am-
bient temperatures are less than 40°F (5°C) or if roads are
covered with ice or snow. For more information, contact an
authorized dealer.
Summer tires do not contain the all season designation or
mountain/snowflake symbol on the tire sidewall. Use
Summer tires only in sets of four; failure to do so may
adversely affect the safety and handling of your vehicle.
WARNING!
Do not use Summer tires in snow/ice conditions. You
could lose vehicle control, resulting in severe injury or
death. Driving too fast for conditions also creates the
possibility of loss of vehicle control.
574 SERVICING AND MAINTENANCE
