2018 Peugeot 508 Programmable

3
.
bit.ly/helpPSA
.
Driving recommendations 124
Anti-theft protection 1 25
Starting/Switching off the engine
1

25
Electric parking brake

1
28
Manual gearbox
1

31
Automatic gearbox

1
31
Hill start assist

1
35
Active Suspension Control

1
36
Driving modes

1
36
Gear shift indicator

1
38
Stop & Start

1
38
Tyre under-inflation detection

1
40
Speed Limit recognition and
recommendation
1

42
Speed limiter
1

46
Programmable cruise control
1

48
Memorising speeds

1
51
Drive Assist Plus

1
51
Adaptive cruise control

1
52
Lane Positioning Assist

1
61
Active Safety Brake with Distance Alert
and Intelligent emergency braking
assistance


165
Fatigue detection system

1
69
Active Blind Spot Monitoring System

1
70
Active Lane Keeping Assistance

1
71
Blind Spot Detection

1
74
Parking sensors
1

76
Visiopark 1 – Visiopark 2

1
79
Park Assist

1
84
Full Park Assist

1
88Compatibility of fuels
1 97
Refuelling 1 98
Misfuel prevention (Diesel)
1

99
Towing device

1
99
Towing device with retractable towball

2
00
Load reduction mode

2
01
Energy economy mode
202
S

now chains
2
02
Fitting roof bars

2
03
Bonnet


204
Engine compartment
2

05
Checking levels
20

5
Checks
20

8
Advice on care and maintenance
2

10
AdBlue
® (BlueHDi engines) 2 10
Warning triangle
2
13
Running out of fuel (Diesel)

2
13
Tool kit

2
14
Temporary puncture repair kit
2

16
Spare wheel

2
19
Changing a bulb
2

23
Changing a fuse
2

27
12 V battery

2
33
Towing the vehicle

2
36Engine technical data and towed loads

2
38
Engines and towed loads – Petrol
2
39
Engines and towed loads – Diesel
2
40
Dimensions
2
42
Identification markings
2
43
Driving
Practical information
In the event of a breakdown Technical data
Alphabetical index
Access to additional videos
Audio equipment and telematics
PEUGEOT Connect Radio
PEUGEOT Connect Nav
.
Contents

5
Steering mounted controls
1.External lighting/direction indicator control
stalk
2. Automatic gearbox control paddles
3. Wiper/screenwash/trip computer controls
4. Audio system adjustment controls
5. Instrument panel display mode selection
wheel
6. Voice synthesis control
Volume adjustment
7. Controls for Speed limiter/Cruise control/
Adaptive cruise control
Side switch panel
1.Halogen headlamp beam height
adjustment
2. Hands-free tailgate
3. Active Lane Keeping Assistance
4. Lane Positioning Assist
5. Alarm
6. Programmable Heating/Ventilation
7. Heated windscreen
Centre switch panel
1.8" (PEUGEOT Connect Radio) or 10" HD
(PEUGEOT Connect Nav) touch screen
controls
i- Cockpit® Amplify function
2. Heated seats
3. Stop & Start
4. Windscreen and front windows demist
5. Recirculation of interior air
6. Rear screen defrost
7. Automatic air conditioning
.
Over view

31
Driving/Vehicle menu
"Driving functions" tab
FunctionComments
"Park Assist" Activation of the Park Assist function.
"Automatic headlamp dipping" Activation/deactivation of the function.
"Visual parking assistance" Activation of the Visiopark 2 function.
"Parking sensors" Activation/deactivation of the function.
"Traction control" Activation/deactivation of the function.
"Under-inflation detection reset" Reinitialisation of the under-inflation detection system.
"Night vision" Activation/deactivation of the function.
"Check/Diagnostics" Reminder of the due date, the engine oil level, the
AdBlue range and the inflation status of the tyres.
Summary of current alerts.
"Speed settings" Activation/deactivation of the function.
Selection and modification of speed thresholds for the
programmable speed limiter and cruise control only. For more information on one of these
functions, refer to the corresponding
section.
1
Instruments

74

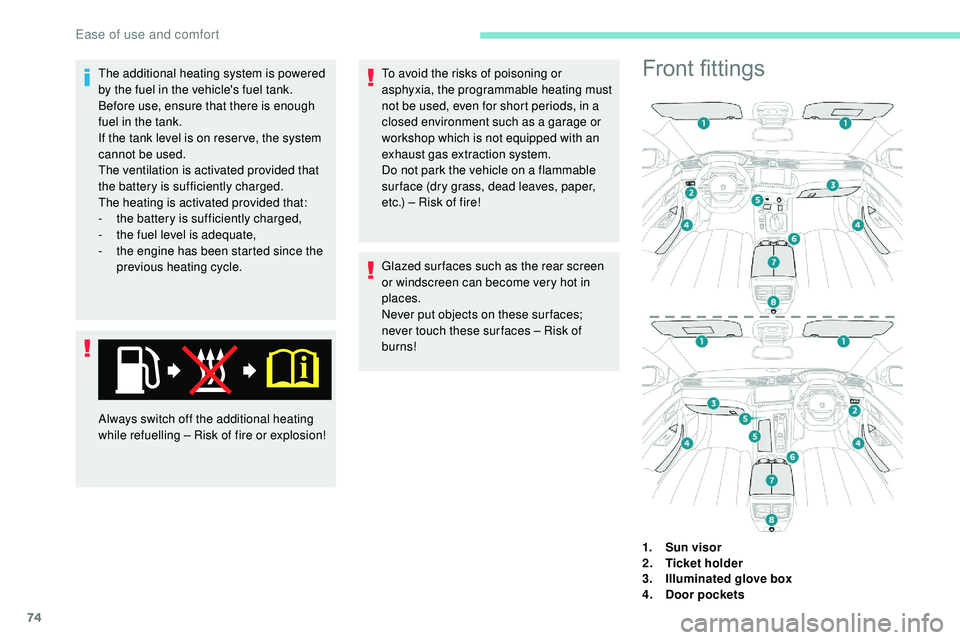

The additional heating system is powered
by the fuel in the vehicle's fuel tank.
Before use, ensure that there is enough
fuel in the tank.
If the tank level is on reser ve, the system
cannot be used.
The ventilation is activated provided that
the battery is sufficiently charged.
The heating is activated provided that:
-
t
he battery is sufficiently charged,
-

t
he fuel level is adequate,
-

t
he engine has been started since the
previous heating cycle.
Always switch off the additional heating
while refuelling – Risk of fire or explosion! To avoid the risks of poisoning or
asphyxia, the programmable heating must
not be used, even for short periods, in a
closed environment such as a garage or
workshop which is not equipped with an
exhaust gas extraction system.
Do not park the vehicle on a flammable
sur face (dry grass, dead leaves, paper,
etc.) – Risk of fire!
Glazed sur faces such as the rear screen
or windscreen can become very hot in
places.
Never put objects on these sur faces;
never touch these sur faces – Risk of
burns!Front fittings
1.
Sun visor
2. Ticket holder
3. Illuminated glove box
4. Door pockets
Ease of use and comfort

146
This function is a driving aid that cannot,
in any circumstances, replace the driver’s
own vigilance nor compliance with the
highway code.
The actual signs always take priority over
the display by the system.
The signs must comply with the Vienna
Convention on road signs.
Speed limiter
This system prevents the vehicle
from exceeding the speed
programmed by the driver.
The speed limiter is switched on manually.
The minimum programmed speed is 19 mph
(30 km/h).
The programmed speed value remains in
the

system memory when the ignition is
switched off.
The speed limiter is a driving aid that
cannot, in any circumstances, replace the
need to obser ve speed limits or the need
for vigilance on the part of the driver.
Steering mounted control
For more information on Memorising
speeds or Speed Limit recognition and
recommendation , refer to the corresponding
sections.
Displays in the instrument
panel
6. Speed limiter On/Off indication.
7. Speed limiter mode selection indication.
8. Programmed speed value.
9. Speed suggested by the Speed Limit
recognition and recommendation system
(depending on version).
1. Select speed limiter mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Speed limiter On/Pause.
5. Depending on version:
Display of speed thresholds in the memory
with the programmable speed limiter
or
Use the speed suggested by the Speed
Limit recognition and recommendation.
Switching on/pausing
F Turn thumbwheel 1 to the " LIMIT" position
to select the speed limiter; the function is
paused.
F

I
f the speed setting is suitable (last speed
setting programmed in the system), press
button 4 to switch the speed limiter on.
Activation/Deactivation
The activation and deactivation is
done in the Driving /Vehicle menu
of the touch screen.
Driving

148
The use of mats not approved by
PEUGEOT may inter fere with the
operation of the speed limiter.
To avoid any risk of jamming of the pedals:
-
e
nsure that the mat is positioned
c o r r e c t l y,
-

n
ever fit one mat on top of another.
Programmable cruise
control
System which automatically
maintains the cruising speed of the
vehicle at a setting programmed by
the driver, without any action on the
accelerator pedal. The cruise control remains active after
changing gear, regardless of the gearbox
type, on vehicles fitted with Stop & Start.
The operation of the cruise control can be
temporarily interrupted (pause):
-
b
y pressing control 4 or by pressing the
brake pedal,
-
a
utomatically, if operation of the dynamic
stability control system is triggered.
Switching off the ignition cancels any
programmed speed setting.
The cruise control system is a driving aid
that cannot, in any circumstances, replace
the need to obser ve speed limits, nor the
need for vigilance on the part of the driver.
As a safety measure, you are advised to
keep your feet near the pedals at all times.
With a manual gearbox, it requires the
engagement of third gear or higher.
With an automatic gearbox, it requires the
engagement of the selector in mode D or of
second gear or higher in mode M
.
Steering mounted control
For more information on Memorising
speeds or on Speed Limit recognition and
recommendation , refer to the corresponding
sections. 1. Select cruise control mode.
2. Use the current speed as the speed
setting/Lower the speed setting.
3. Use the current speed as the speed
setting/Raise the speed setting.
4. Pause/Resume cruise control.
5. Depending on the version:
Display of speed thresholds in the memory
with the programmable cruise control
or
Use the speed suggested by the Speed
Limit recognition and recommendation.
Malfunction
Flashing dashes indicate a fault with the speed
limiter.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
The cruise control is switched on manually.
It requires a minimum vehicle speed of 25 mph
(40


km/h).
Driving

151
Memorising speeds
Linked to the speed limiter and programmable
cruise control, this function allows speed limits
to be registered which will then be suggested
as settings for these two systems.
You can memorise several speed settings for
each system.
By default, some speed settings are already
memorised.As a safety measure, the driver must
only modify the speed settings when
stationary.
Changing a speed setting
From the Driving/Vehicle menu of
the touch screen, select " Driving
functions ", then "Memorised speed
settings ".
"MEM" button
For more information on the Speed limiter or
Cruise control , refer to the associated section.
With this button, you can select a memorised
speed setting to use with the speed limiter or
the programmable cruise control.
Drive Assist Plus
This system provides active assistance in
keeping the vehicle in position in its lane.
It results from the combination of the Adaptive
cruise control with Stop & Go function and the
Lane Positioning Assist.
These two functions must be activated and in
operation.
These functions are especially suitable for
driving on motor ways and main roads. For more information on the
Adaptive cruise
control and the Lane Positioning Assist ,
refer to the corresponding sections.
This system is a driving aid that cannot,
under any circumstances, replace driver
vigilance and respect of the speed limits
and safety distances.
The system assists the driver by operating
the steering, acceleration and braking
within the limits of the laws of physics
and vehicle per formance. Some road
infrastructure elements or vehicles present
on the road may not be properly detected
or interpreted by the camera and radar,
which may lead to an unexpected change
in direction, a lack of steering correction
and/or inappropriate management of the
acceleration or braking.
6
Driving

246
D
DAB (Digital Audio Broadcasting) – Digital radio ............................................... 8, 24
Date (setting)


....................................... 34, 17, 32
Deactivating the passenger airbag
10

6 -107, 112
Deadlocking


.............................................. 36, 39
Defrosting


................................................... 70 -71
Defrosting, front


.............................................. 70
Demisting


........................................................ 70
Demisting, front
............................................... 70
D

emisting, rear

................................................ 71
Demisting, rear screen


...................................71
Dials and gauges
...............................

...............8
Dimensions
..............................

.....................242
Dipstick
................

............................24, 206-207
Display screen, instrument panel


.................13 8
Distance Alert


.................................. 18, 165 -167
Door pockets
...............................

....................74
Doors


............................................................... 46
Doors, rear
.................................................... 123
Drive Assist Plus
........................................... 151
Driver’s attention warning


.............................169
Driving


....................................................... 56-57
Driving modes


............................................... 13 6
Driving positions (storing)


...............................59
Dynamic stability control (DSC)


......18, 10 0 -102
E
ECO mode ..................................................... 13 6
Economy mode ............................................. 2
02
Electronic brake force distribution (EBFD)


................................................. 10 0 -101
Emergency braking assistance (EBA)


...10 0 -101
Emergency call


....................................... 9 9 -10 0
Emergency switching off


...............................127
Emissions control system, SCR
...................210
Energy economy mode
................................. 2

02
Engine compartment
.................................... 20

5
Engine, Diesel


..................14, 197, 205, 240 -241
H
Hands-free access .......................................... 50
Hands-free tailgate ................................... 48, 50
Hazard warning lamps


....................................98
Headlamps, automatic dipping


.......................22
Headlamps, dipped beam


...............................22
Headlamps, main beam


..................................22
Head restraints, front
...................................... 57
Head restraints, rear
.................................63-64
Heating
................................................. 6

5, 71-73
Heating, additional


..................................... 71-73
Heating, programmable


.............................71-73
Hi-Fi system

.................................................... 76
H

ill start assist ........................................ 13 5 -13 6
Horn ................................................................. 99
I
i-Cockpit® amplify function ................60, 64- 65
Ignition ................ ..................................... 1 2 7, 2 9
Ignition on ...................................................... 127
Immobiliser, electronic


..................................125
Indicator, AdBlue® range
.........................24-25
Indicator, coolant temperature


........................24
Indicator, engine oil level
..........................24, 26
Inflating tyres


................................................ 209
Instrument panel


................................ 8 -9, 26 -28
Internet browser
.............................................. 21
I

SOFIX

.......................................................... 11 9
ISOFIX mountings ......................................... 11 8
J
Jack .................................................................25
Engine, petrol ............................... .197, 205, 239
Engines ................................................. 2 3 8 - 2 41
Environment


.............................................. 40, 73
ESC (electronic stability control)

..................10

0
Extended traffic sign recognition


...........145 -14 6
F
Fatigue detection .......................................... 169
Filling the AdBlue® tank ................................ 2 11
Filling the fuel tank ................................. 197-19 9
Filter, air


........................................................ 208
Filter, oil
................

......................................... 208
Filter, particle


......................................... 207-208
Filter, passenger compartment


..............66, 208
Fitting roof bars


..................................... 203-204
Fittings, boot


................................................... 81
Fittings, interior
.......................................... 74

-75
Fittings, rear


.................................................... 80
Flap, fuel filler


........................................ 198 -19 9
Foglamps, rear
................................................ 21
F

olding the rear seats

............................... 63-64
Frequency (radio)


...................................... 23 -24
Fuel ................................................................ 197
Fuel tank ................................................ 198 -19 9
Full Park Assist

............................................. 188
G
Gauge, fuel.................................................... 198
Gearbox, automatic ........131-13 6, 13 8 -13 9, 20 9
Gearbox, manual


...131, 13 5 -13 6, 13 8 -13 9, 20 9
Gear lever, automatic gearbox


.............131, 13 3
Gear lever, manual gearbox


.........................131
Gear shift indicator


....................................... 13 8
Glove box
........................................................ 75
G . P. S .


.............................................................. 14
Grab handles


............................................ 5 7, 74
Alphabetical index
