122
General safety
recommendations
Labels are attached in different places on
your vehicle. They include safety warnings
as well as identification information for
your vehicle. Do not remove them: they
are an integral part of your vehicle.
For any work on your vehicle, use
a qualified workshop that has the technical
information, skills and equipment required,
all of which a
PEUGEOT dealer is able to
provide. We draw your attention to the following
points:
-
T
he fitting of electrical equipment
or accessories not approved by
PEUGEOT may cause excessive
current consumption and faults and
failures with the electrical system of
your vehicle. Contact a
PEUGEOT
dealer for information on the range of
recommended accessories.
-
A
s a safety measure, access to
the diagnostic socket, used for the
vehicle's electronic systems, is
reser ved strictly for PEUGEOT dealers
or qualified workshops, equipped
with the special tools required (risk
of malfunctions of the vehicle's
electronic systems that could cause
breakdowns or serious accidents).
The manufacturer cannot be held
responsible if this advice is not
followed.
-
A
ny modification or adaptation not
intended or authorised by PEUGEOT
or carried out without meeting the
technical requirements defined by
the manufacturer will result in the
suspension of the legal and contractual
warranties. Installation of accessory radio
communication transmitters
Before installing a
radio communication
transmitter, you must contact a PEUGEOT
dealer for the specification of transmitters
which can be fitted (frequency, maximum
power, aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).
Depending on country regulations, some
safety equipment may be compulsory:
high visibility safety vests, warning
triangles, breathalysers, spare bulbs,
spare fuses, fire extinguisher, first aid kit,
mud flaps at the rear of the vehicle, etc.
Safety
189
70
70
70
70

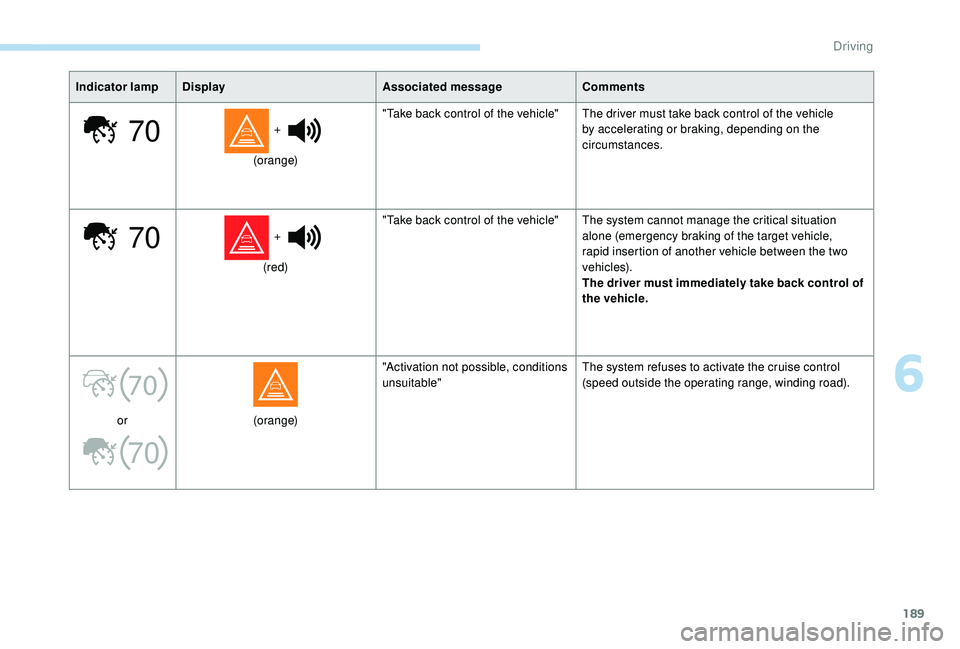

Indicator lampDisplay Associated messageComments
+
(orange) "Take back control of the vehicle" The driver must take back control of the vehicle
by accelerating or braking, depending on the
circumstances.
+
(red) "Take back control of the vehicle" The system cannot manage the critical situation
alone (emergency braking of the target vehicle,
rapid insertion of another vehicle between the two
vehicles).
The driver must immediately take back control of
the vehicle.
or (orange)"Activation not possible, conditions
unsuitable"
The system refuses to activate the cruise control
(speed outside the operating range, winding road).
6
Driving
231
Opening
F Open the left-hand front door.
F
P
ull the release lever, located at the bottom
of the door aperture, towards you.
F
L
ift the safety catch and raise the bonnet. F
U nclip the stay from its housing and place it
in the support slot to hold the bonnet open.
Closing
F Take the stay out of the support slot.
F C lip the stay in its housing.
F
L
ower the bonnet and release it near the
end of its travel.
F
P
ull on the bonnet to check that it is fully
latched.
Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing, etc.) be limited.
Engine compartment
This engine example is given for illustration
purposes only.
The positions of the following elements may
change:
-
A
ir filter.
-
E
ngine oil dipstick.
-
E
ngine oil filler cap.
-
P
riming pump.
-
D
egassing screw.
1. Screenwash fluid tank.
2. Coolant tank.
3. Brake fluid tank.
4. Battery/Fuses.
5. Remote earth point (-).
6. Fusebox.
7. A i r f i l t e r.
8. Engine oil dipstick.
9. Engine oil filler cap.
10. Priming pump*.
11. Degassing screw*.
The Diesel fuel system operates under
very high pressure.
All work on this circuit must be carried out
only by a
PEUGEOT dealer or a qualified
workshop.
*
D
epending on engine.
7
Practical information
258
To work on a fuse, you must:
F u se the special tweezers to extract the fuse
from its housing and check the condition of
its filament,
F
a
lways replace the defective fuse with
a
fuse of the same rating (same colour);
using a
different rating could cause
a
malfunction (risk of fire).
If the fault recurs after replacing a
fuse, have
the electrical system checked by a
PEUGEOT
dealer or a
qualified workshop.
The fuse allocation tables and the
corresponding diagrams are available
from a
PEUGEOT dealer or a qualified
workshop.
The replacement of a
fuse not shown
in the allocation tables may cause
a
serious malfunction of your vehicle.
Contact a
PEUGEOT dealer or a qualified
workshop. Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your vehicle,
contact a
PEUGEOT dealer or a qualified
workshop. PEUGEOT will not accept responsibility for
the cost incurred in repairing your vehicle
or for rectifying malfunctions resulting
from the installation of accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10
milliamperes.
Fuses in the dashboard
The fusebox is placed in the lower dashboard
(left-hand side).
To access the fuses, follow the same procedure
as that described for accessing the tool kit for
changing fuses.
For more information on Access to tools,
refer to the corresponding section.
Good
Faulty
Tw e e z e r s
In the event of a breakdown
261
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery.
Access to the fusesVersion 1 (Full)
Fuse N°
Rating (A) Functions
F14 15
AScreenwash pump.
F15 5
APower steering.
F20 25
AScreenwash pump.
F22 15
AHorn.
F23 15
ARight-hand main beam headlamp.
F24 15
ALeft-hand main beam headlamp.
Fuse N° Rating (A) Functions
F8 30
ADiesel emissions control system (AdBlue)
F12 15
AAutomatic gearbox.
F14 5
AAutomatic gearbox.
Version 2 (Eco)
Fuse N° Rating (A) Functions
F16 25
AFront foglamps.
F18 10
ARight-hand main beam headlamp.
F19 10
ALeft-hand main beam headlamp.
F
R
elease the two latches A
.
F
R
emove the cover.
F
C
hange the fuse.
F
W
hen you have finished, close the cover
carefully then engage the two latches A , to
ensure correct sealing of the fusebox. Box 1
Box 2
8
In the event of a breakdown
276
HHands-free access .......................................... 61
Hands-free tailgate ................................... 60-62
Hazard warning lamps
..........................123, 24 0
Headlamp adjustment
...................................114
Headlamps, automatic dipping
........2 6 , 11 6 -11 8
Headlamps, automatic illumination
...................111, 114 -115
Headlamps, dipped beam
..........25 -26, 252-254
Headlamps, halogen
......................114, 252-253
Headlamps, main beam
..................26, 252-254
Head restraints, front
...................................... 71
Head restraints, rear
.................................76, 81
Heating
.......................................... 8
4, 86 - 88, 92
Heating, additional
.......................................... 94
Heating, programmable
..................................94
Hi-Fi system
.................................................. 10
1
Hill Assist Descent Control (H A DC)
.......................................... 24, 12 9 -13 0
Hill start assist
........................................ 16 9 -170
Horn ............................................................... 123
Fusebox, engine compartment
.....................
261
Fuses
............................................. 25
7-258, 261
Cruise control, adaptive with
Stop function
.................
178, 184-187, 191-192
Cup holder
.......................................................
99
Customisation
...................................................
9Economy mode
.............................................
2
27
Electronic brake force distribution (EBFD)
...
125
Electronic stability control (ESC)
..................
12
5
Emergency braking assistance (EBA)
..........
125
Emergency call
......................................
123 -124
Emergency switching off
........................
160 -161
Emissions control system, SCR
...................
237
Energy economy mode
................................. 2
27
Engine compartment
............................. 23
1-232
Engine, Diesel
.......
222, 231-232, 240, 269, 271
Engine oil pressure
.........................................
12
Engine, petrol
............................... 2
22, 232, 268
Engines
..........................................
267-269, 271
Environment
....................................................
52
E
D
DAB (Digital Audio
Broadcasting) – Digital radio ............22, 8, 6 -7
Date (setting)
................................. 38 - 40, 31, 18
Daytime running lamps
..................112, 252-253
Deactivating the passenger airbag ...134 -13 5, 13 9
Deadlocking
.............................................. 4 7, 5 0
Defrosting
........................................................ 93
Defrosting, front
.............................................. 93
Demisting
........................................................ 93
Demisting, front
............................................... 93
D
emisting, rear
................................................ 94
Dials and gauges
...............................
............... 8
Dimensions
..............................
..................... 272
Dipstick
................
............................ 31, 233-234
Direction indicators
................................ 2 5 , 113 ,
25
2-253, 255-256
Display screen, instrument panel
.......... 170 -171
Distance Alert ~ Collision Risk Alert
.....19
2-193
Door pockets
...............................
.................... 99
Doors
............................................................... 58
Doors, rear
............................................. 15 3 -15 4
Driver's attention warning
............................. 19
7
Driving
....................................................... 68-69
Driving abroad ............................................... 112
Driving positions (storing)
.......................... 72-73
Driving time warning
..................................... 19 6
Dynamic pack
............................................... 17
0
Dynamic stability control (DSC)
............. 125 -12 9
F
G
Fatigue detection ................................... 19 6 -197
Filling the AdBlue® tank ................................ 238
Filling the fuel tank ................................ 220-222
Filter, air
........................................................ 235
Filter, oil
................
......................................... 235
Filter, particle
........................................ 234-235
Filter, passenger compartment
..................... 235
Fitting a
wheel
....................................... 24 9 - 2 51
Fitting roof bars
..................................... 229-230
Fittings, boot
................................................. 108
Fittings, interior
....................................... 9
9 -10 0
Fittings, rear
.................................................. 10 6
Flap, fuel filler
........................................ 220-221
Floor, concertina
............................................. 80
Foglamps
...................................................... 111
Foglamps, front
................ 25, 112, 118, 252-254
Foglamps, rear
...................................... 11
2 , 2 5 6
Folding the rear seats
............................... 76 -78
Frequency (radio)
....................................... 21-22
Fuel ................................................................ 222
Fuel tank ................................................ 220-221Gauge, fuel
.................................................... 220
Gearbox, automatic
..............
165 -173, 236, 263
Gearbox, manual
...........
16 4 -165, 169 -173, 236
Gear lever, automatic gearbox
.............
165 -169
Gear lever, manual gearbox
.................
16 4 -165
Gear shift indicator ~ Gear efficiency indicator
..............................
170 -171
Glove box ......................................................
10 0
GPS.
................
................................................
12
Grab handles
..................................................
99
Alphabetical index
278
SSafety, children .....................13 4 -13 5, 13 8 -13 9,
142, 14 4, 14 6 -148, 15 0
Saturation of the particle filter (Diesel)
.........235
Scented air freshener
...........................103 -104
Screen menu map
........................................... 12
Screen, monochrome
...............................38-40
Screen, multifunction (with audio system)
........4
Screens, very cold conditions
.....................2
28
Screenwash, front
......................................... 120
Screenwash, rear
................................... 11 9 -12 0
SCR (Selective Catalytic Reduction)
............237
Seat belts
....................................... 13 0 -13 3, 142
Seat belts, rear
.............................................. 131
Seats, additional
....................................... 79
-82
Seats, electric
............................................ 72-73
Seats, front
...............................
............69, 72-73
Seats, heated
.................................................. 73
Seats, rear
................................................. 76 - 82
Selector, gear
........................................ 165 -169
Serial number, vehicle
..................................273
RRadio ......................................... 21, 24, 6, 9, 4-5
Radio, digital (Digital Audio Broadcasting – DAB)
............................22, 8, 6
Range, AdBlue
.......................................... 32-34
RDS
................
........................................ 21-22, 7
Rear air blower
...............................
.................92
Rear screen, demisting
...................................94
Recharging the battery
.........................263-264
Reduction of electrical load
..........................227
Regeneration of the particle filter
.................235
Reinitialisation of the under- inflation detection system
...........................175
Reinitialising the remote control
..................... 54
R
eminder, key in ignition
...............................15
8
Remote control
......................... 46 - 47, 49 -50, 52
Removing a
wheel ................................ 24 9 - 2 51 Service indicator
.......................................
29, 35
Servicing
......................................................... 29
S
ettings, equipment
............................
38 - 42, 44
Settings, system
........................................
30, 16
Sidelamps
....................... 1
12-113, 252-253, 255
Side repeater
................................................
254
Snow chains
..................................
174, 228-229
Snow screen
.................................................
228
Socket, 12 V accessory ................
10 0, 107, 110
Socket, 230 V
...............................
.................
10 6
Socket, auxiliary
...................................... 2
3, 9, 8
Socket, Jack
............................................
23, 9, 8
Speakers
.......................................................
101
Speed limiter
........................... 17
5 -176 , 178 -181
Speed limit recognition
.......................... 17
6 -17 7
Speedometer
....................................................
8
Stability control (ESC).................... 125, 127-12 9
Starting a
Diesel engine
...............................
222
S
tarting the engine
.......................................
15
6
Starting the vehicle
.......... 2
7, 15 5 -15 9, 16 5 -16 9
Starting using another battery
.......
160 -161, 262
Station, radio
...............................
......
21-22, 6, 4
Stay, bonnet
..........................................
230-231
Steering mounted controls, audio
........ 3
, 3, 2-3
Steering wheel, adjustment ............................ 74
S topping the vehicle ........27, 15 5 -15 9, 16 5 -16 9
Stop & Start
............................23 -24, 38, 86, 93,
171-173, 220, 230, 235, 265
Storage
.....................................99 -10 0, 102-103
Storage boxes
...............................................108
Storage compartments
...................................99
Storing driving positions
............................ 7
2-73
Sunroof, panoramic
........................................ 64
S
un visor
...............................
..........................99
Switching off the engine
...............................15 6
Synchronising the remote control
...................54
Parking brake
........................................
236-237
Parking brake, electric
............... 1
4, 27, 161-16 4
Parking sensors, audible and visual
.............
205
Parking sensors, front
...................................
206
Parking sensors, rear .................................... 205
PEUGEOT Connect Nav ...................................
1
PEUGEOT Connect Radio
...............................
1
P
lates, identification
...................................... 273
Player, Apple
® ..................................... 2 4, 10, 10
Player, MP3
CD ............................... ............23, 9
Player, USB
..................................... 100, 23, 9, 7
Port, USB
................................. 100 -101, 23, 9, 7
Pre-heater, Diesel
........................................... 23
Pressures, tyres
.................................... 236, 246
Pre-tensioning seat belts
.............................. 13 3
Priming the fuel system
........................ 240 -241
Profiles
...................................................... 30, 16
Protecting children
................ 13 4 -13 5, 13 8 -13 9,
142, 14 4, 14 6 -148, 15 0
Puncture
................................................ 243, 245Removing the mat
.........................................
104
Replacing bulbs
............................ 25
2, 255-256
Replacing fuses
.....................................
257-258
Replacing the air filter
................................... 23
5
Replacing the oil filter
................................... 23
5
Replacing the passenger compartment filter
......................................
235
Reservoir, screenwash .................................
234
Resetting the service indicator .......................31
Resetting the trip recorder
........................35-36
Reset trip
.........................................................37
Rev counter
.......................................................8
Reversing camera
...............................
..........209
Reversing lamps
..............................
.....255-256
Roof bars
...............................................229-230
Running out of fuel (Diesel)
..................240 -241
Alphabetical index
279
V
W
U
Ventilation ........................................... 84- 88, 92
Very cold climate screen (snow shield) ........228
Visibility
...............
............................................ 93
Vision, 180° for ward
..................................... 210
Visiopark
....................................................... 2
07
Visiopark 1 - Visiopark 2
...............................210
Voice commands
......................................... 5 -10
Warning and indicator lamps
.......................... 11
W
arning lamp, braking system
..................14 -15
Warning lamp, Diesel engine pre-heater
.......23
Warning lamp, driver's seat belt not fastened
...............................
..........132
Warning lamps
.................................... 11, 14, 35
Warning lamp, seat belts
..............................132
Warning lamp, Service ....................................16
Weights
...............
...........................267-269, 271
Welcome lighting ..................................... 4 8 , 11 6
Wheel, spare
.................. 2
36, 241-243, 246 -249
Window controls
............................................. 63
Windscreen, heated
.................................. 93-94
Wiper blades (changing)
.......................120, 257
Wiper, rear .............................................. 11 9 -12 0
Wipers
............................................. 24, 119, 121
Wipers, automatic rain sensitive
...........11 9 , 12 1
Under-inflation (detection)
............................
174
Unlocking
..................................................
46, 49
Unlocking from the inside ...............................
55
Unlocking the boot
...............................
.....
48-49
Unlocking the doors
........................................ 60
U
nlocking the tailgate
...............................
4
8-49
Updating the date
...................................... 3
1, 18
Updating the time
...............................
.......
31, 17
USB
...................................................
23 -24, 9, 7
Table position
.............................................
70 -71
Tables, aircraft
..............................................
107
Tables of fuses
..............................................
261
Tailgate
................
............................................
59
Ta n k , f u e l
...............................................
220-221
Technical data
............................... 26
8-269, 271
Telephone
...... 10
1-102, 25 -29, 13 -16, 10 -11, 13
Telephone, Bluetooth with voice recognition
................................... 14
T
emperature, coolant
......................................
32
Third brake lamp
...........................................
256
Three flashes (direction indicators) .............. 11
3
Ticket holder
...................................................
99
Time (setting)
................................ 38 - 40, 31, 17
TMC (Traffic info)
............................................ 13
T
o o l s
....................................... 241-243, 246 -248
Total distance recorder
............................. 35-36
Touch screen ......................................... 101, 1, 1
Touch screen ~ Touch screen tablet
................................................. 40, 42, 44
Towball, quickly detachable
.................. 224-227
To w b a r
...............................
..... 127, 15 5 -15 6, 2 23
Towed loads
................................... 267-269, 271
Towing another vehicle
......................... 265-266
Traction control (ASR)
........................... 125 -12 9
Traffic information (TA)
..................................... 5
Traffic information (TMC)
................................ 13
Tr a i l e r
...............
...................... 127, 15 5 -15 6, 2 23
Trailer stability assist (TSA)
.......................... 12
7
Trajectory control systems
............................ 12
5
Triangle, warning ........................................... 240
Trip computer
............................................. 37- 3 8
Trip distance recorder
............................... 35
-36
Ty r e s
.............................................................. 236
Tyre under-inflation detection
......... 18, 174, 246
T
.
Alphabetical index
