2018 NISSAN VERSA SEDAN turn signal bulb

1. Engine hood (P. 3-10)
2. Windshield (P. 8-16)
3. Wiper and washer switch (P. 2-21)
4. Power windows (if so equipped)
(P. 2-30)
5. Door locks (P. 3-3)
Key fob (if so equipped) (P. 3-6)
Keys (P. 3-2)
6. Mirrors (P. 3-17)
7. Tire pressure (P. 8-28)
Flat tire (P. 6-2)
Tire chains (P. 8-28)
8. Headlight and turn signal switch
(P. 2-22)
Replacing bulbs (P. 8-22)
9. Fog light switch (if so equipped)
(P. 2-22)
Refer to the page number indicated in
parentheses for operating details.
LII2461
EXTERIOR FRONT
Illustrated table of contents0-3

EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W) Bulb No.
Headlight assembly
High/Low (Halogen) 60/55 HB2
Turn/Position 28/8 3457A
Side marker 5 W5W
Fog light (if so equipped) 55 H11
Room light 8 —
Map light (if so equipped) 5 W5W
Trunk compartment light 3.4 158
High-mounted stop light*
Inside (if so equipped) 16 W16W
Spoiler (if so equipped) — —
Rear combination light*
Turn signal light 21 PY21W
Stop/Tail 21/5 P21/5W
Backup (reversing) 21 P21W
License plate light* 5 W5W
Always check with the Parts Department at a NISSAN dealer for the latest parts informa-
tion.
* It is recommended that you visit a NISSAN dealer for replacement.
8-24Do-it-yourself

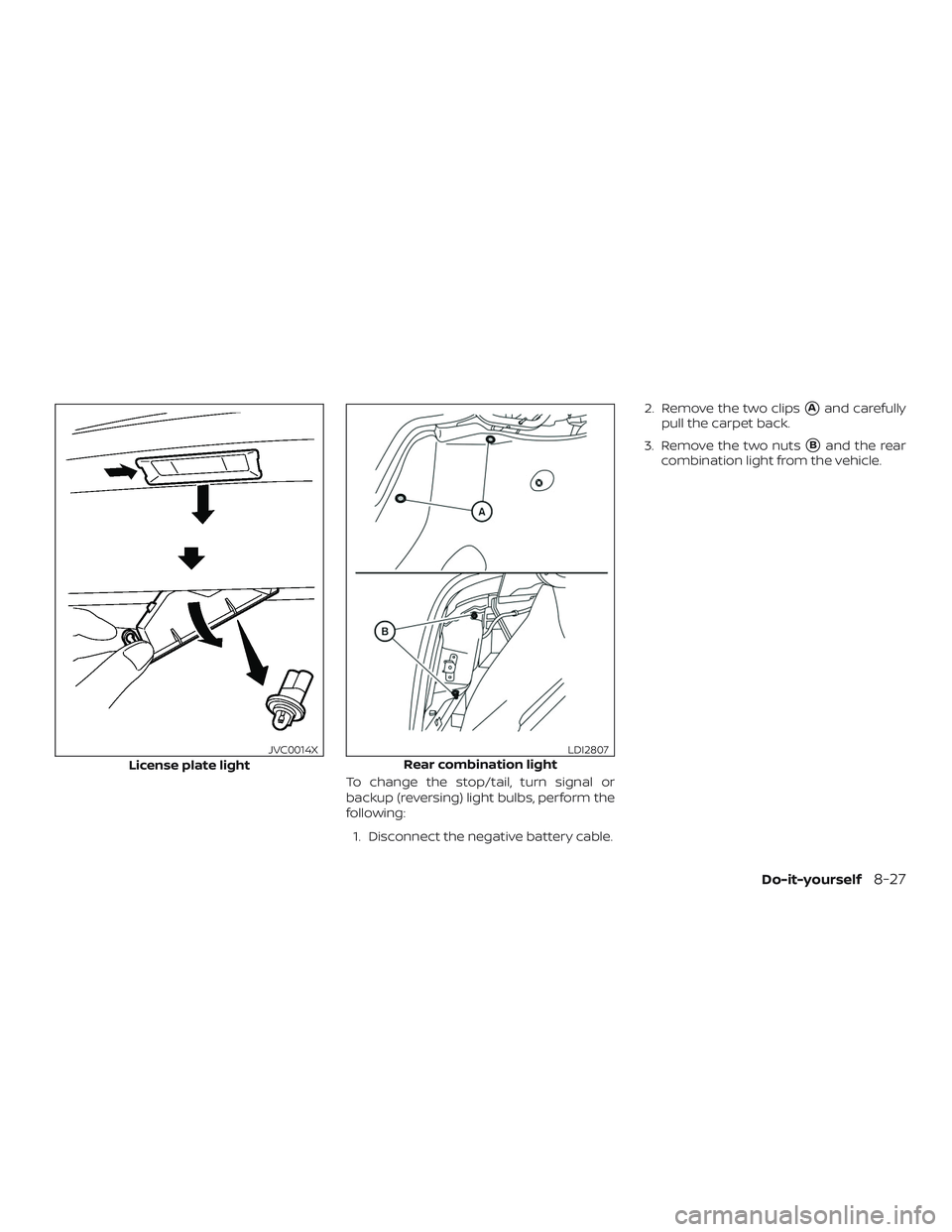

To change the stop/tail, turn signal or
backup (reversing) light bulbs, perform the
following:
1. Disconnect the negative battery cable.2. Remove the two clips
Aand carefully
pull the carpet back.
3. Remove the two nuts
Band the rear
combination light from the vehicle.
License plate light
JVC0014XRear combination lightLDI2807
Do-it-yourself8-27

Brakelight(Seestoplight)........8-24
Bulb check/instrument panel......2-13
Bulb replacement.............8-24
Charge warning light...........2-14
ExteriorandInteriorlights........8-24
Foglights..................8-23
Foglightswitch..............2-25
Headlight and turn signal switch....2-22
Headlightcontrolswitch.........2-22
Headlights .................8-22
Interiorlight .............2-32,2-33
Lightbulbs.................8-22
Low tire pressure warning light.....2-15
Passenger air bag and status light . . .1-51
Warning/indicator lights and audible
reminders..................2-18
Lights ......................8-22
Lock
Child safety rear door lock........3-6
Door locks................3-3,3-4
Fuel-filler door lock opener lever....3-13
Power door locks..............3-5
Trunk lid lock opener lever........3-12
Loose fuel cap warning............2-7
Lowfuelwarninglight ............2-15
Low tire pressure warning light.......2-15
Luggage
(See vehicle loading information).....10-13
M
Maintenance
General maintenance...........9-2
Insidethevehicle..............9-3
Maintenance precautions.........8-2Outsidethevehicle.............9-2
Seat belt maintenance..........1-17
Under the hood and vehicle.......9-4
Maintenance log................9-13
Maintenance requirements..........9-2
Maintenance schedules............9-7
Maintenance under severe operation
conditions....................9-12
Malfunctionindicatorlight..........2-19
Manual front seat adjustment........1-3
Manual windows................2-32
Meters and gauges...............2-3
Instrument brightness control.....2-24
Mirror
Outsidemirrorcontrol..........3-18
Outsidemirrors............3-17,3-18
Rearview...................3-17
Vanitymirror ................3-17
Mirrors......................3-17
O
Octane rating (See fuel octane rating). . .10-5
Odometer....................2-6
Oil
Capacities and recommended
fuel/lubricants...............10-2
Changing engine oil............8-7
Changing engine oil filter.........8-8
Checking engine oil level.........8-6
Engine oil...................8-6
Engine oil and oil filter
recommendation.............10-6
Engine oil viscosity.............10-7
One shot call...............4-53,4-67Outsidemirrorcontrol............3-18
Outsidemirrors..............3-17, 3-18
Overheat
Ifyourvehicleoverheats.........6-10
Owner's manual order form........10-21
Owner's manual/service manual order
information ..................10-21
P
Parking
Parking brake operation.........5-17
Parking/parkingonhills.........5-22
Parkingbrake..................5-17
Phone, Bluetooth® hands-free
system..................4-49,4-64
Power
Power door locks..............3-5
Poweroutlet................2-26
Powerrearwindows............2-31
Power steering system..........5-23
Powerwindows..............2-30
Rearpowerwindows...........2-31
Poweroutlet..................2-26
Powersteering.................5-23
Precautions
Maintenance precautions.........8-2
Precautions on booster
seats............1-20, 1-27, 1-33, 1-38
Precautions on child
restraints .........1-20, 1-27, 1-33, 1-38
Precautionsonseatbeltusage.....1-10
Precautions on supplemental restraint
system....................1-42
11-4

1. Engine hood (P. 3-11)
2. Windshield (P. 8-16)
3. Wiper and washer switch (P. 2-21)
4. Power windows (if so equipped)(P. 2-30)
5. Door locks (P. 3-4) Key fob (if so equipped) (P. 3-6)
Keys (P. 3-2)
6. Mirrors (P. 3-18)
7. Tire pressure (P. 8-28) Flat tire (P. 6-2)
Tire chains (P. 8-28)
8. Headlight and turn signal switch
(P. 2-22)
Replacing bulbs (P. 8-22)
9. Fog light switch (if so equipped)
(P. 2-22)
Refer to the page number indicated in
parentheses for operating details.
LII2461
EXTERIOR FRONT
Illustrated table of contents0-3

To change the stop/tail, turn signal or
backup (reversing) light bulbs, perform the
following:1. Disconnect the negative battery cable. 2. Remove the two clips
Aand carefully
pull the carpet back.
3. Remove the two nuts
Band the rear
combination light from the vehicle.
License plate light
JVC0014XRear combination lightLDI2807
Do-it-yourself8-27

Engine oil...................8-6
F.M.V.S.S. certification label .........10-12
Foglightswitch................2-25
Front air bag system
(See supplemental restraint system) . . . .1-51
Front-door pocket ...............2-27
Frontseats................... .1-2
Fuel Capacities and recommended
fuel/lubricants...............10-2
Fuel economy ...............5-22
Fuel-filler cap ................3-14
Fuel-filler door lock opener lever ....3-14
Fuel-filler lid .................3-14
Fuel gauge ..................2-9
Fueloctanerating.............10-6
Fuel recommendation ..........10-4
Loose fuel cap warning ..........2-7
Fuelefficientdrivingtips...........5-21
Fuel-filler door .................3-14
Fuel gauge ....................2-9
Fuses .......................8-18
Fusiblelinks...................8-18
G
Gascap .....................3-14
Gauge Engine coolant temperature gauge . .2-9
Fuel gauge ..................2-9
Odometer ..................2-6
Speedometer ................2-5
Tachometer .................2-8
Trip computer ...............2-10
Trip odometer .............2-5,2-6 General maintenance
.............9-2
Glovebox....................2-29
H
Hands-free phone system, Bluetooth® . .4-47
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-22
Headlightcontrolswitch...........2-22
Headlights ...................8-22
Headrestraints ................ .1-5
Heater Heater and air conditioner controls . .4-15
Heater operation ..............4-17
Hood .......................3-11
Horn.......................2-25
I
Ignition switch ..................5-8
Important vehicle information label . . .10-12
Increasing fuel economy ...........5-22
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................2-18
Instrument brightness control .......2-24
Instrument panel .............0-6,2-2
Instrument panel dimmer switch .....2-24
Interiorlight ...............2-32,2-33
Interiortrunklidrelease ...........3-13
iPod®Player...................4-36
ISOFIX child restraints .............1-23 J
Jumpstarting...............6-9,8-13
K
Key........................ .3-2
Key fob battery replacement .....8-21,8-21
Keyless entry Without Intelligent Key system
(See remote keyless entry system) . . .3-7
L
Labels Air conditioner specification label . . .10-13
Emission control information label . .10-12
Engine serial number ..........10-12
F.M.V.S.S. certification label .......10-12
Tire and Loading Information label . .10-13
Vehicle identification number (VIN) . .10-11
Vehicle identification number (VIN)
plate.....................10-11
Warning labels (for SRS) ..........1-59
LATCH (Lower Anchors and Tethers for
C
Hildren)System................1-23
Launch bar menu ................4-7
License plate Installing the license plate .......10-13
Light Airbagwarninglight........1-60, 2-17
Brakelight(Seestoplight)........8-24
Bulb check/instrument panel ......2-12
Bulb replacement .............8-24
11-3

Charge warning light...........2-14
ExteriorandInteriorlights........8-24
Foglights..................8-24
Foglightswitch..............2-25
Headlight and turn signal switch ....2-22
Headlightcontrolswitch.........2-22
Headlights .................8-22
Interiorlight .............2-32,2-33
Lightbulbs.................8-22
Low tire pressure warning light .....2-15
Passenger air bag and status light . . .1-51
Trunklight..................2-34
Warning/indicator lights and audible
reminders ..................2-18
Lights ......................8-22
Lock Child safety rear door lock ........3-6
Door locks ..................3-4
Fuel-filler door lock opener lever ....3-14
Power door locks ..............3-5
Trunk lid lock opener lever ........3-12
Loose fuel cap warning ............2-7
Lowfuelwarninglight ............2-15
Low tire pressure warning light .......2-15
Luggage
(See vehicle loading information) .....10-14
M
Maintenance General maintenance ...........9-2
Insidethevehicle..............9-3
Maintenance precautions .........8-2
Outsidethevehicle.............9-2
Seat belt maintenance ..........1-17 Under the hood and vehicle
.......9-4
Maintenance log ................9-13
Maintenance requirements ..........9-2
Maintenance schedules ............9-7
Maintenance under severe operation
conditions....................9-12
Malfunctionindicatorlight..........2-18
Manual front seat adjustment ........1-3
Manual windows ................2-32
Menu button ...................4-5
Meters and gauges ...............2-3
Instrument brightness control .....2-24
Mirror Outsidemirrorcontrol..........3-18
Outsidemirrors ..............3-18
Rearview...................3-18
Vanitymirror ................3-17
Mirrors......................3-18
O
Octane rating (See fuel octane rating) . .10-6
Odometer ....................2-6
Oil Capacities and recommended
fuel/lubricants...............10-2
Changing engine oil ............8-7
Changing engine oil filter .........8-8
Checking engine oil level .........8-6
Engine oil ...................8-6
Engine oil and oil filter
recommendation .............10-7
Engine oil viscosity .............10-7
One shot call ..................4-50
Outsidemirrorcontrol............3-18 Outsidemirrors ................3-18
Overheat
Ifyourvehicleoverheats.........6-11
Owner's manual order form ........10-22
Owner's manual/service manual order
information..................10-22
P
Parking Parking brake operation .........5-18
Parking/parkingonhills.........5-23
Parkingbrake..................5-18
Phone, Bluetooth® hands-free system . .4-47
Power Power door locks ..............3-5
Poweroutlet................2-26
Power steering system ..........5-24
Powerwindows..............2-30
Rearpowerwindows...........2-31
Poweroutlet..................2-26
Powersteering.................5-24
Precautions Maintenance precautions .........8-2
Precautions on booster
seats............1-20, 1-27, 1-33, 1-38
Precautions on child
r
estraints .........1-20, 1-27, 1-33, 1-38
Precautionsonseatbeltusage.....1-10
Precautions on supplemental restraint
system ....................1-42
Precautions when starting and
driving .....................5-2
Programmable features ............4-5
Push starting ..................6-11
11-4
