WARNING
∙ Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.
∙ If you see steam or smoke coming
from the engine compartment, to
avoid injury do not open the hood.
WARNING
∙ Do not drive with the trunk lid open.
This could allow dangerous exhaust
gases to be drawn into the vehicle. For
additional information, refer to “Ex-
haust gas (carbon monoxide)” in the
“Starting and driving” section of this
manual.
∙ Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
rear seatback and trunk lid securely
latched when not in use, and prevent
children’s access to car keys.
KEY OPERATION
To open the trunk lid, turn the key clock-
wise. To close the trunk lid, lower and push
the trunk lid down securely.
LPD2036
TRUNK LID
Pre-driving checks and adjustments3-11

To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclock-
wise to remove.
2. Loop the tether strap around the hook
1while refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the
fuel-filler tube.
2. Turn the fuel-filler cap clockwise until it
clicks.
LOOSE FUEL CAP warning
message
The LOOSE FUEL CAP warning message
displays in the trip computer when the
fuel-filler cap is not tightened correctly af-
ter the vehicle has been refueled. It may
take a few driving trips for the message to
be displayed. To turn off the warning mes-
sage, perform the following:
1. Remove and install the fuel-filler cap as
previously described as soon as pos-
sible.
2. Tighten the fuel-filler cap until it clicks.3. Press the loose fuel cap warning reset
button
Ain the meter for about 1 sec-
ond to turn off the LOOSE FUEL CAP
warning message af ter tightening the
fuel-filler cap.
LPD2617LPD2343
Pre-driving checks and adjustments3-15

When no CD is loaded, the radio comes on.
Pressing the
(power) button again
turns the system off.
Turn the VOL (volume) control knob to the
right to increase volume or to the lef t to
decrease volume.
MENU button (Bass, Treble, Balance,
Fade, Speed Sensitive Volume and
Clock)
Press the MENU button to change the
mode as follows:
Bass→Treble→Balance→Fade→Spd.
Sen. Vol. (Speed Sensitive Volume)→AUX IN
Volume→Clock→Clock Adjust
To adjust the Bass, Treble, Fade and Bal-
ance, press the MENU button until the de-
sired mode appears in the display. Press
the
SEEK or TRACKbutton to
adjust the setting to the desired level (-5 to
+5). Balance adjusts the sound between
the right and lef t speakers. Fade adjusts
the sound between the front and rear
speakers.
Once you have adjusted the sound quality
to the desired level, press the MENU button
repeatedly until the radio or CD display re-appears. Otherwise, the radio or CD display
will automatically reappear af ter about
10 seconds.
Speed Sensitive Volume adjusts the vol-
ume of the audio system as the vehicle’s
driving speed changes. It can be set as
follows:
OFF→LOW→MID→HIGH
DISP (display) button
Press the DISP (display) button while a CD is
playing to change the text shown in the
audio display as follows:
For CDs:
Running Time→Album Title:→Artist
Name:→Song Title
For MP3 CDs:
Running Time→Folder Title:→Album Title:
→Artist Name:→Song Title:
If the text information is too long to fully be
displayed on the screen; press and hold the
DISP button for longer than 1.5 seconds to
scroll through the rest of the text.
Press the DISP (display) button while the
radio is playing to toggle the audio display
between station number and RDS.Clock operation
To turn the clock display on or off, press the
MENU button repeatedly until “Clock” ap-
pears on the display. Turn the
TUNE/FOLDER knob to toggle the setting
(ON or OFF).
Clock set
1. Press the MENU button repeatedly until
“Adjust Clock: NO” appears on the dis-
play.
2. Turn the TUNE/FOLDER knob to
change to “Adjust Clock: YES”.
3. Press the MENU button.
4. When “Change Hour” appears, turn the
TUNE/FOLDER knob to adjust the
hours.
5. Press MENU button.
6. When “Change Minute” appears, turn
the TUNE/FOLDER knob to adjust min-
utes.
7. Press MENU button to finish.
The display will return to the regular clock
display af ter 10 seconds if no further ad-
justment is performed.
Display screen, heater, air conditioner, audio and phone systems4-27

Menu itemResult
Audio Selecting this item allows user to adjust various audio settings.
Bass Adjusts the bass to the desired level.
Treble Adjusts the treble to the desired level.
Balance Adjusts the balance to the desired level. Balance adjusts the sound level between the lef t and right speakers.
Fade Adjusts the fade to the desired level. Fade adjusts the sound level between the front and rear speakers.
AUX Vol. Controls the volume level of incoming sound when an auxiliary device is connected to the system. Available options
are LOW, MID, and HIGH.
Clock Selecting this item allows user to adjust various clock settings.
Set Time Allows user to set time manually.
ON/OFF Switches clock display on or off.
Format 12h:24h Allows user to change time format between 12 hour and 24 hour.
Bluetooth For additional information, refer to “Bluetooth® Hands-Free Phone System (Type A)” in this section.
Language Allows user to change system language.
List of Languages Available language are Spanish, Portuguese, English, and French.
Scroll Direction Allows user to change the scrolling direction used by the TUNE/MENU knob.
Clockwise Select up or down and press ENTER button.
4-32Display screen, heater, air conditioner, audio and phone systems

TUNE/MENU knob/Enter button
Turn the TUNE/MENU knob to the lef t or
right to scroll and then press ENTER to se-
lect desired item.
Clock Set
1. Press the SETUP button.
2. Turn the TUNE/MENU knob to select
CLOCK.
3. Press the ENTER button.
4. Turn the TUNE/MENU knob to select
“set time”.
5. Press the ENTER button.
6. Rotate the TUNE/MENU knob to adjust
hours.
7. Press the ENTER button.
8. Turn the TUNE/MENU knob to adjust
minutes.
9. Press the ENTER button to finish.
The display will return to the regular clock
display af ter 10 seconds.
A–Z button
When listening to music via USB or iPod®,
pressing the A-Z button will launch a quick
search function in music browser that willallow user to search for music alphabeti-
cally using the TUNE/MENU knob.
RDM and RPT button
When listening to music via USB or iPod®,
pressing the RDM button will shuffle the
songs being played. Pressing the RPT but-
ton will repeat the song being played.
(back) button
Pressing the
(back) button will return
the user to the previous menu.
FM/AM radio operation
FM-AM button
Press the FM·AM button to change the
band as follows:
AM→FM1→FM2→AM
If another audio source is playing when the
FM·AM button is pressed, the audio source
playing will automatically be turned off and
the last radio station played will begin play-
ing.
If the FM-AM button is pressed for more
than 1.5 seconds, the AUTOSTORE function
will be initiated. The “AST” icon will appear
and “AUTOSTORE” may appear on the dis-
play screen, a beep is heard and the radio
mutes. The system will then automaticallydetect the 6 stations with the strongest
frequency and save them as presets. Once
AUTOSTORE is complete, the “AST” icon will
disappear and “AUTOSTORE COMPLETE”
may appear on the display screen.
TUNE/MENU knob (Tuning)
Turn the TUNE/MENU knob to the lef t or
right for manual tuning.
SEEK tuning
Press the SEEK/TRACK button
orto tune from low to high or high to
low frequencies and to stop at the next
broadcasting station. Hold either button to
tune continuously. Then release button
once desired frequency is reached.
Station select (1 to 6) memory opera-
tions
Twelve stations can be set for the FM band
(6 for FM1, 6 for FM2) and six stations can be
set for the AM band.
1. Choose the radio band AM, FM1 or FM2
using the AM or FM button.
2. Tune to the desired station using
manual or SEEK tuning. Press and hold
any of the desired station memory but-
tons (1 – 6) until a beep sound is heard.
Display screen, heater, air conditioner, audio and phone systems4-33

5. SCAN button
6.
SEEK/CAT buttons
7. iPod MENU button
8.
BACK button
9. ENTER/SETTING/CLOCK button and
TUNE/SCROLL control knob
10. Station select (1–6) buttons
11. VOL (volume) knob /
(power) but-
ton
12. DISP button
13. MEDIA button
14. XM button*
15. FM•AM button*No satellite radio reception is available
when the XM button is pressed to access
satellite radio stations unless optional sat-
ellite receiver and antenna are installed
and an SiriusXM® Satellite Radio service
subscription is active. Satellite radio is not
available in Alaska, Hawaii or Guam.
Audio main operation
(power) button / VOL (volume) con-
trol knob
Place the ignition switch in the ACC or ON
position and press the
(power) but-
ton while the system is off to call up the
mode (radio, CD, AUX, Bluetooth® audio,
USB or iPod®) that was playing immediately
before the system was turned off.To turn the system off, press the
(power) button.
Turn the VOL (volume) control knob to ad-
just the volume.
This vehicle may be equipped with Speed
Sensitive Volume. When this feature is ac-
tive, the audio volume changes as the driv-
ing speed changes.
ENTER/SETTING button
Press the ENTER/SETTING button to show
the Settings screen on the display. Turn the
TUNE/SCROLL knob to navigate the op-
tions and then press the ENTER/SETTING
button to make a selection.
4-36Display screen, heater, air conditioner, audio and phone systems

Audio
Bluetooth Takes you to the Bluetooth menu.
Bass Adjusts the bass to the desired level.
Treble Adjusts the treble to the desired level.
Balance Adjusts the balance to the desired level. Balance adjusts the sound level between the lef t and
right speakers.
Fade Adjusts the fade to the desired level. Fade adjusts the sound level between the front and rear
speakers.
Brightness Adjust to brightness to adjust the appearance of the display screen.
Contrast Adjust the contrast to adjust the appearance of the display screen.
Clock Adjust Allows the user to set time manually.
On-Screen Clock Toggles ON or OFF the clock display on the upper right corner of the display screen.
RDS Display Toggles ON or OFF the RDS information displayed on the screen while the radio is playing.
Speed Sensitive Vol. Adjusts the speed sensitive volume function, which increases the volume of the audio system as
the speed of the vehicle increases. Set to “OFF” to disable the feature. The higher the setting, the
more the volume increases in relation to vehicle speed.
AUX Vol. Choose a setting from 0 to +3 to control the boost of incoming auxiliary device volume. A setting
of 0 provides no additional boost in volume. A setting of +3 provides the greatest boost in volume.
Language Select Select the desired language for the system from the available options.
Bass, treble, balance and fade can also be adjusted by pressing the ENTER/SETTING button and turning the TUNE/SCROLL control knob
to select the item to adjust. When the desired item is shown on the display, turn the tuning to adjust and then press the ENTER/SETTING
button until the display returns to the main audio screen. If the button is not pressed for approximately 10 seconds, the radio or CD display
will automatically reappear.
Display screen, heater, air conditioner, audio and phone systems4-37

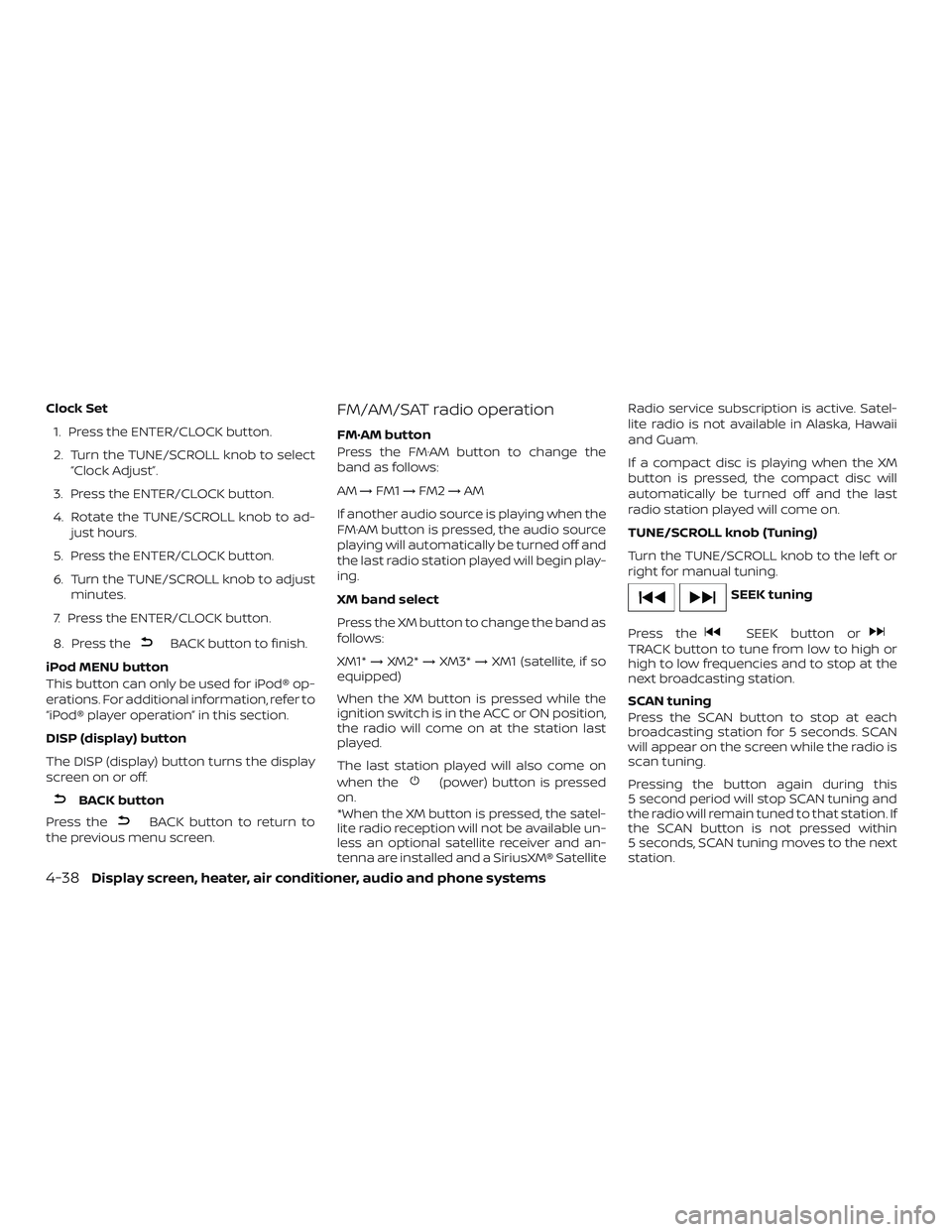

Clock Set
1. Press the ENTER/CLOCK button.
2. Turn the TUNE/SCROLL knob to select
“Clock Adjust”.
3. Press the ENTER/CLOCK button.
4. Rotate the TUNE/SCROLL knob to ad-
just hours.
5. Press the ENTER/CLOCK button.
6. Turn the TUNE/SCROLL knob to adjust
minutes.
7. Press the ENTER/CLOCK button.
8. Press the
BACK button to finish.
iPod MENU button
This button can only be used for iPod® op-
erations. For additional information, refer to
“iPod® player operation” in this section.
DISP (display) button
The DISP (display) button turns the display
screen on or off.
BACK button
Press the
BACK button to return to
the previous menu screen.
FM/AM/SAT radio operation
FM·AM button
Press the FM·AM button to change the
band as follows:
AM→FM1→FM2→AM
If another audio source is playing when the
FM·AM button is pressed, the audio source
playing will automatically be turned off and
the last radio station played will begin play-
ing.
XM band select
Press the XM button to change the band as
follows:
XM1*→XM2*→XM3*→XM1 (satellite, if so
equipped)
When the XM button is pressed while the
ignition switch is in the ACC or ON position,
the radio will come on at the station last
played.
The last station played will also come on
when the
(power) button is pressed
on.
*When the XM button is pressed, the satel-
lite radio reception will not be available un-
less an optional satellite receiver and an-
tenna are installed and a SiriusXM® SatelliteRadio service subscription is active. Satel-
lite radio is not available in Alaska, Hawaii
and Guam.
If a compact disc is playing when the XM
button is pressed, the compact disc will
automatically be turned off and the last
radio station played will come on.
TUNE/SCROLL knob (Tuning)
Turn the TUNE/SCROLL knob to the lef t or
right for manual tuning.
SEEK tuning
Press the
SEEK button orTRACK button to tune from low to high or
high to low frequencies and to stop at the
next broadcasting station.
SCAN tuning
Press the SCAN button to stop at each
broadcasting station for 5 seconds. SCAN
will appear on the screen while the radio is
scan tuning.
Pressing the button again during this
5 second period will stop SCAN tuning and
the radio will remain tuned to that station. If
the SCAN button is not pressed within
5 seconds, SCAN tuning moves to the next
station.
4-38Display screen, heater, air conditioner, audio and phone systems
