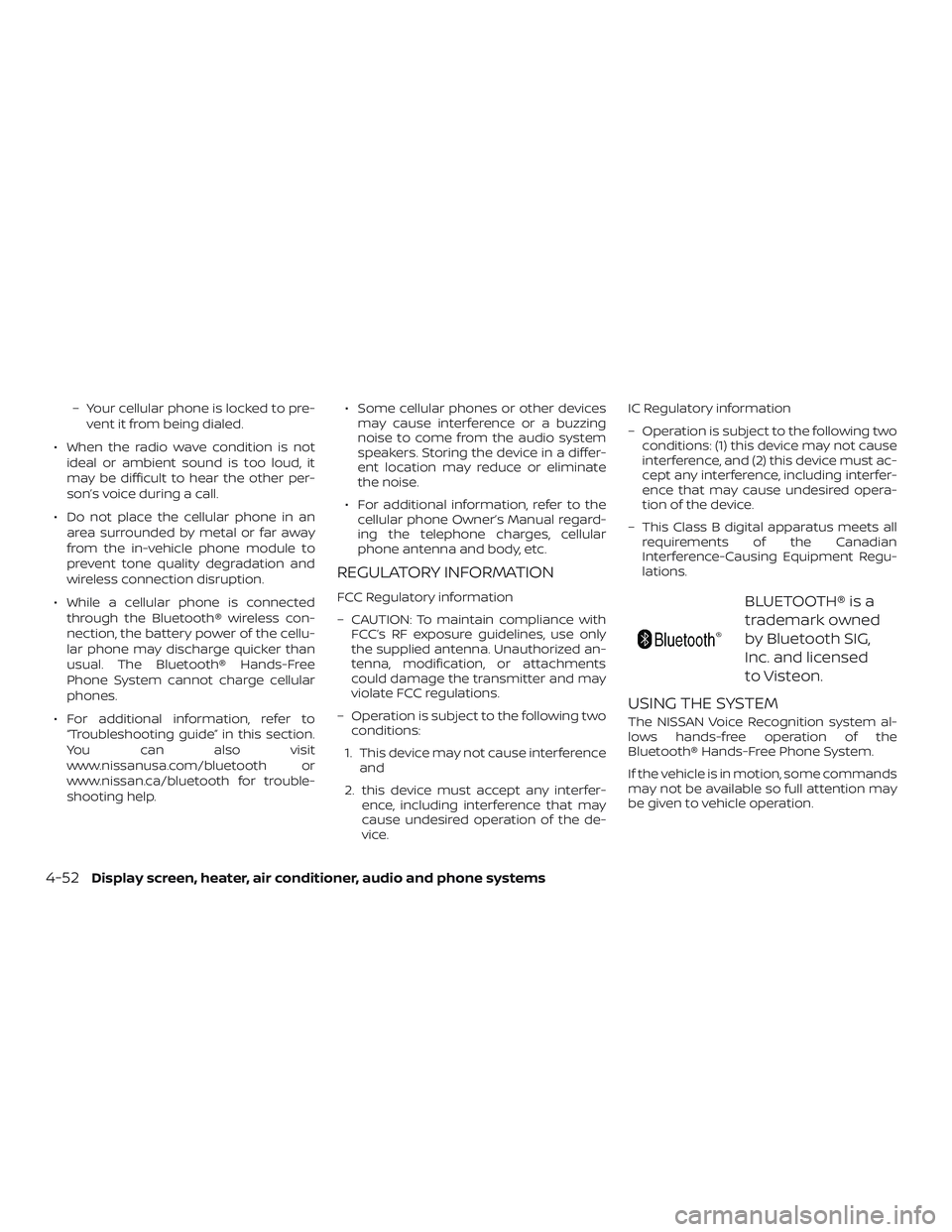

2018 NISSAN VERSA bluetooth

– Your cellular phone is locked to pre-
vent it from being dialed.
∙ When the radio wave condition is not
ideal or ambient sound is too loud, it
may be difficult to hear the other per-
son’s voice during a call.
∙ Do not place the cellular phone in an
area surrounded by metal or far away
from the in-vehicle phone module to
prevent tone quality degradation and
wireless connection disruption.
∙ While a cellular phone is connected
through the Bluetooth® wireless con-
nection, the battery power of the cellu-
lar phone may discharge quicker than
usual. The Bluetooth® Hands-Free
Phone System cannot charge cellular
phones.
∙ For additional information, refer to
“Troubleshooting guide” in this section.
You can also visit
www.nissanusa.com/bluetooth or
www.nissan.ca/bluetooth for trouble-
shooting help.∙ Some cellular phones or other devices
may cause interference or a buzzing
noise to come from the audio system
speakers. Storing the device in a differ-
ent location may reduce or eliminate
the noise.
∙ For additional information, refer to the
cellular phone Owner’s Manual regard-
ing the telephone charges, cellular
phone antenna and body, etc.
REGULATORY INFORMATION
FCC Regulatory information
– CAUTION: To maintain compliance with
FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized an-
tenna, modification, or attachments
could damage the transmitter and may
violate FCC regulations.
– Operation is subject to the following two
conditions:
1. This device may not cause interference
and
2. this device must accept any interfer-
ence, including interference that may
cause undesired operation of the de-
vice.IC Regulatory information
– Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.
– This Class B digital apparatus meets all
requirements of the Canadian
Interference-Causing Equipment Regu-
lations.BLUETOOTH® is a
trademark owned
by Bluetooth SIG,
Inc. and licensed
to Visteon.
USING THE SYSTEM
The NISSAN Voice Recognition system al-
lows hands-free operation of the
Bluetooth® Hands-Free Phone System.
If the vehicle is in motion, some commands
may not be available so full attention may
be given to vehicle operation.
4-52Display screen, heater, air conditioner, audio and phone systems

CONTROL BUTTONS
The control buttons for the Bluetooth®
Hands-Free Phone System are located on
the steering wheel.
PHONE/SEND
Press the
button to initi-
ate a Voice Recognition ses-
sion or answer an incoming
call.You can also use the
but-
ton to interrupt the system
feedback and give a com-
mand at once. For additional
information, refer to “List of
voice commands” and “During
a call” in this section.
PHONE/END
While the Voice Recognition
system is active, press and
hold the
button for
5 seconds to quit the Voice
Recognition system at any
time.
TUNING SWITCH
While using the Voice Recogni-
tion system, tilt the tuning
switch up or down to manu-
ally control the phone system.
GETTING STARTED
The following procedures will help you get
started using the Bluetooth® Hands-Free
Phone System with NISSAN Voice Recogni-
tion. For additional information, refer to “List
of voice commands” in this section.
Choosing a language
You can interact with the Bluetooth®
Hands-Free Phone System using English,
Spanish or French.
To change the language, perform the fol-
lowing.
1. Press and hold the
button for
more than 5 seconds.
2. The system announces: “Press the
PHONE/SEND
button for the
hands-free phone system to enter the
voice adaptation mode or press the
PHONE/END
button to select a
different language.”
3. Press the
button.
For information on voice adaptation,
refer to “Voice adaptation (VA) mode” in
this section.
LHA3002
Display screen, heater, air conditioner, audio and phone systems4-55

4. The system announces the current
language and gives you the option to
change the language to Spanish (in
Spanish) or French (in French). To select
the current language, press the
PHONE/SEND
button. To select a
different language, tilt the tuning
switch
orlef t or right.
NOTE:
You must press the
button within
5 seconds to change the language.
5. If you decide not to change the lan-
guage, do not press either button. Af ter
5 seconds, the Voice Recognition ses-
sion will end, and the language will not
be changed.
Connecting procedure
NOTE:
The connecting procedure must be per-
formed when the vehicle is stationary. If
the vehicle starts moving during the pro-
cedure, the procedure will be canceled.
Main Menu
“Connect phone”
A
“Add phone”B
Initiate from handsetC
Name phoneD
1. Press thebutton on the steering
wheel. The system announces the
available commands.
2. Say: “Connect phone”
A. The system
acknowledges the command and an-
nounces the next set of available com-
mands.
3. Say: “Add phone”
B. The system ac-
knowledges the command and asks
you to initiate connecting from the
phone handset
C.
The connecting procedure of the cellu-
lar phone varies according to each cel-
lular phone model. For additional infor-
mation, refer to the cellular phone
Owner’s Manual. You can also visit
www.nissanusa.com/bluetooth for in-
structions on connecting NISSAN rec-
ommended cellular phones.
When prompted for a pin code, enter
“1234” from the handset. The pin code
“1234” has been assigned by NISSAN
and cannot be changed.4. The system asks you to say a name for
the phone
D.
If the name is too long or too short, the
system tells you, then prompts you for
a name again.
Also, if more than one phone is con-
nected and the name sounds too
much like a name already used, the
system tells you, then prompts you for
a name again.
Making a call by entering a phone
number
Main Menu
“Call”
A
“Phone Number”B
Speak the digitsC
“Dial”D
1. Press thebutton on the steering
wheel. A tone will sound.
2. Say: “Call”
A. The system acknowl-
edges the command and announces
the next set of available commands.
4-56Display screen, heater, air conditioner, audio and phone systems

The system acknowledges the com-
mand and sends the tones associated
with the numbers. The system then
ends the Voice Recognition session
and returns to the call. Say “star” for “*”,
Say “pound” for “#”.
∙
“Transfer call” — Use the Transfer Call com-
mand to transfer the call from the
Bluetooth® Hands-Free Phone System to
the cellular phone when privacy is desired.
The system announces, “Transfer call.
Call transferred to privacy mode.” The
system then ends the Voice Recogni-
tion session.
To reconnect the call from the cellular
phone to the Bluetooth® Hands-Free
System, press the
button.
∙ “Mute” — Use the Mute command to
mute your voice so the other party can-
not hear it. Use the mute command
again to unmute your voice.
NOTE:
If a call is ended or the cellular phone
network connection is lost while the
Mute feature is on, the Mute feature will
be reset to “off ” for the next call so the
other party can hear your voice.
“Phonebook” (phones without
automatic phonebook download
function)
NOTE:
The “Transfer Entry ” command is not
available when the vehicle is moving.
Main Menu
“Phonebook”
“Transfer Entry”
A
“Delete Entry”B
“List Names”C
For phones that do not support automatic
download of the phonebook (PBAP
Bluetooth® profile), the “Phonebook” com-
mand is used to manually add entries to
the vehicle phonebook.
The phonebook stores up to 40 names for
each phone connected to the system.
NOTE:
Each phone has its own separate phone-
book. You cannot access Phone A’s
phonebook if you are currently con-
nected with Phone B.“Transfer Entry ”
A
Use the Transfer Entry command to store a
new name in the system.
When prompted by the system, say the
name you would like to give the new entry.
For example, say: “Mary.”
If the name is too long or too short, the
system tells you, then prompts you for a
name again.
Also, if the name sounds too much like a
name already stored, the system tells you,
then prompts you for a name again.
The system will ask you to transfer a phone
number stored in the cellular phone’s
memory.
Enter a phone number by voice command:
For example, say: “five five five one two one
two.” For additional information, refer to
“How to say numbers” in this section.
To transfer a phone number stored in the
cellular phone’s memory:
Say “Transfer entry.” The system acknowl-
edges the command and asks you to initi-
ate the transfer from the phone handset.
The new contact phone number will be
Display screen, heater, air conditioner, audio and phone systems4-59

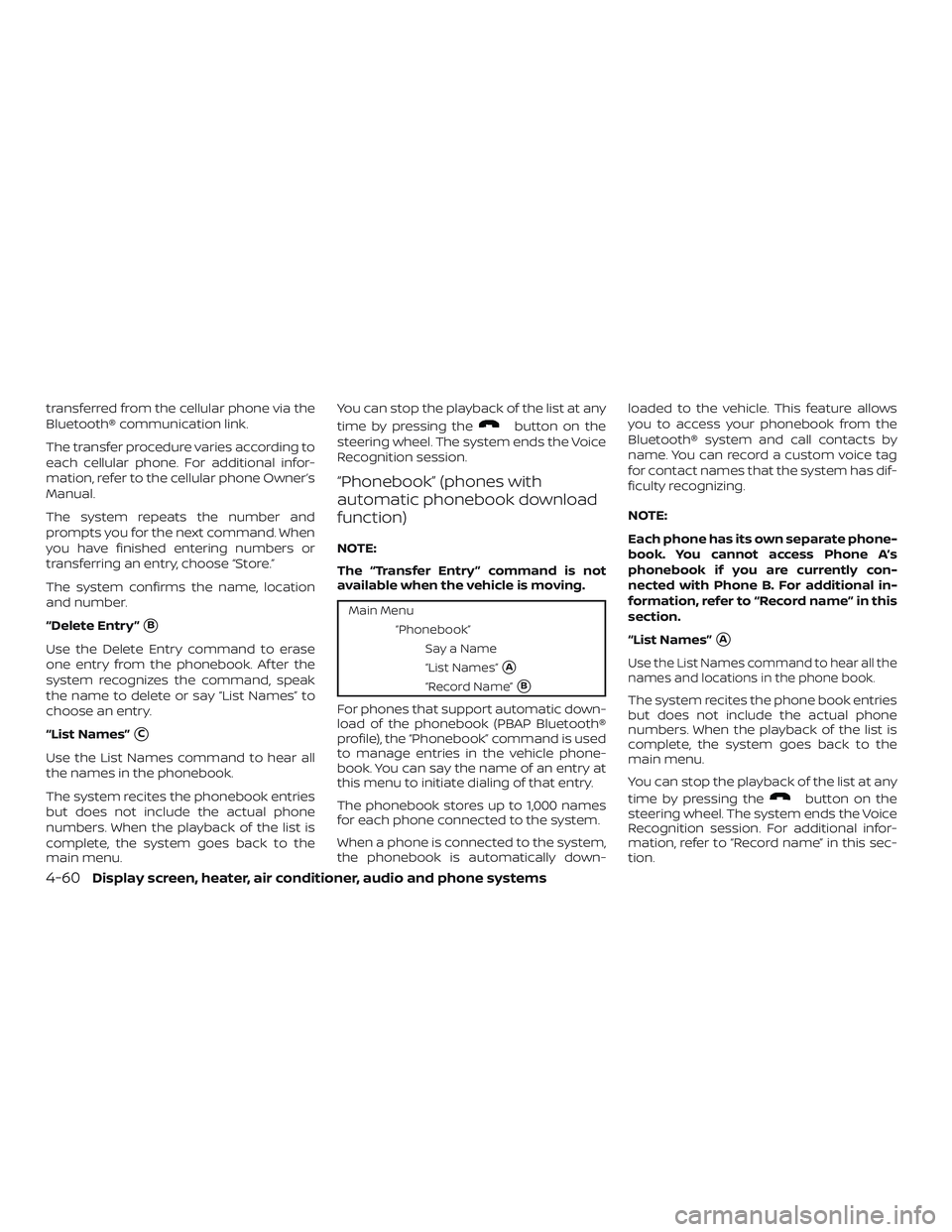

transferred from the cellular phone via the
Bluetooth® communication link.
The transfer procedure varies according to
each cellular phone. For additional infor-
mation, refer to the cellular phone Owner’s
Manual.
The system repeats the number and
prompts you for the next command. When
you have finished entering numbers or
transferring an entry, choose “Store.”
The system confirms the name, location
and number.
“Delete Entry ”
B
Use the Delete Entry command to erase
one entry from the phonebook. Af ter the
system recognizes the command, speak
the name to delete or say “List Names” to
choose an entry.
“List Names”
C
Use the List Names command to hear all
the names in the phonebook.
The system recites the phonebook entries
but does not include the actual phone
numbers. When the playback of the list is
complete, the system goes back to the
main menu.You can stop the playback of the list at any
time by pressing the
button on the
steering wheel. The system ends the Voice
Recognition session.
“Phonebook” (phones with
automatic phonebook download
function)
NOTE:
The “Transfer Entry ” command is not
available when the vehicle is moving.
Main Menu
“Phonebook”
Say a Name
“List Names”
A
“Record Name”B
For phones that support automatic down-
load of the phonebook (PBAP Bluetooth®
profile), the “Phonebook” command is used
to manage entries in the vehicle phone-
book. You can say the name of an entry at
this menu to initiate dialing of that entry.
The phonebook stores up to 1,000 names
for each phone connected to the system.
When a phone is connected to the system,
the phonebook is automatically down-loaded to the vehicle. This feature allows
you to access your phonebook from the
Bluetooth® system and call contacts by
name. You can record a custom voice tag
for contact names that the system has dif-
ficulty recognizing.
NOTE:
Each phone has its own separate phone-
book. You cannot access Phone A’s
phonebook if you are currently con-
nected with Phone B. For additional in-
formation, refer to “Record name” in this
section.
“List Names”
A
Use the List Names command to hear all the
names and locations in the phone book.
The system recites the phone book entries
but does not include the actual phone
numbers. When the playback of the list is
complete, the system goes back to the
main menu.
You can stop the playback of the list at any
time by pressing the
button on the
steering wheel. The system ends the Voice
Recognition session. For additional infor-
mation, refer to “Record name” in this sec-
tion.
4-60Display screen, heater, air conditioner, audio and phone systems

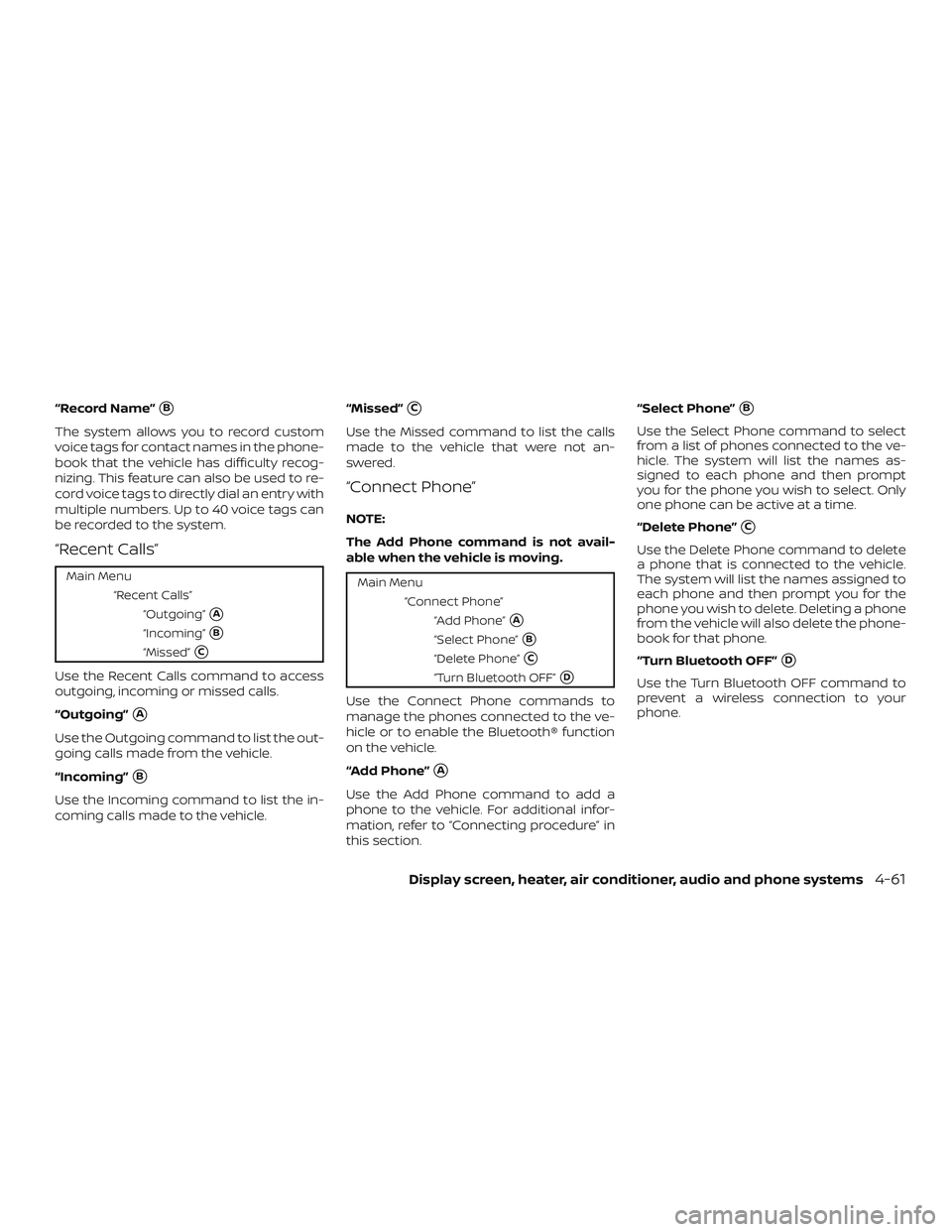

“Record Name”B
The system allows you to record custom
voice tags for contact names in the phone-
book that the vehicle has difficulty recog-
nizing. This feature can also be used to re-
cord voice tags to directly dial an entry with
multiple numbers. Up to 40 voice tags can
be recorded to the system.
“Recent Calls”
Main Menu
“Recent Calls”
“Outgoing”
A
“Incoming”B
“Missed”C
Use the Recent Calls command to access
outgoing, incoming or missed calls.
“Outgoing”
A
Use the Outgoing command to list the out-
going calls made from the vehicle.
“Incoming”
B
Use the Incoming command to list the in-
coming calls made to the vehicle.“Missed”
C
Use the Missed command to list the calls
made to the vehicle that were not an-
swered.
“Connect Phone”
NOTE:
The Add Phone command is not avail-
able when the vehicle is moving.
Main Menu
“Connect Phone”
“Add Phone”
A
“Select Phone”B
“Delete Phone”C
“Turn Bluetooth OFF”D
Use the Connect Phone commands to
manage the phones connected to the ve-
hicle or to enable the Bluetooth® function
on the vehicle.
“Add Phone”
A
Use the Add Phone command to add a
phone to the vehicle. For additional infor-
mation, refer to “Connecting procedure” in
this section.“Select Phone”
B
Use the Select Phone command to select
from a list of phones connected to the ve-
hicle. The system will list the names as-
signed to each phone and then prompt
you for the phone you wish to select. Only
one phone can be active at a time.
“Delete Phone”
C
Use the Delete Phone command to delete
a phone that is connected to the vehicle.
The system will list the names assigned to
each phone and then prompt you for the
phone you wish to delete. Deleting a phone
from the vehicle will also delete the phone-
book for that phone.
“Turn Bluetooth OFF”
D
Use the Turn Bluetooth OFF command to
prevent a wireless connection to your
phone.
Display screen, heater, air conditioner, audio and phone systems4-61

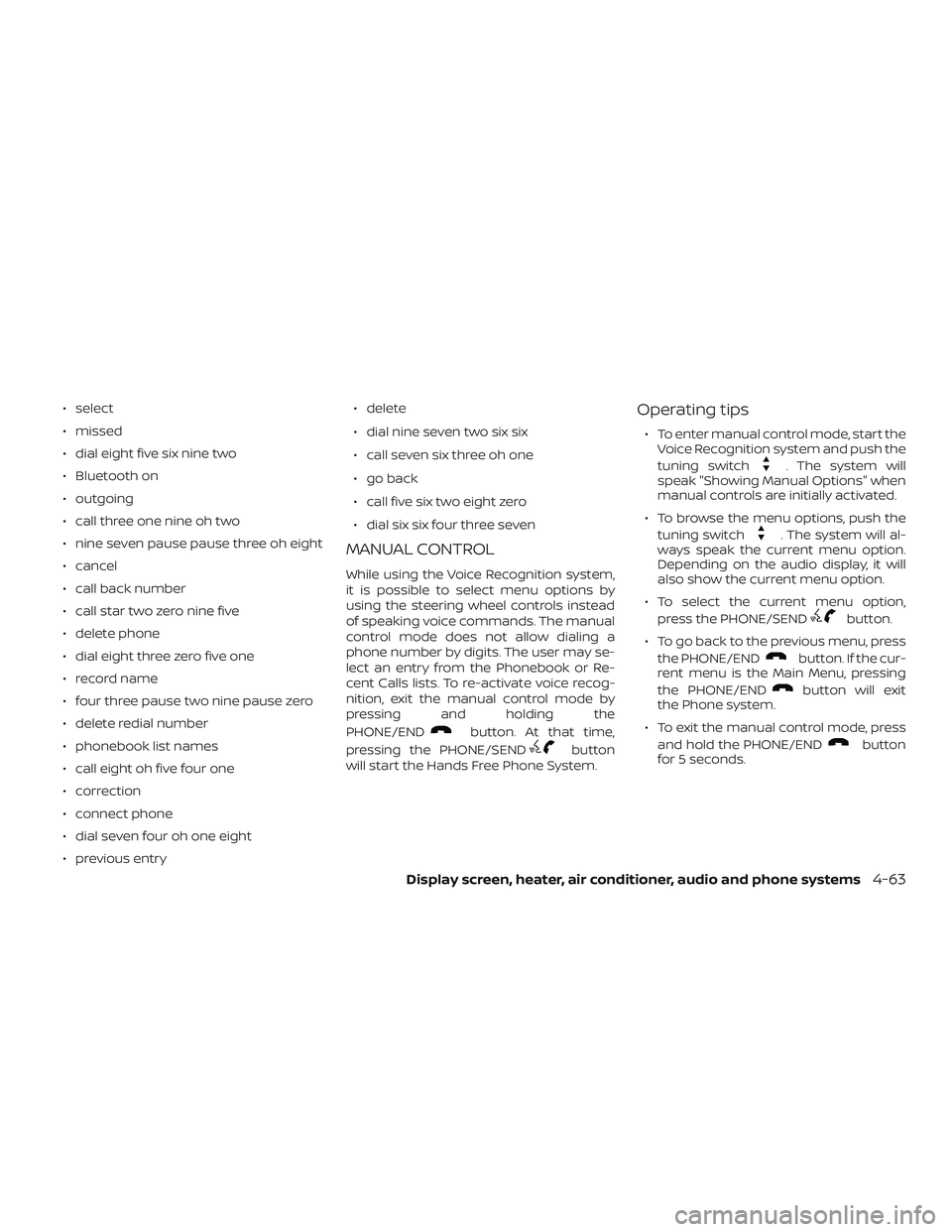

∙ select
∙ missed
∙ dial eight five six nine two
∙ Bluetooth on
∙ outgoing
∙ call three one nine oh two
∙ nine seven pause pause three oh eight
∙ cancel
∙ call back number
∙ call star two zero nine five
∙ delete phone
∙ dial eight three zero five one
∙ record name
∙ four three pause two nine pause zero
∙ delete redial number
∙ phonebook list names
∙ call eight oh five four one
∙ correction
∙ connect phone
∙ dial seven four oh one eight
∙ previous entry∙ delete
∙ dial nine seven two six six
∙ call seven six three oh one
∙ go back
∙ call five six two eight zero
∙ dial six six four three seven
MANUAL CONTROL
While using the Voice Recognition system,
it is possible to select menu options by
using the steering wheel controls instead
of speaking voice commands. The manual
control mode does not allow dialing a
phone number by digits. The user may se-
lect an entry from the Phonebook or Re-
cent Calls lists. To re-activate voice recog-
nition, exit the manual control mode by
pressing and holding the
PHONE/END
button. At that time,
pressing the PHONE/SEND
button
will start the Hands Free Phone System.
Operating tips
∙ To enter manual control mode, start the
Voice Recognition system and push the
tuning switch
. The system will
speak "Showing Manual Options" when
manual controls are initially activated.
∙ To browse the menu options, push the
tuning switch
. The system will al-
ways speak the current menu option.
Depending on the audio display, it will
also show the current menu option.
∙ To select the current menu option,
press the PHONE/SEND
button.
∙ To go back to the previous menu, press
the PHONE/END
button. If the cur-
rent menu is the Main Menu, pressing
the PHONE/END
button will exit
the Phone system.
∙ To exit the manual control mode, press
and hold the PHONE/END
button
for 5 seconds.
Display screen, heater, air conditioner, audio and phone systems4-63

WARNING
∙ Use a phone af ter stopping your ve-
hicle in a safe location. If you have to
use a phone while driving, exercise ex-
treme caution at all times so full at-
tention may be given to vehicle
operation.
∙ If you are unable to devote full atten-
tion to vehicle operation while talking
on the phone, pull off the road to a
safe location and stop your vehicle.
CAUTION
To avoid discharging the vehicle bat-
tery, use a phone af ter starting the
engine.
Your NISSAN is equipped with the
Bluetooth® Hands-Free Phone System. If
you have a compatible Bluetooth® enabled
cellular phone, you can set up the wireless
connection between your cellular phone
and the in-vehicle phone module. With
Bluetooth® wireless technology, you canmake or receive a hands-free telephone
call with your cellular phone in the vehicle.
Once your cellular phone is connected to
the in-vehicle phone module, no other
phone connecting procedure is required.
Your phone is automatically connected
LHA3506
BLUETOOTH® HANDS-FREE PHONE
SYSTEM (Type B) (if so equipped)
Display screen, heater, air conditioner, audio and phone systems4-65
