2018 NISSAN SENTRA rear view mirror

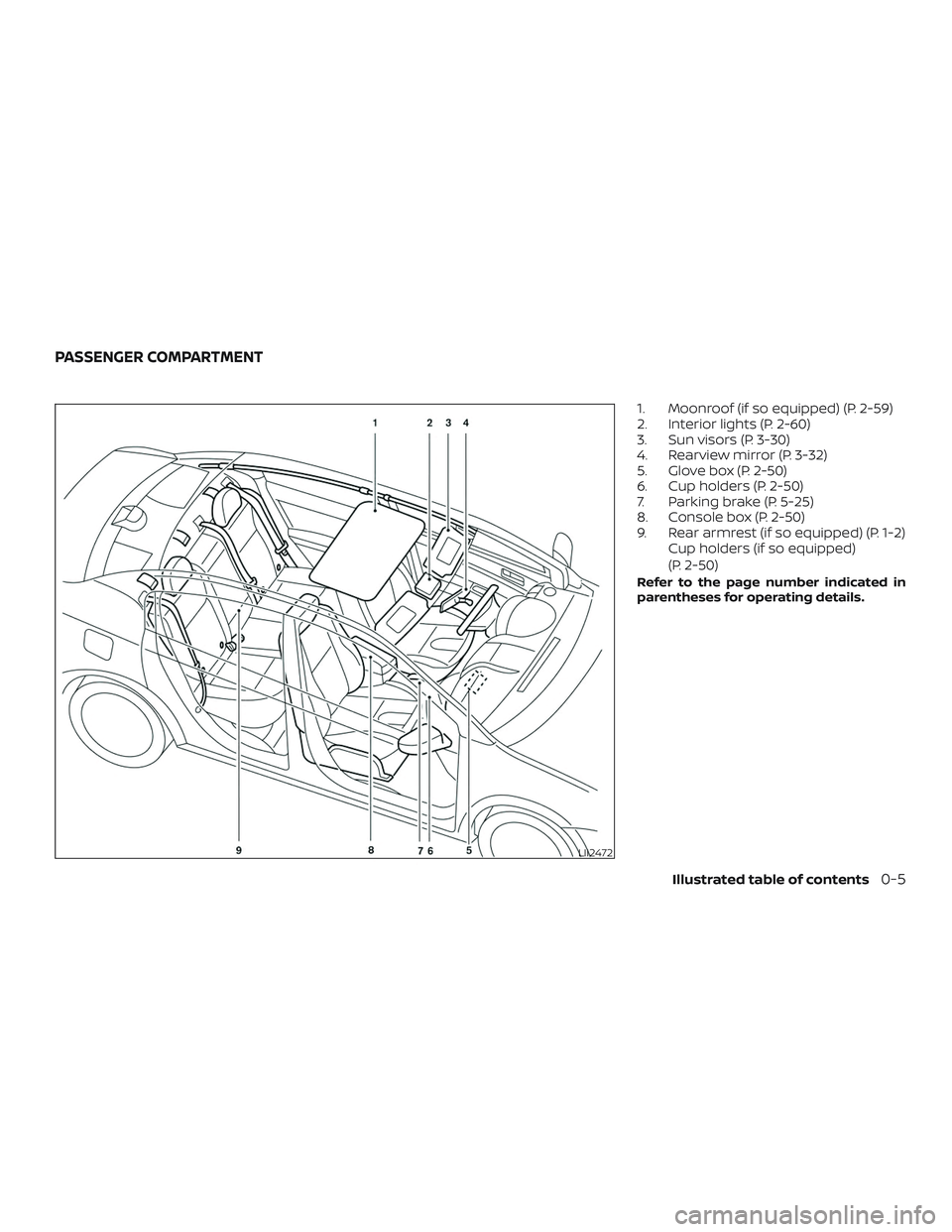

1. Moonroof (if so equipped) (P. 2-59)
2. Interior lights (P. 2-60)
3. Sun visors (P. 3-30)
4. Rearview mirror (P. 3-32)
5. Glove box (P. 2-50)
6. Cup holders (P. 2-50)
7. Parking brake (P. 5-25)
8. Console box (P. 2-50)
9. Rear armrest (if so equipped) (P. 1-2)Cup holders (if so equipped)
(P. 2-50)
Refer to the page number indicated in
parentheses for operating details.
LII2472
PASSENGER COMPARTMENT
Illustrated table of contents0-5

3 Pre-driving checks and adjustments
Keys.............................................3-2NISSAN Intelligent Key® (if so equipped) .......3-2
NISSAN Vehicle Immobilizer System
keys..........................................3-4
Doors ...........................................3-5
Locking with key (if so equipped) .............3-5
Locking with inside lock knob .................3-6
Locking with power door lock switch .........3-6
Automatic door locks (if so equipped) ........ 3-7
Child safety rear door lock .................... 3-7
Remote keyless entry system (if so equipped) . . . 3-8 How to use remote keyless entry
system .......................................3-9
NISSAN Intelligent Key® (if so equipped) ..........3-11
Operating range ............................. 3-13
Door locks/unlocks precaution ..............3-14
NISSAN Intelligent Key® Operation ...........3-14
How to use the remote keyless entry
function ..................................... 3-18
Warning lights and audible reminders .......3-21
Warning signals ............................. 3-21
Troubleshooting guide (Continuously
Variable Transmission only) ..................3-23Troubleshooting guide (manual
transmission only)
........................... 3-24
Hood ........................................... 3-25
Trunk lid ........................................ 3-26
Trunk lid release switch ......................3-26
Interior trunk lid release .....................3-26
Interior trunk access ........................ 3-27
Fuel-filler door .................................. 3-27
Opener operation ........................... 3-27
Fuel-filler cap ................................ 3-28
Steering wheel ................................. 3-30
Tilt operation ................................ 3-30
Telescopic operation ........................ 3-30
Sun visors ...................................... 3-30
Vanity mirrors ............................... 3-31
Card holder (driver’s side only) ...............3-31
Mirrors ......................................... 3-32
Manual anti-glare rearview mirror
(if so equipped) .............................. 3-32
Automatic anti-glare rearview mirror
(if so equipped) .............................. 3-32
Outside
mirrors............................. 3-33

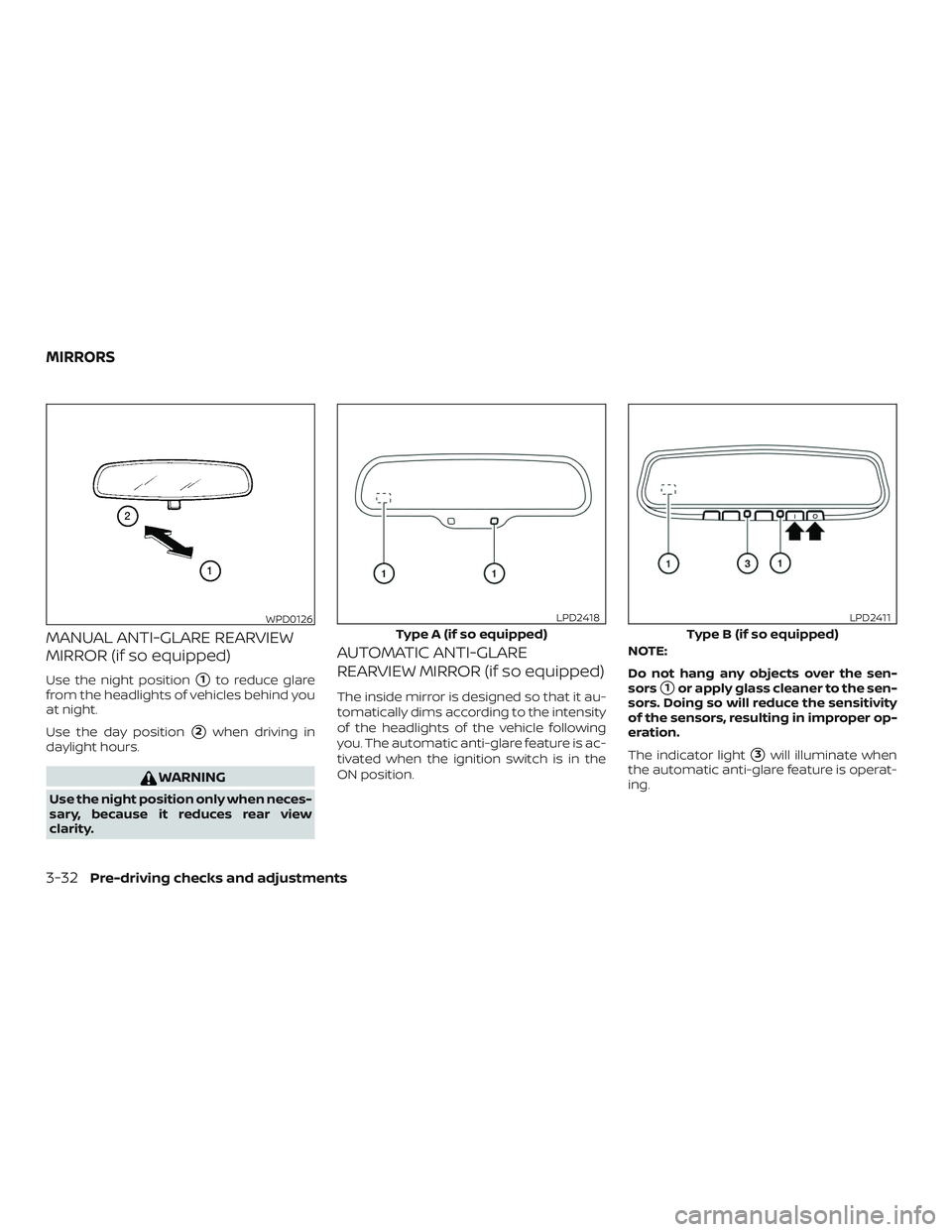

MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)
Use the night position1to reduce glare
from the headlights of vehicles behind you
at night.
Use the day position
2when driving in
daylight hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view
clarity.
AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)
The inside mirror is designed so that it au-
tomatically dims according to the intensity
of the headlights of the vehicle following
you. The automatic anti-glare feature is ac-
tivated when the ignition switch is in the
ON position. NOTE:
Do not hang any objects over the sen-
sors1or apply glass cleaner to the sen-
sors. Doing so will reduce the sensitivity
of the sensors, resulting in improper op-
eration.
The indicator light
3will illuminate when
the automatic anti-glare feature is operat-
ing.
WPD0126
Type A (if so equipped)
LPD2418
Type B (if so equipped)
LPD2411
MIRRORS
3-32Pre-driving checks and adjustments

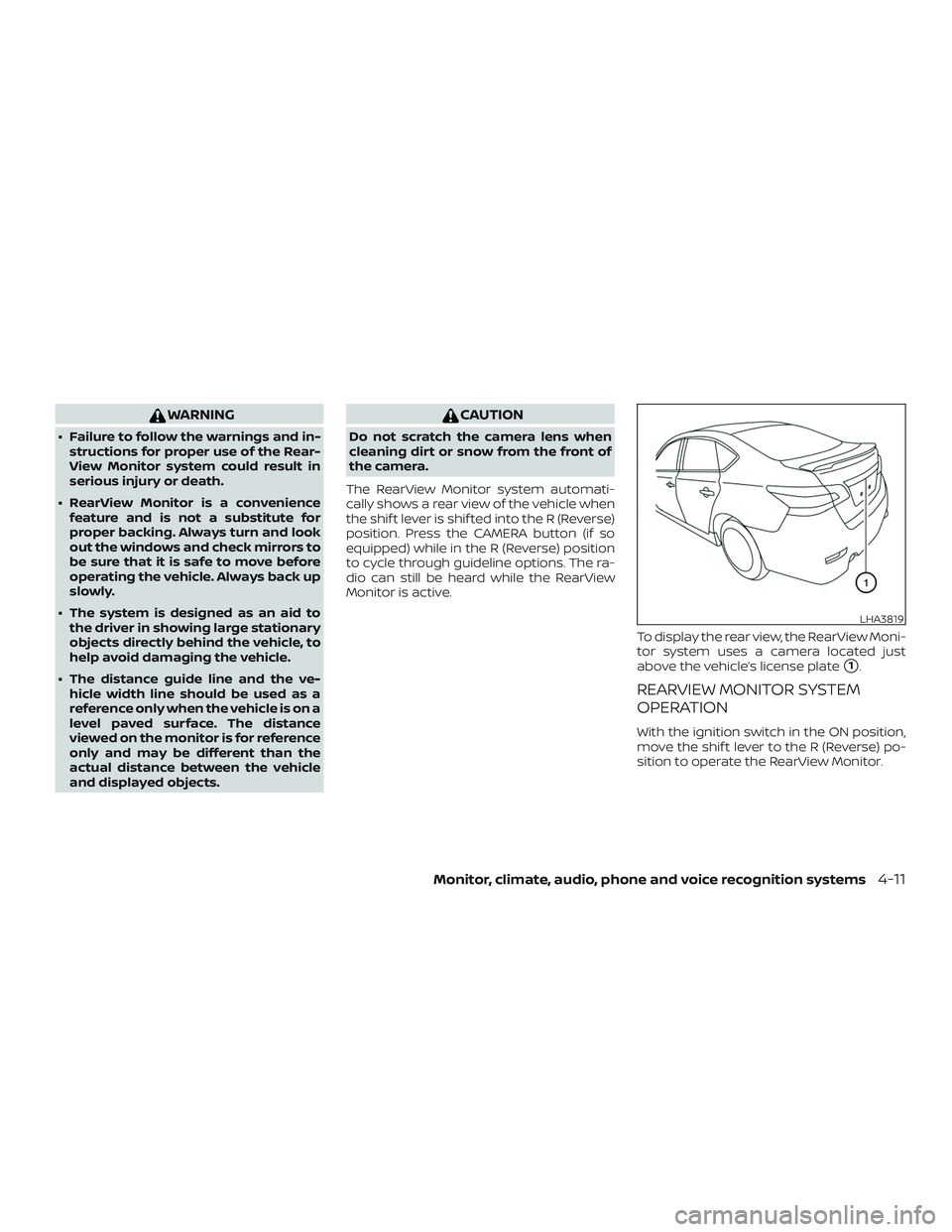

WARNING
∙ Failure to follow the warnings and in-structions for proper use of the Rear-
View Monitor system could result in
serious injury or death.
∙ RearView Monitor is a convenience feature and is not a substitute for
proper backing. Always turn and look
out the windows and check mirrors to
be sure that it is safe to move before
operating the vehicle. Always back up
slowly.
∙ The system is designed as an aid to the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.
∙ The distance guide line and the ve- hicle width line should be used as a
reference only when the vehicle is on a
level paved surface. The distance
viewed on the monitor is for reference
only and may be different than the
actual distance between the vehicle
and displayed objects.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.
The RearView Monitor system automati-
cally shows a rear view of the vehicle when
the shif t lever is shif ted into the R (Reverse)
position. Press the CAMERA button (if so
equipped) while in the R (Reverse) position
to cycle through guideline options. The ra-
dio can still be heard while the RearView
Monitor is active.
To display the rear view, the RearView Moni-
tor system uses a camera located just
above the vehicle’s license plate
1.
REARVIEW MONITOR SYSTEM
OPERATION
With the ignition switch in the ON position,
move the shif t lever to the R (Reverse) po-
sition to operate the RearView Monitor.
LHA3819
Monitor, climate, audio, phone and voice recognition systems4-11

For vehicles with navigation system:1. Firmly apply the brake and place the shif t lever in R (Reverse).
2. Press the
button on the control
panel.
3. The screen will display the Night set- tings.
4. Turn the TUNE knob to adjust the set- ting up or down.
5. Press the
button again to access
the Auto settings.
6. Turn the TUNE knob to adjust the set- ting up or down.
NOTE:
Do not adjust any of the display settings
of the RearView Monitor while the ve-
hicle is moving. Make sure the parking
brake is firmly applied.
REARVIEW MONITOR SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations
for RearView Monitor. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.
∙ The system cannot completely elimi- nate blind spots and may not show
every object.
∙ Underneath the bumper and the cor- ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion. The system will not show small
objects below the bumper, and may
not show objects close to the bumper
or on the ground.
∙ Objects viewed in the RearView Moni- tor differ from actual distance be-
cause a wide-angle lens is used.
∙ Objects in the RearView Monitor will appear visually opposite compared to
when viewed in the rearview and out-
side mirrors. ∙ Use the displayed lines as a reference.
The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.
∙ Make sure that the trunk is securely closed when backing up.
∙ Do not put anything on the rearview camera. The rearview camera is in-
stalled above the license plate.
∙ When washing the vehicle with high pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing
water condensation on the lens, a
malfunction, fire or an electric shock.
∙ Do not strike the camera. It is a preci- sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.
The following are operating limitations and
do not represent a system malfunction: ∙ When the temperature is extremely high or low, the screen may not clearly
display objects.
Monitor, climate, audio, phone and voice recognition systems4-15

Passenger air bag and status light. . .1-54
Security indicator light..........2-21
Spotlights(Seemaplight)........2-61
Trunklight..................2-63
Warning/indicator lights and audible
reminders ...............2-19,3-21
Lights......................8-29 Maplights..................2-61
Lock Child safety rear door lock ........3-7
Door locks ..................3-5
Fuel-filler door lock opener lever ....3-27
Power door locks ..............3-6
Trunk lid lock opener lever ........3-26
Loose fuel cap warning .........2-6,2-33
Lowfuelwarninglight......2-16,2-18,2-33
Low tire pressure warning light .......2-16
Low windshield-washer fluid warning
light ....................2-18,2-34
Luggage
(See vehicle loading information) .....10-14
M
Maintenance General maintenance ...........9-2
Insidethevehicle..............9-3
Maintenance precautions .........8-2
Outsidethevehicle.............9-2
Seat belt maintenance ..........1-20
Under the hood and vehicle .......9-4
Maintenance log ................9-14
Maintenance requirements ..........9-2
Maintenance schedules ............9-7Maintenance under severe operation
conditions....................9-13
Malfunctionindicatorlight..........2-20
Manual front seat adjustment
........1-3
Maplights....................2-61
Map pocket ...................2-51
Meters and gauges ...............2-3
Instrument brightness control .....2-45
Mirror Automatic anti-glare inside mirror . . .3-32
Outsidemirrorcontrol..........3-33
Outsidemirrors..............3-33
Rearview...................3-32
Vanitymirror................3-31
Mirrors......................3-32
Mobile apps ...................4-74
Moonroof .................2-59,2-59
N
NissanConnect® ................4-74
NissanConnect® Services ..........4-75
NISSAN Intelligent Key® ..........3-2,3-11
NISSAN Intelligent Key® battery discharge
indicator.....................5-13
NISSAN Vehicle Immobilizer
System ...............2-38,5 -11, 5-14
O
Octane rating (See fuel octane rating) . .10-6
Odometer ....................2-5 Oil
Capacities and recommended
fuel/lubricants...............10-2
Changing engine oil ............8-8
Changing engine oil filter .........8-10
Checking engine oil level .........8-7
Engine oil ...................8-7
Engine oil and oil filter
recommendation .............10-7
Engine oil viscosity .............10-7
One shot call ..............4-83,4-94
Outsidemirrorcontrol............3-33
Outsidemirrors................3-33
Overhead sunglasses holder ........2-54
Overheat Ifyourvehicleoverheats.........6-11
Owner's manual order form ........10-22
Owner's manual/service manual order
information..................10-22
P
Parking Parking/parkingonhills.........5-70
Parkingbrake .................5-25
Phone, Bluetooth® hands-free system . .4-79
Power Power door locks ..............3-6
P

oweroutlet............... .2-49
Powerrearwindows ...........2-57
Power steering system ..........5-71
Powerwindows..............2-56
Rearpowerwindows...........2-57
Poweroutlet................. .2-49
Powersteering.................5-71
11-5

PrecautionsMaintenance precautions .........8-2
Precautions on booster
seats............1-23, 1-30, 1-36, 1-41
Precautions on child
restraints .........1-23, 1-30, 1-36, 1-41
Precautions on seat belt usage .....1-12
Precautions on supplemental restraint
system ....................1-44
Precautions when starting and
driving .....................5-2
Programmable features ............4-7
Push starting ..................6-11
R
Radio Car phone or CB radio ..........4-79
FM/AM radio with compact disc (CD)
player ....................4-43
FM/AM/SAT radio with compact disc (CD)
player.................4-48,4-53
Steering wheel audio control
switch....................4-72
Readiness for inspection maintenance
(I/M)test ....................10-21
RearCrossTrafficAlert(RCTA)........5-37
Rearpowerwindows.............2-57
Rearseat.................... .1-6
Rearviewmirror................3-32
RearViewMonitor...............4-10
Rear window and outside mirror defroster
switch......................2-40
Recommended Fluids ............10-2 Recorders
EventData.................10-21
Refrigerant recommendation ........10-8
Registering a vehicle in another
country .....................10-11
Remote keyless entry system ........3-8
Reporting safety defects (US only) . . . .10-20
S
Safety Child safety rear door lock ........3-7
Childseatbelts......1-23, 1-30, 1-36, 1-41
Reporting safety defects (US only) . .10-20
Seat adjustment Front manual seat adjustment ......1-3
Front power seat adjustment ......1-5
Rear seat adjustment ...........1-6
Seatback pockets ...............2-51
Seat belt Childsafety ................ .1-21
Infants and small children ........1-22
InjuredPerson............... .1-15
Largerchildren.............. .1-22
Precautions on seat belt usage .....1-12
Pregnant women ..............1-15
Seat belt extenders ............1-20
Seat belt maintenance ..........1-20
Seatbelts................1-12, 7-7
Shoulder belt height adjustment . . . .1-19
Three-pointtypewithretractor.....1-15
Seat belt extenders ..............1-20
Seatbeltwarninglight.........1-15, 2-18 Seats
Adjustment ..................1-2
Armrests .................. .1-7
Frontseats..................1-2
Heatedseats................2-47
Manual front seat adjustment ......1-3
Rearseat.................. .1-6
Security
indicator light ............2-21
Security system (NISSAN Vehicle Immobilizer
System), engine start .......2-38,5-11, 5-14
Security systems Vehicle security system ......2-36,2-36
Self-adjusting brakes .............8-21
Service manual order form .........10-22
Servicing air conditioner ...........4-34
Settingbutton..................4-7
Shif ting Continuously Variable Transmission
(CVT) .....................5-19
Manual transmission ...........5-23
Shiftlockrelease................5-21
Shoulder belt height adjustment ......1-19
Side air bag system (See supplemental
side air bag and curtain side-impact air bag
system) .................... .1-59
Siri® Eyes-Free .................4-75
Smartphone connectivity ..........4-74
Spark plug replacement ...........8-17
Spark plugs ...................8-17
Specifications ..................10-9
Speedometer ................2-4,2-5
SPORT mode switch .............5-26
Spotlights(Seemaplight)..........2-61
SRS warning label ...............1-62
Stability control .................5-74
Standard maintenance ............9-8
11-6
