The vehicle should be driven with the VDC
system on for most driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will
be reduced even if the accelerator is de-
pressed to the floor. If maximum engine
power is needed to free a stuck vehicle,
turn the VDC system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator will come
on. Push the VDC OFF switch again or restart
the engine to turn on the system. For addi-
tional information, refer to “Vehicle Dy-
namic Control (VDC) system” in the “Start-
ing and driving” section of this manual.
The All-Wheel Drive (AWD) LOCK switch is
located on the instrument panel. The AWD
LOCK indicator light will illuminate when
the switch is turned on. For additional infor-
mation, refer to “Warning lights, indicator
lights and audible reminders” in this sec-
tion and “AWD Lock Switch Operations” in
the “Starting and driving” section of this
manual.
Each time you push the switch, the AWD
mode will switch: AUTO→LOCK→AUTO.
LIC3344LIC2645
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH ALL-WHEEL DRIVE (AWD) LOCK
SWITCH (if so equipped)
2-54Instruments and controls

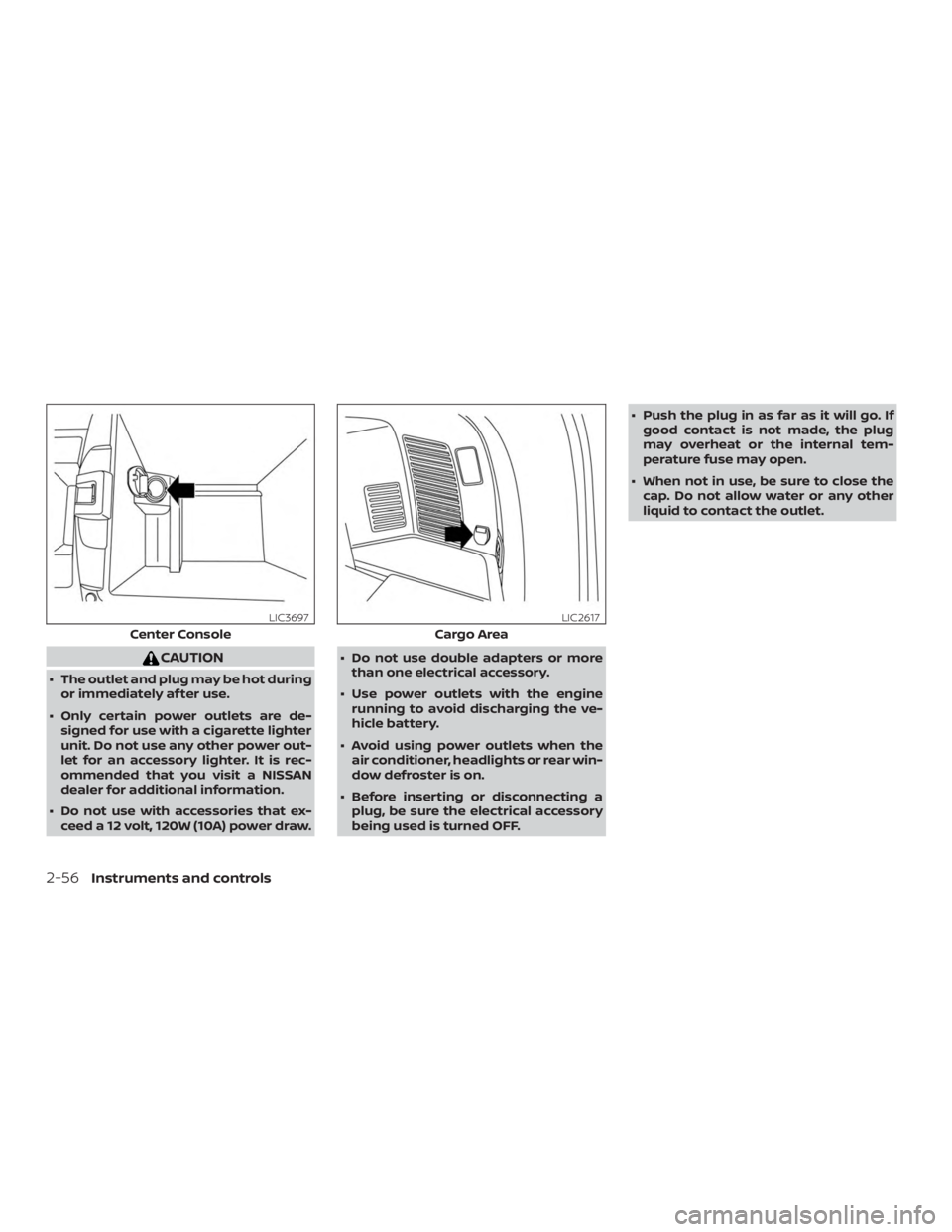

CAUTION
∙ The outlet and plug may be hot duringor immediately af ter use.
∙ Only certain power outlets are de- signed for use with a cigarette lighter
unit. Do not use any other power out-
let for an accessory lighter. It is rec-
ommended that you visit a NISSAN
dealer for additional information.
∙ Do not use with accessories that ex- ceed a 12 volt, 120W (10A) power draw. ∙ Do not use double adapters or more
than one electrical accessory.
∙ Use power outlets with the engine running to avoid discharging the ve-
hicle battery.
∙ Avoid using power outlets when the air conditioner, headlights or rear win-
dow defroster is on.
∙ Before inserting or disconnecting a plug, be sure the electrical accessory
being used is turned OFF. ∙ Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
∙ When not in use, be sure to close the cap. Do not allow water or any other
liquid to contact the outlet.
Center Console
LIC3697
Cargo Area
LIC2617
2-56Instruments and controls

CAUTION
∙ Do not place objects (such as newspa-pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may en-
tangle these objects in the sunshade
when it is extending or retracting,
causing improper operation or dam-
age to the sunshade.
∙ Do not push the sunshade arm with your hands, etc., as this may deform it.
Improper operation or damage to the
sunshade may result.
∙ Do not put any object into the sun- shade inlet port as this may result in
improper operation or damage the
sunshade.
∙ Do not hang any object on the arm rail as this may result in improper opera-
tion or damage the sunshade.
∙ Do not forcefully pull the sunshade. Doing so may elongate the sunshade.
Improper operation or damage to the
sunshade may result.
If the moonroof does not close
Have your moonroof checked and re-
paired. It is recommended that you visit a
NISSAN dealer for this service. When the ON switch
1is pressed, the foot-
well lights (if so equipped), step lights (if so
equipped), map lights and rear personal
lights will automatically turn on and stay on
for a period of time when:
∙ The doors are unlocked by the Intelli- gent Key, a key or the request switch (if
so equipped) while all doors are closed
and the ignition switch is in the OFF
position.
∙ When individually pushed. When the OFF switch
2is pushed, the in-
terior lights do not illuminate even when
pushed. When the DOOR/OFF switch is
pressed and the ON switch is pressed, all of
the lights will come on.
NOTE:
The footwell lights and step lights illumi-
nate when the driver and passenger
doors are open regardless of the interior
light switch position. These lights will
turn off automatically af ter a period of
time while doors are open to prevent the
battery from becoming discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.
LIC2302
INTERIOR LIGHTS
Instruments and controls2-71

CONSOLE LIGHT
The console light will turn on whenever the
parking lights or headlights are illuminated.
The console light brightness can be ad-
justed with the illumination brightness
control.
MAP LIGHTS
Press the button to turn the map lights on.
To turn them off, press the button again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.
PERSONAL LIGHTS (if so equipped)
To turn the rear personal lights on, push the
switch. To turn them off, push the switch
again.
LIC2303LIC2304Rear personal lights
LIC1083
2-72Instruments and controls

ROOM LIGHT (if so equipped)
The room light on the overhead trim has a
three-position switch. To operate, push the
switch to the desired position.
1ON: The light is illuminated, regardless
of door position.
2DOOR: The light illuminates when a
door or the lif tgate is opened. The light
turns off when the door or lif tgate is
closed.
3OFF: The light does not illuminate. The lights will turn off automatically af ter a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.
The luggage compartment light on the
overhead trim has a two-position switch.
To operate, push the switch to the desired
position.
1OFF: The light does not illuminate re-
gardless of door position or lock sta-
tus.
2ON: The light is illuminated.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.
SIC2063ALIC3925
LUGGAGE COMPARTMENT LIGHT (if
so equipped)
Instruments and controls2-73

The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-
held transmitters into one built-in device.
HomeLink® Universal Transceiver:∙ Will operate most radio frequency de- vices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.
∙ Is powered by your vehicle’s battery. No separate batteries are required. If the
vehicle’s battery is discharged or is dis-
connected, HomeLink® will retain all
programming.
When the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming pro-
cedures (Example: new vehicle pur-
chases). Upon sale of the vehicle, the
programmed HomeLink® Universal
Transceiver buttons should be erased for
security purposes. For additional infor-
mation, refer to “Programming
HomeLink®” in this section.WARNING
∙ Do not use the HomeLink® Universal Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards
became effective for opener models
manufactured af ter April 1, 1982). A
garage door opener which cannot de-
tect an object in the path of a closing
garage door and then automatically
stop and reverse, does not meet cur-
rent federal safety standards. Using a
garage door opener without these
features increases the risk of serious
injury or death.
∙ During the programming procedure your garage door or security gate will
open and close (if the transmitter is
within range). Make sure that people
or objects are clear of the garage door,
gate, etc. that you are programming. ∙ Your vehicle’s engine should be
turned off while programming the
HomeLink® Universal Transceiver. Do
not breathe exhaust gases; they con-
tain colorless and odorless carbon
monoxide. Carbon monoxide is dan-
gerous. It can cause unconsciousness
or death.
PROGRAMMING HOMELINK®
If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.
NOTE:
Place the ignition switch in the ACC posi-
tion when programming HomeLink®. It is
also recommended that a new battery
be placed in the hand-held transmitter
of the device being programmed to
HomeLink® for quicker programming
and accurate transmission of the radio
frequency.
HOMELINK® UNIVERSAL
TRANSCEIVER (if so equipped)
2-74Instruments and controls

3 Pre-driving checks and adjustments
Keys.............................................3-2Remote keyless entry (if so equipped) ........3-2
NISSAN Intelligent Key® (if so equipped) .......3-3
NISSAN Vehicle Immobilizer System
keys..........................................3-4
Doors ...........................................3-5
Locking with key ..............................3-6
Locking with inside lock knob .................3-6
Locking with power door lock switch ......... 3-7
Automatic door locks......................... 3-7
Child safety rear door lock .................... 3-7
Remote keyless entry system (if so equipped) . . . 3-8 How to use remote keyless entry
system .......................................3-9
NISSAN Intelligent Key® (if so equipped) ..........3-11
Operating range ............................. 3-13
Door locks/unlocks precaution ..............3-13
NISSAN Intelligent Key® Operation ...........3-14
How to use the remote keyless entry
function ..................................... 3-17
Warning signals ............................. 3-21
Troubleshooting guide ......................3-22
Remote Engine Start (if so equipped) ...........3-24
Remote Engine Start operating range .......3-24 Remote starting the vehicle
.................3-25
Extending engine run time ..................3-25
Canceling a Remote Engine Start ............3-25
Conditions the Remote Engine Start will
notwork .................................... 3-26
Hood ........................................... 3-27
Lif tgate ......................................... 3-28
Operating the manual lif tgate
(if so equipped) .............................. 3-28
Operating the power lif tgate
(if so equipped) .............................. 3-29
Motion-Activated Lif tgate
(if so equipped) .............................. 3-31
Lif tgate release .............................. 3-33
Lif tgate position setting
(if so equipped) .............................. 3-34
Fuel-filler door .................................. 3-34
Opener operation ........................... 3-34
Fuel-filler cap ................................ 3-35
Steering wheel ................................. 3-37
Manual operation ........................... 3-37
Sun

visors ...................................... 3-38
Vanity mirrors ............................... 3-38
Card holder (if so equipped) .................3-39

TROUBLESHOOTING GUIDE
Verif y the location of all Intelligent Keys that
are programmed for the vehicle. If another
Intelligent Key is in range or inside the ve-
hicle, the vehicle system may respond dif-
ferently than expected.
SymptomPossible CauseRemedy
When stopping the engine The red Shif t to Park warning appears
on the display and the inside warning
chime sounds continuously. The shif t lever is not in the P (Park)
position.
Move the shif t lever to the P (Park)
position.
When shif ting the shif t lever to the P
(Park) position The Push ignition to OFF warning ap-
pears on the display. The ignition switch is in the ON
position.Place the ignition switch in the OFF
position.
When opening the driver’s door to get
out of the vehicle The Door Open warning appears on
the display. The ignition switch is in the ON
position.Place the ignition switch in the OFF
position.
When closing the door af ter getting
out of the vehicle The No Key Detected warning appears
on the display, the outside chime
sounds three times and the inside
warning chime sounds for approxi-
mately three seconds.
The ignition switch is in the ON
position.
Place the ignition switch in the OFF
position.
The red Shif t to Park warning appears
on the display and the inside side
chime sounds continuously. The ignition switch is in the ON posi-
tion and the shif t lever is not in the P
(Park) position.Move the shif t lever to the P (Park) po-
sition and place the ignition switch in
the OFF position.
When closing the door with the inside
lock knob turned to the locked
position. The outside chime sounds for approxi-
mately three seconds and all the
doors unlock.
The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When pushing the door handle re-
quest switch or the
button on
the Intelligent Key to lock the door The outside chime sounds for approxi-
mately three seconds.
The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
3-22Pre-driving checks and adjustments
