NISSAN CARES . . .
Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your
NISSAN dealer are our primary concerns. YourNISSAN dealer is always available to assist you with all your automobile sales and service
needs.
However, if there is something that your
NISSAN dealer cannot assist you with or
you would like to provide NISSAN directly
with comments or questions, please con-
tact the NISSAN Consumer Affairs Depart-
ment using our toll-free number:
For U.S. customers
1-800-NISSAN-1
(1-800-647-7261)
For Canadian customers 1-800-387-0122 The Consumer Affairs Department will ask
for the following information:
– Your name, address, and telephone
number
– Vehicle identification number (attached to the top of the instrument panel on the
driver’s side)
– Date of purchase
– Current odometer reading
– Your NISSAN dealer’s name
– Your comments or questions
OR You can write to NISSAN with the informa-
tion at:
For U.S. customers
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
[email protected]
If you prefer, visit us at:
www.nissanusa.com (for U.S. customers)
or
www.nissan.ca (for Canadian customers)
We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.
NISSAN CUSTOMER CARE PROGRAM

15. Cruise control main/set switches(if so equipped) (P. 5-54)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-56)
Bluetooth® Hands-Free Phone
System*
16. Driver supplemental air bag
(P. 1-45)
Horn (P. 2-49)
17. Tilt and telescopic steering (P. 3-31)
18. Control panel and vehicle informa-
tion display switches (P. 2-20)
19. Hood release (P. 3-21)
20. SPORT mode switch (P. 5-24) Fuel door release (P. 3-28)
ECO mode switch (P. 5-24)
Power lif tgate switch
(if so equipped) (P. 3-22)
Power lif tgate main switch
(if so equipped) (P. 3-22)
All-Wheel Drive (AWD) LOCK switch
(if so equipped) (P. 2-52)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-52)
Heated steering wheel switch
(if so equipped) (P. 2-50)
Dynamic driver assistance switch
(if so equipped) (P. 2-51) 21. Instrument brightness control
(P. 2-47)
Twin trip odometer reset switch
(P. 2-5)
*: Refer to the separate NissanConnect®
Owner’s Manual.
Refer to the page number indicated in
parentheses for operating details.
Illustrated table of contents0-7

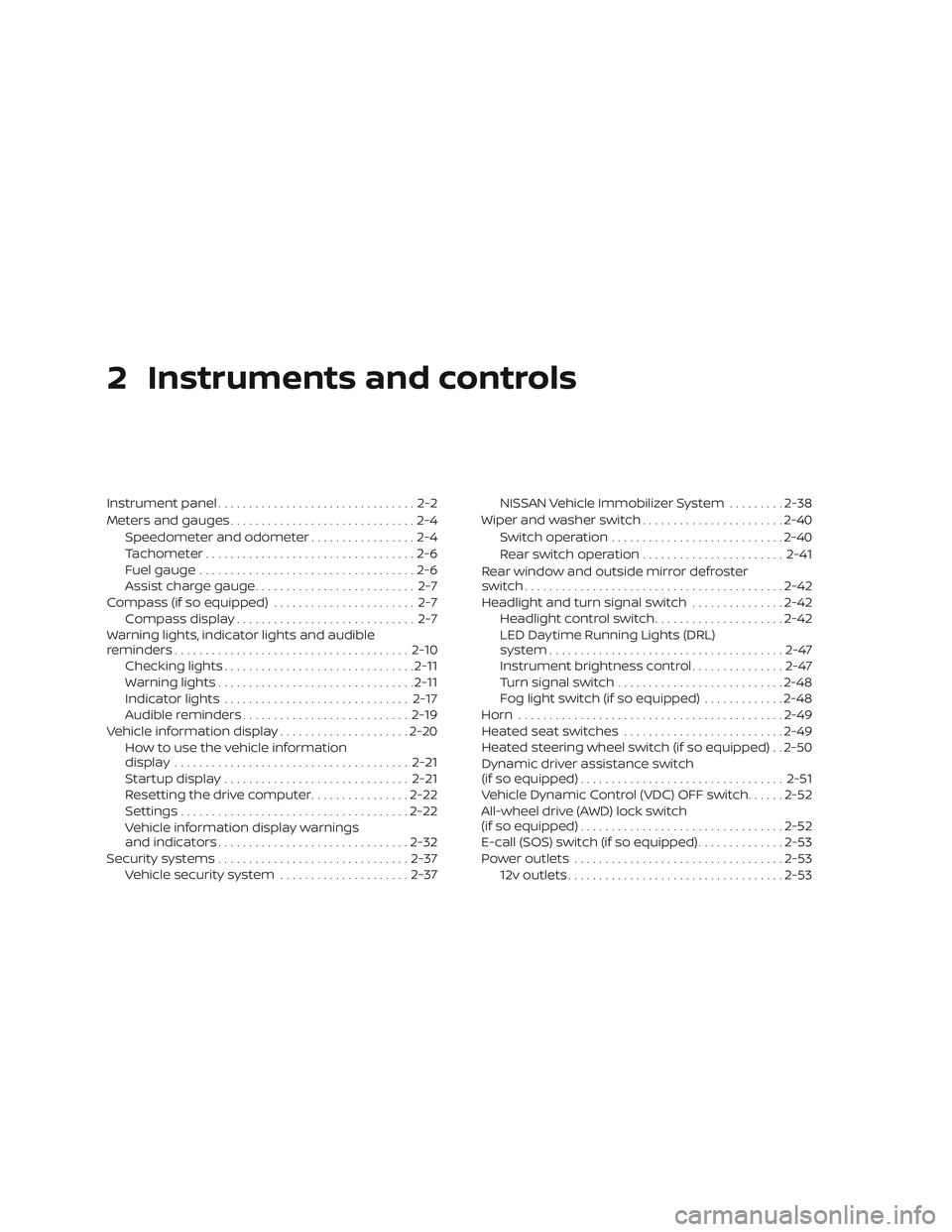

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-4
Speedometer and odometer .................2-4
Tachometer ..................................2-6
Fuel gauge ...................................2-6
Assist charge gauge .......................... 2-7
Compass (if so equipped) ....................... 2-7
Compass display ............................. 2-7
Warning lights, indicator lights and audible
reminders ...................................... 2-10
Checking lights ............................... 2-11
Warning lights ................................ 2-11
Indicator lights .............................. 2-17
Audible reminders ........................... 2-19
Vehicle information display .....................2-20
How to use the vehicle information
display ...................................... 2-21
Startup display .............................. 2-21
Resetting the drive computer ................2-22
Settings ..................................... 2-22
Vehicle information display warnings
and indicators ............................... 2-32
Security systems ............................... 2-37
Vehicle security system .....................2-37NISSAN Vehicle Immobilizer System
.........2-38
Wiper and washer switch .......................2-40
Switch operation ............................ 2-40
Rear switch operation ....................... 2-41
Rear window and outside mirror defroster
switch .......................................... 2-42
Headlight and turn signal switch ...............2-42
Headlight control switch .....................2-42
LED Daytime Running Lights (DRL)
system ......................................2-47
Instrument brightness control ...............2-47
Turn signal switch ........................... 2-48
Fog light switch (if so equipped) .............2-48
Horn ........................................... 2-49
Heated seat switches .......................... 2-49
Heated steering wheel switch (if so equipped) . . 2-50
Dynamic driver assistance switch
(if so equipped) ................................. 2-51
Vehicle Dynamic Control (VDC) OFF switch ......2-52
All
-wheel drive (AWD) lock switch
(if so equipped) ................................. 2-52
E-call (SOS) switch (if so equipped) ..............2-53
Power outlets .................................. 2-53
12v outlets ................................... 2-53

15. Cruise control main/set switches(if so equipped) (P. 5-54)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-56)
Bluetooth® Hands-Free Phone
System*
16. Driver supplemental air bag
(P. 1-45)
Horn (P. 2-49)
17. Tilt and telescopic steering (P. 3-31)
18. Control panel and vehicle informa-
tion display switches (P. 2-20)
19. Hood release (P. 3-21)
20. SPORT mode switch (P. 5-24) Fuel door release (P. 3-28)
ECO mode switch (P. 5-24)
Power lif tgate switch
(if so equipped) (P. 3-22)
Power lif tgate main switch
(if so equipped) (P. 3-22)
All-Wheel Drive (AWD) LOCK switch
(if so equipped) (P. 2-52)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-52)
Heated steering wheel switch
(if so equipped) (P. 2-50)
Dynamic driver assistance switch
(if so equipped) (P. 2-51) 21. Instrument brightness control
(P. 2-47)
Twin trip odometer reset switch
(P. 2-5)
*: Refer to the separate NissanConnect®
Owner’s Manual.
Refer to the page number indicated in
parentheses for operating details.
Instruments and controls2-3

1. Tachometer
2. Warning and indicator lights
3. Vehicle information display
4. Speedometer
5. Fuel gauge
6. Assist charge gaugeSPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side of the meter clus-
ter. The odometer is located within the ve-
hicle information display.
Speedometer
The speedometer indicates vehicle speed.
LIC3636
LIC2255
METERS AND GAUGES
2-4Instruments and controls

Odometer/Twin trip odometer
The odometer and the twin trip odometer
1are displayed in the vehicle information
display when the ignition switch is placed
in the ON position.
The odometer records the total distance
the vehicle has been driven.
The twin trip odometer records the dis-
tance of individual trips. Changing the display
Push the TRIP RESET switch
2on the lef t
side of the instrument panel to change the
display as follows:
ODO →Trip
→Trip→ ODO
Resetting the trip odometer
Pushing the TRIP RESET switch
2for more
than 1 second resets the currently dis-
played trip odometer to zero.
Clock and Outside temperature
display
Clock
The clock is displayed at the top of the
vehicle information display.
Outside temperature display
The outside temperature is displayed at
the top of the vehicle information display.
The snowflake icon appears if the outside
temperature is below 37°F (3°C). The tem-
perature can be changed to display in Cel-
sius or Fahrenheit. For additional informa-
tion, refer to “Unit” in this section.
LIC3693LIC3694
Instruments and controls2-5

Clock
Menu itemResult
Clock Allows user to set the clock displayed within the vehicle information display. When selected, the user may be
instructed to go to the settings menu in the audio center display. For additional information, refer to the
separate NissanConnect® Owner’s Manual.
Meter Settings
The meter settings allow the user to
change the settings for the vehicle infor-
mation display.
Menu item Result
Main Menu Selection Displays the available options.
Home Allows user to turn the home screen on or off in the vehicle information display.
Average Speed Allows user to turn the average speed screen on or off in the vehicle information display.
Trip Allows user to turn the trip display on or off in the vehicle information display.
Energy Flow Allows user to turn the energy flow display on or off in the vehicle information display. For additional
information, refer to “Energy monitors” in the “HEV Overview” section of this manual.
EV Odometer Allows user to turn the EV odometer display on or off in the vehicle information display.
Coolant Temp. Allows user to turn the coolant temperature display on or off in the vehicle information display.
Fuel Economy Allows user to turn the fuel economy display on or off in the vehicle information display.
Navigation (if so equipped) Allows user to turn the navigation display on or off in the vehicle information display. For additional
information, refer to the separate NissanConnect® Owner’s Manual.
Audio Allows user to turn the audio screen on or off in the vehicle information display.For additional information,
refer to the separate NissanConnect® Owner’s Manual.
Cruise Control (if so equipped) Allows user to turn the cruise control display on or off in the vehicle information display.
Safety Shield (if so equipped) Allows user to turn the driving aids display on or off in the vehicle information display. For additional
information, refer to “Driver Assistance” in this section.
Tire Pressures Allows user to turn the tire pressure display on or off in the vehicle information display.
2-24Instruments and controls

Transmission fluid/oil, differential oil,
transfer case oil:Visually inspect for signs
of leakage at specified intervals.
If using a car-top carrier or driving on rough
or muddy roads:
∙ Replace the fluid/oil every 20,000 miles (32,000 km) or 24 months.
∙ Replace the CVT fluid every 30,000 miles (48,000 km).
Off-road maintenance: Check the follow-
ing items frequently whenever you drive
off-road through deep sand, mud or water:
∙ Brake pads and rotors
∙ Brake lines and hoses
∙ Differential, transmission and transfer case oil
∙ Steering linkage
∙ Propeller shaf t(s) and front drive shaf ts
∙ Engine air filter To help ensure smooth, safe and economi-
cal driving, NISSAN provides two mainte-
nance schedules that may be used, de-
pending upon the conditions in which you
usually drive. These schedules contain
both distance and time intervals, up to
120,000 miles (192,000 km)/144 months. For
most people, the odometer reading will in-
dicate when service is needed. However, if
you drive very little, your vehicle should be
serviced at the regular time intervals
shown in the schedule.
Af ter
120,000 miles
(192,000 km)/144 months, continue
maintenance at the same mileage/time
intervals.
ADDITIONAL MAINTENANCE ITEMS
FOR SEVERE OPERATING
CONDITIONS
Additional maintenance items for severe
operating conditions should be per-
formed on vehicles that are driven under
especially demanding conditions. Addi-
tional maintenance items should be per-
formed if you primarily operate your vehicle
under the following conditions:
∙ Repeated short trips of less than 5 miles (8 km). ∙ Repeated short trips of less than
10 miles (16 km) with outside tempera-
tures remaining below freezing.
∙ Operating in hot weather in stop-an-go “rush hour” traffic.
∙ Extensive idling and/or low speed driv- ing for long distances, such as police,
taxi or door-to-door delivery use.
∙ Driving in dusty conditions.
∙ Driving on rough, muddy or salt spread roads.
∙ Using a car-top carrier.
NOTE:
For vehicles operated in Canada, both
standard and severe maintenance items
should be performed at every interval.
MAINTENANCE SCHEDULES
Maintenance and schedules9-7
