2018 NISSAN NV200 Owners Manual

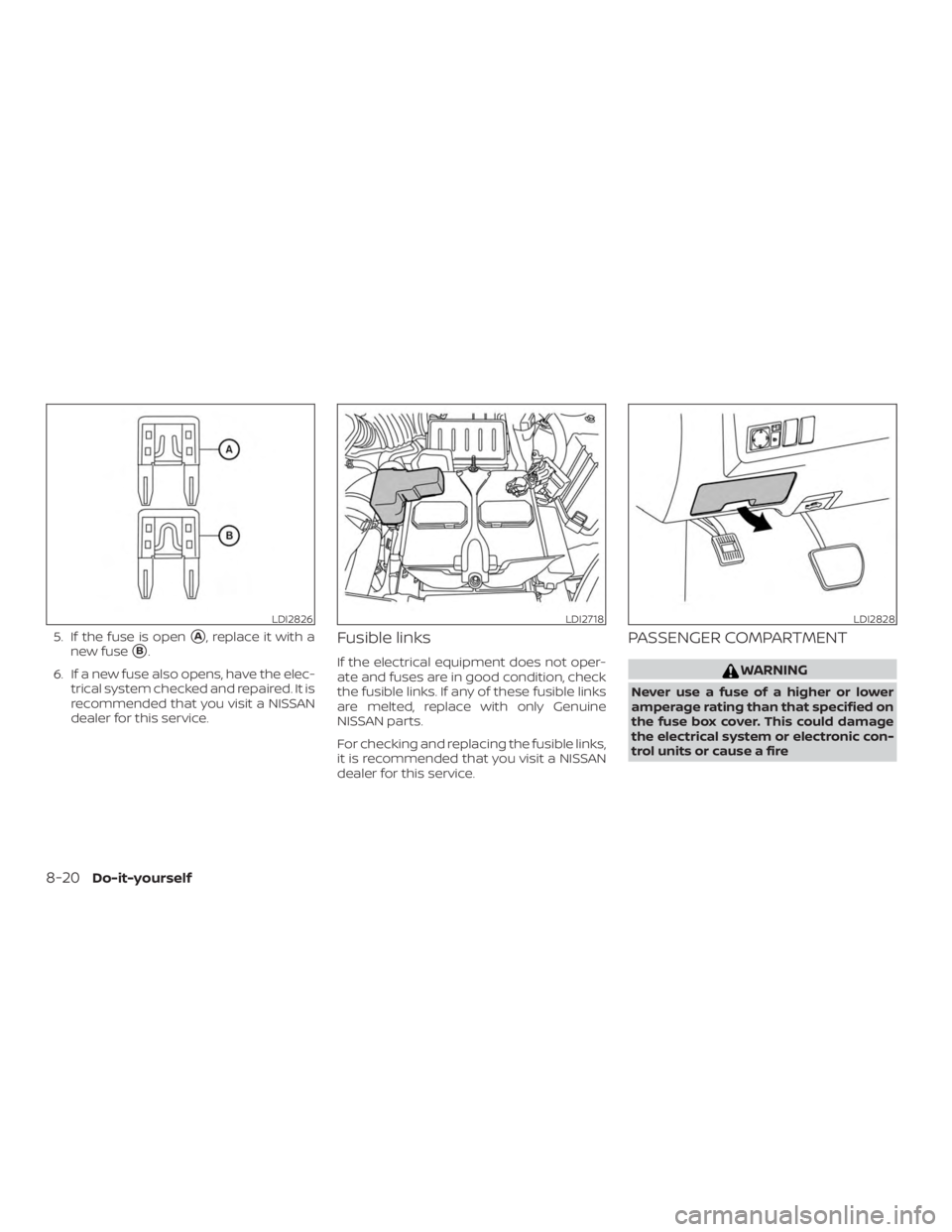

5. If the fuse is openA, replace it with a
new fuse
B.
6. If a new fuse also opens, have the elec- trical system checked and repaired. It is
recommended that you visit a NISSAN
dealer for this service.Fusible links
If the electrical equipment does not oper-
ate and fuses are in good condition, check
the fusible links. If any of these fusible links
are melted, replace with only Genuine
NISSAN parts.
For checking and replacing the fusible links,
it is recommended that you visit a NISSAN
dealer for this service.
PASSENGER COMPARTMENT

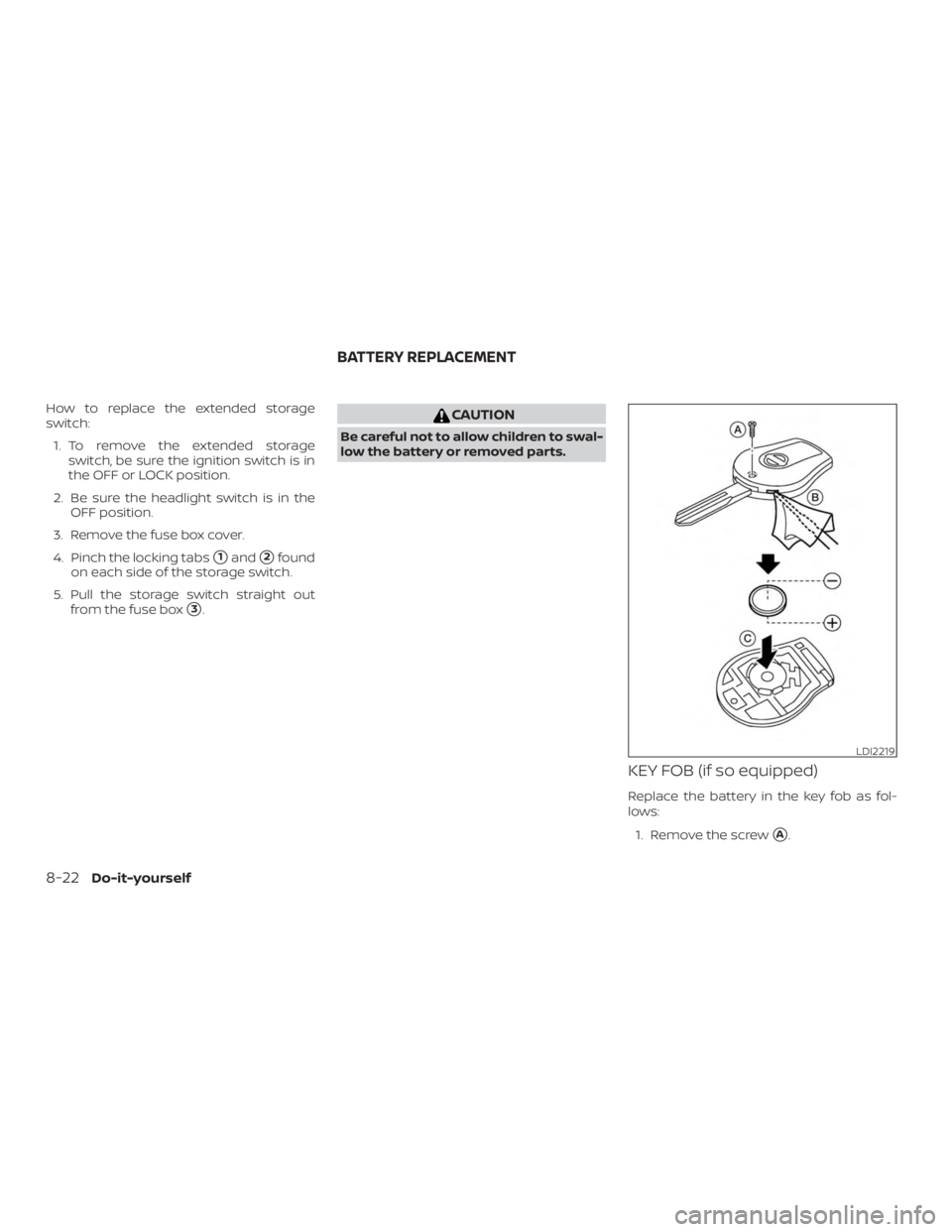

How to replace the extended storage
switch:1. To remove the extended storage switch, be sure the ignition switch is in
the OFF or LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
1and2found
on each side of the storage switch.
5. Pull the storage switch straight out from the fuse box
3.

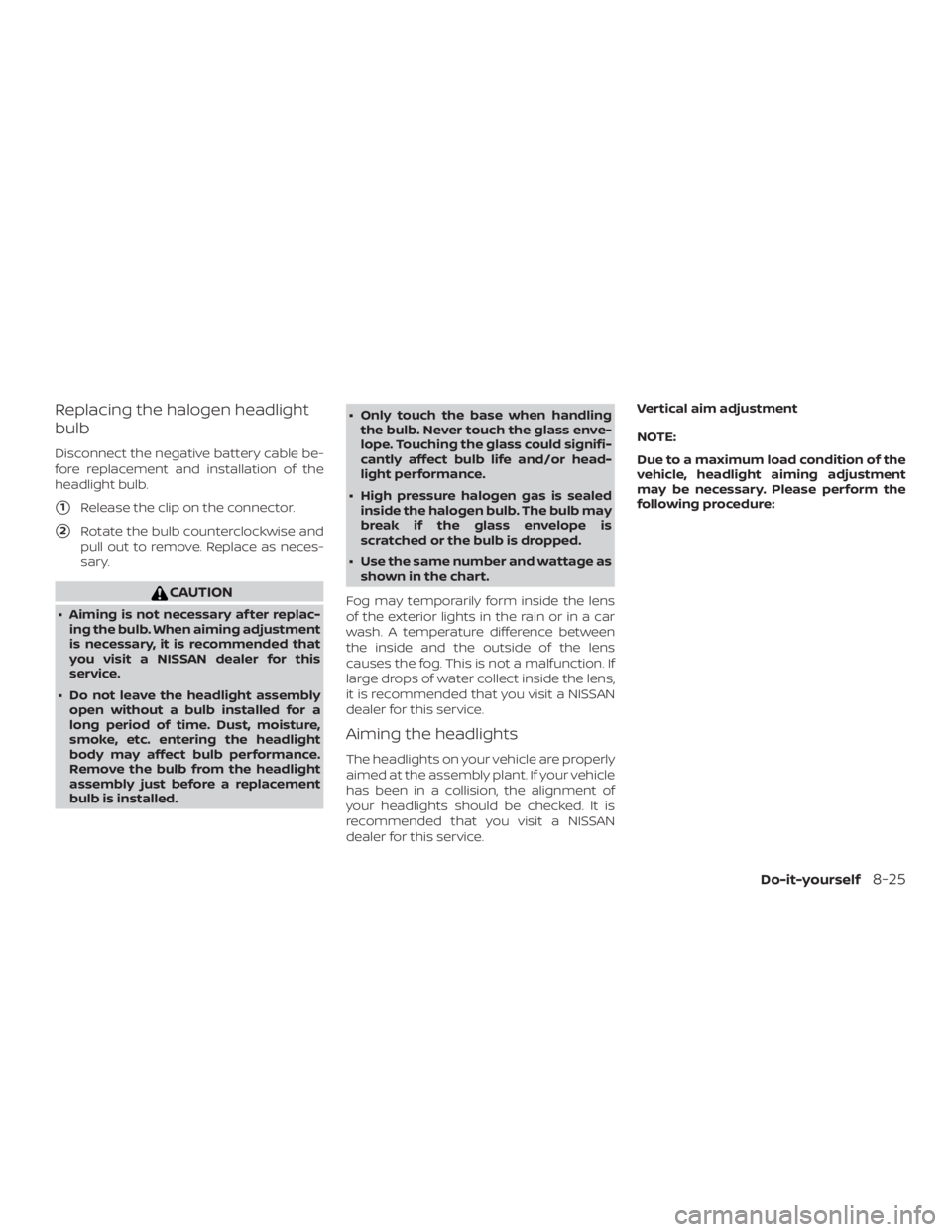

Replacing the halogen headlight
bulb
Disconnect the negative battery cable be-
fore replacement and installation of the
headlight bulb.
1Release the clip on the connector.
2Rotate the bulb counterclockwise and
pull out to remove. Replace as neces-
sary.
