2018 NISSAN MICRA steering

20. Tilt steering (P. 3-14)
21. Audio control switches(if so equipped) (P.4-45)
Bluetooth® hands-free phone
system controls (if so equipped)
(P. 4-47)
22. Fuel-filler door release lever (P. 3-11) Hood release lever (P. 3-9)
23. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-22)
24. Electronic outside rearview mirror
control switch (if so equipped)
(P. 3-16)
Refer to the page number indicated in
parentheses for operating details.
1. Tachometer
2. Speedometer
3. OdometerTrip computer 4. Instrument brightness control
knob
5. Change/reset button
LIC3356
METERS AND GAUGES
Instruments and controls2-3

Anti-lock Braking System (ABS)
warning lightPower steering warning light
(if so equipped)High beam indicator light (blue)
Brake warning lightSeat belt warning light and chimeMalfunction Indicator Light (MIL)
Charge warning lightSupplemental air bag warning lightOverdrive OFF indicator light
(A/T models only)
Door open warning lightAutomatic Transmission position
indicator light (A/T models only)Security indicator light
Engine oil pressure warning lightCRUISE indicator light (if so equipped)Slip indicator light
High temperature warning light (red)Front fog light indicator light
(if so equipped)Turn signal/hazard indicator lights
Low windshield-washer fluid warning lightFront passenger air bag status lightVehicle Dynamic Control (VDC)
OFF indicator light
CHECKING LIGHTS
With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine.The following lights (if so equipped) will
come on:
,,,,,
The following lights (if so equipped) come
on briefly and then go off:
,,,,,
If any light fails to come on or operate in a
way other than described, it may indicate a
burned-out bulb and/or a system mal-
function. Have the system checked. It is
WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS
2-8Instruments and controls

Power steering warninglight (if so equipped)
WARNING
∙ If the engine is not running or is turned off while driving, the power as-
sist for the steering will not work.
Steering will be harder to operate.
∙ When the power steering warning light illuminates with the engine run-
ning, there will be no power assist for
the steering. You will still have control
of the vehicle, but the steering will be
harder to operate. Have the power
steering system checked. It is recom-
mended that you visit a NISSAN dealer
for this service.
When the ignition switch is placed in the ON
position, the power steering warning light
illuminates. Af ter starting the engine, the
power steering warning light turns off. This
indicates the power steering is operational.
If the power steering warning light illumi-
nates while the engine is running, it may
indicate the power steering is not function-
ing properly and may need servicing. Have
the power steering checked. It is recom-
mended that you visit a NISSAN dealer for
this service. When the power steering warning light illu-
minates with the engine running, there will
be no power assist for the steering, but you
will still have control of the vehicle. At this
time, greater steering effort is required to
operate the steering wheel, especially in
sharp turns and at low speeds.
For additional information, refer to “Power
steering” in the “Starting and driving” sec-
tion of this manual.
Seat belt warning light and
chime
The light and chime remind you to fasten
your seat belts. The light illuminates when-
ever the ignition switch is placed in the ON
or START position and remains illuminated
until the driver’s seat belt is fastened.
The seat belt warning light may also illumi-
nate if the front passenger’s seat belt is not
fastened when the front passenger’s seat
is occupied .
For additional information, refer to “Seat
belts” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
this manual.
Supplemental air bagwarning light
When the ignition switch is placed in the ON
or START position, the supplemental air
bag warning light illuminates for about
7 seconds and then turns off. This means
the system is operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag,
and pretensioner seat belt systems need
servicing:
∙ The supplemental air bag warning light remains on af ter approximately 7 sec-
onds.
∙ The supplemental air bag warning light flashes intermittently.
∙ The supplemental air bag warning light does not come on at all.
It is recommended that you visit a NISSAN
dealer for these services.
Unless checked and repaired, the supple-
mental restraint system (air bag system)
and/or the pretensioner(s) may not func-
tion properly. For additional information, re-
fer to “Supplemental Restraint System
Instruments and controls2-11

NOTE:
In case of a turn signal light malfunction,
the turn signal indicator will flash at a
higher frequency when the turn signal is
activated.
Lane change signal
2Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, to signal a lane change.
Hold the lever until the lane change is
completed.Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, and release the lever.
The turn signal will automatically flash
three times.
Choose the appropriate method to signal
a lane change based on road and traffic
conditions.
FRONT FOG LIGHTS (if so
equipped)
To turn the front fog lights on, rotate the
headlight switch to the
orposi-
tion, then rotate the fog light switch to
the
position.
To turn them off, rotate the fog light switch
to the OFF position. To sound the horn, push near the horn icon
on the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.
LIC3262LIC2419
HORN
Instruments and controls2-21

3 Pre-driving checks and adjustments
Keys.............................................3-2NISSAN Vehicle Immobilizer System
keys..........................................3-3
Doors ...........................................3-3
Locking with key ..............................3-4
Locking with inside lock knob .................3-5
Locking with power door lock switch
(if so equipped) ...............................3-5
Automatic door locks (if so equipped) ........3-6
Child safety rear door lock ....................3-6
Remote keyless entry system (if so equipped) . . . 3-6 How to use remote keyless entry
system ....................................... 3-7
Hood ............................................3-9 Rear hatch (Hatchback)
........................3-10
Opening the rear hatch ......................3-10
Closing the rear hatch ........................ 3-11
Fuel-filler door ................................... 3-11
Opener operation ............................ 3-11
Fuel-filler cap ................................. 3-11
Steering wheel ................................. 3-14
Tilt operation ................................ 3-14
Sun visors ...................................... 3-14
Vanity mirrors (if so equipped) ...............3-15
Card holder (driver’s side only)
(if so equipped) .............................. 3-15
Mirrors ......................................... 3-15
Rearview mirror ............................. 3-15
Outside mirrors ............................. 3-16

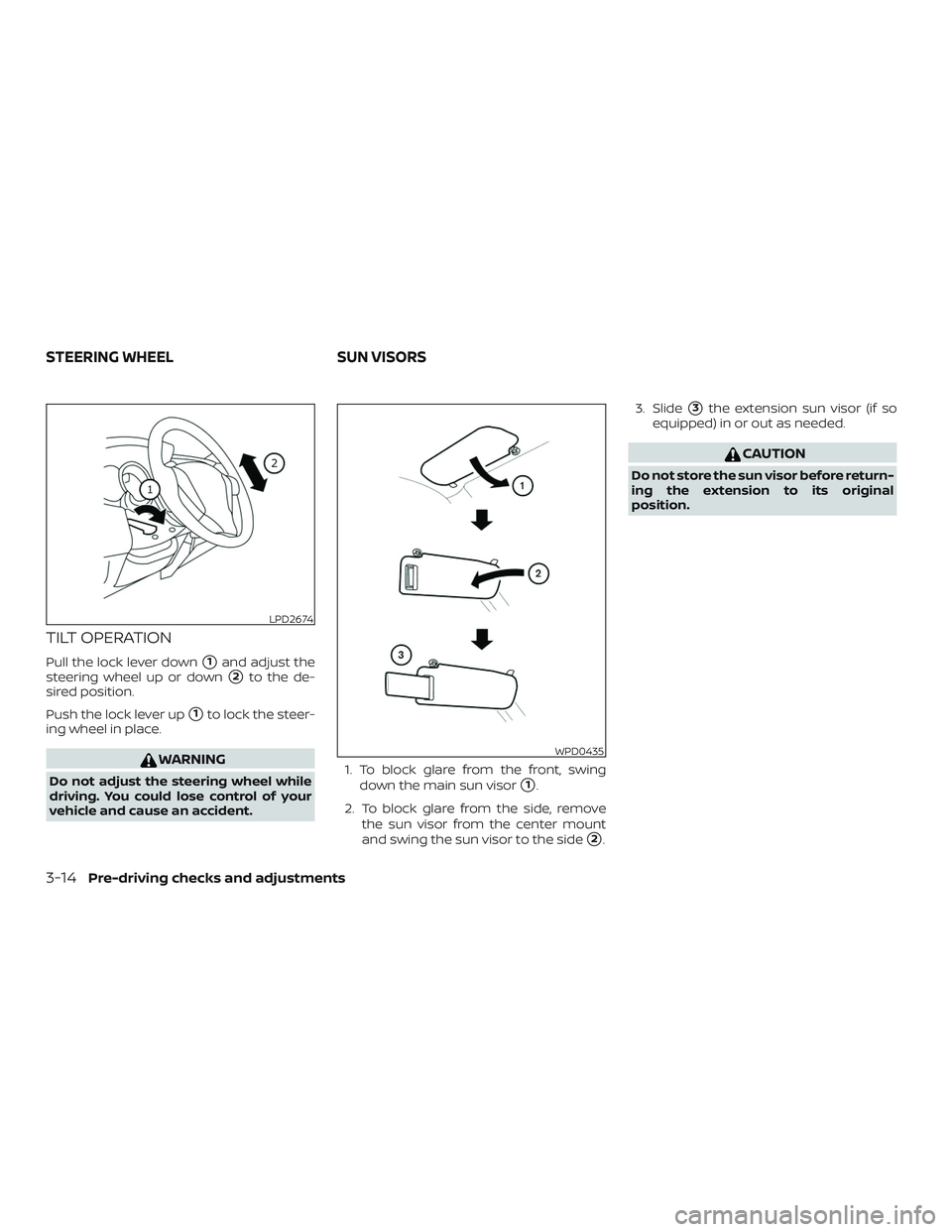

TILT OPERATION
Pull the lock lever down1and adjust the
steering wheel up or down
2to the de-
sired position.
Push the lock lever up
1to lock the steer-
ing wheel in place.
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident. 1. To block glare from the front, swing
down the main sun visor1.
2. To block glare from the side, remove the sun visor from the center mount
and swing the sun visor to the side
2. 3. Slide
3the extension sun visor (if so
equipped) in or out as needed.
CAUTION
Do not store the sun visor before return-
ing the extension to its original
position.
LPD2674
WPD0435
STEERING WHEEL SUN VISORS
3-14Pre-driving checks and adjustments

4 Heater, air conditioner, audio and
phone systems
RearView Monitor (if so equipped)...............4-2
RearView Monitor system operation ..........4-3
How to read the displayed lines ...............4-4
Difference between predicted and
actual distances ..............................4-4
Adjusting the screen .........................4-6
RearView Monitor system limitations .........4-6
System maintenance .........................4-8
Vents ............................................4-8
Heater (manual) (if so equipped) .................4-9
Controls ..................................... 4-10
Heater operation ............................. 4-11
Air flow charts ............................... 4-12
Heater and air conditioner (manual)
(if so equipped) ................................. 4-15
Controls ..................................... 4-16
Heater operation ............................ 4-17
Air conditioner operation ....................4-18
Air flow charts ............................... 4-19
Servicing air conditioner (if so equipped) ........4-23
Audio system ................................... 4-23
Radio ........................................ 4-23FM radio reception
.......................... 4-23
AM radio reception .......................... 4-24
Audio operation precautions ................4-24
FM/AM radio with compact disc (CD)
player (Type A) (if so equipped) ...............4-31
FM/AM radio with compact disc (CD)
player (Type B) (if so equipped) ...............4-36
USB (Universal Serial Bus) connection
port (if so equipped) ......................... 4-40
iPod®* player operation (if so equipped) ......4-42
CD care and cleaning ........................ 4-44
Steering wheel switch for audio control
(if so equipped) .............................. 4-45
Antenna ..................................... 4-46
Car phone or CB radio ..........................4-47
Bluetooth® Hands-Free Phone System
(if so equipped) .................................4-47
Regulatory information ......................4-49
Using the system ............................ 4-49
Control buttons ............................. 4-51
Getting started .............................. 4-51
List of

voice commands ..................... 4-53
Troubleshooting guide ......................4-57

∙ A new disc may be rough on the innerand outer edges. Remove the rough
edges by rubbing the inner and outer
edges with the side of a pen or pencil as
illustrated.
STEERING WHEEL SWITCH FOR
AUDIO CONTROL (if so equipped)
The audio system can be operated using
the controls on the steering wheel.
1. SOURCE switch
2.
Tuning switch
3. Volume control switch
SOURCE switch
With the ignition switch placed in the ACC
or ON position, push the SOURCE switch to
turn the audio system on.
Push the SOURCE switch to change the
mode in the following sequence: AM →FM
→ CD →iPod® →AUX.
If no CD is loaded or AUX and/or iPod® are
not connected, the CD, AUX and or iPod®
modes will be skipped.
Volume control switches
Push the volume control switch to increase
or decrease the volume.
Tuning switch
For most audio sources, pushing the tun-
ing switches for more than 1.5 seconds
provides a different function than pressing
for less than 1.5 seconds.
AM and FM:
∙ Push the
switch for less than
1.5 seconds to increase or decrease the
preset station.
∙ Push the
switch for more than
1.5 seconds to seek up or down to the
next station.
LHA2054
Heater, air conditioner, audio and phone systems4-45
