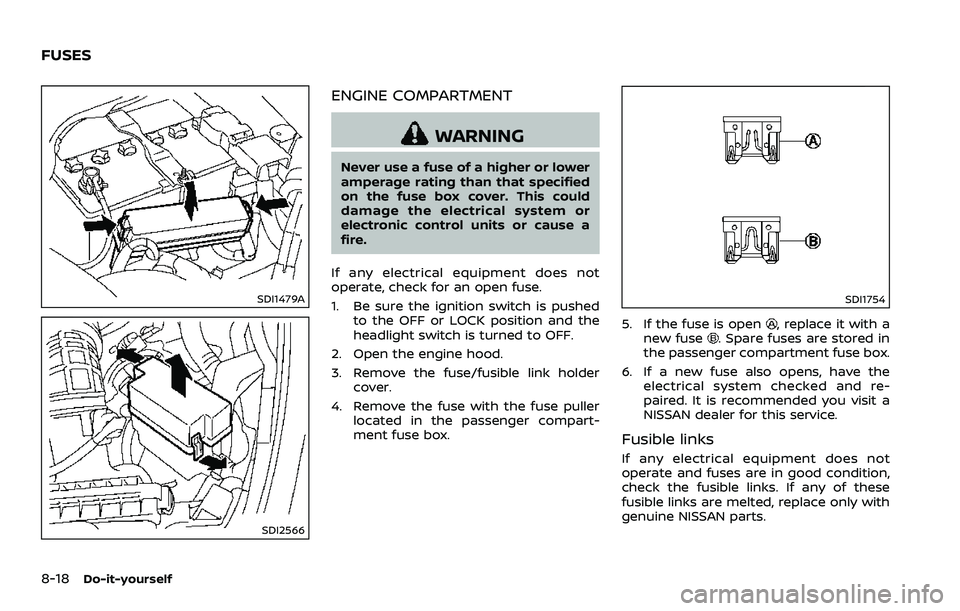

8-18Do-it-yourself
SDI1479A
SDI2566
ENGINE COMPARTMENT
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified
on the fuse box cover. This could
damage the electrical system or
electronic control units or cause a
fire.
If any electrical equipment does not
operate, check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the
headlight switch is turned to OFF.
2. Open the engine hood.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller located in the passenger compart-
ment fuse box.
SDI1754
5. If the fuse is open, replace it with a
new fuse. Spare fuses are stored in
the passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and re-
paired. It is recommended you visit a
NISSAN dealer for this service.
Fusible links
If any electrical equipment does not
operate and fuses are in good condition,
check the fusible links. If any of these
fusible links are melted, replace only with
genuine NISSAN parts.
FUSES

9-4Maintenance and schedules
properly and smoothly, and are installed
securely. Check the belt webbing for cuts,
fraying, wear or damage.
Steering wheel:Check for changes in the
steering conditions, such as excessive
free play, hard steering or strange noises.
Warning lights and chimes: Make sure
that all warning lights and chimes are
operating properly.
Windshield defroster: Check that the air
comes out of the defroster outlets prop-
erly and in sufficient quantity when oper-
ating the heater or air conditioner.
Windshield wiper and washer*: Check
that the wipers and washer operate
properly and that the wipers do not
streak.
Under the hood and vehicle
The maintenance items listed here should
be checked periodically (for example,
each time you check the engine oil or
refuel).
Battery*: Check the fluid level in each cell.
It should be between the MAX and MIN
lines. Vehicles operated in high tempera-
tures or under severe condition require
frequent checks of the battery fluid level. NOTE:
Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start condi-
tions such as:
1.
Installation or extended use of elec-
tronic accessories that consume
battery power when the engine is
not running (Phone chargers, GPS,
DVD players, etc.)
2. Vehicle is not driven regularly and/
or only driven short distances.
In these cases, the battery may need to
be charged to maintain battery health.
Brake and clutch fluid levels*: Make sure
that the brake and clutch fluid levels are
between the MAX and MIN lines on the
reservoir.
Engine coolant level*: Check the coolant
level when the engine is cold.
Engine drive belts*: Make sure that no
belt is frayed, worn, cracked or oily.
Engine oil level*: Check the level after
parking the vehicle on a level spot and
turning off the engine. Wait more than 15
minutes for the oil to drain back into the
oil pan.
Exhaust system: Make sure there are no
loose supports, cracks or holes. If the
sound of the exhaust seems unusual or
there is a smell of exhaust fumes, im- mediately have the exhaust system in-
spected. It is recommended you visit a
NISSAN dealer for this service. (See “Pre-
cautions when starting and driving” (P.5-
2) for exhaust gas (carbon monoxide).)
Fluid leaks:
Check under the vehicle for
fuel, oil, water or other fluid leaks after the
vehicle has been parked for a while. Water
dripping from the air conditioner after use
is normal. If you should notice any leaks
or if gasoline fumes are evident, check for
the cause and have it corrected immedi-
ately.
Power steering fluid level* and lines:
Check the level when the fluid is cold, with
the engine off. Check the lines for proper
attachment, leaks, cracks, etc.
Radiator and hoses: Check the front of
the radiator and clean off any dirt, insects,
leaves, etc., that may have accumulated.
Make sure the hoses have no cracks,
deformation, rot or loose connections.
Underbody: The underbody is frequently
exposed to corrosive substances such as
those used on icy roads or to control
dust. It is very important to remove these
substances, otherwise rust will form on
the floor pan, frame, fuel lines and around
the exhaust system. At the end of winter,
the underbody should be thoroughly
flushed with plain water, being careful to
clean those areas where mud and dirt

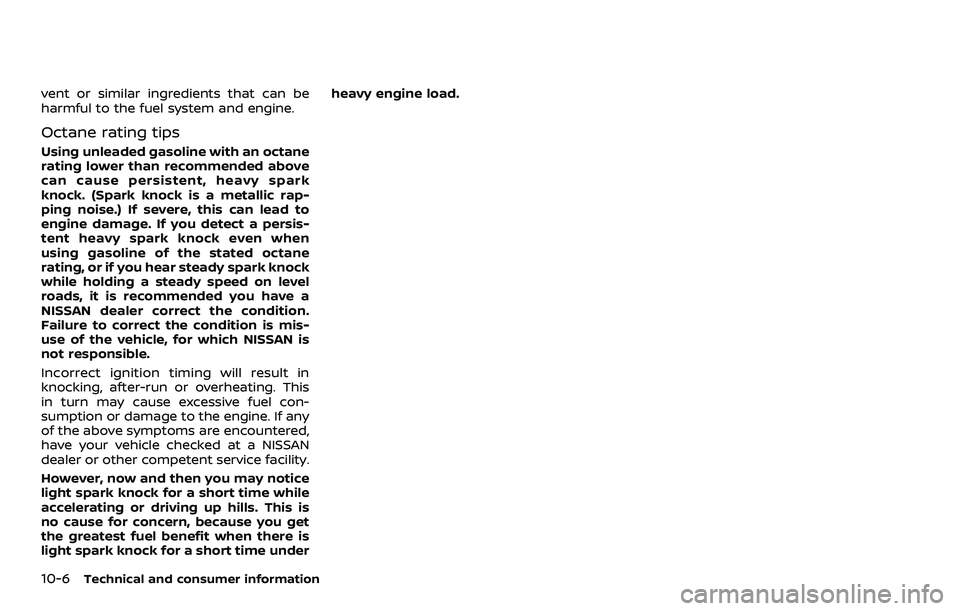

10-6Technical and consumer information
vent or similar ingredients that can be
harmful to the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane
rating lower than recommended above
can cause persistent, heavy spark
knock. (Spark knock is a metallic rap-
ping noise.) If severe, this can lead to
engine damage. If you detect a persis-
tent heavy spark knock even when
using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level
roads, it is recommended you have a
NISSAN dealer correct the condition.
Failure to correct the condition is mis-
use of the vehicle, for which NISSAN is
not responsible.
Incorrect ignition timing will result in
knocking, after-run or overheating. This
in turn may cause excessive fuel con-
sumption or damage to the engine. If any
of the above symptoms are encountered,
have your vehicle checked at a NISSAN
dealer or other competent service facility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is
no cause for concern, because you get
the greatest fuel benefit when there is
light spark knock for a short time underheavy engine load.

https://wwwapps.tc.gc.ca/Saf-Sec-
Sur/7/PCDB-BDPP/fc-cp.aspx?
lang=fra (French speakers).
Additional information concerning
motor vehicle safety may be ob-
tained from Transport Canada’s
Road Safety Information Centre at
1-800-333-0371 or online at www.
tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiterou-
tiere (French speakers).
To notify NISSAN of any safety
concerns please contact our Con-
sumer Information Centre toll free
at 1-800-387-0122.Due to legal requirements in some states
and Canadian Provinces, your vehicle may
be required to be in what is called the
“ready condition” for an Inspection/Main-
tenance (I/M) test of the emission control
system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the “ready condition”
can be obtained by ordinary usage of
the vehicle.
If a powertrain system component is
repaired or the battery is disconnected,
the vehicle may be reset to a “not ready
condition”. Before taking the I/M test,
check the vehicle’s inspection/mainte-
nance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for
20 seconds and then blinks for 10 sec-
onds, the I/M test condition is “not ready”.
If the MIL does not blink after 20 seconds,
the I/M test condition is “ready”.
It is recommended you visit a NISSAN
dealer to set the “ready condition” or to
prepare the vehicle for testing.This vehicle is equipped with an Event
Data Recorder (EDR). The main purpose of
an EDR is to record, in certain crash or
near crash-like situations, such as an air
bag deployment or hitting a road obsta-
cle, data that will assist in understanding
how a vehicle’s systems performed. The
EDR is designed to record data related to
vehicle dynamics and safety systems for a
short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed
to record such data as:
.
How various systems in your vehicle
were operating;
. Whether or not the driver and passen-
ger safety belts were buckled/fas-
tened;
. How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur. NOTE:
EDR data are recorded by your vehicle
only if a nontrivial crash situation occurs;
no data are recorded by the EDR under
normal driving conditions and no perso-
nal data (e.g. name, gender, age and crash
location) are recorded. However, other
parties, such as law enforcement, could
Technical and consumer information10-25
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR)

11-2
Cold weather driving .................................................. 5-33
Compact Disc (CD) player (See
audio system) ................................................................... 4-54
Compact spare tire...................................................... 8-36
Console box ....................................................................... 2-44
CoolantCapacities and
recommended fluids/lubricants................. 10-2
Changing engine coolant .................................. 8-5
Checking engine coolant level....................... 8-5
Corrosion protection ..................................................... 7-8
Cover, Cargo cover....................................................... 2-45
Cruise control ................................................................... 5-22
Cup holders........................................................................\
2-43
D
Dampers, Performance dampers...................... 5-32
Daytime running light system............................. 2-36
Defroster switch, Rear window
defroster switch ............................................................. 2-33
Dimensions ........................................................................\
10-11
Drive belts...................................................................\
.......... 8-14
Driving Cold weather driving .......................................... 5-33
Driving with automatic transmission..... 5-12
Driving with manual transmission............ 5-17
Precautions when starting
and driving..................................................................... 5-2
DVD player operation................................................. 4-55
E
Economy, Fuel.................................................................. 5-25
Elapsed time...................................................................... 2-25
Emergency tire puncture repair kit ................... 6-9
Emission control information label............... 10-13 Emission control system maintenance ......... 9-8
Emission control system warranty .............. 10-24
Engine
Before starting the engine............................... 5-11
Break-in schedule ................................................. 5-24
Capacities and
recommended fluids/lubricants................. 10-2
Changing engine coolant .................................. 8-5
Changing engine oil and filter ....................... 8-6
Checking engine coolant level....................... 8-5
Checking engine oil level.................................... 8-6
Coolant temperature gauge ........................... 2-7
Emergency engine shut off............................ 5-10
Engine block heater ............................................ 5-34
Engine compartment check locations..... 8-3
Engine cooling system ......................................... 8-4
Engine oil.....................................................................\
.... 8-6
Engine oil and oil
filter recommendation ....................................... 10-7
Engine oil replacement indicator ............. 2-23
Engine oil temperature gauge....................... 2-8
Engine oil viscosity ................................................ 10-7
Engine serial number ........................................ 10-13
Engine specifications........................................... 10-9
Engine start operation indicator................ 2-19
Engine start operation indicator
(Manual Transmission models)................... 2-20
If your vehicle overheats .................................. 6-17
Starting the engine................................................ 5-11
Event Data Recorders (EDR)............................... 10-25
Exhaust gas (carbon monoxide) .......................... 5-2
Explanation of scheduled
maintenance items ......................................................... 9-5
Extended storage fuse warning ........................ 2-22
Exterior light indicator................................................ 2-15
F
F.M.V.S.S./C.M.V.S.S. certification label ......... 10-13
Filter Air cleaner housing filter .................................. 8-15
Changing engine oil and filter ....................... 8-6
Flashers (See hazard warning
flasher switch)..................................................................... 6-2
Flat tire........................................................................\
.............. 6-3 Repairing flat tire (with emergency tire
puncture repair kit) ................................................. 6-9
Flat towing........................................................................\
10-22
Floor mat cleaning .......................................................... 7-6
Floor mat installation.................................................... 7-7
Fluid Automatic Transmission Fluid (ATF) ......... 8-8
Brake and clutch fluid .......................................... 8-9
Brake fluid ...................................................................... 8-9
Capacities and
recommended fluids/lubricants................. 10-2
Engine coolant............................................................ 8-4
Engine oil.....................................................................\
.... 8-6
Power steering fluid ............................................... 8-8
Window washer fluid ........................................... 8-10
FM-AM radio with Compact Disc
(CD) player ........................................................................\
... 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ........................................................................\
... 4-52
Fog light switch .............................................................. 2-38
Front manual seat adjustment .............................. 1-4
Front passenger air bag and status light ..... 1-38
Front power seat adjustment ................................. 1-3
Front seat, Front seat adjustment ...................... 1-3
Front-seat active head restraints ........................ 1-9
Fuel Capacities and
recommended fluids/lubricants................. 10-2

11-4
Headlights bulb replacement ...................... 8-23
Indicator lights.......................................................... 2-15
Interior light control switch .......................... 2-50
Interior lights............................................................. 2-50
Map lights .................................................................... 2-50
Replacement ............................................................. 8-22
Trunk light................................................................... 2-52
Vanity mirror lights ............................................... 2-51
Warning lights, indicator lights and
audible reminders ................................................... 2-11
Xenon headlights................................................... 2-34
Lights check/instrument panel............................ 2-11
Lights, Exterior and interior
light replacement .......................................................... 8-24
Loading information (See vehicle
loading information) ................................................. 10-19
Lock Automatic door locks............................................ 3-6
Door locks....................................................................... 3-5
Power door lock ........................................................ 3-5
Rear hatch lock........................................................ 3-18
Trunk lid ........................................................................\
3-20
Locking with mechanical key ................................. 3-5
Low tire pressure warning light ......................... 2-13
Low tire pressure warning system (See Tire
Pressure Monitoring System (TPMS)) ............... 5-3
M
Maintenance Battery........................................................................\
...... 8-11
General maintenance............................................ 9-2
Inside the vehicle...................................................... 9-3
Maintenance indicators.................................... 2-23
Maintenance log...................................................... 9-14
Maintenance precautions.................................. 8-2
Maintenance requirement................................. 9-2 Maintenance schedules....................................... 9-6
Maintenance under severe
driving conditions .................................................. 9-13
Outside the vehicle ................................................. 9-2
Seat belt maintenance........................................ 1-15
Standard maintenance ........................................ 9-7
Maintenance schedules............................................... 9-6
Malfunction indicator light (MIL)......................... 2-16
Manual front seat adjustment ................................ 1-4
Map lights ........................................................................\
... 2-50
Master warning light.................................................... 2-14
Mechanical key (Intelligent Key system) ........ 3-4
Meter Trip computer .......................................................... 2-23
Meters and gauges ......................................................... 2-5 Instrument brightness control ................... 2-37
Mirror
Inside mirror .............................................................. 3-39
Outside mirrors ....................................................... 3-40
Vanity mirror .............................................................. 3-41
Multi-function controller............................................ 4-4
N
New vehicle break-in .................................................. 5-24
NISSAN Vehicle Immobilizer System ............. 2-30
NISSAN voice recognition system ................... 4-99
No key warning.............................................................. 2-20
O
Odometer........................................................................\
........ 2-6
Off-road recovery ............................................................. 5-6
Oil Capacities and
recommended fluids/lubricants................. 10-2
Changing engine oil and filter ....................... 8-6 Checking engine oil level.................................... 8-6
Engine oil.....................................................................\
.... 8-6
Engine oil viscosity ................................................ 10-7
Oil filter replacement indicator .................. 2-23
Opening the soft top.................................................. 3-23
Operation, Operational indicators .................... 2-19
Outside mirrors .............................................................. 3-40
Overheat, If your vehicle overheats................. 6-17
Owner’s Manual/Service Manual
order information....................................................... 10-26
P
Panic alarm........................................................................\
.. 3-15
Parking Brake break-in ......................................................... 5-28
Parking brake operation................................... 5-21
Parking on hills........................................................ 5-26
Performance dampers .............................................. 5-32
Phone Bluetooth® hands-free phone system
(models with navigation system) ............. 4-76
Bluetooth® hands-free phone system
(models without navigation system) ..... 4-86
Car phone or CB radio ...................................... 4-75
Power Front seat adjustment .......................................... 1-3
Power door lock ........................................................ 3-5
Power outlet.............................................................. 2-42
Power steering ........................................................ 5-27
Power steering fluid ............................................... 8-8
Power windows ...................................................... 2-46
Precautions ........................................................................\
5-22 Audio operation...................................................... 4-30
Braking precautions............................................ 5-27
Child restraints .......................................................... 1-19
Cruise control operations................................ 5-18
