2018 MITSUBISHI OUTLANDER width

Rear-view camera (if so equipped)
Features and controls 5-143
5
The rear-view camera (A) is in the liftgate, atthe left side of
the liftgate handle.
Reference lines and uppe
r surface of the rear
bumper (A) are displayed on the screen. Red line (B) indicates approximately 20inches (50 cm) behind the rear bumper.Two Green lines (C) indicate approxi-mately 8 inches (20 cm) outside of thevehicle body.Short transverse lines (1
to 3) indicate dis-
tance from the rear bumper.
Location of rear-view camera

CAUTIONIf the camera lens gets
dirty, a clear image
cannot be obtained. As
necessary, rinse the
lens with clean water a
nd gently wipe with a
clean, soft cloth.To avoid damaging the camera;• Do not rub the cover excessively or polishit by using an abrasive compound. • Do not disassemble the camera.• Do not splash hot wate
r directly on the lens.
• Do not spray the camera and its surround-ings with high-
pressure water.
• Make sure that the liftgate is securelyclosed when backing up.
Reference lines on the screen

1: Approximately at the rear edge of the
rear bumper
2: Approximately 39 inches (100 cm) 3: Approximately 79 inches (200 cm)
CAUTIONThe rear-view camera uses a wide-anglelens. As a result, images and distances shownon the screen are not exact.Actual distance may be different from dis-tance indicated by the
lines on the screen,
depending on the loadi
ng condition of the
vehicle and road surface condition.The reference lines for distance and vehiclewidth are based on a level, flat road surface.In the following cases, objects shown on thescreen will appear to
be farther off than they
actually are.• When the rear of th
e vehicle is weighed
down with the weight of passengers andluggage in the vehicle. (Case 1)• When there is an upward slope at the back.(Case2)
Case 1A- Actual objectsB- Objects shown on the screen
BK0249100US.book 143 ページ ２０１７年５月１０日　水曜日　午前８時４９分

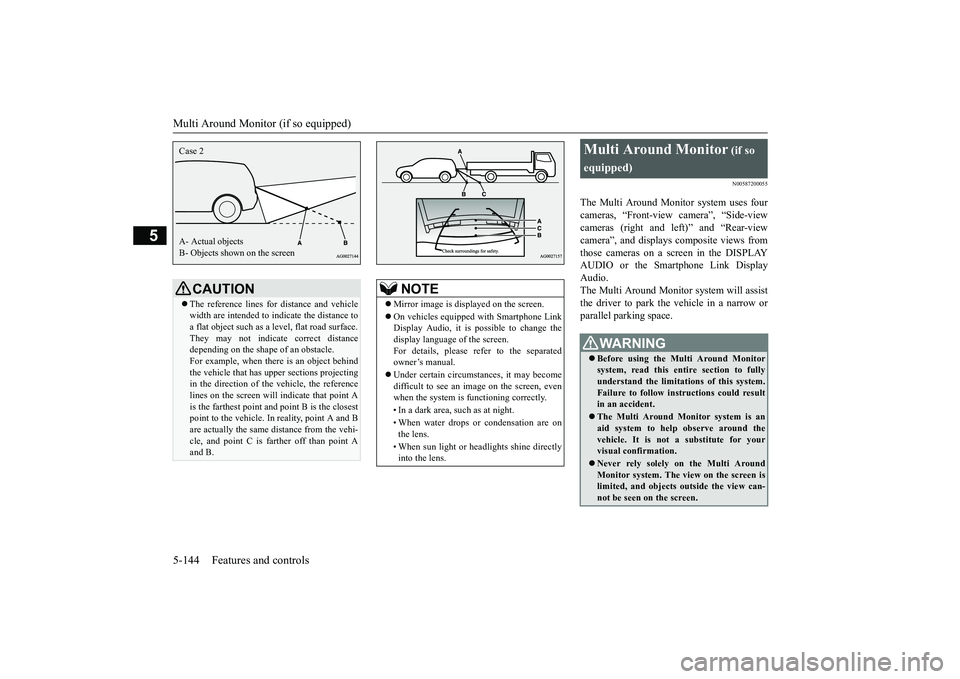

Multi Around Monitor (if so equipped)
5
N00587200055
The Multi Around Monitor system uses fourcameras, “Front-view camera”, “Side-viewcameras (right and le
ft)” and “Rear-view
camera”, and displays
composite views from
those cameras on a screen in the DISPLAYAUDIO or the Smartphone Link DisplayAudio.The Multi Around Monitor
system wi
ll assist
the driver to park the vehicle in a narrow orparallel parking space.
CAUTIONThe reference lines for
distance and vehicle
width are intended to i
ndicate the distance to
a flat object such as a level, flat road surface.They may not indicate correct distancedepending on the shape of an obstacle.For example, when there is an object behindthe vehicle that has u
pper sections projecting
in the direction of the
vehicle, the reference
lines on the screen will
indicate that point A
is the farthest point an
d point B is the closest
point to the vehicle. In
reality, point A and B
are actually the same distance from the vehi-cle, and point C is fa
rther off than point A
and B.Case 2A- Actual objectsB- Objects shown on the screen
NOTE
Mirror image is displayed on the screen.On vehicles equipped with Smartphone LinkDisplay Audio, it is possible to change thedisplay language of the screen.For details, please refer to the separatedowner’s manual.Under certain circumst
ances, it may become
difficult to see an image on the screen, evenwhen the system is functioning correctly. • In a dark area, such as at night. • When water drops or
condensation are on
the lens. • When sun light or he
adlights shine directly
into the lens.
Multi Around Monitor
(if so
equipped)Before using the Multi Around Monitorsystem, read this entire section to fullyunderstand the limitations of this system.Failure to follow instructions could resultin an accident.The Multi Around Monitor system is anaid system to help observe around thevehicle. It is not a substitute for yourvisual confirmation.Never rely solely on the Multi AroundMonitor system. The view on the screen islimited, and objects
outside the view can-
not be seen on the screen.
BK0249100US.book 144 ページ ２０１７年５月１７日　水曜日　午後２時３１分

Multi Around Monitor (if so equipped)
Features and controls 5-149
5
If the camera switch is pressed, the mode ofMulti Around Monitor is switched, Bird’seye-view/Rear-view mode
 Side-
view/Rear-view modeIf the camera switch is pressed, the mode ofMulti Around Monitor is switched, Bird’seye-view/Front-view mode
 Side-
view/Front-view mode
 OFF
N00587600033
In any mode other than the Bird’s eye-viewmode, the lines in the screen give the follow-ing information. Use them only as a guide.
Reference lines for the
distance and the vehi-
cle width and upper surface of the front bum-per (A) are displayed on the screen.The Red line (B) i
ndicates approximately
20 inches (50 cm) from the front edge ofthe front bumper.The Two Green lines (C) indicate theapproximate vehicle width.The Orange lines (D) indicates anexpected course when the vehicle movesforward with the steering wheel turned. Itdisappears when the steering wheel is inthe neutral position.The approximate distance from the vehi-cle body is as follows:
NOTE
If there is no operation for 3 minutes afterthe Multi Around Monitor is displayed bypressing the switch with the selector lever inother than “R” (REVERSE), the display dis-appears.
Switching of the screen (Selector lever is “R” (REVERSE))

Switching of the screen (Selector lever is other than “R”

NOTE
When you move the selector lever to the “R”mode displayed on the driver’s side screen,the driver’s side screen switches to the rear-view mode. When you shift the selector leverto any other position, the driver’s side screenswitches to the front-view mode.When the camera switch is pressed at thevehicle speed of appr
oximately 6 mph (10
km/h) or higher, only
the side-view can be
displayed on the passenger’s side screen.The front-view will not
be displayed when
the vehicle speed exce
eds approximately 6
mph (10 km/h).The display of the view
may be delayed dur-
ing switching of the screen.
How to read the screen

CAUTIONIf the camera and/or its surrounding areahave experienced an impact, the MultiAround Monitor system may not functioncorrectly. Have the vehicle inspected by anauthorized Mitsubish
i Motors dealer.
Front-view mode

BK0249100US.book 149 ページ ２０１７年５月１７日　水曜日　午後２時３１分

Multi Around Monitor (if so equipped)
5
N00587700021
Reference lines for the
distance and the vehi-
cle width and upper surface of the rear bum-per (A) are displayed on the screen.The Red line (B) i
ndicates approximately
20 inches (50 cm) behind the rear edge ofthe rear bumper.The Two Green lines (C) indicate theapproximately vehicle width.The Orange line (D) indicates an expectedcourse when the vehicle is reserved withthe steering wheel turned. It disappearswhen the steering wheel is in the neutralposition.The approximate distance from the vehi-cle body is as follows:
1- Approximately 39 inches (100 cm) from
the front edge of the front bumperNOTE
When the expected course lines are dis-played in the front-view, the expected courselines are also displayed in the bird’s eye-view (Front: solid li
ne, Rear: broken line).
Rear-view mode

1- Approximately 39 inches (100 cm)
from the rear edge of the rear bumper
2- Approximately 79 inches (200 cm)
from the rear edge of the rear bumperCAUTIONThe rear-view camera uses a wide-anglelens. As a result, imag
es and distances shown
on the screen are not exact.Never rely solely on the reference lines. Thereference lines indicati
ng distance and vehi-
cle width are based on a
level, flat road sur-
face.Actual distance may be
different from dis-
tance indica
ted by the lines on the screen,
depending on the loading condition of thevehicle and road
surface condition.
Also, your vehicle wi
dth indicated by the
reference lines may be different from theactual vehicle width.For example;In the following cases, objects shown on thescreen will appear to be farther off than theyactually are.
BK0249100US.book 150 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Around Monitor (if so equipped)
5
N00587900023
Reference lines for the
vehicle width and the
front end of the vehicle are displayed on thescreen.
• When there is an obj
ect behind the vehicle
that has upper sections
projecting in the
direction of the vehicle, the reference lineson the screen will indi
cate that point A is
the farthest point and point B is the closestpoint to the vehicle. In
reality, point A and
B are actually the same distance from thevehicle, and point C is farther off than pointA and B.CAUTION
NOTE
When the expected course lines are dis-played in the rear-view, the expected courselines are also displayed in the bird’s eye-view (Front: broken line, Rear: solid line).
Side-view mode

1- Approximate vehicle width including
the door mirror.
2- Approximate location of the axle center
of the front wheel.
3- Approximate 20 inches (50 cm) from the
front edge of the front bumper.
BK0249100US.book 152 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Tires
Vehicle care and maintenance 9-15
9
N00939201651
It is important to familiarize yourself with thefollowing terms:Cold tire pressure:• The measured pressure after the vehiclehas been parked for
at least three hours,
or• The measured pressure when the vehicleis driven less than 1 mile (1.6 km) afterhaving been parked for three hours.
Maximum pressure: the maximum per-missible cold tire inflation pressure forthis tire.Recommended inflation pressure: theinflation pressure for optimum tire perfor-mance.Intended outboard sidewall:• The sidewall that
contains a whitewall,
bears white lettering or bears manufac-turer, brand, and/or model name moldingthat is higher or deeper than the samemolding on the other sidewall of the tire,or
• The outward facing si
dewall of an asym-
metrical tire that has a particular sidethat must always face outward whenmounted on a vehicle.
Passenger car tire: a
tire intended for use
on passenger cars, multipurpose passen-ger vehicles, and trucks
that have a gross
vehicle weight rati
ng (GVWR) of 10,000
pounds or less.Light truck (LT) tire: a tire designated byits manufacturer as primarily intended foruse on lightweight truc
ks or multipurpose
passenger vehicles.Tread: portion of a ti
re that comes into
contact with the road.Tread rib: a tread se
ction running circum-
ferentially around a tire.Tread separation: pulling away of thetread from the tire carcass.Carcass: the tire structure, except treadand sidewall rubber wh
ich, when inflated,
bears the load.Sidewall: portion of
a tire between the
tread and bead.Section width: the lin
ear distance between
the exteriors of th
e sidewalls of an
inflated tire, excluding elevations due tolabeling, decoration,
or protective bands.
Bead: the part of the tire that is made ofsteel wires, wrapped or reinforced by plycords and that is shaped to fit the rim.
NOTE
Check each battery terminal for corrosion.You can prevent further corrosion by wash-ing with a solution of
baking soda and water.
Grease the posts and cl
amps after cleaning or
tightening them.Ensure the battery is securely installed andcannot be moved. Also
check each terminal
for tightness.If you will not be driv
ing your vehicle for a
long period of time, re
move the battery and
store it in a place where the battery fluid willnot freeze. The batter
y only should be stored
with a full charge.Before cleaning the battery, tighten all thefiller port caps to keep
dirt and moisture out.
Tires
WA R N I N GDriving with tires that are worn, damagedor improperly infl
ated is dangerous.
These type tire conditions will adverselyaffect vehicle performance.These type tire conditions can also cause atread separation or blowout which mayresult in an accident causing seriousinjury or death.
Tires, including spar
e tire, degrade over
time with age even when they are notbeing used.It is recommended that tires over 6 yearsgenerally be replaced
even if damage is
not obvious.WA R N I N G
BK0249100US.book 15 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Tires9-16 Vehicle care and maintenance
9
Ply: a layer of r
ubber-coated parallel
cords.Cord: the strands forming the plies in thetire.Rim: a metal support for a tire or a tireand tube assembly upon which the tirebeads are seated.Rim diameter: nominal diameter of thebead seat.Groove: the space between two adjacenttread ribs.
EXAMPLE: P215/65R15
Tire Markings 1- Size Designation2- Service Description3- Maximum Load4- Maximum Pressure5- U.S. DOT Safety Standards
Code (TIN)
6- Treadwear, Traction and Tem-
perature Grades
Size Designation P
Passenger car tire size based on U.S.A. design standards
215
Section width in millimeters (mm)
65
Aspect ratio in percent (%)Ratio of section height to sec-tion width of tire.
R
Construction code •“R” means radial construc-tion. •“D” means diagonal or bias construction.
15 Rim diameter in inches (in)
NOTE
European/Japanese metric tiresizing is based on European/Jap-anese design standards. Tiresdesigned to these standards havethe tire size molded into thesidewall beginning with the sec-tion width. The letter “P” isabsent from this tire size desig-nation.Example: 215/65R15 96H.LT (Light Truck) -metric tiresizing is based on U.S.A. designstandards. The size designationfor LT-metric tires is the same asfor P-metric tires except for theletters “LT” that are molded intothe sidewall preceding the sizedesignation.Example: LT235/85R16.
BK0249100US.book 16 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Vehicle dimensions11-4 Specifications
11
N01147501678
Vehicle dimensions Overall length
184.8 in (4,695 mm)
Overall width
71.3 in (1,810 mm)
Overall height
67.3 in (1,710 mm)
Wheel base
105.1 in (2,670 mm)
